Hitachi / Hikoki H60ME Demolition Hammer Spare Parts

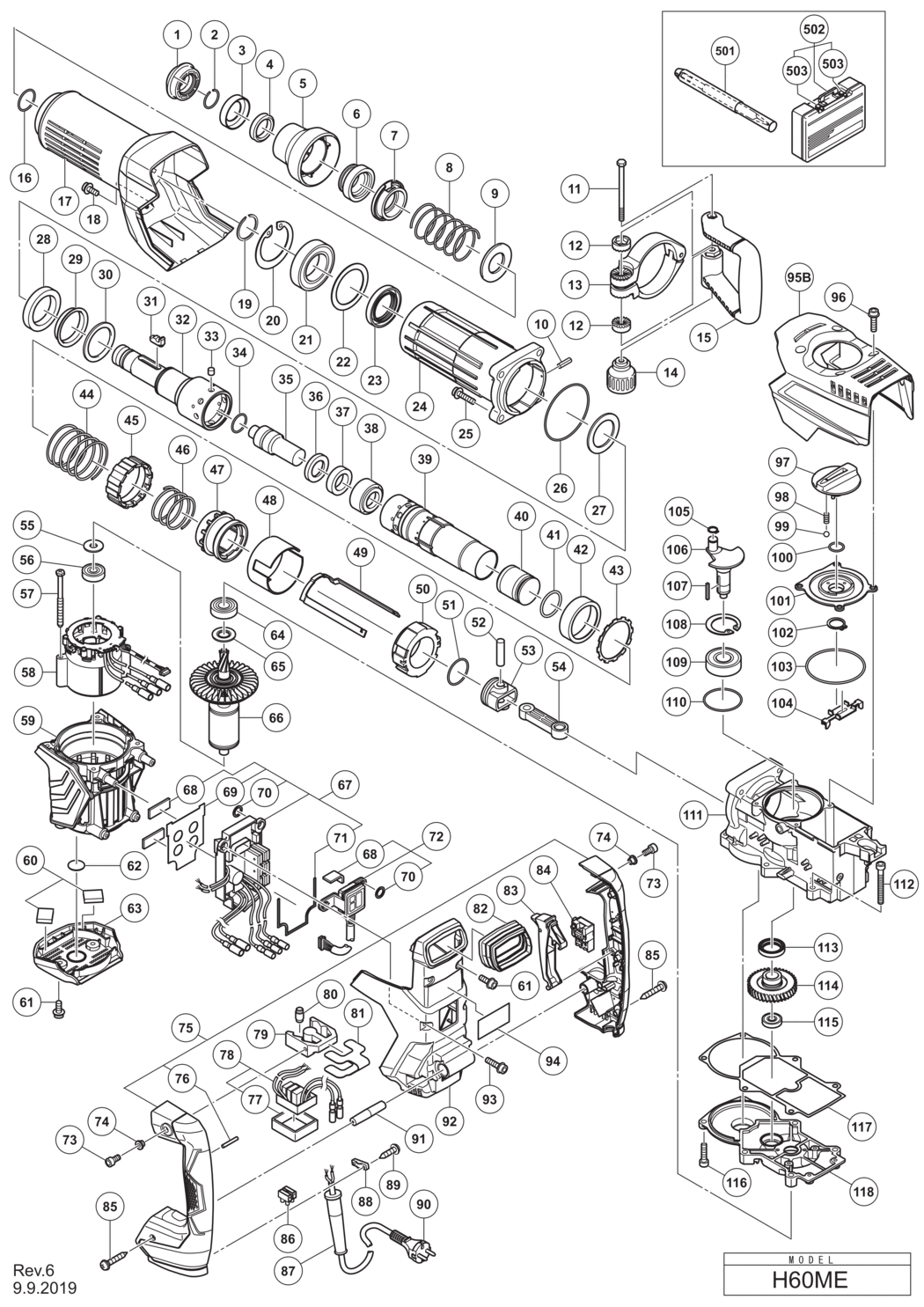

An exploded diagram and spare parts listing for the Hitachi / Hikoki H60ME Demolition Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-337562.A2 337562	£4.81	£5.77
2 - STOPPER RING HIT-318590.A2 318590	£1.67	£2.00
3 - RETAINER WASHER HIT-338155.A0 338155	£8.37	£10.04
4 - RETAINER DAMPER (A) HIT-339053.A0 339053	£15.70	£18.84
5 - GRIP HIT-338154.A5 338154	£3.02	£3.63
6 - BIT LOCK HOLDER HIT-370669.A5 370669	-
7 - THRUST PLATE HIT-370668.A0 370668	-
8 - RETAINER SPRING HIT-339052.A5 339052	£3.29	£3.95
9 - SPRING HOLDER (A) HIT-337557.A1 337557	-
10 - ROLL PIN D2X10 (10 PCS.) HIT-949860.A0 949860	£1.67	£2.00
11 - BOLT M8 HIT-333228.A0 333228	£6.32	£7.59
12 - HANDLE HOLDER (B) HIT-333202.A3 333202	£1.67	£2.00
13 - HANDLE HOLDER HIT-370393.A1 370393	-
14 - GRIP HIT-333201.A0 333201	£2.94	£3.53
15 - SIDE HANDLE HIT-333199.A3 333199	£10.60	£12.72
16 - O-RING (S-26) HIT-872470.A14 872470	£1.67	£2.00
17 - CYLINDER CASE COVER HIT-338198.A3 338198	-
18 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A21 998471	£1.67	£2.00
19 - RETAINING RING D40 HIT-318582.A2 318582	£5.73	£6.88
20 - RETAINING RING D68 HIT-338200.A3 338200	-
21 - BALL BEARING 6008DDU HIT-339063.A3 339063	£20.91	£25.09
22 - BEARING WASHER HIT-338201.A0 338201	-
23 - OIL SEAL (NBR710) HIT-318588.A2 318588	£7.62	£9.15
24 - CYLINDER CASE HIT-338199.A0 338199	-
25 - HEX. SOCKET HD. BOLT (W/FLANGE) M8X35 HIT-990083.A7 990083	£1.67	£2.00
26 - O-RING (C) HIT-338222.A3 338222	£1.67	£2.00
27 - RETAINER DAMPER HOLDER HIT-338204.A3 338204	-
28 - RETAINER DAMPER (B) HIT-338203.A0 338203	-
29 - DAMPER SLEEVE HIT-339064.A0 339064	£1.67	£2.00
30 - RETAINER DAMPER WASHER HIT-338202.A2 338202	-
31 - BIT LOCK HIT-370654.A9 370654	£8.55	£10.26
32 - RETAINER SLEEVE HIT-338205.A0 338205	-
33 - NEEDLE PIN D8 HIT-338210.A0 338210	-
34 - O-RING HIT-986104.A18 986104	£1.67	£2.00
35 - SECOND HAMMER HIT-370657.A3 370657	£28.94	£34.73
36 - DAMPER WASHER HIT-370659.A3 370659	-
37 - DAMPER HIT-328887.A2 328887	£5.23	£6.28
38 - DAMPER HOLDER HIT-370658.A0 370658	-
39 - CYLINDER HIT-338209.A3 338209	-
40 - STRIKER HIT-370391.A1 370391	-
41 - O-RING HIT-328880.A3 328880	£7.17	£8.60
42 - SPRING HOLDER (B) HIT-338211.A3 338211	-
43 - LOCK SPRING WASHER HIT-338216.A0 338216	-
44 - LOCK SPRING HIT-338217.A3 338217	-
45 - LOCK SLEEVE HIT-338215.A3 338215	£1.67	£2.00
46 - CLUTCH SPRING HIT-338212.A0 338212	-
47 - CLUTCH HIT-370392.A0 370392	-
48 - SLEEVE HIT-338218.A0 338218	£1.67	£2.00
49 - SLIDER HIT-338235.A3 338235	£5.75	£6.90
50 - METAL (A) HIT-370384.A1 370384	-
51 - O-RING HIT-328880.A2 328880	£7.17	£8.60
52 - PISTON PIN HIT-338228.A1 338228	-
53 - PISTON HIT-328877.A2 328877	£9.85	£11.82
54 - CONNECTING ROD HIT-328878.A3 328878	£9.85	£11.82
55 - BEARING WASHER HIT-944954.A6 944954	£1.67	£2.00
56 - BALL BEARING 6201VV HIT-6201VV.A50 6201VV	£8.30	£9.96
57 - HEX. HD. TAPPING SCREW D5X60 HIT-961501.A2 961501	£1.67	£2.00
*58 - STATOR SENSOR PCB SET 100V-120V HIT-340947.A0 340947	-
*58 - STATOR SENSOR PCB SET 220V-240V HIT-340899.A4 340899	£43.83	£52.60
59 - HOUSING HIT-338168.A5 338168	-
60 - PACKING (B) HIT-339065.A3 339065	-
61 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X14 HIT-998485.A4 998485	£1.67	£2.00
62 - DUST SEAL HIT-333225.A0 333225	-
63 - TAIL COVER HIT-338170.A4 338170	-
64 - BALL BEARING 6202DD HIT-6202DD.A2 6202DD	£7.32	£8.78
65 - DUST WASHER (B) HIT-980700.A6 980700	£1.67	£2.00
66 - ROTOR HIT-360992.A5 360992	£131.37	£157.64
*67 - CONTROLLER ASS'Y 110V-120V INCLUD.68-71 HIT-370386.A1 370386	-
*67 - CONTROLLER ASS'Y 220V-240V INCLUD.68-71 HIT-370387.A0 370387	£112.45	£134.94
68 - CASE PACKING HIT-370655.A1 370655	-
69 - RUBBER SHEET (C) HIT-339056.A1 339056	-
70 - RUBBER SHEET (A) HIT-339055.A5 339055	-
71 - RUBBER SHEET (D) HIT-339057.A4 339057	-
72 - PANEL ASS'Y INCLUD.68 HIT-370656.A1 370656	-
73 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A11 991690	£1.67	£2.00
74 - DISTANCE PIECE (B) HIT-991711.A12 991711	£1.67	£2.00
75 - HANDLE (A).(B) ASS'Y INCLUD.76 HIT-370394.A0 370394	-
76 - PIN D3X20 (10 PCS.) HIT-949890.A6 949890	£2.78	£3.34
77 - FILTER PACKING HIT-339058.A0 339058	£1.67	£2.00
*78 - FILTER PCB ASS'Y 100V-127V INCLUD.77 HIT-338180.A5 338180	£15.78	£18.93
*78 - FILTER PCB ASS'Y 220V-240V INCLUD.77 HIT-338181.A0 338181	£15.78	£18.93
79 - TRANSATORY UNIT HIT-310123.A4 310123	£11.82	£14.18
80 - HANDLE DAMPER HIT-310124.A18 310124	£6.18	£7.41
81 - HANDLE DAMPER HOLDER HIT-338162.A5 338162	£1.67	£2.00
82 - BELLOWS HIT-338176.A1 338176	£8.19	£9.83
83 - TRIGGER HIT-370254.A2 370254	£5.80	£6.96
84 - SWITCH HIT-337587.A4 337587	£15.34	£18.41
85 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A16 307028	£1.67	£2.00
86 - PILLAR TERMINAL (A) HIT-958308Z.A28 958308Z	£7.53	£9.04
*87 - CORD ARMOR D10.7 HIT-940778.A62 940778	£3.15	£3.78
*87 - CORD ARMOR D11.2 HIT-331335.A4 331335	£1.67	£2.00
88 - CORD CLIP HIT-960266.A76 960266	£1.67	£2.00
89 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A112 984750	£1.67	£2.00
*90 - CORD (CORD ARMOR D10.7) HIT-321537.A1 321537	-
*90 - CORD (CORD ARMOR D10.7) FOR UAE HIT-500469Z.A2 500469Z	-
*90 - CORD (CORD ARMOR D11.2) FOR GBR (110V) HIT-500483Z.A3 500483Z	-
*90 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-337366.A2 337366	-
*90 - CORD (CORD ARMOR D10.7) FOR PAN (120V) HIT-500453Z.A8 500453Z	-
*90 - CORD (CORD ARMOR D10.7) FOR CHN HIT-500457Z.A1 500457Z	-
91 - HANDLE SHAFT HIT-338175.A4 338175	-
92 - BACK COVER HIT-338164.A0 338164	-
93 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A32 994192	£1.67	£2.00
94 - NAME PLATE HIT-000000.A3834 000000	-
95B - CRANK COVER HIT-370390.A1 370390	-
96 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X18 HIT-338177.A3 338177	-
97 - CHANGE LEVER HIT-370383.A0 370383	-
98 - LEVER SPRING HIT-337567.A4 337567	£1.67	£2.00
99 - STEEL BALL D4.76 (10 PCS.) HIT-959149.A3 959149	£1.67	£2.00
100 - O-RING (S-18) HIT-878885.A15 878885	£1.67	£2.00
101 - LEVER HOLDER HIT-370382.A1 370382	-
102 - RETAINING RING FOR D20 SHAFT (10 PCS.) HIT-939547.A13 939547	£4.61	£5.53
103 - O-RING (A) HIT-338160.A2 338160	£1.67	£2.00
104 - CHANGE PLATE HIT-338234.A2 338234	£1.67	£2.00
105 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A92 939542	£2.98	£3.57
106 - CRANK SHAFT HIT-338224.A2 338224	£29.00	£34.80
107 - FEATHER KEY 3X3X25 HIT-328869.A3 328869	-
108 - RETAINING RING FOR D47 HOLE HIT-948227.A2 948227	£1.67	£2.00
109 - BALL BEARING 6204DD HIT-6204DD.A4 6204DD	£11.46	£13.75
110 - O-RING (F) HIT-338227.A1 338227	-
111 - CRANK CASE HIT-370380.A1 370380	-
112 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A18 986940	£1.67	£2.00
113 - OIL SEAL HIT-328867.A8 328867	£6.18	£7.41
114 - FIRST GEAR HIT-338225.A1 338225	-
115 - BALL BEARING 629VV HIT-629VVM.A11 629VVM	£6.00	£7.20
116 - SEAL LOCK HEX. SOCKET HD. BOLT M6X22 HIT-321313.A9 321313	£1.67	£2.00
117 - SEAL PACKING HIT-370388.A0 370388	-
118 - GEAR COVER HIT-370381.A0 370381	-
*501 - BULL POINT (SDS MAX) 280L HIT-313471.A17 313471	-
*501 - BULL POINT (SDS MAX) 400L FOR IND HIT-313472.A6 313472	-
502 - CASE (PLASTIC) INCLUD.503 HIT-370395.A1 370395	£56.70	£68.04
503 - BUCKLE HIT-372113.A2 372113	-
601 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A26 981840	£8.22	£9.87
602 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A20 308471	£16.21	£19.45
603 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A49 980927	£55.68	£66.81
604 - BULL POINT (SDS MAX) 280L HIT-313471.A18 313471	-
605 - BULL POINT (SDS MAX) 400L HIT-313472.A5 313472	-
606 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A16 313473	-
607 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A5 313474	-
608 - CUTTER (SDS MAX) W50X400L HIT-313475.A16 313475	-
609 - SCOOP (SDS MAX) 400L HIT-313476.A5 313476	-
610 - BUSHING TOOL (SDS MAX) HIT-313477.A15 313477	-
611 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A5 313478	-
612 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A16 313479	-
