Hitachi / Hikoki H60MC Hammer Spare Parts

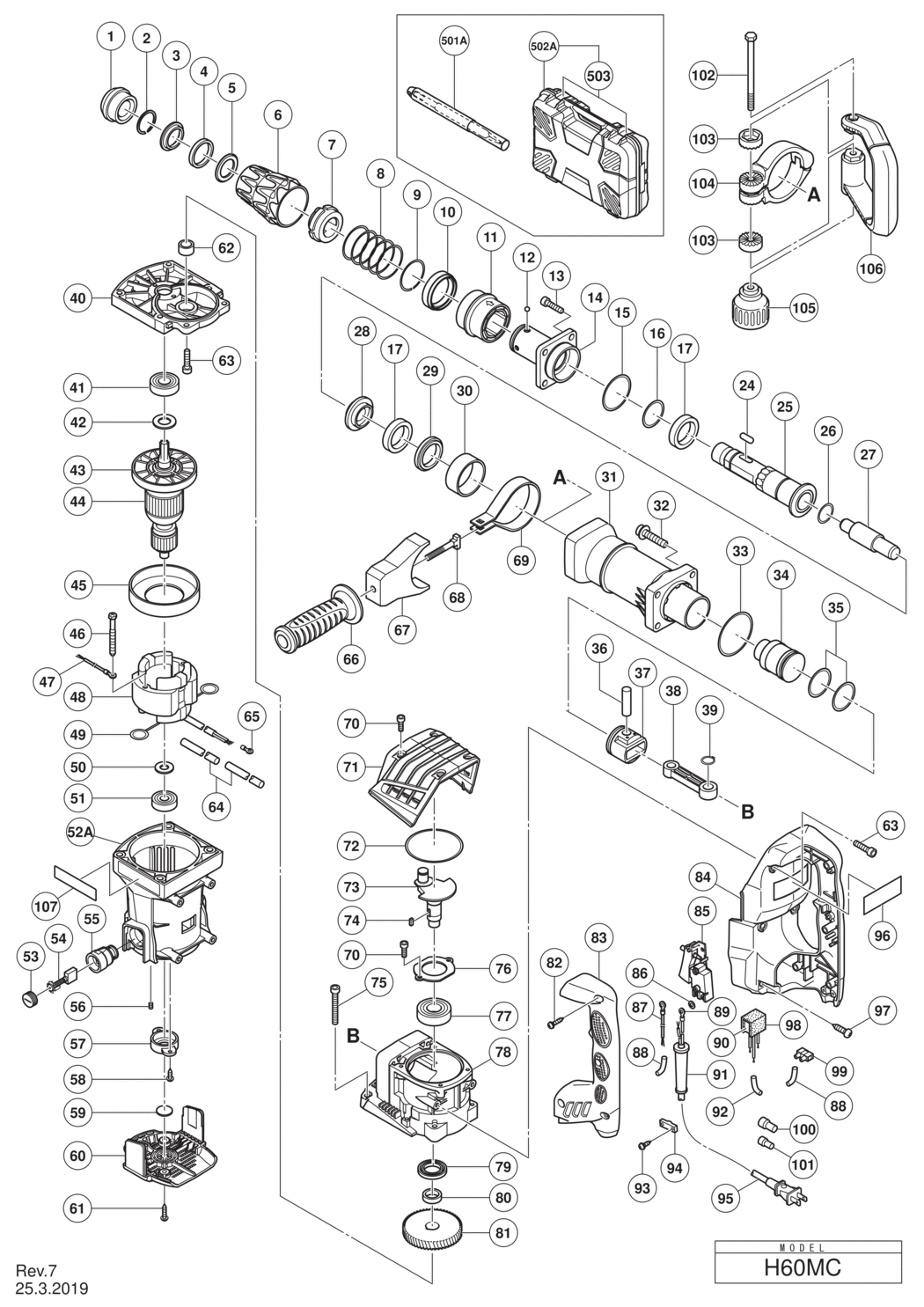

An exploded diagram and spare parts listing for the Hitachi / Hikoki H60MC Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-333211.A0 333211	£5.70	£6.84
2 - RETAINING RING D28 HIT-320846.A1 320846	£1.67	£2.00
3 - DAMPER HOLDER (A) HIT-333685.A0 333685	£13.52	£16.23
4 - DAMPER (A) HIT-330175.A2 330175	£5.52	£6.63
5 - DAMPER HOLDER (B) HIT-333686.A0 333686	£10.02	£12.02
6 - GRIP (A) HIT-333192.A0 333192	£5.98	£7.18
7 - NEEDLE HOLDER HIT-320804.A2 320804	£33.68	£40.41
8 - SPRING (A) HIT-333221.A0 333221	£2.84	£3.41
9 - STOPPER RING HIT-333255.A2 333255	£1.67	£2.00
10 - BALL HOLDER HIT-333687.A0 333687	£12.94	£15.53
11 - GRIP (B) HIT-333197.A0 333197	-
12 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A35 959150	£1.67	£2.00
13 - SEAL LOCK HEX. SOCKET HD. BOLT M8X25 HIT-985479.A4 985479	£3.15	£3.78
14 - FRONT COVER HIT-333195.A0 333195	-
15 - O-RING (S-56) HIT-317119.A2 317119	£1.67	£2.00
16 - O-RING (S-32) HIT-872767.A4 872767	£1.67	£2.00
17 - DAMPER HIT-333217.A0 333217	£4.28	£5.13
24 - NEEDLE ROLLER D8X20 HIT-331536.A2 331536	£1.67	£2.00
25 - RETAINER SLEEVE HIT-333191.A0 333191	£63.48	£76.17
26 - O-RING (S-26) HIT-872470.A0 872470	£1.67	£2.00
27 - SECOND HAMMER HIT-333206.A0 333206	£18.73	£22.48
28 - HAMMER HOLDER HIT-333216.A0 333216	£15.87	£19.04
29 - DAMPER WASHER HIT-333218.A0 333218	£5.70	£6.84
30 - SLEEVE HIT-333219.A0 333219	-
31 - CYLINDER CASE HIT-333209.A0 333209	£84.66	£101.59
32 - HEX. SOCKET HD. BOLT (W/FLANGE) M8X35 HIT-990083.A2 990083	£1.67	£2.00
33 - O-RING (1AS-60) HIT-956996.A4 956996	£3.82	£4.58
34 - STRIKER HIT-333205.A0 333205	-
35 - O-RING (A) (FPM810) HIT-985454.A4 985454	£8.59	£10.31
36 - PISTON PIN HIT-301509.A4 301509	£8.19	£9.83
37 - PISTON HIT-317084.A2 317084	£14.64	£17.57
38 - CONNECTING ROD HIT-317082.A2 317082	£10.98	£13.17
39 - RETAINING RING FOR D14 SHAFT (10 PCS.) HIT-939543.A2 939543	£3.12	£3.74
40 - GEAR COVER ASS'Y INCLUD.62 HIT-333229.A0 333229	-
41 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A16 6203DD	£8.64	£10.37
42 - BEARING WASHER HIT-333222.A0 333222	-
43 - FAN HIT-333196.A0 333196	-
*44 - ARMATURE ASS'Y 110V INCLUD.43 HIT-360899C.A0 360899C	£117.17	£140.60
*44 - ARMATURE ASS'Y 220V-230V INCLUD.43 HIT-360899E.A0 360899E	-
45 - FAN GUIDE HIT-333210.A0 333210	-
46 - HEX. HD. TAPPING SCREW D5X50 HIT-953121.A2 953121	-
*47 - INTERNAL WIRE 235L FOR NZL HIT-324122.A1 324122	-
*48 - STATOR ASS'Y 110V INCLUD.49 HIT-340780C.A0 340780C	-
*48 - STATOR ASS'Y (B) 220V-230V INCLUD.49 FOR NZL HIT-340790E.A0 340790E	-
49 - BRUSH TERMINAL HIT-945932.A7 945932	£1.67	£2.00
50 - BEARING WASHER HIT-944954.A11 944954	£1.67	£2.00
51 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A35 6201DD	£8.64	£10.37
52A - HOUSING ASS'Y INCLUD.55 HIT-333213.A0 333213	£32.42	£38.90
53 - BRUSH CAP HIT-940540.A14 940540	£1.67	£2.00
54 - CARBON BRUSH (1 PAIR) HIT-999044.A8 999044	£5.54	£6.65
54 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999074.A5 999074	£20.63	£24.76
55 - BRUSH HOLDER HIT-980487.A6 980487	£9.03	£10.84
56 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A79 938477	£1.67	£2.00
57 - BEARING HOLDER HIT-328918.A2 328918	-
58 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A103 984750	£1.67	£2.00
59 - DUST SEAL HIT-333225.A2 333225	-
60 - TAIL COVER HIT-333193.A0 333193	-
61 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A61 302089	£1.67	£2.00
62 - NEEDLE BEARING (A) (BK1512) HIT-985442.A1 985442	£8.39	£10.07
63 - SEAL LOCK HEX. SOCKET HD. BOLT M6X25 HIT-987707.A1 987707	£1.67	£2.00
64 - VINYL TUBE (I.D.9.5XT0.56X85) HIT-326541.A5 326541	-
*66 - SIDE HANDLE EXCEPT FOR ESP HIT-330209.A6 330209	£17.51	£21.01
*67 - MOUNT EXCEPT FOR ESP HIT-333198.A0 333198	£8.11	£9.73
*68 - HANDLE BOLT EXCEPT FOR ESP HIT-333227.A0 333227	£17.01	£20.41
*69 - BAND EXCEPT FOR ESP HIT-333226.A0 333226	£8.59	£10.31
70 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A15 990079	£1.67	£2.00
71 - CRANK COVER HIT-333194.A0 333194	-
72 - O-RING (I.D 74.5) HIT-326257.A4 326257	£4.62	£5.55
73 - CRANK SHAFT HIT-333204.A0 333204	-
74 - FEATHER KEY 3X3X10 HIT-940533.A2 940533	£1.67	£2.00
75 - SEAL LOCK HEX. SOCKET HD. BOLT M6X50 HIT-986491.A2 986491	-
76 - BEARING COVER HIT-333220.A0 333220	-
77 - BALL BEARING 6204DD HIT-6204DD.A0 6204DD	£11.46	£13.75
78 - CRANK CASE HIT-333186.A0 333186	-
79 - OIL SEAL HIT-995403.A1 995403	£4.10	£4.92
80 - DISTANCE RING (C) HIT-995402.A2 995402	£13.51	£16.21
81 - FIRST GEAR HIT-333207.A0 333207	-
82 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK) HIT-305490.A6 305490	£1.67	£2.00
83 - HANDLE COVER HIT-333189.A0 333189	-
84 - HANDLE HIT-333187.A0 333187	-
85 - SWITCH (B) (1P SCREW TYPE) W/LOCK HIT-306143.A3 306143	£19.10	£22.92
*86 - WASHER M4 (10 PCS.) FOR GBR HIT-949423.A48 949423	£1.67	£2.00
*87 - INTERNAL WIRE EXCEPT FOR VEN HIT-981974.A3 981974	£1.67	£2.00
*87 - INTERNAL WIRE FOR VEN HIT-306681.A4 306681	-
88 - VINYL TUBE (I.D.7XT0.5X30) HIT-000000.A4080 000000	-
*89 - TERMINAL EXCEPT FOR VEN HIT-980063.A78 980063	£1.67	£2.00
*89 - TERMINAL M4.0 (10 PCS.) FOR PAN (120V) HIT-930804.A39 930804	£3.64	£4.37
*90 - NOISE SUPPRESSOR FOR NZL HIT-325566.A9 325566	£11.98	£14.38
*91 - CORD ARMOR D8.8 HIT-953327.A46 953327	£1.67	£2.00
*91 - CORD ARMOR D10.1 HIT-938051.A17 938051	£1.67	£2.00
*92 - TUBE (A) I.D.7XT0.25X70 FOR NZL SAF HIT-000000.A4081 000000	-
93 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A104 984750	£1.67	£2.00
94 - CORD CLIP HIT-960266.A87 960266	£1.67	£2.00
*95 - CORD (CORD ARMOR D10.1) FOR GBR (110V) HIT-500467Z.A4 500467Z	£63.83	£76.60
*95 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A16 500446Z	£33.79	£40.55
96 - NAME PLATE HIT-000000.A4082 000000	-
97 - TAPPING SCREW D6X30 HIT-333364.A0 333364	-
*98 - SUPPORT (B) FOR NZL HIT-317492.A0 317492	£1.67	£2.00
*99 - PILLAR TERMINAL EXCEPT FOR VEN HIT-938307.A72 938307	£3.28	£3.93
*100 - CONNECTOR 50092 (10 PCS.) FOR NZL HIT-959141.A8 959141	£7.12	£8.54
*101 - CONNECTOR 50091 (10 PCS.) FOR NZL HIT-959140.A106 959140	£4.98	£5.97
107 - BRAND LABEL HIT-000000.A4083 000000	-
*501 - BULL POINT (SDS MAX) 280L FOR GBR HIT-313471.A14 313471	-
502A - CASE INCLUD.503 HIT-333190.A0 333190	-
503 - LATCH SET (2 PCS.) HIT-375043.A0 375043	-
601 - SIDE HANDLE ASS'Y INCLUD.66-69 HIT-333214.A0 333214	-
602 - SIDE HANDLE ASS'Y INCLUD.102-106 HIT-334579.A0 334579	£40.45	£48.54
603 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A16 981840	£8.22	£9.87
604 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A7 308471	£16.21	£19.45
*605 - GREASE FOR HAMMER.HAMMER DRILL (500G) EXCEPT FOR PAN (120V) HIT-980927.A33 980927	£55.68	£66.81
606 - BULL POINT (SDS MAX) 280L HIT-313471.A15 313471	-
607 - BULL POINT (SDS MAX) 400L HIT-313472.A8 313472	-
608 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A14 313473	-
609 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A7 313474	-
610 - CUTTER (SDS MAX) W50X400L HIT-313475.A14 313475	-
611 - SCOOP (SDS MAX) 400L HIT-313476.A7 313476	-
612 - BUSHING TOOL (SDS MAX) HIT-313477.A13 313477	-
613 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A7 313478	-
614 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A14 313479	-
