Hitachi / Hikoki H55SA Hammer Spare Parts

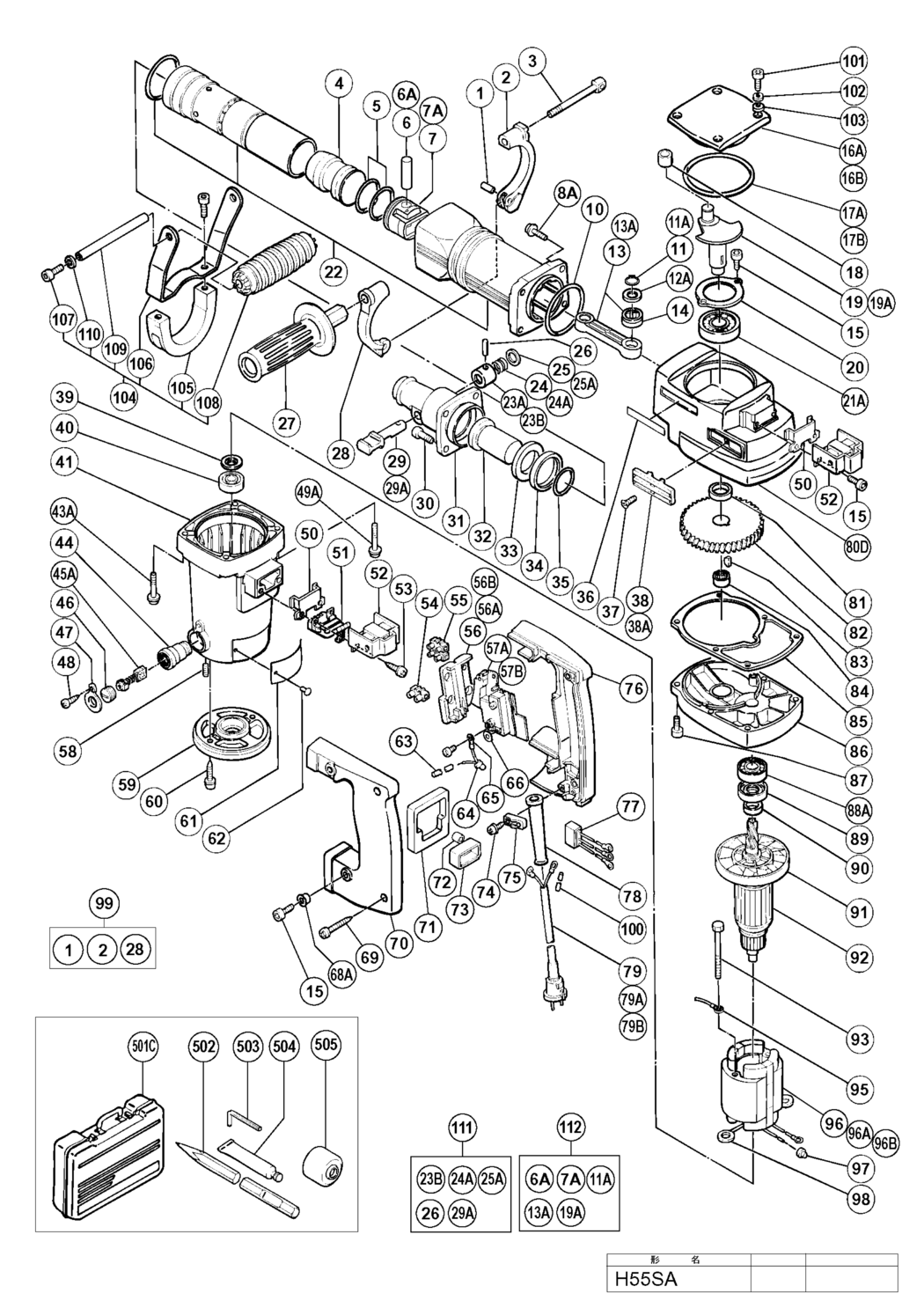

An exploded diagram and spare parts listing for the Hitachi / Hikoki H55SA Hammer

	Ex VAT	Inc VAT
1 - ROLL PIN D6X25 (10 PCS.) (SINCE 1.2001 FOR GBR HIT-949747.A0 949747	£5.61	£6.73
2 - HANDLE HOLDER (A) (SINCE 1.2001 FOR GBR HIT-985475.A0 985475	£11.82	£14.18
3 - HANDLE BOLT (SINCE 1.2001 FOR GBR SAF FRA SUI) HIT-985465.A0 985465	£5.98	£7.18
4 - STRIKER HIT-985455.A0 985455	-
5 - O-RING (A) (FPM810) HIT-985454.A0 985454	£8.59	£10.31
6 - PISTON PIN TILL 7.2000 HIT-985451.A0 985451	-
6A - PISTON PIN SINCE 8.2000 HIT-301509.A1 301509	£8.19	£9.83
7 - PISTON TILL 7.2000 HIT-985452.A0 985452	-
7A - PISTON SINCE 8.2000 HIT-317084.A0 317084	£14.64	£17.57
8A - HEX. SOCKET HD. BOLT (W/FLANGE) M8X35 HIT-990083.A4 990083	£1.67	£2.00
10 - O-RING (1AS-60) HIT-956996.A19 956996	£3.82	£4.58
11 - RETAINING RING FOR D12 SHAFT (10 PCS.) TILL 7.2000 HIT-939542.A6 939542	£2.98	£3.57
11A - RETAINING RING FOR D14 SHAFT (10 PCS.) SINCE 8.2000 HIT-939543.A13 939543	£3.12	£3.74
12A - CRANK WASHER TILL 7.2000 HIT-985453.A0 985453	£1.67	£2.00
13 - CONNECTING ROD ASS'Y INCLUD.14 TILL 7.2000 HIT-985450.A0 985450	£55.10	£66.12
13A - CONNECTING ROD SINCE 8.2000 HIT-317082.A3 317082	£10.98	£13.17
14 - NEEDLE BEARING (B) (RNA4901V1) TILL 7.2000 HIT-985470.A0 985470	£24.34	£29.21
15 - HEX. SOCKET HD. BOLT M5X14 (10 PCS.) HIT-949665.A12 949665	£3.15	£3.78
16A - CRANK COVER TILL 3.1984 HIT-985449.A0 985449	-
16B - CRANK COVER SINCE 4.1984 HIT-986957.A0 986957	-
17A - O-RING (B) (S-80) TILL 3.1984 HIT-985448.A0 985448	£1.67	£2.00
17B - O-RING (S-90) SINCE 4.1984 HIT-877316.A4 877316	£1.67	£2.00
18 - INNER RACE TILL 7.2000 HIT-985467.A0 985467	£13.09	£15.71
19 - CRANK SHAFT TILL 7.2000 HIT-985444.A0 985444	£52.21	£62.65
19A - CRANK SHAFT SINCE 8.2000 HIT-319502.A0 319502	-
20 - BEARING COVER HIT-985443.A2 985443	£5.27	£6.32
21A - BALL BEARING 6204DD HIT-6204DD.A11 6204DD	£11.46	£13.75
22 - CYLINDER CASE HIT-986941.A0 986941	-
23A - SPRING CASE TILL 3.1995 HIT-985466.A0 985466	£9.32	£11.19
23B - SPRING CASE SINCE 4.1995 HIT-993241.A0 993241	£20.07	£24.08
24 - STOPPER SPRING TILL 3.1995 HIT-981937.A0 981937	£1.67	£2.00
24A - STOPPER SPRING SINCE 4.1995 HIT-302096.A0 302096	£9.14	£10.97
25 - STOPPER WASHER TILL 3.1995 HIT-985463.A0 985463	£5.98	£7.18
25A - STOPPER SLEEVE SINCE 4.1995 HIT-993243.A0 993243	£8.95	£10.74
26 - NEEDLE ROLLER D4X20 HIT-943364.A7 943364	£1.67	£2.00
27 - SIDE HANDLE (SINCE 1.2001 FOR GBR SAF FRA SUI) HIT-985477.A0 985477	£12.76	£15.31
28 - HANDLE HOLDER (B) (SINCE 1.2001 FOR GBR HIT-985476.A0 985476	£10.89	£13.07
29 - STOP LEVER TILL 3.1995 HIT-985462.A0 985462	-
29A - STOP LEVER SINCE 4.1995 HIT-302095.A0 302095	£38.62	£46.34
30 - SEAL LOCK HEX. SOCKET HD. BOLT M8X25 HIT-985479.A0 985479	£3.15	£3.78
31 - FRONT COVER HIT-986945.A0 986945	£155.61	£186.73
32 - SECOND HAMMER HIT-986944.A0 986944	-
33 - DAMPER WASHER HIT-986943.A1 986943	£16.21	£19.45
34 - DAMPER HIT-986942.A0 986942	£6.98	£8.38
35 - O-RING (C) (FPM810) HIT-986946.A0 986946	£11.98	£14.38
36 - BRAND LABEL HIT-957561.A2 957561	-
37 - FLAT HD. SCREW M4X12 (10 PCS.) TILL 7.1987 HIT-949323.A0 949323	£1.67	£2.00
38 - WIND GUIDE TILL 7.1987 HIT-980735.A0 980735	-
38A - WIND GUIDE (B) SINCE 8.1987 HIT-991713.A0 991713	£1.67	£2.00
39 - DUST WASHER HIT-985436.A0 985436	£1.67	£2.00
40 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A28 6200VV	£7.36	£8.83
41 - HOUSING ASS'Y INCLUD.44 HIT-985435.A0 985435	-
43A - HEX. SOCKET HD. BOLT (W/FLANGE) M6X40 HIT-994084.A0 994084	-
44 - BRUSH HOLDER HIT-983362.A0 983362	£7.02	£8.42
45A - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999071.A0 999071	£19.96	£23.95
46 - BRUSH CAP HIT-961781.A5 961781	£3.15	£3.78
47 - CAP COVER HIT-981959.A0 981959	£2.86	£3.43
48 - TAPPING SCREW D4X10 HIT-958715.A11 958715	£1.67	£2.00
49A - HEX. SOCKET HD. BOLT (W/FLANGE) M6X60 HIT-994085.A0 994085	£1.67	£2.00
50 - GUIDE PLATE HIT-980750.A2 980750	£16.77	£20.12
51 - INTERNAL WIRE HOLDER HIT-985469.A0 985469	£10.60	£12.72
52 - HANDLE RUBBER HIT-980727.A1 980727	£15.32	£18.38
53 - TAPPING SCREW (W/WASHER) D5X25 HIT-985605.A0 985605	£1.67	£2.00
54 - PILLAR TERMINAL FOR GBR HIT-938307.A25 938307	£3.28	£3.93
*54 - PILLAR TERMINAL CAN HIT-938307.A26 938307	£3.28	£3.93
55 - PILLAR TERMINAL (A) FOR FIN HIT-958308Z.A5 958308Z	£7.53	£9.04
56 - SUPPORT TILL 3.1987 HIT-981869.A2 981869	-
*56 - SUPPORT (A) TILL 3.1998 FOR AUS HIT-981986Z.A1 981986Z	-
56B - SUPPORT (E) SINCE 4.1997 HIT-990082.A2 990082	-
*57A - SWITCH (2P PILLAR TYPE) W/O LOCK TILL 3.1998 FOR AUS HIT-981533Z.A0 981533Z	£29.24	£35.09
*57A - SWITCH (A) (1P SCREW TYPE) W/LOCK FOR FRG HIT-995398.A1 995398	£25.79	£30.95
57B - SWITCH (A) (1P SCREW TYPE) W/O LOCK SINCE 4.1998 FOR AUS HIT-992891.A2 992891	£23.25	£27.90
58 - HEX. SOCKET SET SCREW M5X12 HIT-982169.A2 982169	-
59 - TAIL COVER HIT-985437.A0 985437	£26.33	£31.60
60 - TAPPING SCREW (W/WASHER) D5X20 HIT-985480.A2 985480	£1.67	£2.00
61 - NAME PLATE HIT-000000.A2688 000000	-
62 - RIVET D2.5X4.8 (10 PCS.) HIT-949510.A28 949510	£1.67	£2.00
63 - VINYL TUBE (I.D.7XT0.5X50) HIT-000000.A2687 000000	-
64 - CONNECTOR 50092 (10 PCS.) FOR NZL HIT-959141.A90 959141	£7.12	£8.54
*64 - CONNECTOR 50092 (10 PCS.) SUI HIT-959141.A91 959141	£7.12	£8.54
65 - INTERNAL WIRE FOR NZL HIT-983276Z.A0 983276Z	-
*65 - INTERNAL WIRE SUI HIT-983276Z.A1 983276Z	-
66 - WASHER M4 (10 PCS.) HIT-949423.A26 949423	£1.67	£2.00
68A - DISTANCE PIECE (B) HIT-991711.A25 991711	£1.67	£2.00
69 - TAPPING SCREW (W/WASHER) D4X25 HIT-956636.A6 956636	-
70 - HANDLE (B) HIT-983273.A0 983273	£21.03	£25.24
71 - HANDLE PACKING HIT-980751.A0 980751	£1.67	£2.00
72 - VINYL TUBE (I.D.9XT0.5X25) HIT-000000.A2689 000000	-
73 - WIRE SUPPORT FOR USA HIT-985474.A0 985474	-
74 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A245 984750	£1.67	£2.00
75 - CORD CLIP HIT-960266.A21 960266	£1.67	£2.00
*75 - CORD CLIP FOR SUI HIT-981987Z.A6 981987Z	-
76 - HANDLE (A) HIT-983272.A1 983272	£17.03	£20.44
77 - NOISE SUPPRESSOR HIT-994273.A5 994273	£7.30	£8.76
78 - CORD ARMOR D8.2 HIT-958049.A19 958049	£1.67	£2.00
*78 - CORD ARMOR D10.7 HIT-940778.A9 940778	£3.15	£3.78
*79 - CORD (CORD ARMOR D10.7) FOR ITA HIT-500390Z.A12 500390Z	-
*79 - CORD DEN HIT-500390Z.A13 500390Z	-
*79 - CORD (CORD ARMOR D10.7) FOR SUI HIT-500391Z.A6 500391Z	-
*79 - CORD (CORD ARMOR D10.7) FOR USA HIT-500407Z.A0 500407Z	-
*79 - CORD (CORD ARMOR D10.7) FOR AUS HIT-500408Z.A0 500408Z	-
79A - CORD (CORD ARMOR D10.1) FOR GBR(110V) HIT-500460Z.A6 500460Z	£41.12	£49.34
79B - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500446Z.A30 500446Z	£33.79	£40.55
80D - CRANK CASE ASS'Y INCLUD.16B HIT-986968.A0 986968	-
81 - DISTANCE RING (B) HIT-985445.A0 985445	-
82 - FIRST GEAR HIT-985446.A0 985446	£47.12	£56.55
83 - WOODRUFF KEY 3X13 HIT-932815.A3 932815	£1.67	£2.00
84 - NEEDLE BEARING (A) (BK1512) HIT-985442.A0 985442	£8.39	£10.07
85 - SEAL PACKING TILL 11.1986 HIT-985447.A0 985447	£3.28	£3.93
86 - GEAR COVER HIT-985440.A0 985440	-
87 - HEX. SOCKET HD. BOLT M6X20 (10 PCS.) HIT-949660.A4 949660	£3.97	£4.76
88A - BALL BEARING 6202VVCMPS2L HIT-6202VV.A3 6202VV	£7.02	£8.42
89 - OIL SEAL (FPM 807) HIT-985439.A0 985439	£11.35	£13.62
90 - SLEEVE HIT-985438.A0 985438	£21.08	£25.30
91 - FAN HIT-985482.A0 985482	£8.64	£10.37
*92 - ARMATURE ASS'Y 115V INCLUD.39 HIT-985472U.A0 985472U	£129.36	£155.23
*92 - ARMATURE ASS'Y 220V-230V INCLUD.91 HIT-985472E.A0 985472E	£117.54	£141.05
*92 - ARMATURE ASS'Y 240V INCLUD.91 HIT-985472F.A0 985472F	£117.54	£141.05
93 - HEX. HD. TAPPING SCREW D5X70 HIT-961400.A11 961400	£1.67	£2.00
95 - INTERNAL WIRE FOR ITA HIT-986277.A0 986277	-
*95 - INTERNAL WIRE FOR NZL HIT-971776.A0 971776	-
*95 - INTERNAL WIRE FOR SAF HIT-971825.A1 971825	-
*96 - STATOR ASS'Y 110V-115V INCLUD.98 HIT-985471C.A0 985471C	-
*96 - STATOR ASS'Y 220V-230V INCLUD.98 HIT-985471E.A0 985471E	-
*96 - STATOR 110V INCLUD.98 FOR GBR HIT-985471J.A0 985471J	£58.48	£70.17
*96A - STATOR ASS'Y 220V-230V INCLUD.98 FOR ITA HIT-985471G.A0 985471G	-
*96A - STATOR ASS'Y 240V INCLUD.98 TILL 3.1998 FOR AUS HIT-985471H.A0 985471H	-
96B - STATOR ASS'Y 230V-240V INCLUD.98 FOR GBR HIT-985471F.A0 985471F	£58.48	£70.17
*96B - STATOR ASS'Y 230V-240V FIN HIT-985471F.A1 985471F	£58.48	£70.17
97 - CONNECTOR 50091 (10 PCS.) FOR NZL HIT-959140.A25 959140	£4.98	£5.97
*97 - CONNECTOR 50091 (10 PCS.) SUI HIT-959140.A26 959140	£4.98	£5.97
98 - BRUSH TERMINAL HIT-937623.A24 937623	£1.67	£2.00
99 - HANDLE HOLDER ASS'Y INCLUD.1 HIT-985464.A0 985464	£21.08	£25.30
100 - VINYL TUBE (I.D.7XT0.5X80) HIT-000000.A2692 000000	-
101 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A28 990079	£1.67	£2.00
102 - SPRING WASHER M5 (10 PCS.) HIT-949454.A56 949454	£1.67	£2.00
103 - WASHER M5 (10 PCS.) HIT-949424.A14 949424	£1.67	£2.00
104 - HOLDER ASS'Y INCLUD.105-110 SINCE 1.1986-TILL 12.2000 HIT-986959.A0 986959	£71.96	£86.35
105 - HOLDER (A) SINCE 1.1986-TILL 12.2000 FOR GBR HIT-986960.A0 986960	-
106 - HOLDER (B) SINCE 1.1986-TILL 12.2000 FOR GBR HIT-986961.A0 986961	£18.70	£22.44
107 - HEX. SOCKET HD. BOLT M8X20 (10 PCS.) SINCE 1.1986-TILL 12.2000 FOR GBR HIT-949656.A2 949656	£6.62	£7.95
108 - GRIP SINCE 1.1986-TILL 12.2000 FOR GBR HIT-944951.A0 944951	£10.27	£12.32
109 - SHAFT SINCE 1.1986-TILL 12.2000 FOR GBR HIT-986962.A0 986962	£16.48	£19.78
110 - WASHER (C) SINCE 1.1986-TILL 12.2000 FOR GBR HIT-986963.A0 986963	£1.67	£2.00
111 - STOP LEVER ASS'Y INCLUD.23B HIT-310891.A0 310891	£60.74	£72.89
112 - CRANK SHAFT SET INCLUD.6A HIT-319842.A0 319842	-
501C - CASE (PLASTIC) HIT-319783.A0 319783	-
502 - BULL POINT 300MM HIT-986947.A0 986947	-
503 - HEX. BAR WRENCH 6MM HIT-872422.A4 872422	£1.67	£2.00
504 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A38 981840	£8.22	£9.87
505 - DUST COVER HIT-985468.A0 985468	£5.02	£6.02
601 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A20 980927	£55.68	£66.81
602 - BULL POINT 380MM HIT-986948.A0 986948	-
603 - BULL POINT 450MM HIT-986949.A0 986949	-
604 - CUTTER W50X400L HIT-986950.A0 986950	-
605 - CUTTER W75X400L HIT-986951.A0 986951	-
606 - COLD CHISEL 300MM HIT-986952.A0 986952	-
607 - COLD CHISEL 380MM HIT-986953.A0 986953	-
608 - COLD CHISEL 450MM HIT-986954.A0 986954	-
609 - SIDE HANDLE HIT-944457.A0 944457	-
610 - SERVICE KIT (H 55SA ETC.) INCLUD.5 HIT-986966.A0 986966	£80.20	£96.24
