Hitachi / Hikoki H50SA Hammer Spare Parts

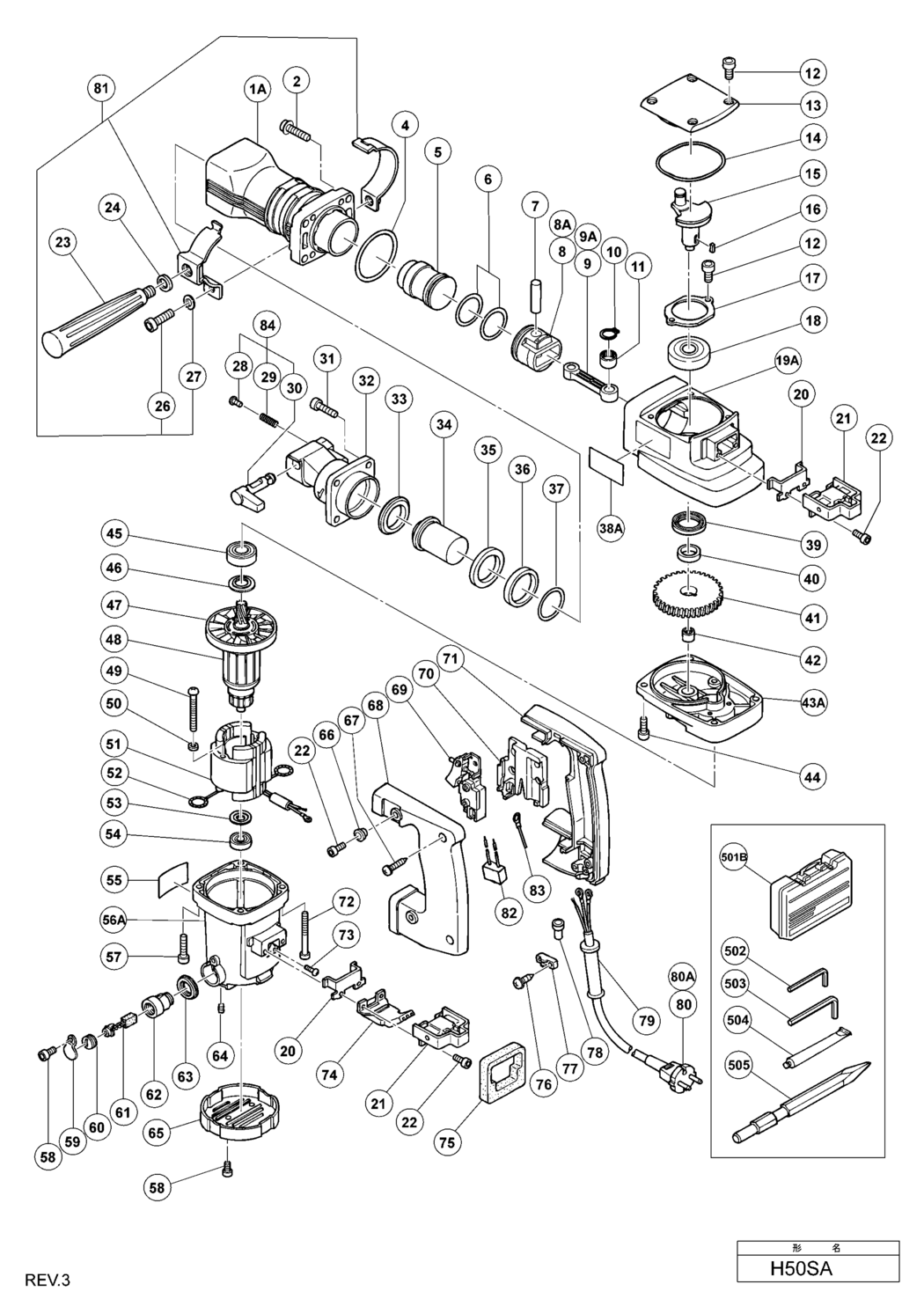

An exploded diagram and spare parts listing for the Hitachi / Hikoki H50SA Hammer

	Ex VAT	Inc VAT
1A - CYLINDER CASE (METALLIC SILVER GREEN) SINCE 7.2009 HIT-332153.A0 332153	-
2 - HEX. SOCKET HD. BOLT (W/FLANGE) M8X30 HIT-995400.A0 995400	-
4 - O-RING (1AS-60) HIT-956996.A20 956996	£3.82	£4.58
5 - STRIKER HIT-301510.A0 301510	£36.57	£43.88
6 - O-RING (A) (FPM810) HIT-985454.A1 985454	£8.59	£10.31
7 - PISTON PIN HIT-301509.A0 301509	£8.19	£9.83
8 - PISTON TILL 2.2003 HIT-985452.A1 985452	-
8A - PISTON SINCE 3.2003 HIT-317084.A1 317084	£14.64	£17.57
9 - CONNECTING ROD ASS'Y INCLUD.11 TILL 2.2003 HIT-301508.A0 301508	-
9A - CONNECTING ROD SINCE 3.2003 HIT-322020.A0 322020	-
10 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A5 939542	£2.98	£3.57
11 - NEEDLE BEARING (NSK AJ50 1203) TILL 2.2008 HIT-980756.A1 980756	£15.16	£18.19
12 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A27 990079	£1.67	£2.00
13 - CRANK COVER HIT-301507.A0 301507	-
14 - O-RING (S-75) HIT-301506.A0 301506	-
15 - CRANK SHAFT HIT-301504.A0 301504	-
16 - FEATHER KEY 3X3X10 HIT-940533.A8 940533	£1.67	£2.00
17 - BEARING COVER HIT-985443.A3 985443	£5.27	£6.32
18 - BALL BEARING 6204DD HIT-6204DD.A12 6204DD	£11.46	£13.75
19A - CRANK CASE (METALLIC SILVER GREEN) SINCE 7.2009 HIT-332152.A0 332152	-
20 - GUIDE PLATE HIT-980750.A1 980750	£16.77	£20.12
21 - HANDLE RUBBER HIT-980727.A2 980727	£15.32	£18.38
22 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A17 984509	£1.67	£2.00
23 - SIDE HANDLE HIT-980020.A0 980020	-
24 - SPRING WASHER M12 (10 PCS.) HIT-949463.A2 949463	£1.67	£2.00
26 - HEX. SOCKET HD. BOLT M8X25 (10 PCS.) HIT-949760.A15 949760	£6.62	£7.95
27 - SPRING WASHER M8 (10 PCS.) HIT-949457.A13 949457	£1.67	£2.00
28 - STOPPER PIN HIT-980121.A0 980121	-
29 - SPRING HIT-301558.A0 301558	-
30 - STOP LEVER HIT-995395.A0 995395	-
31 - SEAL LOCK HEX. SOCKET HD. BOLT M8X25 HIT-985479.A1 985479	£3.15	£3.78
32 - FRONT COVER HIT-301514.A0 301514	-
33 - DAMPER (B) HIT-301513.A0 301513	-
34 - SECOND HAMMER HIT-301512.A0 301512	-
35 - DAMPER WASHER HIT-986943.A0 986943	£16.21	£19.45
36 - DAMPER HIT-986942.A1 986942	£6.98	£8.38
37 - O-RING (C) (FPM810) HIT-986946.A1 986946	£11.98	£14.38
38A - BRAND LABEL HIT-301517.A0 301517	-
39 - OIL SEAL HIT-995403.A0 995403	£4.10	£4.92
40 - DISTANCE RING (C) HIT-995402.A3 995402	£13.51	£16.21
41 - FIRST GEAR HIT-301505.A0 301505	-
42 - NEEDLE BEARING (M661) HIT-939299.A17 939299	£11.82	£14.18
43A - GEAR COVER (METALLIC SILVER GREEN) SINCE 7.2009 HIT-332154.A0 332154	-
44 - SEAL LOCK HEX. SOCKET HD. BOLT M6X20 HIT-992803.A5 992803	£1.67	£2.00
45 - BALL BEARING 6202VVCMPS2L HIT-6202VV.A4 6202VV	£7.02	£8.42
46 - DUST WASHER (B) HIT-980700.A16 980700	£1.67	£2.00
47 - FAN HIT-980740.A0 980740	-
*48 - ARMATURE ASS'Y 110V-115V INCLUD.47 HIT-360129C.A0 360129C	-
*48 - ARMATURE ASS'Y 127V INCLUD.47 HIT-360129D.A0 360129D	-
*48 - ARMATURE ASS'Y 220V-230V INCLUD.47 HIT-360129E.A0 360129E	-
*48 - ARMATURE ASS'Y 240V INCLUD.47 HIT-360129F.A0 360129F	-
49 - MACHINE SCREW M5X55 (10 PCS.) HIT-949233.A0 949233	-
50 - SPRING WASHER M5 (10 PCS.) HIT-949454.A57 949454	£1.67	£2.00
*51 - STATOR ASS'Y 110V-115V INCLUD.52 HIT-340162C.A0 340162C	-
*51 - STATOR ASS'Y 127V INCLUD.52 HIT-340162D.A0 340162D	-
*51 - STATOR ASS'Y 220V-230V INCLUD.52 HIT-340162E.A0 340162E	-
*51 - STATOR ASS'Y 240V INCLUD.52 HIT-340162F.A0 340162F	-
52 - BRUSH TERMINAL HIT-930703.A19 930703	£3.28	£3.93
53 - DUST WASHER (A) HIT-998550.A1 998550	-
54 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A5 6000VV	£7.62	£9.15
55 - NAME PLATE HIT-000000.A2683 000000	-
56A - HOUSING ASS'Y (METALLIC SILVER GREEN) INCLUD.62 HIT-332151.A0 332151	-
57 - SEAL LOCK HEX. SOCKET HD. BOLT M6X30 HIT-993496.A0 993496	£1.67	£2.00
58 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-877839.A11 877839	£1.67	£2.00
59 - CAP COVER HIT-980733.A0 980733	-
60 - BRUSH CAP HIT-935829.A2 935829	£1.67	£2.00
61 - CARBON BRUSH (1 PAIR) HIT-999043.A20 999043	£5.54	£6.65
62 - BRUSH HOLDER HIT-971001.A7 971001	£8.64	£10.37
63 - STOP PLATE HIT-956127.A1 956127	-
64 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A55 938477	£1.67	£2.00
65 - TAIL COVER HIT-980732.A1 980732	-
66 - DISTANCE PIECE (B) HIT-991711.A23 991711	£1.67	£2.00
67 - TAPPING SCREW (W/WASHER) D4X25 HIT-956636.A5 956636	-
68 - HANDLE (B) HIT-983273.A1 983273	£21.03	£25.24
69 - SWITCH (A) (1P SCREW TYPE) W/LOCK HIT-995398.A0 995398	£25.79	£30.95
70 - SUPPORT (E) HIT-990082.A3 990082	-
71 - HANDLE (A) HIT-983272.A0 983272	£17.03	£20.44
72 - SEAL LOCK HEX. SOCKET HD. BOLT M6X55 HIT-301567.A0 301567	£4.26	£5.11
73 - MACHINE SCREW (BRASS) M4X6 (10 PCS.) HIT-949292.A14 949292	-
74 - INTERNAL WIRE HOLDER HIT-980754.A0 980754	-
75 - HANDLE PACKING HIT-980751.A1 980751	£1.67	£2.00
76 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A243 984750	£1.67	£2.00
77 - CORD CLIP HIT-960266.A23 960266	£1.67	£2.00
78 - CONNECTOR 50092 (10 PCS.) HIT-959141.A85 959141	£7.12	£8.54
*79 - CORD ARMOR D8.2 HIT-958049.A20 958049	£1.67	£2.00
*79 - CORD ARMOR D10.7 HIT-940778.A10 940778	£3.15	£3.78
*80 - CORD (CORD ARMOR D10.7) HIT-500202Z.A6 500202Z	-
*80 - CORD (CORD ARMOR D10.7) FOR SYR HIT-500393Z.A3 500393Z	-
*80 - CORD (CORD ARMOR D8.2) FOR NZL HIT-500217Z.A4 500217Z	-
*80 - CORD (CORD ARMOR D8.2) HKG HIT-500449Z.A0 500449Z	-
80A - CORD (CORD ARMOR D8.2) FOR KOR HIT-500398Z.A1 500398Z	-
80A - CORD (CORD ARMOR D8.2) FOR SIN HIT-500428Z.A2 500428Z	-
81 - HANDLE BAND ASS'Y INCLUD.26 HIT-308064.A0 308064	-
82 - NOISE SUPPRESSOR FOR KOR HIT-930039.A21 930039	£3.85	£4.62
83 - TERMINAL 50051 (10 PCS.) FOR NOISE SUPPRESSOR HIT-959144.A1 959144	-
84 - STOP LEVER ASS'Y INCLUD.28-30 HIT-995399.A0 995399	-
501B - CASE (PLASTIC) HIT-319782.A0 319782	-
502 - HEX. BAR WRENCH 4MM HIT-944458.A79 944458	£1.67	£2.00
503 - HEX. BAR WRENCH 6MM HIT-872422.A3 872422	£1.67	£2.00
504 - BULL POINT 320MM (ROUND SHANK TYPE) HIT-955613.A0 955613	-
505 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) FOR TPE HIT-981840.A40 981840	£8.22	£9.87
601 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A19 980927	£55.68	£66.81
602 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A37 981840	£8.22	£9.87
603 - COLD CHISEL 320MM HIT-955614.A0 955614	-
610 - DRIFT KEY HIT-944574.A0 944574	-
611A - SYRINGE (BELLOWS TYPE) HIT-318085.A17 318085	-
612 - BULL POINT 450MM (ROUND SHANK TYPE) HIT-955623.A0 955623	-
613 - COLD CHISEL 450MM HIT-955624.A0 955624	-
614 - SHANK 260L (FOR RAMMER AND BUSHING TOOL) HIT-955625.A0 955625	-
615 - BUSHING TOOL HIT-955183.A5 955183	-
616 - RAMMER 140MM HIT-955181.A0 955181	-
617 - SCOOP 455L HIT-980034.A0 980034	-
618 - CUTTER W50X320L HIT-955629.A0 955629	-
619 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A47 308471	£16.21	£19.45
620 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A23 320859	£10.35	£12.42
