Hitachi / Hikoki H45MRY Hammer Spare Parts

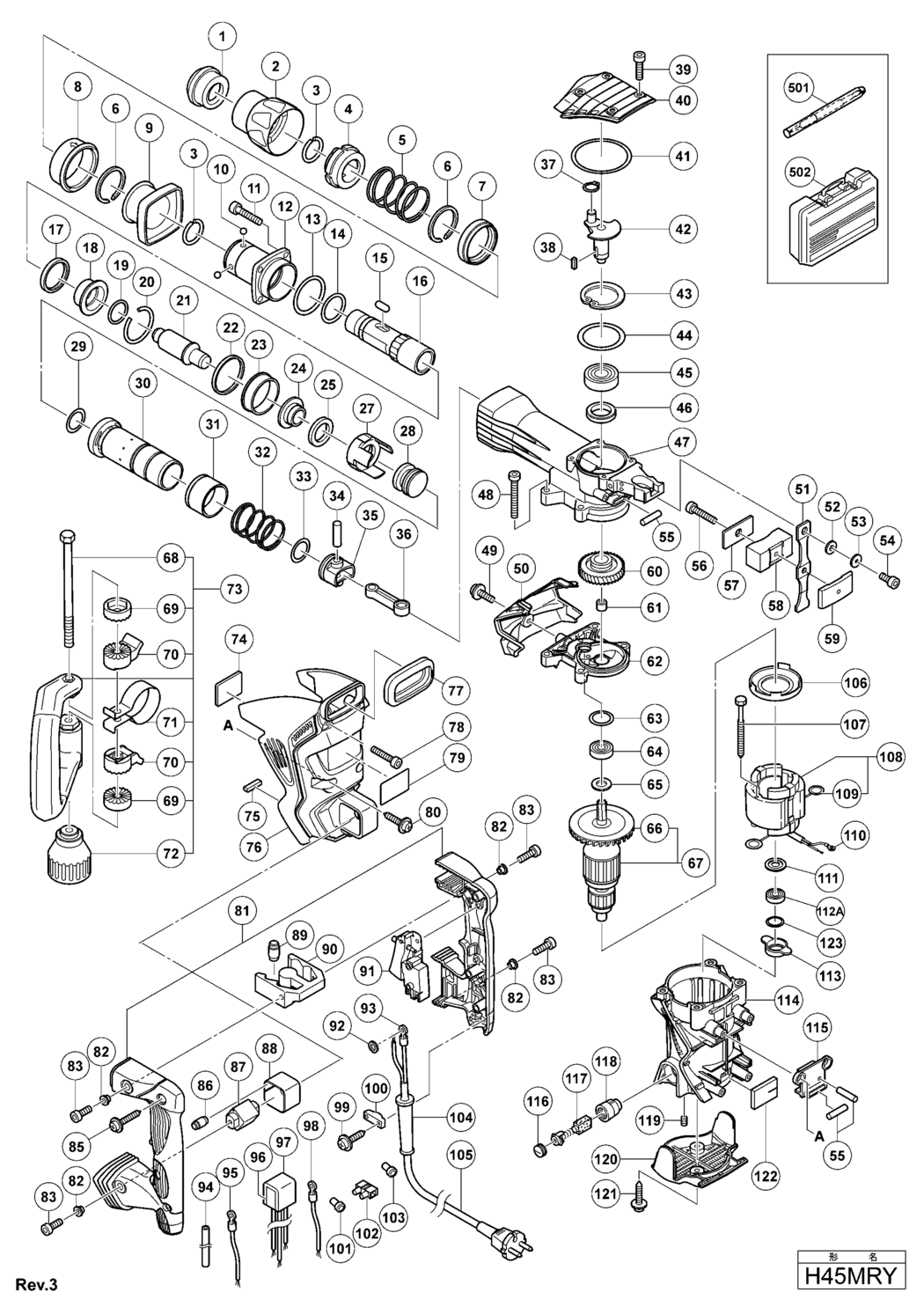

An exploded diagram and spare parts listing for the Hitachi / Hikoki H45MRY Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-315529.A1 315529	£3.85	£4.62
2 - GRIP (A) HIT-320802.A0 320802	£8.52	£10.22
3 - RING HIT-320803.A1 320803	£1.67	£2.00
4 - NEEDLE HOLDER HIT-320804.A3 320804	£33.68	£40.41
5 - SPRING (A) HIT-320806.A0 320806	£8.52	£10.22
6 - RETAINING RING D42 HIT-317088.A2 317088	£4.10	£4.92
7 - BALL HOLDER HIT-320810.A2 320810	£16.07	£19.28
8 - GRIP (B) HIT-320807.A1 320807	£4.57	£5.48
9 - GRIP (C) HIT-320808.A0 320808	£6.72	£8.06
10 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A18 959150	£1.67	£2.00
11 - SEAL LOCK HEX. SOCKET HD. BOLT M6X25 HIT-981942.A6 981942	£1.67	£2.00
12 - FRONT COVER HIT-326494.A0 326494	£68.38	£82.05
13 - O-RING (1AS-50) HIT-990067.A1 990067	£1.67	£2.00
14 - O-RING (S-34) HIT-980879.A3 980879	£1.67	£2.00
15 - NEEDLE ROLLER D8X20 HIT-313421.A8 313421	£6.32	£7.59
16 - RETAINER SLEEVE HIT-320805.A1 320805	£74.41	£89.29
17 - DAMPER (A) HIT-322528.A0 322528	£1.67	£2.00
18 - HAMMER HOLDER (A) HIT-326379.A0 326379	£30.28	£36.34
19 - O-RING (S-25) HIT-319572.A2 319572	£1.67	£2.00
20 - RING (B) HIT-326380.A0 326380	£1.67	£2.00
21 - SECOND HAMMER HIT-326381.A0 326381	£36.93	£44.32
22 - DAMPER (C) HIT-326662.A2 326662	£4.65	£5.58
23 - SLEEVE (A) HIT-326495.A0 326495	£4.65	£5.58
24 - HAMMER HOLDER (B) HIT-320814.A1 320814	£14.01	£16.81
25 - DAMPER (B) HIT-320815.A0 320815	£4.57	£5.48
27 - HAMMER HOLDER (C) HIT-326382.A0 326382	£16.80	£20.16
28 - STRIKER HIT-326383.A0 326383	£19.02	£22.83
29 - O-RING (I.D 27.2) HIT-325297.A0 325297	£4.33	£5.20
30 - CYLINDER HIT-326496.A0 326496	£70.98	£85.18
31 - SLIDE SLEEVE HIT-326497.A0 326497	-
32 - SPRING (B) HIT-326498.A0 326498	£8.52	£10.22
33 - O-RING (I.D 27.2) HIT-325297.A1 325297	£4.33	£5.20
34 - PISTON PIN HIT-324917.A3 324917	£6.50	£7.80
35 - PISTON HIT-326384.A0 326384	£8.66	£10.39
36 - CONNECTING ROD HIT-326385.A0 326385	£6.50	£7.80
37 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A37 939540	£1.67	£2.00
38 - FEATHER KEY 4X4X10 HIT-930511.A0 930511	£2.78	£3.34
39 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A26 990079	£1.67	£2.00
40 - CRANK COVER HIT-326500.A0 326500	£9.43	£11.32
41 - O-RING HIT-326501.A0 326501	£1.67	£2.00
42 - CRANK SHAFT HIT-326499.A0 326499	£40.32	£48.38
43 - RETAINING RING FOR D40 HOLE HIT-948391.A3 948391	£1.67	£2.00
44 - O-RING (S-40) HIT-996363.A6 996363	£1.67	£2.00
45 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A34 6203DD	£8.64	£10.37
46 - OIL SEAL HIT-310119.A5 310119	£4.21	£5.05
47 - CYLINDER CRANK CASE HIT-326502.A0 326502	£77.68	£93.22
48 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A5 986940	£1.67	£2.00
49 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A16 998471	£1.67	£2.00
50 - HOOD HIT-326503.A0 326503	£6.82	£8.18
51 - LEAF SPRING HIT-326386.A0 326386	£6.50	£7.80
52 - SPRING BUMPER (A) HIT-326375.A1 326375	£1.67	£2.00
53 - WASHER HIT-326477.A1 326477	£1.67	£2.00
54 - SEAL LOCK HEX. SOCKET HD. BOLT M4X10 HIT-878356.A2 878356	£1.67	£2.00
55 - NEEDLE ROLLER HIT-878418.A3 878418	£1.67	£2.00
56 - SEAL LOCK HEX. SOCKET HD. BOLT M5X22 HIT-317245.A2 317245	£1.67	£2.00
57 - RUBBER SHEET (C) HIT-326515.A0 326515	£1.67	£2.00
58 - WEIGHT (B) HIT-326508.A0 326508	£14.78	£17.73
59 - WEIGHT (A) HIT-326507.A0 326507	£8.52	£10.22
60 - FIRST GEAR HIT-320830.A1 320830	£27.26	£32.71
61 - NEEDLE BEARING (M661) HIT-939299.A18 939299	£11.82	£14.18
62 - GEAR COVER ASS'Y INCLUD.61 HIT-326510.A0 326510	£29.69	£35.63
63 - O-RING (S-32) HIT-872767.A11 872767	£1.67	£2.00
64 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A10 6201DD	£8.64	£10.37
65 - DUST WASHER (B) HIT-302429.A7 302429	£1.67	£2.00
66 - FAN HIT-321640.A1 321640	£8.52	£10.22
*67 - ARMATURE ASS'Y 110V INCLUD.66 HIT-360571C.A1 360571C	£66.96	£80.35
*67 - ARMATURE ASS'Y 220V-230V INCLUD.66 HIT-360571E.A0 360571E	£66.96	£80.35
68 - BOLT M8 HIT-317107.A0 317107	£4.10	£4.92
69 - HANDLE HOLDER (B) HIT-317106.A3 317106	£4.10	£4.92
70 - HANDLE HOLDER (A) HIT-317105.A0 317105	£6.09	£7.31
71 - BAND HIT-320635.A1 320635	£8.22	£9.87
72 - GRIP HIT-317108.A3 317108	£11.98	£14.37
73 - SIDE HANDLE ASS'Y INCLUD.68-72 HIT-317103.A3 317103	£40.59	£48.71
74 - RUBBER SHEET (A) HIT-326487.A1 326487	£1.67	£2.00
75 - SPRING BUMPER (B) HIT-326376.A0 326376	-
76 - BACK COVER HIT-326505.A0 326505	£19.17	£23.00
77 - BELLOWS HIT-326378.A0 326378	£4.33	£5.20
78 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-306061.A3 306061	-
79 - NAME PLATE HIT-000000.A2680 000000	-
80 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A11 302089	£1.67	£2.00
81 - HANDLE (A).(B) SET HIT-326485.A0 326485	£23.57	£28.28
82 - DISTANCE PIECE (B) HIT-991711.A22 991711	£1.67	£2.00
83 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A3 991690	£1.67	£2.00
85 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A43 307028	£1.67	£2.00
86 - HANDLE DAMPER HIT-310124.A3 310124	£6.18	£7.41
87 - HANDLE SHAFT HIT-326377.A1 326377	£6.50	£7.80
88 - HOLDER HIT-326479.A1 326479	£4.65	£5.58
89 - HANDLE DAMPER HIT-310124.A2 310124	£6.18	£7.41
90 - TRANSATORY UNIT HIT-310123.A13 310123	£11.82	£14.18
91 - SWITCH (B) (1P SCREW TYPE) W/LOCK HIT-306143.A4 306143	£19.10	£22.92
92 - WASHER M4 (10 PCS.) HIT-949423.A27 949423	£1.67	£2.00
93 - TERMINAL FOR CORD HIT-980063.A60 980063	£1.67	£2.00
94 - VINYL TUBE (I.D.9.5XT0.56X85) HIT-326541.A0 326541	-
95 - INTERNAL WIRE L75 HIT-326509.A0 326509	-
96 - NOISE SUPPRESSOR HIT-325566.A2 325566	£11.98	£14.38
97 - SUPPORT (B) HIT-317492.A11 317492	£1.67	£2.00
98 - INTERNAL WIRE HIT-994190.A6 994190	£1.67	£2.00
99 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A244 984750	£1.67	£2.00
*100 - CORD CLIP HIT-960266.A22 960266	£1.67	£2.00
*100 - CORD CLIP FOR SUI HIT-981987Z.A7 981987Z	-
101 - CONNECTOR 50091 (10 PCS.) HIT-959140.A29 959140	£4.98	£5.97
102 - PILLAR TERMINAL HIT-938307.A27 938307	£3.28	£3.93
103 - CONNECTOR 50092 (10 PCS.) HIT-959141.A86 959141	£7.12	£8.54
104 - CORD ARMOR D8.8 HIT-953327.A112 953327	£1.67	£2.00
*105 - CORD (CORD ARMOR D8.8) HIT-500390Z.A11 500390Z	-
*105 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500454Z.A2 500454Z	£16.40	£19.68
*105 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A29 500446Z	£33.79	£40.55
*105 - CORD (CORD ARMOR D8.8) FOR SUI HIT-500391Z.A7 500391Z	-
*105 - CORD (CORD ARMOR D8.8) FOR USA HIT-500434Z.A6 500434Z	-
106 - FAN GUIDE HIT-321320.A3 321320	£4.86	£5.83
107 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A22 953174	£1.67	£2.00
*108 - STATOR ASS'Y 110V INCLUD.109 HIT-340681C.A0 340681C	£45.92	£55.10
*108 - STATOR ASS'Y 220V-230V INCLUD.109 HIT-340681E.A0 340681E	£57.96	£69.55
*108 - STATOR ASS'Y 120V INCLUD.109 HIT-340681G.A0 340681G	-
109 - BRUSH TERMINAL HIT-930703.A20 930703	£3.28	£3.93
110 - TERMINAL M4.0 (10 PCS.) HIT-930804.A11 930804	£3.64	£4.37
111 - WASHER (A) HIT-982631.A14 982631	£1.67	£2.00
112A - BALL BEARING 608DD HIT-608DDM.A58 608DDM	£6.35	£7.62
113 - BEARING HOLDER HIT-326484.A1 326484	£6.82	£8.18
114 - HOUSING ASS'Y HIT-326481.A0 326481	£40.12	£48.15
115 - SPRING BASE HIT-326506.A0 326506	£4.65	£5.58
116 - BRUSH CAP HIT-935829.A1 935829	£1.67	£2.00
117 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999073.A2 999073	£18.73	£22.48
118 - BRUSH HOLDER HIT-971001.A8 971001	£8.64	£10.37
119 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A54 938477	£1.67	£2.00
120 - TAIL COVER HIT-326504.A0 326504	£8.52	£10.22
121 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A10 302089	£1.67	£2.00
122 - COVER (A) HIT-326488.A0 326488	£1.67	£2.00
123 - DUST SEAL HIT-333142.A0 333142	£5.23	£6.28
501 - BULL POINT (SDS MAX) 280L HIT-313471.A4 313471	-
502 - CASE (PLASTIC) HIT-326511.A0 326511	£115.34	£138.41
601 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A39 981840	£8.22	£9.87
602 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A45 308471	£16.21	£19.45
603 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A18 980927	£55.68	£66.81
604 - BULL POINT (SDS MAX) 400L HIT-313472.A18 313472	-
605 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A4 313473	-
606 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A17 313474	-
607 - CUTTER (SDS MAX) W50X400L HIT-313475.A4 313475	-
608 - SCOOP (SDS MAX) 400L HIT-313476.A17 313476	-
609 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A17 313478	-
610 - BUSHING TOOL (SDS MAX) HIT-313477.A4 313477	-
611 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A4 313479	-

Attribute Name	Value
Brand	Hikoki
