Hitachi / Hikoki H45MR Hammer Spare Parts

Home Details Reviews Delivery

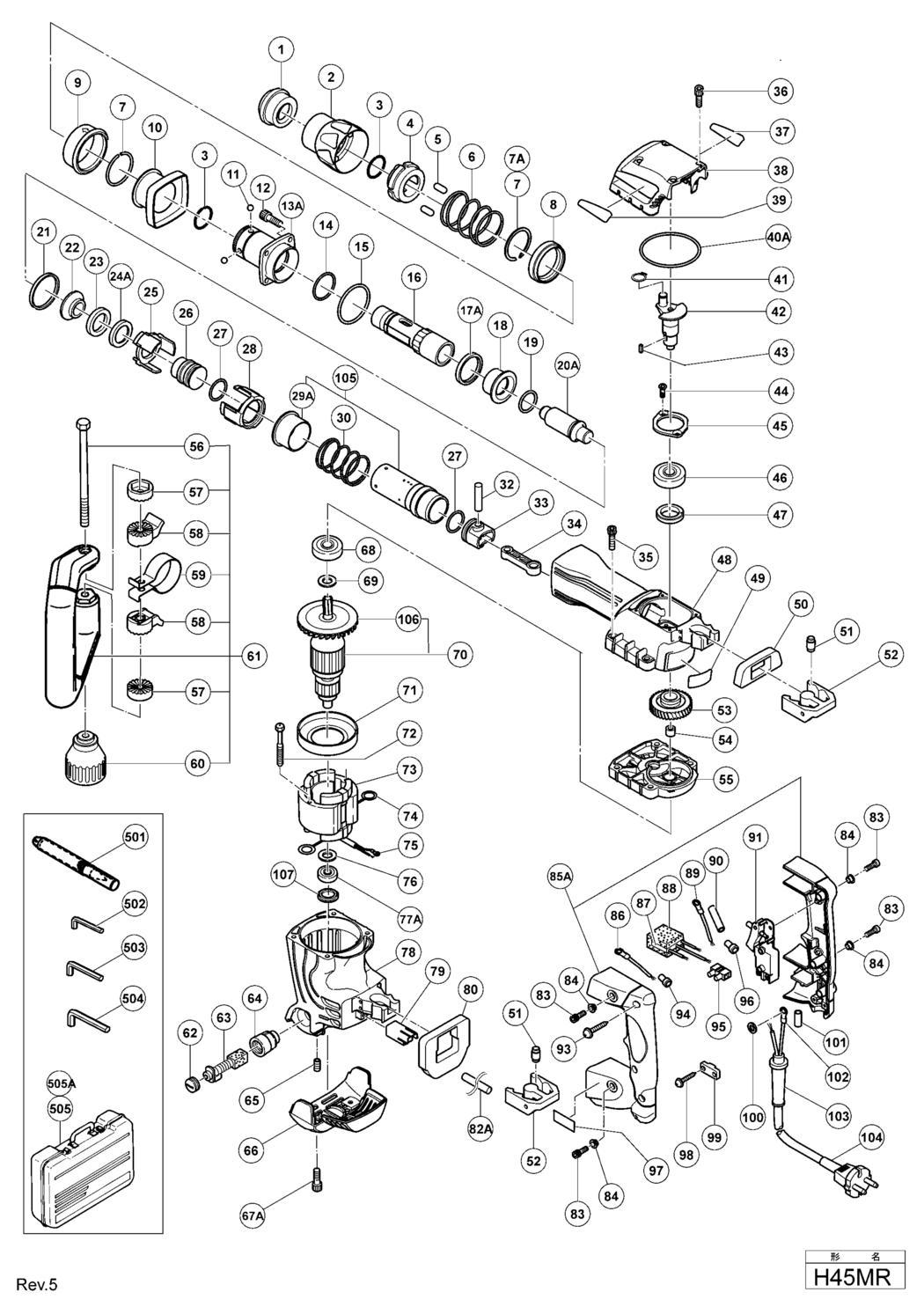

An exploded diagram and spare parts listing for the Hitachi / Hikoki H45MR Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-315529.A0 315529	£3.85	£4.62
2 - GRIP (A) HIT-320802.A1 320802	£8.52	£10.22
3 - RING HIT-320803.A0 320803	£1.67	£2.00
4 - NEEDLE HOLDER HIT-320804.A4 320804	£33.68	£40.41
5 - NEEDLE ROLLER D8X20 HIT-313421.A7 313421	£6.32	£7.59
6 - SPRING (A) HIT-320806.A1 320806	£8.52	£10.22
7 - RETAINING RING D42 TILL 5.2007 HIT-317088.A3 317088	£4.10	£4.92
7 - RETAINING RING D42 SINCE 6.2007 HIT-317088.A4 317088	£4.10	£4.92
7A - STOPPER RING SINCE 6.2007 HIT-328538.A0 328538	£1.67	£2.00
8 - BALL HOLDER HIT-320810.A0 320810	£16.07	£19.28
9 - GRIP (B) HIT-320807.A0 320807	£4.57	£5.48
10 - GRIP (C) HIT-320808.A1 320808	£6.72	£8.06
11 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A23 959150	£1.67	£2.00
12 - SEAL LOCK HEX. SOCKET HD. BOLT M6X25 HIT-981942.A7 981942	£1.67	£2.00
13A - FRONT COVER HIT-320809.A0 320809	£46.68	£56.02
14 - O-RING (S-34) HIT-980879.A7 980879	£1.67	£2.00
15 - O-RING (1AS-50) HIT-990067.A2 990067	£1.67	£2.00
16 - RETAINER SLEEVE HIT-320805.A0 320805	£74.41	£89.29
17A - DAMPER (A) HIT-322528.A1 322528	£1.67	£2.00
18 - HAMMER HOLDER (A) HIT-320811.A0 320811	£38.90	£46.68
19 - O-RING (S-25) HIT-319572.A1 319572	£1.67	£2.00
20A - SECOND HAMMER HIT-320813.A0 320813	£33.82	£40.58
21 - DAMPER (C) HIT-320817.A0 320817	£4.57	£5.48
22 - HAMMER HOLDER (B) HIT-320814.A0 320814	£14.01	£16.81
23 - DAMPER (B) HIT-320815.A1 320815	£4.57	£5.48
24A - WASHER HIT-322412.A0 322412	£1.67	£2.00
25 - HAMMER HOLDER (C) HIT-320816.A0 320816	£1.67	£2.00
26 - STRIKER HIT-320822.A0 320822	£18.83	£22.60
27 - O-RING HIT-320823.A0 320823	£4.57	£5.48
28 - CYLINDER HOLDER HIT-320818.A0 320818	£8.52	£10.22
29A - SLEEVE (A) SINCE 9.2002 HIT-321443.A0 321443	£27.52	£33.02
30 - SPRING (C) HIT-320821.A0 320821	£4.57	£5.48
32 - PISTON PIN HIT-320826.A0 320826	£6.72	£8.06
33 - PISTON HIT-320824.A4 320824	£6.72	£8.06
34 - CONNECTING ROD HIT-320825.A0 320825	£4.57	£5.48
35 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A6 986940	£1.67	£2.00
36 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A27 983162	£1.67	£2.00
37 - BRAND LABEL HIT-000000.A3049 000000	-
38 - CRANK COVER HIT-320831.A0 320831	£10.15	£12.18
39 - BRAND LABEL HIT-000000.A3050 000000	-
40A - O-RING (JASO2060) HIT-878867.A0 878867	£3.00	£3.60
41 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A39 939540	£1.67	£2.00
42 - CRANK SHAFT HIT-320829.A0 320829	£38.90	£46.68
43 - FEATHER KEY 4X4X10 HIT-930511.A2 930511	£2.78	£3.34
44 - SEAL LOCK HEX.SOCKET FLAT HD. BOLT M5X12 HIT-980760.A0 980760	£1.67	£2.00
45 - BEARING COVER (A) HIT-980761.A0 980761	-
46 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A33 6203DD	£8.64	£10.37
47 - OIL SEAL HIT-310119.A7 310119	£4.21	£5.05
48 - CYLINDER CRANK CASE HIT-320828.A0 320828	£54.47	£65.36
49 - NAME PLATE HIT-000000.A3051 000000	-
50 - HANDLE PACKING (A) HIT-320837.A0 320837	£4.57	£5.48
51 - HANDLE DAMPER HIT-310124.A4 310124	£6.18	£7.41
52 - TRANSATORY UNIT HIT-310123.A12 310123	£11.82	£14.18
53 - FIRST GEAR HIT-320830.A0 320830	£27.26	£32.71
54 - NEEDLE BEARING (M661) HIT-939299.A14 939299	£11.82	£14.18
55 - GEAR COVER ASS'Y INCLUD.54 HIT-320841.A0 320841	-
56 - BOLT M8 HIT-317107.A1 317107	£4.10	£4.92
57 - HANDLE HOLDER (B) HIT-317106.A2 317106	£4.10	£4.92
58 - HANDLE HOLDER (A) HIT-317105.A1 317105	£6.09	£7.31
59 - BAND HIT-320635.A0 320635	£8.22	£9.87
60 - GRIP HIT-317108.A2 317108	£11.98	£14.37
61 - SIDE HANDLE ASS'Y INCLUD.56-60 HIT-317103.A2 317103	£40.59	£48.71
62 - BRUSH CAP HIT-935829.A6 935829	£1.67	£2.00
63 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999073.A3 999073	£18.73	£22.48
64 - BRUSH HOLDER HIT-971001.A6 971001	£8.64	£10.37
65 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A45 938477	£1.67	£2.00
66 - TAIL COVER HIT-320834.A0 320834	£12.39	£14.87
67A - SEAL LOCK HEX. SOCKET HD. BOLT M5X8 HIT-321527.A1 321527	-
68 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A16 6201DD	£8.64	£10.37
69 - DUST WASHER (B) HIT-302429.A9 302429	£1.67	£2.00
*70 - ARMATURE ASS'Y 110V INCLUD.106 HIT-360571C.A0 360571C	£66.96	£80.35
*70 - ARMATURE ASS'Y 220V-230V INCLUD.106 HIT-360571E.A1 360571E	£66.96	£80.35
71 - FAN GUIDE HIT-320832.A0 320832	£1.67	£2.00
72 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A25 953174	£1.67	£2.00
*73 - STATOR ASS'Y 110V INCLUD.74 HIT-340519C.A0 340519C	£46.68	£56.02
*73 - STATOR ASS'Y 220V-230V INCLUD.74 FOR GBR (230V) HIT-340519E.A0 340519E	£46.68	£56.02
74 - BRUSH TERMINAL HIT-930703.A22 930703	£3.28	£3.93
76 - WASHER (A) HIT-982631.A17 982631	£1.67	£2.00
77A - BALL BEARING 608DD HIT-608DDM.A51 608DDM	£6.35	£7.62
78 - HOUSING ASS'Y HIT-320833.A0 320833	£66.96	£80.35
79 - SLEEVE (B) HIT-320836.A0 320836	-
80 - HANDLE PACKING (B) HIT-320838.A0 320838	£6.72	£8.06
82A - VINYL TUBE (I.D.9.5XT0.56X85) HIT-326541.A1 326541	-
83 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A1 991690	£1.67	£2.00
84 - DISTANCE PIECE (B) HIT-991711.A26 991711	£1.67	£2.00
85A - HANDLE (A).(B) SET HIT-329866.A0 329866	£21.58	£25.89
*86 - INTERNAL WIRE FOR AUS HIT-990861.A5 990861	£1.67	£2.00
*87 - NOISE SUPPRESSOR FOR AUS HIT-994273.A0 994273	£7.30	£8.76
*88 - SUPPORT (B) FOR NOISE SUPPRESSOR HIT-317492.A13 317492	£1.67	£2.00
*89 - INTERNAL WIRE FOR AUS HIT-981974.A11 981974	£1.67	£2.00
91 - SWITCH (B) (1P SCREW TYPE) W/LOCK HIT-306143.A6 306143	£19.10	£22.92
93 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A48 307028	£1.67	£2.00
*94 - CONNECTOR 50091 (10 PCS.) FOR AUS HIT-959140.A40 959140	£4.98	£5.97
*95 - PILLAR TERMINAL FOR AUS HIT-938307.A30 938307	£3.28	£3.93
*96 - CONNECTOR 50092 (10 PCS.) EXCEPT FOR USA HIT-959141.A75 959141	£7.12	£8.54
97 - SDS MAX LABEL HIT-000000.A3058 000000	-
98 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A272 984750	£1.67	£2.00
*99 - CORD CLIP HIT-960266.A37 960266	£1.67	£2.00
*100 - WASHER M4 (10 PCS.) FOR AUS HIT-949423.A19 949423	£1.67	£2.00
*101 - TUBE (D) FOR CORD HIT-981373.A34 981373	£1.67	£2.00
*102 - TERMINAL FOR AUS HIT-980063.A68 980063	£1.67	£2.00
*102 - TERMINAL FOR GBR (230V) HIT-992810.A3 992810	-
*103 - CORD ARMOR D8.8 HIT-953327.A122 953327	£1.67	£2.00
*104 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A32 500446Z	£33.79	£40.55
*104 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500465Z.A16 500465Z	£26.20	£31.44
105 - CYLINDER ASS'Y INCLUD.29A HIT-321442.A0 321442	£59.14	£70.97
106 - FAN HIT-321640.A0 321640	£8.52	£10.22
107 - DUST SEAL HIT-333143.A0 333143	£5.17	£6.20
501 - BULL POINT (SDS MAX) 280L HIT-313471.A6 313471	-
*502 - HEX. BAR WRENCH 3MM FOR AUS HIT-943277.A10 943277	£1.67	£2.00
503 - HEX. BAR WRENCH 4MM HIT-944458.A95 944458	£1.67	£2.00
504 - HEX. BAR WRENCH 5MM HIT-944459.A7 944459	£1.67	£2.00
*505A - CASE (PLASTIC) FOR AUS HIT-323370.A0 323370	£70.87	£85.04
601 - BULL POINT (SDS MAX) 400L HIT-313472.A16 313472	-
602 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A6 313473	-
603 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A15 313474	-
604 - CUTTER (SDS MAX) W50X400L HIT-313475.A6 313475	-
605 - SCOOP (SDS MAX) 400L HIT-313476.A15 313476	-
606A - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A16 313478	-
607 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A5 313479	-
608 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A42 981840	£8.22	£9.87
609 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A51 308471	£16.21	£19.45
610 - GREASE FOR HAMMER.HAMMER DRILL (500G) EXCEPT FOR USA HIT-980927.A22 980927	£55.68	£66.81
611 - SERVICE KIT (H 45MR) INCLUD.12 HIT-321713.A0 321713	£63.78	£76.54
612 - CYLINDER CASE COVER HIT-323131.A0 323131	-
