Hitachi / Hikoki H45MEY Demolition Hammer Spare Parts

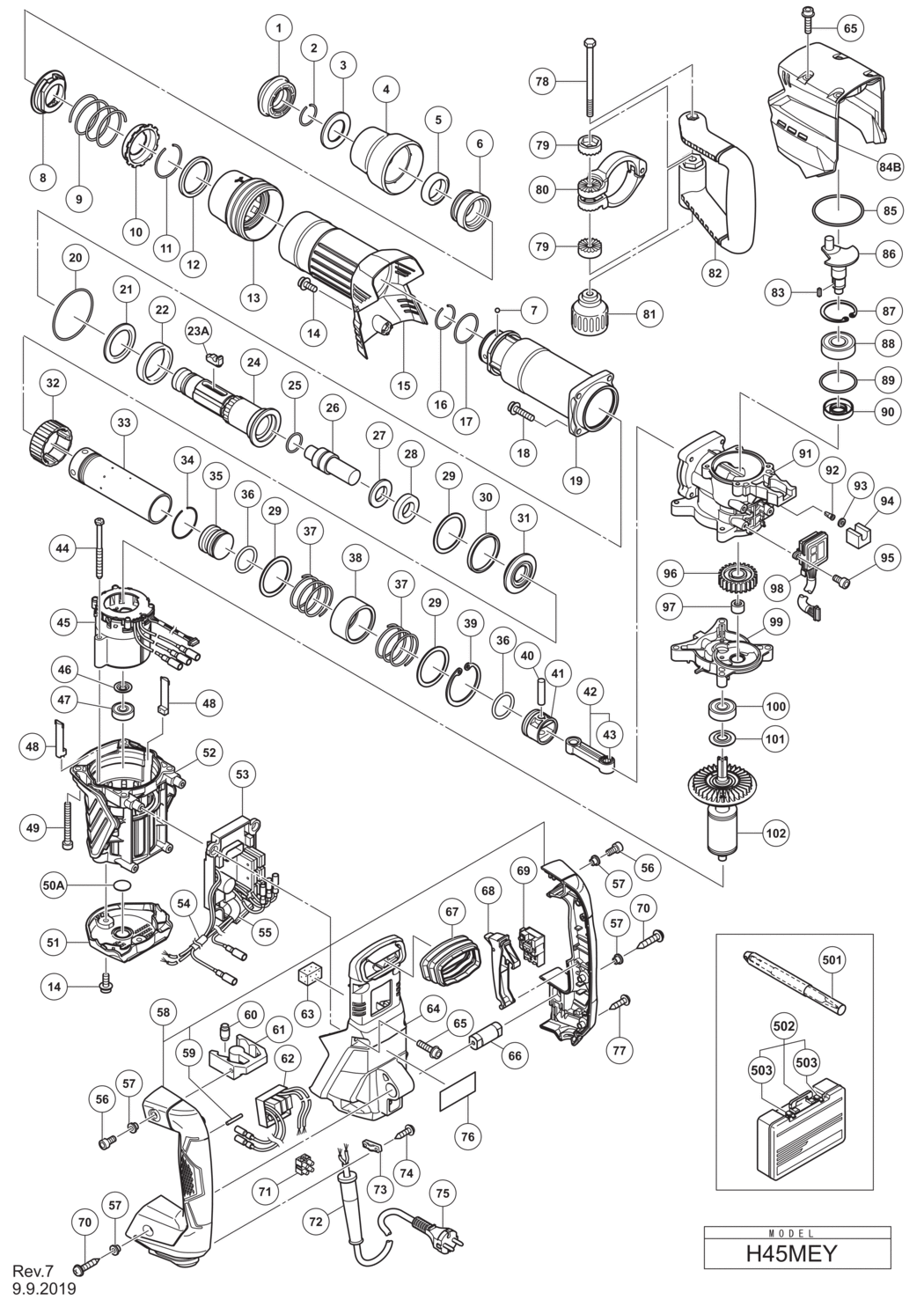

An exploded diagram and spare parts listing for the Hitachi / Hikoki H45MEY Demolition Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-337562.A4 337562	£4.81	£5.77
2 - STOPPER RING HIT-318590.A12 318590	£1.67	£2.00
3 - RETAINER WASHER HIT-370172.A1 370172	£1.66	£1.99
4 - GRIP HIT-370173.A2 370173	£5.25	£6.30
5 - RETAINER DAMPER (A) HIT-339053.A3 339053	£15.70	£18.84
6 - BIT LOCK HOLDER HIT-337558.A1 337558	£11.86	£14.23
7 - STEEL BALL D5 HIT-370239.A1 370239	£1.67	£2.00
8 - SPRING HOLDER (A) HIT-370242.A0 370242	£14.54	£17.45
9 - RETAINER SPRING HIT-370243.A3 370243	-
10 - SPRING HOLDER (B) HIT-370244.A0 370244	-
11 - STOPPER RING HIT-333255.A4 333255	£1.67	£2.00
12 - BALL HOLDER HIT-370240.A0 370240	-
13 - GRIP (B) HIT-370241.A1 370241	£4.28	£5.13
14 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A14 998471	£1.67	£2.00
15 - CYLINDER CASE COVER HIT-370238.A0 370238	£12.52	£15.03
16 - RING HIT-320803.A4 320803	£1.67	£2.00
17 - O-RING (S-35) HIT-337664.A1 337664	-
18 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X25 HIT-991712.A8 991712	£1.67	£2.00
19 - CYLINDER CASE HIT-370226.A0 370226	-
20 - O-RING (1AS-60) HIT-956996.A10 956996	£3.82	£4.58
21 - RETAINER DAMPER HOLDER HIT-337549.A0 337549	-
22 - RETAINER DAMPER (B) HIT-337548.A2 337548	£3.12	£3.74
23A - BIT LOCK HIT-370654.A1 370654	£8.55	£10.26
24 - RETAINER SLEEVE HIT-370227.A1 370227	£58.75	£70.50
25 - O-RING (C) HIT-324921.A1 324921	£4.33	£5.20
26 - SECOND HAMMER HIT-370228.A0 370228	-
27 - DAMPER WASHER HIT-370229.A1 370229	£7.39	£8.87
28 - DAMPER HIT-370259.A1 370259	£14.78	£17.73
29 - WEIGHT WASHER HIT-370230.A0 370230	£1.67	£2.00
30 - DAMPER (C) HIT-326662.A0 326662	£4.65	£5.58
31 - DAMPER HOLDER HIT-370231.A1 370231	-
32 - CYLINDER HOLDER HIT-370232.A0 370232	£2.67	£3.20
33 - CYLINDER HIT-370233.A1 370233	-
34 - STOPPER RING HIT-370235.A1 370235	-
35 - STRIKER HIT-370234.A0 370234	-
36 - O-RING (I.D 27.2) HIT-325297.A3 325297	£4.33	£5.20
37 - WEIGHT SPRING HIT-370236.A0 370236	-
38 - WEIGHT HIT-370237.A0 370237	-
39 - RETAINING RING FOR D52 HOLE HIT-967270.A0 967270	-
40 - PISTON PIN HIT-324917.A2 324917	£6.50	£7.80
41 - PISTON HIT-324915.A1 324915	£8.66	£10.39
42 - CONNECTING ROD ASS'Y INCLUD.43 HIT-339049.A2 339049	£16.20	£19.44
43 - NEEDLE BEARING HIT-335303.A2 335303	-
44 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A5 953174	£1.67	£2.00
*45 - STATOR SENSOR PCB SET 100V-127V HIT-340934.A0 340934	£56.44	£67.73
*45 - STATOR SENSOR PCB SET 220V-240V HIT-340885E.A2 340885E	£40.77	£48.92
46 - WASHER (A) HIT-958915.A5 958915	£1.67	£2.00
47 - BALL BEARING 629VV HIT-629VVM.A10 629VVM	£6.00	£7.20
48 - SPACER HIT-339910.A1 339910	£1.67	£2.00
49 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A17 986940	£1.67	£2.00
50A - DUST SEAL HIT-333263.A5 333263	-
51 - TAIL COVER HIT-370002.A2 370002	-
52 - HOUSING HIT-370251.A1 370251	£0.00	£0.00
*53 - CONTROLLER 100V-127V HIT-370249.A1 370249	£102.35	£122.82
*53 - CONTROLLER 220V-240V HIT-370250.A0 370250	£102.35	£122.82
54 - VINYL TUBE L50 HIT-370074.A1 370074	-
55 - VINYL TUBE L35 HIT-370073.A1 370073	-
56 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A12 991690	£1.67	£2.00
57 - DISTANCE PIECE (B) HIT-991711.A10 991711	£1.67	£2.00
58 - HANDLE (A).(B) SET INCLUD.59 HIT-370258.A0 370258	£31.09	£37.31
59 - PIN D3X20 (10 PCS.) HIT-949890.A9 949890	£2.78	£3.34
60 - HANDLE DAMPER HIT-310124.A22 310124	£6.18	£7.41
61 - TRANSATORY UNIT HIT-310123.A2 310123	£11.82	£14.18
*62 - FILTER PCB SET 100V-127V HIT-337585.A2 337585	£13.02	£15.62
*62 - FILTER PCB SET 220V-240V HIT-337586.A0 337586	£13.02	£15.62
63 - SPONGE (B) HIT-338447.A1 338447	-
64 - BACK COVER HIT-370246.A0 370246	£14.02	£16.83
65 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A34 994192	£1.67	£2.00
66 - HANDLE SHAFT HIT-370253.A1 370253	-
67 - BELLOWS HIT-337591.A1 337591	-
68 - TRIGGER HIT-370254.A0 370254	£5.80	£6.96
69 - SWITCH HIT-337587.A2 337587	£15.34	£18.41
70 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A34 305558	£1.67	£2.00
71 - PILLAR TERMINAL (A) HIT-958308Z.A26 958308Z	£7.53	£9.04
*72 - CORD ARMOR D10.7 HIT-940778.A64 940778	£3.15	£3.78
73 - CORD CLIP HIT-960266.A79 960266	£1.67	£2.00
74 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A116 984750	£1.67	£2.00
*75 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500465Z.A3 500465Z	£26.20	£31.44
*75 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500446Z.A22 500446Z	£33.79	£40.55
76 - NAME PLATE HIT-000000.A3822 000000	-
77 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A75 301653	£1.67	£2.00
78 - BOLT M8 HIT-333228.A2 333228	£6.32	£7.59
79 - HANDLE HOLDER (B) HIT-333202.A2 333202	£1.67	£2.00
80 - HANDLE HOLDER HIT-370247.A1 370247	£21.70	£26.04
81 - GRIP HIT-333201.A1 333201	£2.94	£3.53
82 - SIDE HANDLE HIT-333199.A2 333199	£10.60	£12.72
83 - FEATHER KEY 3X3X10 HIT-940533.A5 940533	£1.67	£2.00
84B - CRANK COVER HIT-370256.A0 370256	£15.28	£18.33
85 - CYLINDER O-RING (B) I.D 55.9 HIT-876433.A0 876433	-
86 - CRANK SHAFT HIT-370225.A1 370225	£33.32	£39.98
87 - RETAINING RING FOR D40 HOLE HIT-948391.A24 948391	£1.67	£2.00
88 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A5 6203DD	£8.64	£10.37
89 - O-RING (S-40) HIT-996363.A20 996363	£1.67	£2.00
90 - OIL SEAL (B) HIT-321274.A2 321274	£7.38	£8.85
91 - CRANK CASE HIT-370224.A0 370224	£44.02	£52.83
92 - VALVE HIT-995396.A7 995396	-
93 - WASHER M3 (10 PCS.) HIT-949422.A4 949422	£1.67	£2.00
94 - FELT HIT-370245.A1 370245	-
95 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A5 983162	£1.67	£2.00
96 - FIRST GEAR HIT-337532.A1 337532	-
97 - NEEDLE BEARING (M661) HIT-939299.A6 939299	£11.82	£14.18
98 - PANEL HIT-337581.A1 337581	£14.19	£17.03
99 - GEAR COVER HIT-370252.A0 370252	-
100 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A28 6201DD	£8.64	£10.37
101 - DUST WASHER (B) HIT-302429.A4 302429	£1.67	£2.00
102 - ROTOR HIT-337578.A1 337578	£89.31	£107.17
501 - BULL POINT (SDS MAX) 280L HIT-313471.A21 313471	-
502 - CASE (PLASTIC) INCLUD.503 HIT-337594.A1 337594	-
503 - BUCKLE HIT-372113.A1 372113	-
601 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A23 981840	£8.22	£9.87
602 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A18 308471	£16.21	£19.45
603 - GREASE FOR HAMMER.HAMMER DRILL (500G) EXCEPT FOR USA HIT-980927.A45 980927	£55.68	£66.81
604 - BULL POINT (SDS MAX) 280L HIT-313471.A20 313471	-
605 - BULL POINT (SDS MAX) 400L HIT-313472.A3 313472	-
606 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A18 313473	-
607 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A3 313474	-
608 - CUTTER (SDS MAX) W50X400L HIT-313475.A18 313475	-
609 - SCOOP (SDS MAX) 400L HIT-313476.A3 313476	-
610 - BUSHING TOOL (SDS MAX) HIT-313477.A17 313477	-
611 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A3 313478	-
612 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A18 313479	-
