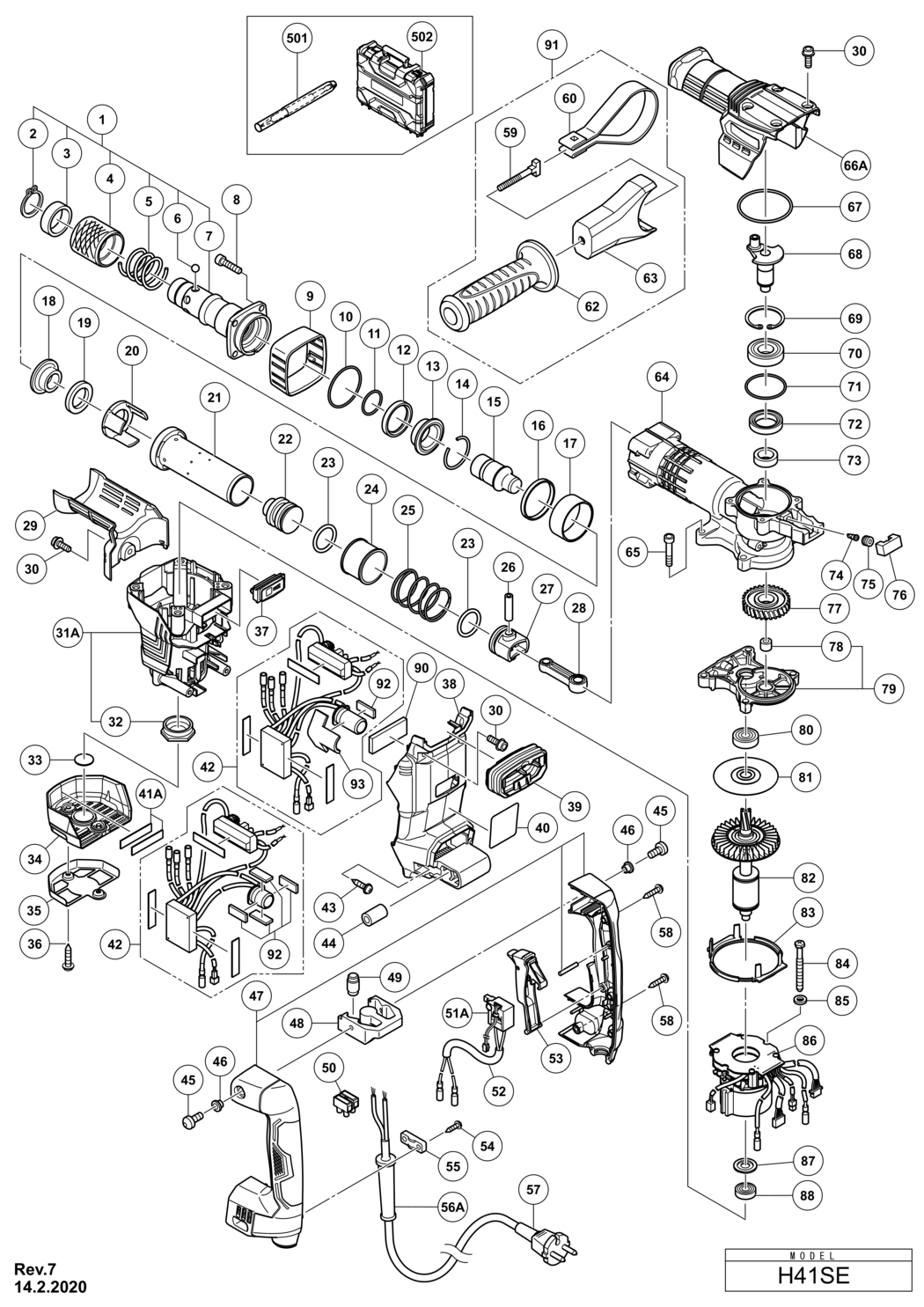

1 - FRONT COVER ASS'Y INCLUD.2-7
HIT-373264.A1
373264
|
-
|
|
|
|
2 - RETAINING RING D28
HIT-373270.A0
373270
|
-
|
|
|
|
3 - RING
HIT-373269.A0
373269
|
-
|
|
|
|
4 - SLIDE GRIP
HIT-373268.A1
373268
|
-
|
|
|
|
5 - SPRING
HIT-373267.A0
373267
|
-
|
|
|
|
6 - STEEL BALL D7.94
HIT-373266.A1
373266
|
-
|
|
|
|
7 - FRONT COVER
HIT-373265.A0
373265
|
-
|
|
|
|
8 - NYLOCK HIGH TENSION BOLT M7X25
HIT-993040.A4
993040
|
£2.69
|
£3.23
|
|
|
9 - TOP COVER
HIT-373236.A3
373236
|
-
|
|
|
|
10 - O-RING (I.D 44.5)
HIT-373251.A1
373251
|
-
|
|
|
|
11 - O-RING
HIT-329061.A0
329061
|
-
|
|
|
|
12 - DAMPER (A)
HIT-373253.A1
373253
|
-
|
|
|
|
13 - HAMMER HOLDER (A)
HIT-373261.A0
373261
|
-
|
|
|
|
14 - RING
HIT-322466.A1
322466
|
-
|
|
|
|
15 - SECOND HAMMER
HIT-373247.A0
373247
|
-
|
|
|
|
16 - DAMPER (C)
HIT-322471.A0
322471
|
-
|
|
|
|
17 - SLEEVE (B)
HIT-373946.A1
373946
|
-
|
|
|
|
18 - HAMMER HOLDER (B)
HIT-373947.A0
373947
|
-
|
|
|
|
19 - DAMPER (B)
HIT-374459.A1
374459
|
-
|
|
|
|
20 - HAMMER HOLDER (C)
HIT-373232.A1
373232
|
-
|
|
|
|
21 - CYLINDER
HIT-373257.A0
373257
|
-
|
|
|
|
22 - STRIKER
HIT-373258.A0
373258
|
-
|
|
|
|
23 - O-RING
HIT-320823.A3
320823
|
£4.57
|
£5.48
|
|
|
24 - SLEEVE (A)
HIT-373259.A1
373259
|
-
|
|
|
|
25 - SPRING (B)
HIT-373262.A1
373262
|
-
|
|
|
|
26 - PISTON PIN
HIT-373256.A0
373256
|
-
|
|
|
|
27 - PISTON
HIT-320824.A1
320824
|
£6.72
|
£8.06
|
|
|
28 - CONNECTING ROD
HIT-373275.A0
373275
|
-
|
|
|
|
29 - HOOD
HIT-373234.A2
373234
|
-
|
|
|
|
30 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X14
HIT-998485.A13
998485
|
£1.67
|
£2.00
|
|
|
31A - HOUSING ASS'Y INCLUD.32
HIT-376182.A0
376182
|
-
|
|
|
|
32 - BEARING BUSHING (B)
HIT-310111.A8
310111
|
£12.04
|
£14.45
|
|
|
33 - DUST SEAL
HIT-333263.A4
333263
|
-
|
|
|
|
34 - TAIL COVER
HIT-373631.A0
373631
|
-
|
|
|
|
35 - PLATE
HIT-373633.A0
373633
|
-
|
|
|
|
36 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A140
301653
|
£1.67
|
£2.00
|
|
|
37 - PANEL
HIT-375353.A0
375353
|
-
|
|
|
|
38 - BACK COVER
HIT-373628.A1
373628
|
-
|
|
|
|
39 - BELLOWS
HIT-373252.A2
373252
|
-
|
|
|
|
40 - NAME PLATE
HIT-000000.A1560
000000
|
-
|
|
|
|
41A - RUBBER SHEET
HIT-373635.A0
373635
|
-
|
|
|
|
*42 - DC FILTER PCB (A) 100V-127V
HIT-375395.A1
375395
|
-
|
|
|
|
*42 - DC FILTER PCB (A) 220V-240V
HIT-375396.A0
375396
|
-
|
|
|
|
43 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
HIT-302089.A49
302089
|
£1.67
|
£2.00
|
|
|
44 - DAMPER (D)
HIT-375357.A0
375357
|
-
|
|
|
|
45 - SEAL LOCK BUTTON BOLT M5
HIT-373263.A2
373263
|
-
|
|
|
|
46 - DISTANCE PIECE (B)
HIT-991711.A20
991711
|
£1.67
|
£2.00
|
|
|
47 - HANDLE (A).(B) SET
HIT-375354.A1
375354
|
-
|
|
|
|
48 - TRANSATORY UNIT
HIT-373231.A3
373231
|
-
|
|
|
|
49 - HANDLE DAMPER
HIT-310124.A5
310124
|
£6.18
|
£7.41
|
|
|
50 - PILLAR TERMINAL (A)
HIT-958308Z.A15
958308Z
|
£7.53
|
£9.04
|
|
|
51A - SWITCH
HIT-375352.A1
375352
|
-
|
|
|
|
52 - TUBE
HIT-375397.A1
375397
|
-
|
|
|
|
53 - TRIGGER
HIT-373640.A1
373640
|
-
|
|
|
|
54 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A152
984750
|
£1.67
|
£2.00
|
|
|
55 - CORD CLIP
HIT-960266.A11
960266
|
£1.67
|
£2.00
|
|
|
*56A - CORD ARMOR D8.8
HIT-953327.A139
953327
|
£1.67
|
£2.00
|
|
|
*56A - CORD ARMOR D10.1
HIT-938051.A31
938051
|
£1.67
|
£2.00
|
|
|
*57 - CORD (CORD ARMOR D8.8)
HIT-500235Z.A8
500235Z
|
-
|
|
|
|
*57 - CORD (CORD ARMOR D10.1)
HIT-500477Z.A0
500477Z
|
-
|
|
|
|
*57 - CORD (CORD ARMOR D8.8) FOR KOR
HIT-500475Z.A0
500475Z
|
-
|
|
|
|
58 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A139
301653
|
£1.67
|
£2.00
|
|
|
59 - HANDLE BOLT
HIT-331247.A3
331247
|
£6.45
|
£7.74
|
|
|
60 - BAND
HIT-373245.A1
373245
|
-
|
|
|
|
62 - SIDE HANDLE
HIT-330209.A15
330209
|
£17.51
|
£21.01
|
|
|
63 - MOUNT
HIT-373244.A2
373244
|
-
|
|
|
|
64 - CYLINDER CRANK CASE ASS'Y INCLUD.74
HIT-373274.A0
373274
|
-
|
|
|
|
65 - SEAL LOCK HEX. SOCKET HD. BOLT M6X40
HIT-322494.A2
322494
|
-
|
|
|
|
66A - CRANK COVER
HIT-374477.A1
374477
|
-
|
|
|
|
67 - O-RING (I.D 53.9)
HIT-373250.A2
373250
|
-
|
|
|
|
68 - CRANK SHAFT
HIT-373246.A2
373246
|
-
|
|
|
|
69 - RETAINING RING FOR D40 HOLE
HIT-948391.A10
948391
|
£1.67
|
£2.00
|
|
|
70 - BALL BEARING 6203DDCMPS2L
HIT-6203DD.A24
6203DD
|
£8.64
|
£10.37
|
|
|
71 - O-RING (S-40)
HIT-996363.A0
996363
|
£1.67
|
£2.00
|
|
|
72 - OIL SEAL
HIT-310119.A4
310119
|
£4.21
|
£5.05
|
|
|
73 - DISTANCE RING
HIT-373254.A2
373254
|
-
|
|
|
|
74 - VALVE
HIT-995396.A6
995396
|
-
|
|
|
|
75 - CAP SCREW
HIT-338313.A1
338313
|
-
|
|
|
|
76 - FELT
HIT-374461.A2
374461
|
-
|
|
|
|
77 - FIRST GEAR
HIT-373255.A1
373255
|
-
|
|
|
|
78 - NEEDLE BEARING
HIT-373278.A2
373278
|
-
|
|
|
|
79 - GEAR COVER ASS'Y INCLUD.78
HIT-373271.A2
373271
|
-
|
|
|
|
80 - BALL BEARING 6201DDCMPS2L
HIT-6201DD.A1
6201DD
|
£8.64
|
£10.37
|
|
|
81 - GUIDE WASHER
HIT-374478.A1
374478
|
-
|
|
|
|
82 - ROTOR
HIT-361092.A1
361092
|
-
|
|
|
|
83 - FAN GUIDE
HIT-373632.A1
373632
|
-
|
|
|
|
84 - HEX. HD. TAPPING SCREW D4X45
HIT-373634.A1
373634
|
-
|
|
|
|
85 - BOLT WASHER M4 (BLACK)
HIT-323210.A39
323210
|
-
|
|
|
|
*86 - STATOR PCB 100V-127V
HIT-341004.A1
341004
|
-
|
|
|
|
*86 - STATOR PCB 220V-240V
HIT-341005.A0
341005
|
-
|
|
|
|
87 - WASHER (A)
HIT-982631.A33
982631
|
£1.67
|
£2.00
|
|
|
88 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A133
608VVM
|
£5.70
|
£6.84
|
|
|
90 - SUPPORT (B)
HIT-930196.A1
930196
|
-
|
|
|
|
91 - SIDE HANDLE ASS'Y INCLUD.59
HIT-375594.A1
375594
|
-
|
|
|
|
*92 - PACKING (F) FOR TPE
HIT-375356.A3
375356
|
-
|
|
|
|
*92 - PACKING (F) FOR IND
HIT-375356.A4
375356
|
-
|
|
|
|
*92 - PACKING (F) HKG (230V)
HIT-375356.A5
375356
|
-
|
|
|
|
93 - PACKING (E) FOR TPE
HIT-375355.A0
375355
|
-
|
|
|
|
501 - BULL POINT 280MM (HEX. SHANK TYPE)
HIT-980752.A1
980752
|
-
|
|
|
|
502A - CASE
HIT-373404.A1
373404
|
-
|
|
|
|
601 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
HIT-981840.A54
981840
|
£8.22
|
£9.87
|
|
|
602 - GREASE FOR HAMMER.HAMMER DRILL (70G)
HIT-308471.A36
308471
|
£16.21
|
£19.45
|
|
|
603 - GREASE FOR HAMMER.HAMMER DRILL (500G)
HIT-980927.A11
980927
|
£55.68
|
£66.81
|
|
|
604 - BULL POINT 450MM (HEX. SHANK TYPE)
HIT-980753.A2
980753
|
-
|
|
|
|
605 - SYRINGE (BELLOWS TYPE)
HIT-318085.A16
318085
|
-
|
|
|
