Hitachi / Hikoki H41SA3 Demolition Hammer Spare Parts

Home Details Reviews Delivery

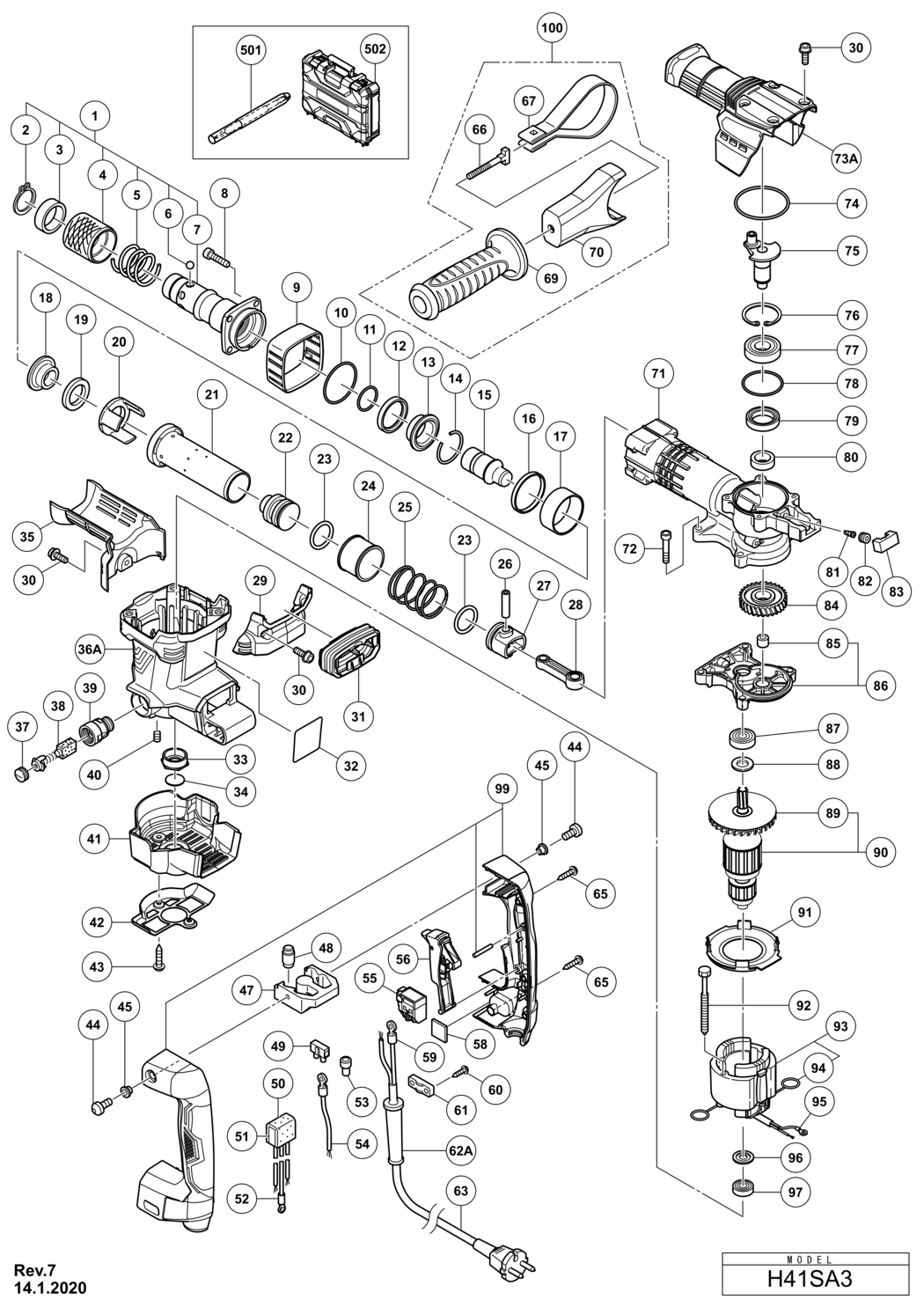

An exploded diagram and spare parts listing for the Hitachi / Hikoki H41SA3 Demolition Hammer

	Ex VAT	Inc VAT
1 - FRONT COVER ASS'Y INCLUD.2-7 HIT-373264.A0 373264	-
2 - RETAINING RING D28 HIT-373270.A1 373270	-
3 - RING HIT-373269.A1 373269	-
4 - SLIDE GRIP HIT-373268.A0 373268	-
5 - SPRING HIT-373267.A1 373267	-
6 - STEEL BALL D7.94 HIT-373266.A0 373266	-
7 - FRONT COVER HIT-373265.A1 373265	-
8 - NYLOCK HIGH TENSION BOLT M7X25 HIT-993040.A3 993040	£2.69	£3.23
9 - TOP COVER HIT-373236.A2 373236	-
10 - O-RING (I.D 44.5) HIT-373251.A2 373251	-
11 - O-RING HIT-329061.A1 329061	-
12 - DAMPER (A) HIT-373253.A0 373253	-
13 - HAMMER HOLDER (A) HIT-373261.A1 373261	-
14 - RING HIT-322466.A0 322466	-
15 - SECOND HAMMER HIT-373247.A1 373247	-
16 - DAMPER (C) HIT-322471.A1 322471	-
17 - SLEEVE (B) HIT-373946.A0 373946	-
18 - HAMMER HOLDER (B) HIT-373947.A1 373947	-
19 - DAMPER (B) HIT-374459.A0 374459	-
20 - HAMMER HOLDER (C) HIT-373232.A0 373232	-
21 - CYLINDER HIT-374460.A0 374460	-
22 - STRIKER HIT-373258.A1 373258	-
23 - O-RING HIT-320823.A2 320823	£4.57	£5.48
24 - SLEEVE (A) HIT-373259.A0 373259	-
25 - SPRING (B) HIT-373262.A0 373262	-
26 - PISTON PIN HIT-373256.A1 373256	-
27 - PISTON HIT-320824.A2 320824	£6.72	£8.06
28 - CONNECTING ROD HIT-373275.A1 373275	-
29 - BACK COVER HIT-373237.A0 373237	-
30 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X14 HIT-998485.A15 998485	£1.67	£2.00
31 - BELLOWS HIT-373252.A1 373252	-
32 - NAME PLATE HIT-000000.A1557 000000	-
33 - BEARING BUSHING (B) HIT-310111.A9 310111	£12.04	£14.45
34 - DUST SEAL HIT-333263.A3 333263	-
35 - HOOD HIT-373234.A0 373234	-
36A - HOUSING ASS'Y INCLUD.33 HIT-373276.A1 373276	-
37 - BRUSH CAP HIT-945161.A24 945161	£1.67	£2.00
*38 - CARBON BRUSH (1 PAIR) HIT-999043.A5 999043	£5.54	£6.65
*38 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999073.A0 999073	£18.73	£22.48
39 - BRUSH HOLDER HIT-958900.A12 958900	£8.24	£9.89
40 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A5 938477	£1.67	£2.00
41 - TAIL COVER HIT-373239.A0 373239	-
42 - PLATE HIT-373248.A0 373248	-
43 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A142 301653	£1.67	£2.00
44 - SEAL LOCK BUTTON BOLT M5 HIT-373263.A0 373263	-
45 - DISTANCE PIECE (B) HIT-991711.A18 991711	£1.67	£2.00
47 - TRANSATORY UNIT HIT-373231.A1 373231	-
48 - HANDLE DAMPER HIT-310124.A6 310124	£6.18	£7.41
49 - PILLAR TERMINAL FOR TPE HIT-938307.A35 938307	£3.28	£3.93
50 - SUPPORT (B) FOR TPE HIT-317492.A8 317492	£1.67	£2.00
51 - NOISE SUPPRESSOR (V) INCLUD.50 FOR TPE HIT-374463.A0 374463	-
52 - TERMINAL FOR TPE HIT-961419Z.A6 961419Z	-
53 - CONNECTOR 50092 (10 PCS.) HIT-959141.A110 959141	£7.12	£8.54
54 - INTERNAL WIRE FOR TPE HIT-981974.A12 981974	£1.67	£2.00
55 - SWITCH HIT-371171.A1 371171	£10.69	£12.83
56 - TRIGGER HIT-373241.A1 373241	-
58 - CUSHION RUBBER HIT-374462.A1 374462	-
59 - TERMINAL HIT-980063.A1 980063	£1.67	£2.00
60 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A160 984750	£1.67	£2.00
61 - CORD CLIP HIT-960266.A5 960266	£1.67	£2.00
*62A - CORD ARMOR D8.8 HIT-953327.A135 953327	£1.67	£2.00
*62A - CORD ARMOR D10.1 HIT-938051.A32 938051	£1.67	£2.00
*63 - CORD (CORD ARMOR D10.1) HIT-500477Z.A2 500477Z	-
*63 - CORD (CORD ARMOR D8.8) FOR UAE (230V) HIT-500446Z.A33 500446Z	£33.79	£40.55
*63 - CORD (CORD ARMOR D8.8) FOR HKG (220V) HIT-500440Z.A3 500440Z	£22.75	£27.30
*63 - CORD (CORD ARMOR D8.8) FOR IND HIT-500235Z.A7 500235Z	-
65 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A141 301653	£1.67	£2.00
66 - HANDLE BOLT HIT-331247.A5 331247	£6.45	£7.74
67 - BAND HIT-373245.A3 373245	-
69 - SIDE HANDLE HIT-330209.A16 330209	£17.51	£21.01
70 - MOUNT HIT-373244.A0 373244	-
71 - CYLINDER CRANK CASE ASS'Y INCLUD.81 HIT-373274.A1 373274	-
72 - SEAL LOCK HEX. SOCKET HD. BOLT M6X40 HIT-322494.A0 322494	-
73A - CRANK COVER HIT-374474.A1 374474	-
74 - O-RING (I.D 53.9) HIT-373250.A1 373250	-
75 - CRANK SHAFT HIT-373246.A0 373246	-
76 - RETAINING RING FOR D40 HOLE HIT-948391.A7 948391	£1.67	£2.00
77 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A25 6203DD	£8.64	£10.37
78 - O-RING (S-40) HIT-996363.A1 996363	£1.67	£2.00
79 - OIL SEAL HIT-310119.A3 310119	£4.21	£5.05
80 - DISTANCE RING HIT-373254.A0 373254	-
81 - VALVE HIT-995396.A5 995396	-
82 - CAP SCREW HIT-338313.A3 338313	-
83 - FELT HIT-374461.A0 374461	-
84 - FIRST GEAR HIT-373255.A3 373255	-
85 - NEEDLE BEARING HIT-373278.A0 373278	-
86 - GEAR COVER ASS'Y INCLUD.85 HIT-373271.A1 373271	-
87 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A4 6201DD	£8.64	£10.37
88 - DUST WASHER (B) HIT-302429.A6 302429	£1.67	£2.00
89 - FAN HIT-374464.A1 374464	-
*90 - ARMATURE ASS'Y 110V INCLUD.89 HIT-361080C.A1 361080C	-
*90 - ARMATURE ASS'Y 220V-230V INCLUD.89 HIT-361080E.A0 361080E	-
91 - FAN GUIDE HIT-373238.A1 373238	-
92 - HEX. HD. TAPPING SCREW D5X50 HIT-953121.A15 953121	£1.04	£1.25
*93 - STATOR ASS'Y 110V INCLUD.94 HIT-340995C.A0 340995C	-
*93 - STATOR ASS'Y 110V INCLUD.94 FOR TPE HIT-340995H.A1 340995H	-
*93 - STATOR ASS'Y 220V-230V INCLUD.94 HIT-340995J.A0 340995J	-
94 - BRUSH TERMINAL HIT-930703.A6 930703	£3.28	£3.93
95 - TERMINAL EXCEPT FOR TPE HIT-980063.A2 980063	£1.67	£2.00
96 - WASHER (A) HIT-982631.A31 982631	£1.67	£2.00
97 - BALL BEARING 608VVC2PS2L HIT-608VVM.A130 608VVM	£5.70	£6.84
99 - HANDLE (A). (B) SET HIT-375358.A0 375358	-
100 - SIDE HANDLE ASS'Y INCLUD.66 HIT-375594.A3 375594	-
501 - BULL POINT 280MM (HEX. SHANK TYPE) HIT-980752.A0 980752	-
502 - CASE HIT-373404.A0 373404	-
601 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A6 980927	£55.68	£66.81
602 - BULL POINT 450MM (HEX. SHANK TYPE) HIT-980753.A3 980753	-
