Hitachi / Hikoki H41SA Hammer Spare Parts

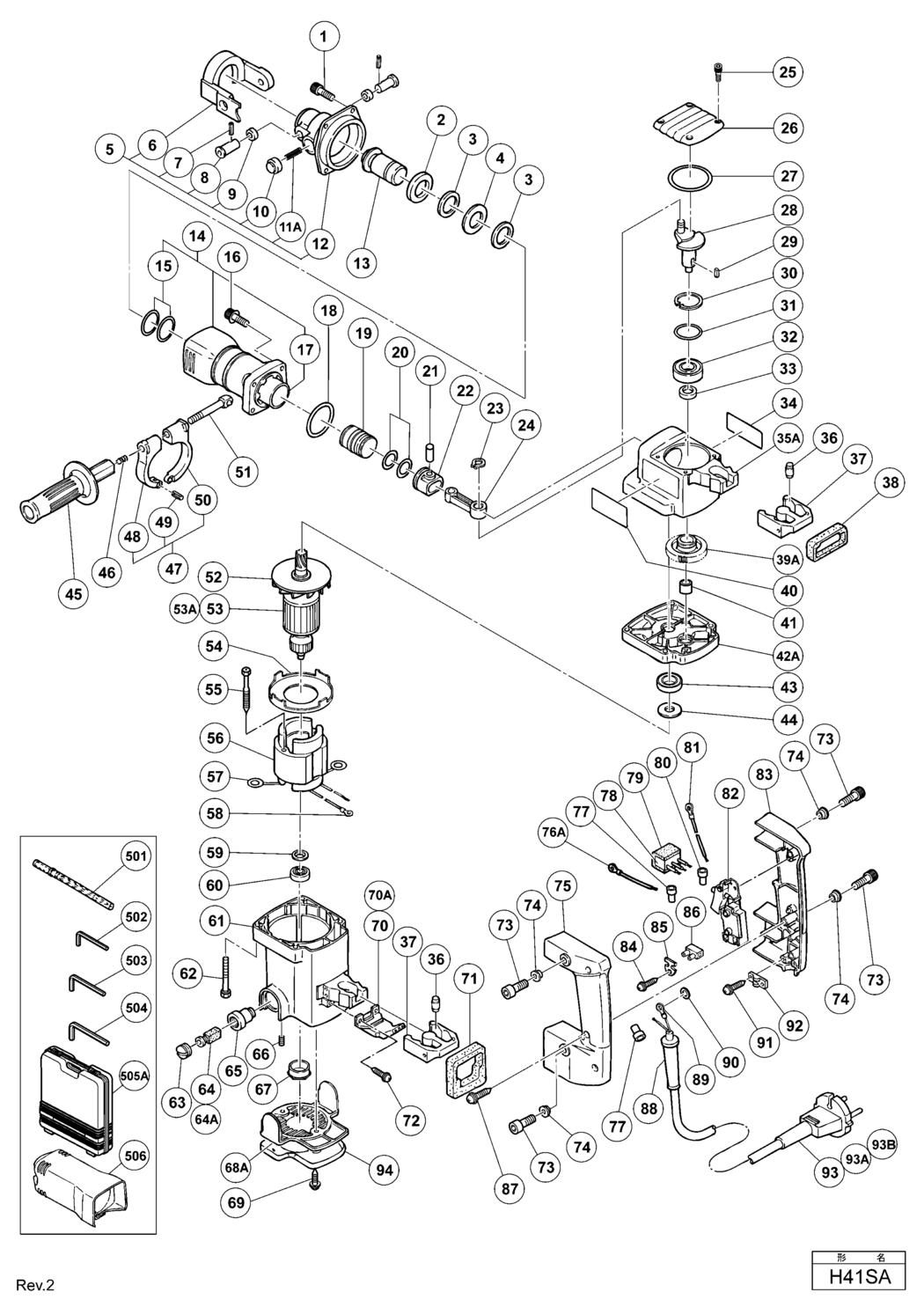

An exploded diagram and spare parts listing for the Hitachi / Hikoki H41SA Hammer

	Ex VAT	Inc VAT
1 - NYLOCK HIGH TENSION BOLT M7X25 HIT-993040.A0 993040	£2.69	£3.23
2 - DAMPER WASHER HIT-991695.A0 991695	£7.68	£9.21
3 - DAMPER HIT-983235.A0 983235	£5.27	£6.32
4 - WASHER HIT-983236.A0 983236	£3.28	£3.93
5 - FRONT COVER ASS'Y INCLUD.6-12 HIT-993042.A0 993042	-
6 - RETAINER HIT-990131.A2 990131	£47.97	£57.56
7 - ROLL PIN D4X20 HIT-991697.A0 991697	£1.67	£2.00
8 - RETAINER PIN HIT-990135.A0 990135	£14.71	£17.65
9 - DAMPER (B) HIT-990134.A2 990134	£2.98	£3.57
10 - PUSHING BUTTON HIT-990133.A0 990133	£11.92	£14.30
11A - SET SPRING HIT-331239.A2 331239	£1.67	£2.00
12 - FRONT COVER HIT-991693.A0 991693	-
13 - SECOND HAMMER HIT-991708.A0 991708	£30.91	£37.09
14 - CYLINDER CASE ASS'Y INCLUD.15 HIT-310109.A0 310109	£118.96	£142.75
15 - O-RING (A) HIT-983234.A0 983234	£9.32	£11.19
16 - NYLOCK BOLT (W/FLANGE) M6X25 HIT-993041.A0 993041	£2.82	£3.39
17 - CYLINDER HIT-310110.A0 310110	£97.88	£117.46
18 - O-RING (S-48) HIT-980715.A5 980715	£3.28	£3.93
19 - STRIKER HIT-310112.A0 310112	-
20 - O-RING HIT-986104.A3 986104	£1.67	£2.00
21 - PISTON PIN HIT-980708.A3 980708	£3.28	£3.93
22 - PISTON HIT-310113.A0 310113	£11.23	£13.48
23 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A15 939540	£1.67	£2.00
24 - CONNECTING ROD HIT-310114.A0 310114	£10.42	£12.50
25 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A0 983162	£1.67	£2.00
26 - CRANK COVER HIT-310115.A0 310115	£9.25	£11.10
27 - O-RING (S-55) HIT-980744.A1 980744	£3.28	£3.93
28 - CRANK SHAFT HIT-310116.A0 310116	-
29 - FEATHER KEY 4X4X10 HIT-930511.A9 930511	£2.78	£3.34
30 - RETAINING RING FOR D40 HOLE HIT-948391.A18 948391	£1.67	£2.00
31 - O-RING (S-40) HIT-996363.A11 996363	£1.67	£2.00
32 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A17 6203DD	£8.64	£10.37
33 - OIL SEAL HIT-310119.A0 310119	£4.21	£5.05
34 - NAME PLATE HIT-000000.A4529 000000	-
35A - CRANK CASE HIT-310117.A0 310117	£39.10	£46.92
36 - HANDLE DAMPER HIT-310124.A25 310124	£6.18	£7.41
37 - TRANSATORY UNIT HIT-310123.A0 310123	£11.82	£14.18
38 - HANDLE PACKING (A) HIT-310126.A0 310126	£1.67	£2.00
39A - FIRST GEAR HIT-310120.A0 310120	£28.28	£33.93
40 - BRAND LABEL HIT-000000.A4530 000000	-
41 - NEEDLE BEARING (M661) HIT-939299.A12 939299	£11.82	£14.18
42A - GEAR COVER ASS'Y INCLUD.41 HIT-310129.A0 310129	-
43 - BALL BEARING 6201VV HIT-6201VV.A30 6201VV	£8.30	£9.96
44 - WASHER (B) HIT-971736.A1 971736	£1.67	£2.00
45 - SIDE HANDLE EXCEPT FOR KOR HIT-981870.A1 981870	£13.04	£15.65
46 - SPRING EXCEPT FOR KOR HIT-672612.A0 672612	£1.67	£2.00
47 - HANDLE HOLDER ASS'Y INCLUD.48-50 EXCEPT FOR KOR HIT-980657.A0 980657	£14.02	£16.83
48 - HANDLE HOLDER (B) EXCEPT FOR KOR HIT-980659.A0 980659	-
49 - ROLL PIN D6X22 (10 PCS.) EXCEPT FOR KOR HIT-949875.A0 949875	-
50 - HANDLE HOLDER (A) EXCEPT FOR KOR HIT-980658.A0 980658	-
51 - HANDLE BOLT EXCEPT FOR KOR HIT-971785.A0 971785	£4.33	£5.20
52 - FAN HIT-310130.A0 310130	-
*53 - ARMATURE ASS'Y 220V-230V INCLUD.52 HIT-360360E.A0 360360E	£84.98	£101.97
*53 - ARMATURE ASS'Y 240V INCLUD.52 FOR KUW HIT-360360F.A0 360360F	-
53A - ARMATURE ASS'Y 110V-115V INCLUD.43 HIT-360360U.A0 360360U	£84.98	£101.97
54 - FAN GUIDE HIT-980931.A1 980931	£5.27	£6.32
55 - HEX. HD. TAPPING SCREW D5X50 HIT-953121.A10 953121	-
*56 - STATOR ASS'Y (B) 110V INCLUD.57 HIT-340326J.A0 340326J	£53.29	£63.95
*56 - STATOR ASS'Y 220V-230V INCLUD.57 HIT-340317E.A0 340317E	-
*56 - STATOR ASS'Y 220V INCLUD.57 FOR KOR HIT-340317G.A0 340317G	-
*56 - STATOR ASS'Y (B) 220V-230V INCLUD.57 FOR GBR (230V) HIT-340326K.A0 340326K	£53.29	£63.95
*56 - STATOR ASS'Y (B) 220V-230V HOL HIT-340326K.A1 340326K	£53.29	£63.95
*56 - STATOR ASS'Y 240V INCLUD.57 HIT-340317F.A0 340317F	-
*56 - STATOR ASS'Y (B) 240V INCLUD.57 FOR AUS HIT-340326H.A0 340326H	-
57 - BRUSH TERMINAL HIT-930703.A43 930703	£3.28	£3.93
58 - TERMINAL M4.0 (10 PCS.) FOR STATOR HIT-930804.A22 930804	£3.64	£4.37
59 - WASHER (A) HIT-982631.A51 982631	£1.67	£2.00
60 - BALL BEARING 608VVC2PS2L HIT-608VVM.A91 608VVM	£5.70	£6.84
61 - HOUSING ASS'Y (GREEN) INCLUD.65 HIT-310146.A0 310146	-
62 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X45 HIT-980951.A0 980951	£1.67	£2.00
63 - BRUSH CAP HIT-935829.A21 935829	£1.67	£2.00
*64 - CARBON BRUSH (1 PAIR) HIT-999043.A37 999043	£5.54	£6.65
*64A - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) FOR SIN HIT-999073.A13 999073	£18.73	£22.48
*64A - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) FIN HIT-999073.A14 999073	£18.73	£22.48
65 - BRUSH HOLDER HIT-971001.A5 971001	£8.64	£10.37
66 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A109 938477	£1.67	£2.00
67 - BEARING BUSHING (B) HIT-310111.A0 310111	£12.04	£14.45
68A - TAIL COVER ASS'Y INCLUD.94 HIT-314130.A0 314130	£9.72	£11.66
69 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A37 307811	£1.67	£2.00
*70 - INTERNAL WIRE HOLDER HIT-980754.A1 980754	-
70A - INTERNAL WIRE HOLDER FOR GBR HIT-310424.A0 310424	£13.43	£16.12
*70A - INTERNAL WIRE HOLDER NOR HIT-310424.A1 310424	£13.43	£16.12
71 - HANDLE PACKING (B) HIT-310125.A0 310125	£1.67	£2.00
72 - TAPPING SCREW (W/WASHER) D5X20 HIT-985480.A0 985480	£1.67	£2.00
73 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A6 991690	£1.67	£2.00
74 - DISTANCE PIECE (B) HIT-991711.A0 991711	£1.67	£2.00
75 - HANDLE (B) HIT-310142.A0 310142	-
76A - INTERNAL WIRE FOR KOR HIT-981974.A0 981974	£1.67	£2.00
*76A - INTERNAL WIRE AUT HIT-981974.A1 981974	£1.67	£2.00
77 - CONNECTOR 50092 (10 PCS.) EXCEPT FOR CHN HIT-959141.A31 959141	£7.12	£8.54
*78 - NOISE SUPPRESSOR FOR GBR HIT-994273.A60 994273	£7.30	£8.76
*78 - NOISE SUPPRESSOR AUT HIT-994273.A61 994273	£7.30	£8.76
*78 - NOISE SUPPRESSOR FOR KOR HIT-930039.A75 930039	£3.85	£4.62
79 - SUPPORT (B) FOR GBR HIT-930153.A20 930153	£1.67	£2.00
*79 - SUPPORT (B) NOR HIT-930153.A21 930153	£1.67	£2.00
80 - CONNECTOR 50091 (10 PCS.) FOR GBR HIT-959140.A79 959140	£4.98	£5.97
*80 - CONNECTOR 50091 (10 PCS.) NOR HIT-959140.A80 959140	£4.98	£5.97
81 - INTERNAL WIRE FOR GBR HIT-990861.A1 990861	£1.67	£2.00
*81 - INTERNAL WIRE NOR HIT-990861.A2 990861	£1.67	£2.00
82 - SWITCH (A) (1P SCREW TYPE) W/O LOCK HIT-992891.A7 992891	£23.25	£27.90
83 - HANDLE (A) HIT-310141.A0 310141	-
84 - NO LONGER AVAILABLE HIT-309470.A7 309470	-
85 - HOLDER PLATE FOR CHN HIT-980958.A0 980958	-
86 - PILLAR TERMINAL FOR CHN HIT-938307.A81 938307	£3.28	£3.93
*86 - PILLAR TERMINAL AUT HIT-938307.A82 938307	£3.28	£3.93
87 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A8 307028	£1.67	£2.00
*88 - CORD ARMOR D8.8 HIT-953327.A9 953327	£1.67	£2.00
*88 - CORD ARMOR D10.1 HIT-938051.A8 938051	£1.67	£2.00
89 - TERMINAL FOR CORD HIT-992810.A0 992810	-
90 - WASHER M4 (10 PCS.) FOR GBR HIT-949423.A53 949423	£1.67	£2.00
*90 - WASHER M4 (10 PCS.) NOR HIT-949423.A54 949423	£1.67	£2.00
91 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A1 984750	£1.67	£2.00
*92 - CORD CLIP HIT-960266.A61 960266	£1.67	£2.00
*92 - CORD CLIP FOR SUI HIT-981987Z.A1 981987Z	-
*93 - CORD (CORD ARMOR D10.1) HIT-500239Z.A0 500239Z	-
*93 - CORD (CORD ARMOR D10.1) FOR ITA HIT-500390Z.A20 500390Z	-
*93 - CORD FIN HIT-500390Z.A21 500390Z	-
*93 - CORD (CORD ARMOR D8.8) FOR INA HIT-500235Z.A0 500235Z	-
*93 - CORD (CORD ARMOR D8.8) FOR KUW HIT-500424Z.A9 500424Z	-
*93 - CORD (CORD ARMOR D10.1) FOR SYR HIT-500394Z.A3 500394Z	-
*93 - CORD (CORD ARMOR D10.1) FOR GBR (230V) HIT-500446Z.A2 500446Z	£33.79	£40.55
*93 - CORD (CORD ARMOR D10.1) FOR SUI HIT-500391Z.A0 500391Z	-
*93 - CORD (CORD ARMOR D8.8) FOR AUS HIT-500408Z.A9 500408Z	-
*93 - CORD (CORD ARMOR D8.8) FOR SAF HIT-500406Z.A0 500406Z	-
93A - CORD (CORD ARMOR D8.8) FOR CHN HIT-500457Z.A0 500457Z	-
93B - CORD (CORD ARMOR D8.8) FOR HKG HIT-500440Z.A15 500440Z	£22.75	£27.30
94 - PLATE HIT-314262.A0 314262	-
501 - BULL POINT 280MM (HEX. SHANK TYPE) HIT-980752.A2 980752	-
502 - HEX. BAR WRENCH 3MM HIT-943277.A28 943277	£1.67	£2.00
503 - HEX. BAR WRENCH 4MM HIT-944458.A11 944458	£1.67	£2.00
504 - HEX. BAR WRENCH 5MM HIT-944459.A23 944459	£1.67	£2.00
505A - CASE (PLASTIC) HIT-310131.A0 310131	-
506 - CYLINDER CASE COVER FOR KOR HIT-310132.A0 310132	-
601 - BULL POINT 450MM (HEX. SHANK TYPE) HIT-980753.A1 980753	-
602 - BULL POINT 280MM (10 PCS.) HIT-234001.A0 234001	-
603 - BULL POINT 280MM (ROUND SHANK TYPE) HIT-981922.A4 981922	-
604 - BULL POINT 450MM (ROUND SHANK TYPE) HIT-981923.A1 981923	-
605 - CUTTER HIT-982705.A0 982705	-
606 - CUTTER W45X280L (ROUND SHANK TYPE) HIT-981924.A3 981924	-
607 - SHANK 250L (FOR RAMMER AND BUSHING TOOL) HIT-982710.A0 982710	-
608 - SHANK 250L (FOR RAMMER AND BUSHING TOOL) HIT-955186.A3 955186	-
609 - BUSHING TOOL HIT-955183.A1 955183	-
610 - RAMMER 140MM HIT-955181.A4 955181	-
611A - EARTH ADAPTER D18X176 HIT-323357.A1 323357	-
612 - EARTH ADAPTER D13X175 HIT-991342.A0 991342	-
613 - EARTH ADAPTER D15.5X190 HIT-991343.A0 991343	-
614 - EARTH ADAPTER D19.5X205 HIT-991344.A0 991344	-
615 - ANCHOR ADAPTER NO.30 HIT-982702.A0 982702	-
616 - ANCHOR ADAPTER NO.40 HIT-982703.A0 982703	-
617 - ANCHOR ADAPTER NO.50 HIT-982704.A0 982704	-
618 - ANCHOR ADAPTER NO.30 HIT-981929.A2 981929	-
622 - DRIFT KEY HIT-944574.A4 944574	-
623A - SYRINGE (BELLOWS TYPE) HIT-318085.A6 318085	-
624 - SCOOP 405L HIT-982711.A0 982711	-
625 - SCOOP 405L (ROUND SHANK TYPE) HIT-956126.A3 956126	£92.56	£111.07
626 - CYLINDER CASE COVER EXCEPT FOR KOR HIT-310132.A1 310132	-
627 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A41 981840	£8.22	£9.87
628 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A46 308471	£16.21	£19.45
629 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A17 980927	£55.68	£66.81
630 - SEAL PACKING HIT-311816.A0 311816	-
631 - SERVICE KIT (H 41SA) HIT-313291.A0 313291	-
632 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A22 320859	£10.35	£12.42
