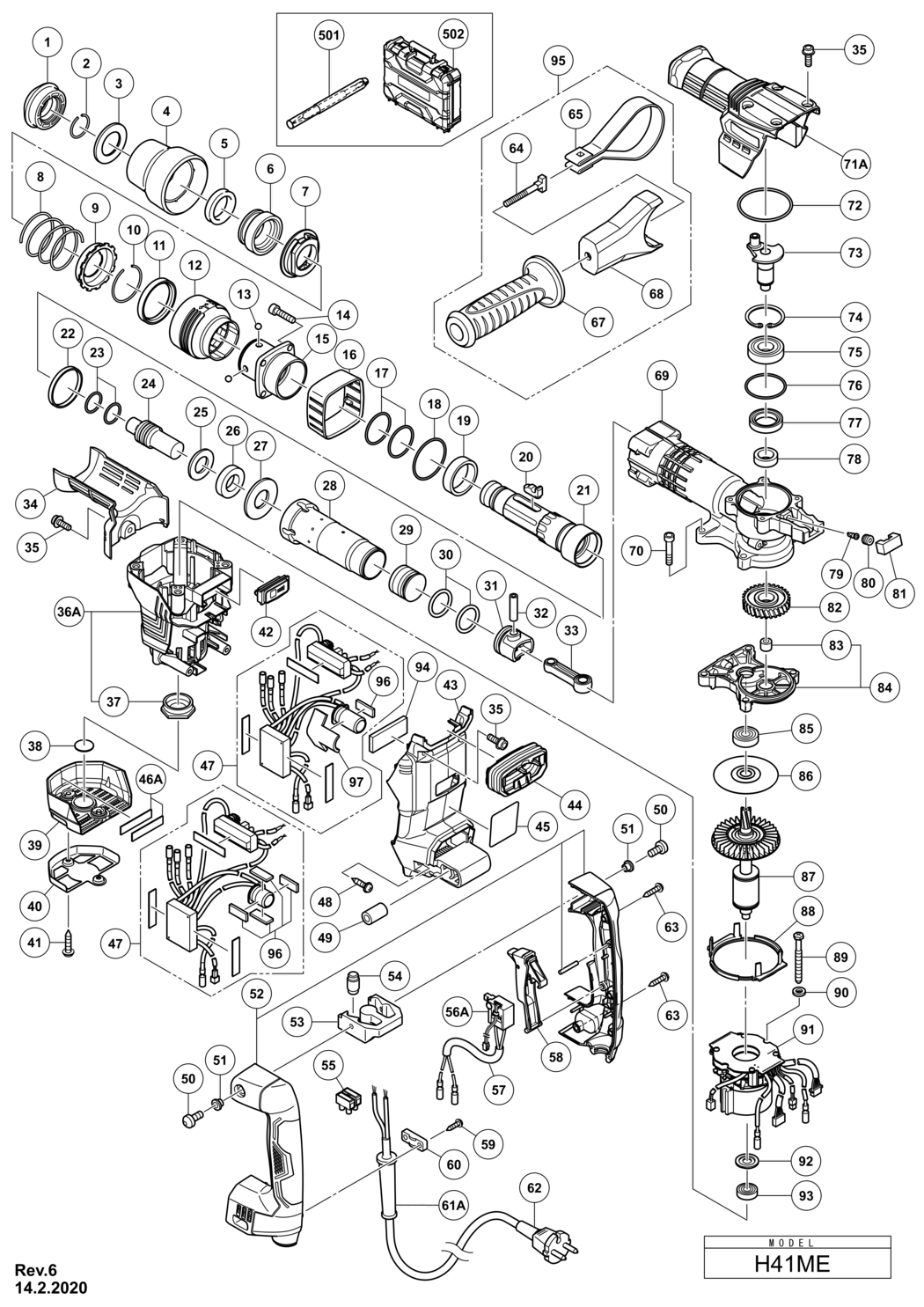

1 - FRONT CAP
HIT-337562.A1
337562
|
£4.81
|
£5.77
|
|
|
2 - STOPPER RING
HIT-318590.A3
318590
|
£1.67
|
£2.00
|
|
|
3 - RETAINER WASHER
HIT-370172.A0
370172
|
£1.66
|
£1.99
|
|
|
4 - GRIP
HIT-370173.A3
370173
|
£5.25
|
£6.30
|
|
|
5 - RETAINER DAMPER (A)
HIT-337559.A1
337559
|
£1.67
|
£2.00
|
|
|
6 - BIT LOCK HOLDER
HIT-337558.A3
337558
|
£11.86
|
£14.23
|
|
|
7 - SPRING HOLDER (A)
HIT-370242.A3
370242
|
£14.54
|
£17.45
|
|
|
8 - RETAINER SPRING
HIT-370243.A0
370243
|
-
|
|
|
|
9 - SPRING HOLDER (B)
HIT-370244.A3
370244
|
-
|
|
|
|
10 - STOPPER RING
HIT-333255.A1
333255
|
£1.67
|
£2.00
|
|
|
11 - BALL HOLDER
HIT-373288.A1
373288
|
-
|
|
|
|
12 - GRIP (B)
HIT-373279.A1
373279
|
-
|
|
|
|
13 - STEEL BALL D6.35 (10 PCS.)
HIT-959150.A1
959150
|
£1.67
|
£2.00
|
|
|
14 - SEAL LOCK HEX. SOCKET HD. BOLT M6X25
HIT-981942.A9
981942
|
£1.67
|
£2.00
|
|
|
15 - FRONT COVER
HIT-373280.A0
373280
|
-
|
|
|
|
16 - TOP COVER
HIT-373236.A1
373236
|
-
|
|
|
|
17 - O-RING (S-34)
HIT-980879.A9
980879
|
£1.67
|
£2.00
|
|
|
18 - O-RING (I.D 44.5)
HIT-373251.A3
373251
|
-
|
|
|
|
19 - RETAINER DAMPER (B)
HIT-373281.A1
373281
|
-
|
|
|
|
20 - BIT LOCK
HIT-370654.A8
370654
|
£8.55
|
£10.26
|
|
|
21 - RETAINER SLEEVE
HIT-373284.A1
373284
|
-
|
|
|
|
22 - DAMPER (C)
HIT-373249.A1
373249
|
-
|
|
|
|
23 - O-RING (C)
HIT-313396.A0
313396
|
£5.87
|
£7.04
|
|
|
24 - SECOND HAMMER
HIT-373285.A0
373285
|
-
|
|
|
|
25 - DAMPER WASHER
HIT-373286.A1
373286
|
-
|
|
|
|
26 - DAMPER
HIT-321289.A3
321289
|
£9.23
|
£11.08
|
|
|
27 - DAMPER HOLDER
HIT-373287.A0
373287
|
-
|
|
|
|
28 - CYLINDER
HIT-374774.A1
374774
|
-
|
|
|
|
29 - STRIKER
HIT-373283.A0
373283
|
-
|
|
|
|
30 - O-RING
HIT-320823.A1
320823
|
£4.57
|
£5.48
|
|
|
31 - PISTON
HIT-320824.A3
320824
|
£6.72
|
£8.06
|
|
|
32 - PISTON PIN
HIT-373256.A2
373256
|
-
|
|
|
|
33 - CONNECTING ROD
HIT-373275.A2
373275
|
-
|
|
|
|
34 - HOOD
HIT-373234.A1
373234
|
-
|
|
|
|
35 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X14
HIT-998485.A14
998485
|
£1.67
|
£2.00
|
|
|
36A - HOUSING ASS'Y INCLUD.37
HIT-376182.A1
376182
|
-
|
|
|
|
37 - BEARING BUSHING (B)
HIT-310111.A11
310111
|
£12.04
|
£14.45
|
|
|
38 - DUST SEAL
HIT-333263.A2
333263
|
-
|
|
|
|
39 - TAIL COVER
HIT-373631.A1
373631
|
-
|
|
|
|
40 - PLATE
HIT-373633.A1
373633
|
-
|
|
|
|
41 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A144
301653
|
£1.67
|
£2.00
|
|
|
42 - PANEL
HIT-375353.A1
375353
|
-
|
|
|
|
43 - BACK COVER
HIT-373628.A0
373628
|
-
|
|
|
|
44 - BELLOWS
HIT-373252.A0
373252
|
-
|
|
|
|
45 - NAME PLATE
HIT-000000.A1554
000000
|
-
|
|
|
|
46A - RUBBER SHEET
HIT-373635.A1
373635
|
-
|
|
|
|
*47 - DC FILTER PCB (A) 100V-127V
HIT-375395.A0
375395
|
-
|
|
|
|
*47 - DC FILTER PCB (A) 220V-240V
HIT-375396.A1
375396
|
-
|
|
|
|
48 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
HIT-302089.A47
302089
|
£1.67
|
£2.00
|
|
|
49 - DAMPER (D)
HIT-375357.A1
375357
|
-
|
|
|
|
50 - SEAL LOCK BUTTON BOLT M5
HIT-373263.A1
373263
|
-
|
|
|
|
51 - DISTANCE PIECE (B)
HIT-991711.A19
991711
|
£1.67
|
£2.00
|
|
|
52 - HANDLE (A).(B) SET
HIT-375354.A0
375354
|
-
|
|
|
|
53 - TRANSATORY UNIT
HIT-373231.A2
373231
|
-
|
|
|
|
54 - HANDLE DAMPER
HIT-310124.A7
310124
|
£6.18
|
£7.41
|
|
|
55 - PILLAR TERMINAL (A)
HIT-958308Z.A16
958308Z
|
£7.53
|
£9.04
|
|
|
56A - SWITCH
HIT-375352.A0
375352
|
-
|
|
|
|
57 - TUBE
HIT-375397.A0
375397
|
-
|
|
|
|
58 - TRIGGER
HIT-373640.A0
373640
|
-
|
|
|
|
59 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A158
984750
|
£1.67
|
£2.00
|
|
|
60 - CORD CLIP
HIT-960266.A4
960266
|
£1.67
|
£2.00
|
|
|
*61A - CORD ARMOR D8.8
HIT-953327.A136
953327
|
£1.67
|
£2.00
|
|
|
*61A - CORD ARMOR D10.1
HIT-938051.A33
938051
|
£1.67
|
£2.00
|
|
|
*62 - CORD (CORD ARMOR D8.8)
HIT-500390Z.A0
500390Z
|
-
|
|
|
|
*62 - CORD (CORD ARMOR D8.8) FOR INA
HIT-500235Z.A6
500235Z
|
-
|
|
|
|
*62 - CORD (CORD ARMOR D8.8) FOR MEX
HIT-500434Z.A8
500434Z
|
-
|
|
|
|
*62 - CORD (CORD ARMOR D8.8) FOR AUS
HIT-500408Z.A8
500408Z
|
-
|
|
|
|
*62 - CORD (CORD ARMOR D8.8) FOR UAE (230V)
HIT-500440Z.A2
500440Z
|
£22.75
|
£27.30
|
|
|
*62 - CORD (CORD ARMOR D10.1) FOR UAE (110V)
HIT-500477Z.A1
500477Z
|
-
|
|
|
|
63 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A143
301653
|
£1.67
|
£2.00
|
|
|
64 - HANDLE BOLT
HIT-331247.A4
331247
|
£6.45
|
£7.74
|
|
|
65 - BAND
HIT-373245.A2
373245
|
-
|
|
|
|
67 - SIDE HANDLE
HIT-330209.A17
330209
|
£17.51
|
£21.01
|
|
|
68 - MOUNT
HIT-373244.A1
373244
|
-
|
|
|
|
69 - CYLINDER CRANK CASE ASS'Y INCLUD.79
HIT-373289.A0
373289
|
-
|
|
|
|
70 - SEAL LOCK HEX. SOCKET HD. BOLT M6X40
HIT-322494.A1
322494
|
-
|
|
|
|
*71A - CRANK COVER
HIT-374477.A0
374477
|
-
|
|
|
|
*71A - CRANK COVER FOR MEX
HIT-374477M.A0
374477M
|
-
|
|
|
|
72 - O-RING (I.D 53.9)
HIT-373250.A0
373250
|
-
|
|
|
|
73 - CRANK SHAFT
HIT-373246.A1
373246
|
-
|
|
|
|
74 - RETAINING RING FOR D40 HOLE
HIT-948391.A8
948391
|
£1.67
|
£2.00
|
|
|
75 - BALL BEARING 6203DDCMPS2L
HIT-6203DD.A26
6203DD
|
£8.64
|
£10.37
|
|
|
76 - O-RING (S-40)
HIT-996363.A2
996363
|
£1.67
|
£2.00
|
|
|
77 - OIL SEAL
HIT-310119.A2
310119
|
£4.21
|
£5.05
|
|
|
78 - DISTANCE RING
HIT-373254.A1
373254
|
-
|
|
|
|
79 - VALVE
HIT-995396.A4
995396
|
-
|
|
|
|
80 - CAP SCREW
HIT-338313.A2
338313
|
-
|
|
|
|
81 - FELT
HIT-374461.A1
374461
|
-
|
|
|
|
82 - FIRST GEAR
HIT-373255.A2
373255
|
-
|
|
|
|
83 - NEEDLE BEARING
HIT-373278.A1
373278
|
-
|
|
|
|
84 - GEAR COVER ASS'Y INCLUD.83
HIT-373271.A0
373271
|
-
|
|
|
|
85 - BALL BEARING 6201DDCMPS2L
HIT-6201DD.A3
6201DD
|
£8.64
|
£10.37
|
|
|
86 - GUIDE WASHER
HIT-374478.A0
374478
|
-
|
|
|
|
87 - ROTOR
HIT-361092.A0
361092
|
-
|
|
|
|
88 - FAN GUIDE
HIT-373632.A0
373632
|
-
|
|
|
|
89 - HEX. HD. TAPPING SCREW D4X45
HIT-373634.A0
373634
|
-
|
|
|
|
90 - BOLT WASHER M4 (BLACK)
HIT-323210.A40
323210
|
-
|
|
|
|
*91 - STATOR PCB 100V-127V
HIT-341004.A0
341004
|
-
|
|
|
|
*91 - STATOR PCB 220V-240V
HIT-341005.A1
341005
|
-
|
|
|
|
92 - WASHER (A)
HIT-982631.A32
982631
|
£1.67
|
£2.00
|
|
|
93 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A131
608VVM
|
£5.70
|
£6.84
|
|
|
94 - SUPPORT (B)
HIT-930196.A0
930196
|
-
|
|
|
|
95 - SIDE HANDLE ASS'Y INCLUD.64
HIT-375594.A2
375594
|
-
|
|
|
|
*96 - PACKING (F) FOR MEX
HIT-375356.A0
375356
|
-
|
|
|
|
*96 - PACKING (F) FOR INA
HIT-375356.A1
375356
|
-
|
|
|
|
*96 - PACKING (F) SAF
HIT-375356.A2
375356
|
-
|
|
|
|
97 - PACKING (E) FOR MEX
HIT-375355.A1
375355
|
-
|
|
|
|
501 - BULL POINT (SDS MAX) 280L
HIT-313471.A3
313471
|
-
|
|
|
|
502A - CASE
HIT-373405.A0
373405
|
-
|
|
|
|
601 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
HIT-981840.A52
981840
|
£8.22
|
£9.87
|
|
|
602 - GREASE FOR HAMMER.HAMMER DRILL (70G)
HIT-308471.A38
308471
|
£16.21
|
£19.45
|
|
|
603 - GREASE FOR HAMMER.HAMMER DRILL (500G)
HIT-980927.A7
980927
|
£55.68
|
£66.81
|
|
|
604 - BULL POINT (SDS MAX) 400L
HIT-313472.A19
313472
|
-
|
|
|
|
605 - COLD CHISEL (SDS MAX) 280MM
HIT-313473.A3
313473
|
-
|
|
|
|
606 - COLD CHISEL (SDS MAX) 400MM
HIT-313474.A18
313474
|
-
|
|
|
|
607 - CUTTER (SDS MAX) W50X400L
HIT-313475.A3
313475
|
-
|
|
|
|
608 - SCOOP (SDS MAX) 400L
HIT-313476.A18
313476
|
-
|
|
|
|
609 - BUSHING TOOL (SDS MAX)
HIT-313477.A3
313477
|
-
|
|
|
|
610 - RAMMER (SDS MAX) 150MMX150MM
HIT-313478.A18
313478
|
-
|
|
|
|
611 - SHANK (SDS MAX)FOR RAMMER 1
HIT-313479.A3
313479
|
-
|
|
|
