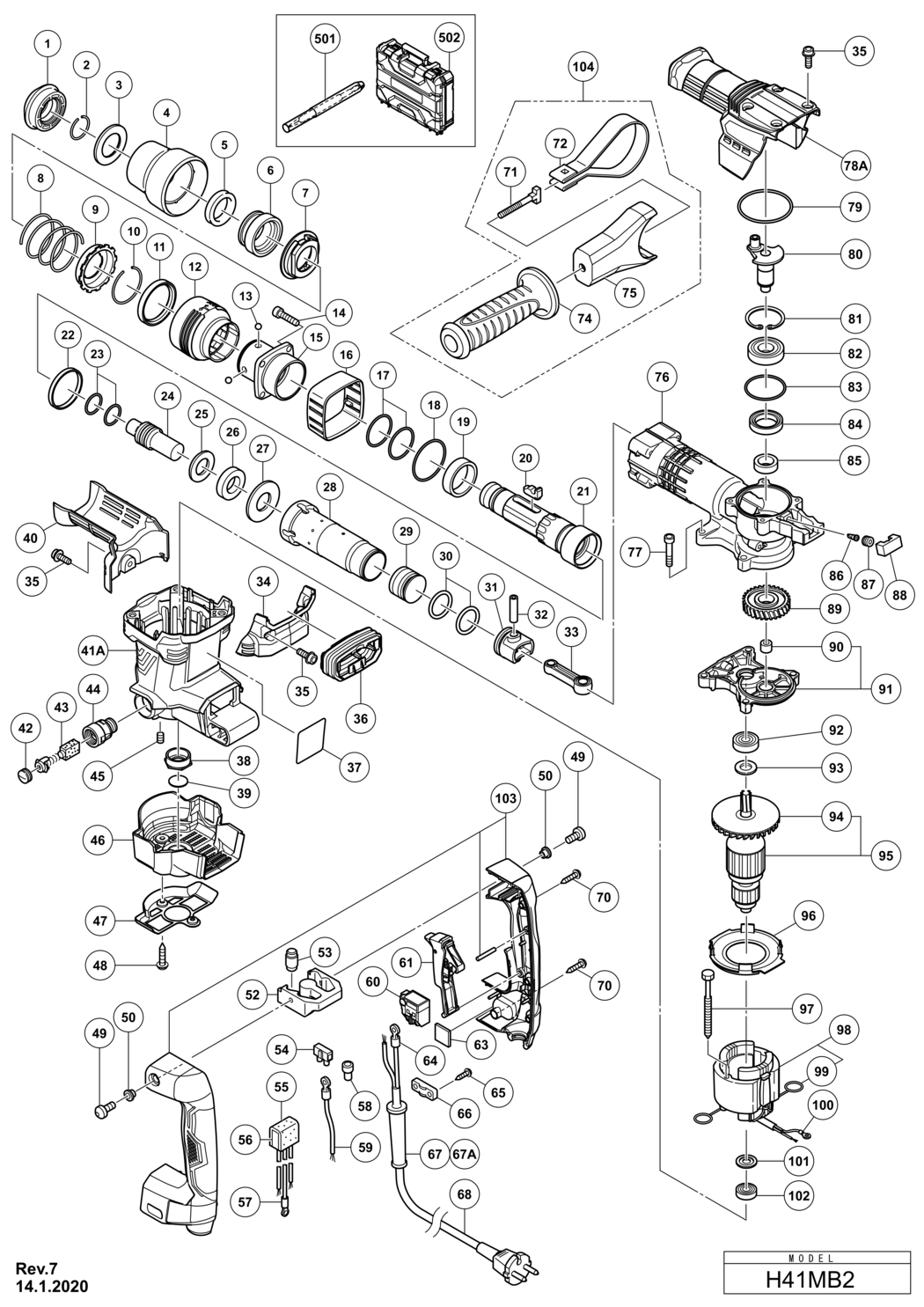

An exploded diagram and spare parts listing for the Hitachi / Hikoki H41MB2 Demolition Hammer
Ex VAT Inc VAT
1 - FRONT CAP HIT-337562.A3 337562 £4.81 £5.77
2 - STOPPER RING HIT-318590.A16 318590 £1.67 £2.00
3 - RETAINER WASHER HIT-370172.A3 370172 £1.66 £1.99
4 - GRIP HIT-370173.A0 370173 £5.25 £6.30
5 - RETAINER DAMPER (A) HIT-337559.A2 337559 £1.67 £2.00
6 - BIT LOCK HOLDER HIT-337558.A2 337558 £11.86 £14.23
7 - SPRING HOLDER (A) HIT-370242.A2 370242 £14.54 £17.45
8 - RETAINER SPRING HIT-370243.A1 370243 -
9 - SPRING HOLDER (B) HIT-370244.A2 370244 -
10 - STOPPER RING HIT-333255.A5 333255 £1.67 £2.00
11 - BALL HOLDER HIT-373288.A0 373288 -
12 - GRIP (B) HIT-373279.A0 373279 -
13 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A52 959150 £1.67 £2.00
14 - SEAL LOCK HEX. SOCKET HD. BOLT M6X25 HIT-981942.A4 981942 £1.67 £2.00
15 - FRONT COVER HIT-373280.A1 373280 -
16 - TOP COVER HIT-373236.A0 373236 -
17 - O-RING (S-34) HIT-980879.A2 980879 £1.67 £2.00
18 - O-RING (I.D 44.5) HIT-373251.A0 373251 -
19 - RETAINER DAMPER (B) HIT-373281.A0 373281 -
20 - BIT LOCK HIT-370654.A7 370654 £8.55 £10.26
21 - RETAINER SLEEVE HIT-373284.A0 373284 -
22 - DAMPER (C) HIT-373249.A0 373249 -
23 - O-RING (C) HIT-313396.A5 313396 £5.87 £7.04
24 - SECOND HAMMER HIT-373285.A1 373285 -
25 - DAMPER WASHER HIT-373286.A0 373286 -
26 - DAMPER HIT-321289.A2 321289 £9.23 £11.08
27 - DAMPER HOLDER HIT-373287.A1 373287 -
28 - CYLINDER HIT-374774.A0 374774 -
29 - STRIKER HIT-373283.A1 373283 -
30 - O-RING HIT-320823.A4 320823 £4.57 £5.48
31 - PISTON HIT-320824.A0 320824 £6.72 £8.06
32 - PISTON PIN HIT-373256.A3 373256 -
33 - CONNECTING ROD HIT-373275.A3 373275 -
34 - BACK COVER HIT-373237.A1 373237 -
35 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X14 HIT-998485.A2 998485 £1.67 £2.00
36 - BELLOWS HIT-373252.A3 373252 -
37 - NAME PLATE HIT-000000.A3814 000000 -
38 - BEARING BUSHING (B) HIT-310111.A3 310111 £12.04 £14.45
39 - DUST SEAL HIT-333263.A7 333263 -
40 - HOOD HIT-373234.A3 373234 -
41A - HOUSING ASS'Y INCLUD.38 HIT-373276.A0 373276 -
42 - BRUSH CAP HIT-945161.A48 945161 £1.67 £2.00
43 - CARBON BRUSH (1 PAIR) HIT-999043.A33 999043 £5.54 £6.65
43 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999073.A8 999073 £18.73 £22.48
44 - BRUSH HOLDER HIT-958900.A22 958900 £8.24 £9.89
45 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A75 938477 £1.67 £2.00
46 - TAIL COVER HIT-373239.A1 373239 -
47 - PLATE HIT-373248.A1 373248 -
48 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A77 301653 £1.67 £2.00
49 - SEAL LOCK BUTTON BOLT M5 HIT-373263.A3 373263 -
50 - DISTANCE PIECE (B) HIT-991711.A11 991711 £1.67 £2.00
52 - TRANSATORY UNIT HIT-373231.A0 373231 -
53 - HANDLE DAMPER HIT-310124.A24 310124 £6.18 £7.41
*54 - PILLAR TERMINAL FOR EUROPE HIT-938307.A56 938307 £3.28 £3.93
*55 - SUPPORT (B) FOR EUROPE HIT-317492.A5 317492 £1.67 £2.00
*56 - NOISE SUPPRESSOR (V) INCLUD.55 FOR EUROPE HIT-374463.A1 374463 -
*57 - TERMINAL FOR EUROPE HIT-961419Z.A7 961419Z -
*58 - CONNECTOR 50092 (10 PCS.) EXCEPT FOR USA HIT-959141.A29 959141 £7.12 £8.54
*59 - INTERNAL WIRE FOR EUROPE HIT-981974.A5 981974 £1.67 £2.00
60 - SWITCH HIT-371171.A2 371171 £10.69 £12.83
61 - TRIGGER HIT-373241.A0 373241 -
63 - CUSHION RUBBER HIT-374462.A0 374462 -
*64 - TERMINAL HIT-980063.A103 980063 £1.67 £2.00
65 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A115 984750 £1.67 £2.00
66 - CORD CLIP HIT-960266.A77 960266 £1.67 £2.00
*67A - CORD ARMOR D8.8 HIT-953327.A71 953327 £1.67 £2.00
*68 - CORD (CORD ARMOR D8.8)FOR GBR(230V) HIT-500446Z.A23 500446Z £33.79 £40.55
*68 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500465Z.A2 500465Z £26.20 £31.44
70 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A78 301653 £1.67 £2.00
71 - HANDLE BOLT HIT-331247.A7 331247 £6.45 £7.74
72 - BAND HIT-373245.A0 373245 -
74 - SIDE HANDLE HIT-330209.A8 330209 £17.51 £21.01
75 - MOUNT HIT-373244.A3 373244 -
76 - CYLINDER CRANK CASE ASS'Y INCLUD.86 HIT-373289.A1 373289 -
77 - SEAL LOCK HEX. SOCKET HD. BOLT M6X40 HIT-322494.A3 322494 -
78A - CRANK COVER HIT-374474.A0 374474 -
79 - O-RING (I.D 53.9) HIT-373250.A3 373250 -
80 - CRANK SHAFT HIT-373246.A3 373246 -
81 - RETAINING RING FOR D40 HOLE HIT-948391.A26 948391 £1.67 £2.00
82 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A7 6203DD £8.64 £10.37
83 - O-RING (S-40) HIT-996363.A18 996363 £1.67 £2.00
84 - OIL SEAL HIT-310119.A1 310119 £4.21 £5.05
85 - DISTANCE RING HIT-373254.A3 373254 -
86 - VALVE HIT-995396.A9 995396 -
87 - CAP SCREW HIT-338313.A6 338313 -
88 - FELT HIT-374461.A3 374461 -
89 - FIRST GEAR HIT-373255.A0 373255 -
90 - NEEDLE BEARING HIT-373278.A3 373278 -
91 - GEAR COVER ASS'Y INCLUD.90 HIT-373271.A3 373271 -
92 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A26 6201DD £8.64 £10.37
93 - DUST WASHER (B) HIT-302429.A3 302429 £1.67 £2.00
94 - FAN HIT-374464.A0 374464 -
*95 - ARMATURE ASS'Y 110V INCLUD.94 HIT-361080C.A0 361080C -
*95 - ARMATURE ASS'Y 220V-230V INCLUD.94 HIT-361080E.A1 361080E -
96 - FAN GUIDE HIT-373238.A0 373238 -
97 - HEX. HD. TAPPING SCREW D5X50 HIT-953121.A8 953121 -
*98 - STATOR ASS'Y 110V INCLUD.99 FOR GBR (110V) HIT-340995H.A0 340995H -
*98 - STATOR ASS'Y 220V-230V INCLUD.99 HIT-340995E.A0 340995E -
99 - BRUSH TERMINAL HIT-930703.A37 930703 £3.28 £3.93
101 - WASHER (A) HIT-982631.A44 982631 £1.67 £2.00
102 - BALL BEARING 608VVC2PS2L HIT-608VVM.A42 608VVM £5.70 £6.84
103 - HANDLE (A). (B) SET HIT-375358.A1 375358 -
104 - SIDE HANDLE ASS'Y INCLUD.71 HIT-375594.A0 375594 -
501 - BULL POINT (SDS MAX) 280L HIT-313471.A19 313471 -
502 - CASE HIT-373405.A1 373405 -
601 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A22 981840 £8.22 £9.87
602 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A17 308471 £16.21 £19.45
603 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A46 980927 £55.68 £66.81
604 - BULL POINT (SDS MAX) 400L HIT-313472.A4 313472 -
605 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A17 313473 -
606 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A4 313474 -
607 - CUTTER (SDS MAX) W50X400L HIT-313475.A17 313475 -
608 - SCOOP (SDS MAX) 400L HIT-313476.A4 313476 -
609 - BUSHING TOOL (SDS MAX) HIT-313477.A16 313477 -
610 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A4 313478 -
611 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A17 313479 -
