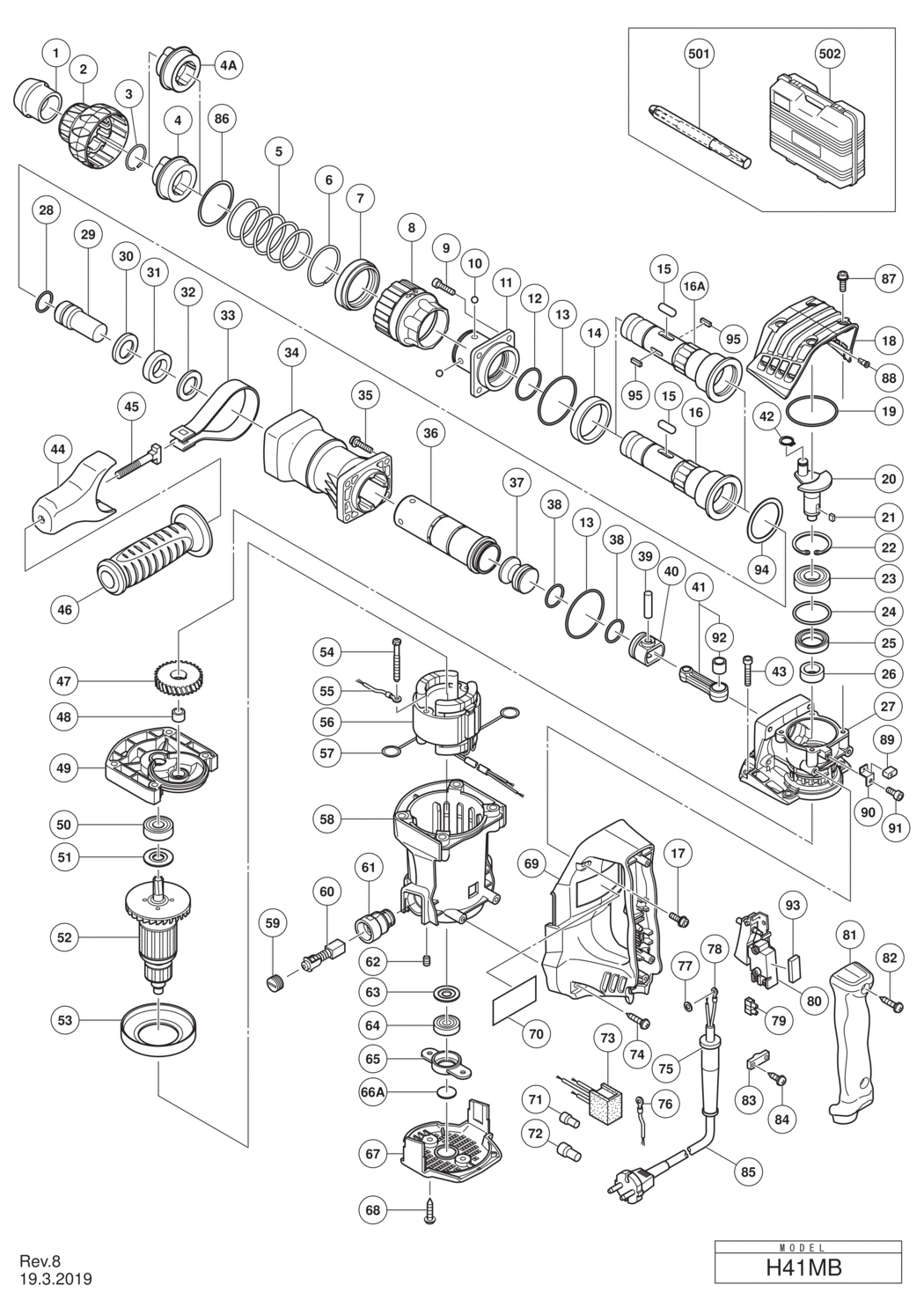

1 - FRONT CAP
HIT-333259.A0
333259
|
-
|
|
|
|
2 - GRIP (A)
HIT-333258.A0
333258
|
-
|
|
|
|
3 - STOPPER RING
HIT-318590.A5
318590
|
£1.67
|
£2.00
|
|
|
4 - NEEDLE HOLDER
HIT-331539.A1
331539
|
£30.75
|
£36.90
|
|
|
5 - SPRING (A)
HIT-333256.A0
333256
|
-
|
|
|
|
6 - STOPPER RING
HIT-333255.A0
333255
|
£1.67
|
£2.00
|
|
|
7 - BALL HOLDER
HIT-320810.A1
320810
|
£16.07
|
£19.28
|
|
|
8 - GRIP (B)
HIT-333254.A0
333254
|
-
|
|
|
|
9 - SEAL LOCK HEX. SOCKET HD. BOLT M6X25
HIT-981942.A8
981942
|
£1.67
|
£2.00
|
|
|
10 - STEEL BALL D6.35 (10 PCS.)
HIT-959150.A22
959150
|
£1.67
|
£2.00
|
|
|
11 - FRONT COVER
HIT-333248.A0
333248
|
-
|
|
|
|
12 - O-RING (S-34)
HIT-980879.A6
980879
|
£1.67
|
£2.00
|
|
|
13 - O-RING (S-48)
HIT-980715.A0
980715
|
£3.28
|
£3.93
|
|
|
14 - RETAINER DAMPER
HIT-333249.A0
333249
|
-
|
|
|
|
15 - NEEDLE ROLLER D8X20
HIT-331536.A0
331536
|
£1.67
|
£2.00
|
|
|
*16 - RETAINER SLEEVE
HIT-333250.A0
333250
|
-
|
|
|
|
17 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16
HIT-994192.A18
994192
|
£1.67
|
£2.00
|
|
|
18 - CRANK COVER
HIT-333260.A0
333260
|
-
|
|
|
|
19 - CYLINDER O-RING (B)
HIT-878713.A0
878713
|
£2.99
|
£3.59
|
|
|
20 - CRANK SHAFT
HIT-333244.A0
333244
|
-
|
|
|
|
21 - FEATHER KEY 4X4X8
HIT-980809.A4
980809
|
£1.67
|
£2.00
|
|
|
22 - RETAINING RING FOR D40 HOLE
HIT-948391.A0
948391
|
£1.67
|
£2.00
|
|
|
23 - BALL BEARING 6203DDCMPS2L
HIT-6203DD.A32
6203DD
|
£8.64
|
£10.37
|
|
|
24 - O-RING (S-40)
HIT-996363.A7
996363
|
£1.67
|
£2.00
|
|
|
25 - OIL SEAL
HIT-310119.A6
310119
|
£4.21
|
£5.05
|
|
|
26 - DISTANCE RING
HIT-333245.A0
333245
|
-
|
|
|
|
27 - CRANK CASE
HIT-333243.A0
333243
|
-
|
|
|
|
28 - O-RING (C)
HIT-313396.A3
313396
|
£5.87
|
£7.04
|
|
|
29 - SECOND HAMMER
HIT-334218.A0
334218
|
-
|
|
|
|
30 - DAMPER WASHER
HIT-331224.A0
331224
|
£6.45
|
£7.74
|
|
|
31 - DAMPER
HIT-321835.A3
321835
|
£8.77
|
£10.52
|
|
|
32 - DAMPER HOLDER
HIT-331225.A1
331225
|
£6.45
|
£7.74
|
|
|
33 - BAND
HIT-333261.A0
333261
|
-
|
|
|
|
34 - CYLINDER CASE
HIT-333251.A0
333251
|
-
|
|
|
|
35 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X25
HIT-991712.A3
991712
|
£1.67
|
£2.00
|
|
|
36 - CYLINDER
HIT-333252.A0
333252
|
£27.34
|
£32.81
|
|
|
37 - STRIKER
HIT-333253.A0
333253
|
-
|
|
|
|
38 - O-RING
HIT-986104.A9
986104
|
£1.67
|
£2.00
|
|
|
39 - PISTON PIN
HIT-980708.A6
980708
|
£3.28
|
£3.93
|
|
|
40 - PISTON
HIT-326369.A1
326369
|
£4.33
|
£5.20
|
|
|
41 - CONNECTING ROD ASS'Y INCLUD.92
HIT-334220.A0
334220
|
-
|
|
|
|
42 - RETAINING RING FOR D10 SHAFT (10 PCS.)
HIT-939540.A40
939540
|
£1.67
|
£2.00
|
|
|
43 - SEAL LOCK HEX. SOCKET HD. BOLT M6X35
HIT-324056.A3
324056
|
-
|
|
|
|
44 - MOUNT
HIT-333262.A0
333262
|
-
|
|
|
|
45 - HANDLE BOLT
HIT-333227.A5
333227
|
£17.01
|
£20.41
|
|
|
46 - SIDE HANDLE
HIT-330209.A13
330209
|
£17.51
|
£21.01
|
|
|
47 - FIRST GEAR
HIT-333246.A0
333246
|
-
|
|
|
|
48 - NEEDLE BEARING (M661)
HIT-939299.A13
939299
|
£11.82
|
£14.18
|
|
|
49 - GEAR COVER ASS'Y INCLUD.48
HIT-333268.A0
333268
|
-
|
|
|
|
50 - BALL BEARING 6201DDCMPS2L
HIT-6201DD.A15
6201DD
|
£8.64
|
£10.37
|
|
|
51 - DUST WASHER (B)
HIT-302429.A10
302429
|
£1.67
|
£2.00
|
|
|
*52 - ARMATURE 110V-115V
HIT-360903C.A0
360903C
|
-
|
|
|
|
*52 - ARMATURE 220V-230V
HIT-360903E.A0
360903E
|
£76.95
|
£92.34
|
|
|
53 - FAN GUIDE
HIT-331252.A1
331252
|
£2.99
|
£3.59
|
|
|
54 - HEX. HD. TAPPING SCREW D5X50
HIT-953121.A20
953121
|
-
|
|
|
|
*55 - INTERNAL WIRE FOR AUS
HIT-990861.A4
990861
|
£1.67
|
£2.00
|
|
|
*56 - STATOR ASS'Y 110V INCLUD.57 FOR GBR (110V)
HIT-340788B.A0
340788B
|
-
|
|
|
|
*56 - STATOR ASS'Y 220V-230V INCLUD.57
HIT-340788F.A0
340788F
|
£48.26
|
£57.91
|
|
|
57 - BRUSH TERMINAL
HIT-930703.A24
930703
|
£3.28
|
£3.93
|
|
|
58 - HOUSING ASS'Y INCLUD.61
HIT-333267.A0
333267
|
-
|
|
|
|
59 - BRUSH CAP
HIT-945161.A8
945161
|
£1.67
|
£2.00
|
|
|
60 - CARBON BRUSH (1 PAIR)
HIT-999043.A11
999043
|
£5.54
|
£6.65
|
|
|
61 - BRUSH HOLDER
HIT-958900.A3
958900
|
£8.24
|
£9.89
|
|
|
62 - HEX. SOCKET SET SCREW M5X8
HIT-938477.A44
938477
|
£1.67
|
£2.00
|
|
|
63 - WASHER (A)
HIT-982631.A16
982631
|
£1.67
|
£2.00
|
|
|
64 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A203
608VVM
|
£5.70
|
£6.84
|
|
|
65 - BEARING HOLDER
HIT-331254.A1
331254
|
£3.12
|
£3.74
|
|
|
66A - DUST SEAL
HIT-333263.A0
333263
|
-
|
|
|
|
67 - TAIL COVER
HIT-333264.A0
333264
|
-
|
|
|
|
68 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
HIT-302089.A3
302089
|
£1.67
|
£2.00
|
|
|
69 - HANDLE
HIT-333265.A0
333265
|
-
|
|
|
|
70 - NAME PLATE
HIT-000000.A3040
000000
|
-
|
|
|
|
*71 - CONNECTOR 50091 (10 PCS.) FOR AUS
HIT-959140.A39
959140
|
£4.98
|
£5.97
|
|
|
*72 - CONNECTOR 50092 (10 PCS.) EXCEPT FOR USA
HIT-959141.A74
959141
|
£7.12
|
£8.54
|
|
|
*73 - NOISE SUPPRESSOR FOR AUS
HIT-331203.A1
331203
|
£6.14
|
£7.37
|
|
|
74 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
HIT-302089.A2
302089
|
£1.67
|
£2.00
|
|
|
*75 - CORD ARMOR D8.2
HIT-958049.A16
958049
|
£1.67
|
£2.00
|
|
|
*76 - INTERNAL WIRE FOR AUS
HIT-981974.A10
981974
|
£1.67
|
£2.00
|
|
|
*77 - WASHER M4 (10 PCS.) FOR AUS
HIT-949423.A20
949423
|
£1.67
|
£2.00
|
|
|
*78 - TERMINAL
HIT-980063.A67
980063
|
£1.67
|
£2.00
|
|
|
*79 - PILLAR TERMINAL EXCEPT FOR VEN
HIT-938307.A29
938307
|
£3.28
|
£3.93
|
|
|
80 - SWITCH (B) (1P SCREW TYPE) W/LOCK
HIT-306143.A7
306143
|
£19.10
|
£22.92
|
|
|
81 - HANDLE COVER
HIT-331205.A1
331205
|
£11.10
|
£13.32
|
|
|
82 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK)
HIT-307028.A47
307028
|
£1.67
|
£2.00
|
|
|
83 - CORD CLIP
HIT-960266.A36
960266
|
£1.67
|
£2.00
|
|
|
84 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A271
984750
|
£1.67
|
£2.00
|
|
|
*85 - CORD (CORD ARMOR D8.2) FOR GBR (110V)
HIT-500465Z.A17
500465Z
|
£26.20
|
£31.44
|
|
|
*85 - CORD (CORD ARMOR D8.2) FOR GBR (230V)
HIT-500446Z.A31
500446Z
|
£33.79
|
£40.55
|
|
|
86 - WASHER (FW)
HIT-333688.A0
333688
|
-
|
|
|
|
87 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X14
HIT-998485.A10
998485
|
£1.67
|
£2.00
|
|
|
88 - VALVE
HIT-995396.A2
995396
|
-
|
|
|
|
89 - FELT
HIT-334217.A0
334217
|
-
|
|
|
|
90 - VALVE COVER
HIT-334216.A0
334216
|
-
|
|
|
|
91 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8
HIT-877838.A3
877838
|
£1.67
|
£2.00
|
|
|
92 - NEEDLE BEARING
HIT-334219.A0
334219
|
-
|
|
|
|
93 - SUPPORT (B)
HIT-325910.A0
325910
|
-
|
|
|
|
94 - WASHER
HIT-334636.A0
334636
|
-
|
|
|
|
501 - BULL POINT (SDS MAX) 280L
HIT-313471.A5
313471
|
-
|
|
|
|
502 - CASE (PLASTIC)
HIT-333266.A0
333266
|
-
|
|
|
|
601 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
HIT-981840.A43
981840
|
£8.22
|
£9.87
|
|
|
602 - GREASE FOR HAMMER.HAMMER DRILL (70G)
HIT-308471.A50
308471
|
£16.21
|
£19.45
|
|
|
*603 - GREASE FOR HAMMER.HAMMER DRILL (500G) EXCEPT FOR USA
HIT-980927.A21
980927
|
£55.68
|
£66.81
|
|
|
604 - BULL POINT (SDS MAX) 400L
HIT-313472.A17
313472
|
-
|
|
|
|
605 - COLD CHISEL (SDS MAX) 280MM
HIT-313473.A5
313473
|
-
|
|
|
|
606 - COLD CHISEL (SDS MAX) 400MM
HIT-313474.A16
313474
|
-
|
|
|
|
607 - CUTTER (SDS MAX) W50X400L
HIT-313475.A5
313475
|
-
|
|
|
|
608 - SCOOP (SDS MAX) 400L
HIT-313476.A16
313476
|
-
|
|
|
|
609 - BUSHING TOOL (SDS MAX)
HIT-313477.A5
313477
|
-
|
|
|
|
610 - RAMMER (SDS MAX) 150MMX150MM
HIT-313478.A15
313478
|
-
|
|
|
|
611 - SHANK (SDS MAX)FOR RAMMER 1
HIT-313479.A6
313479
|
-
|
|
|
