Hitachi / Hikoki H25PV Demolition Hammer Spare Parts

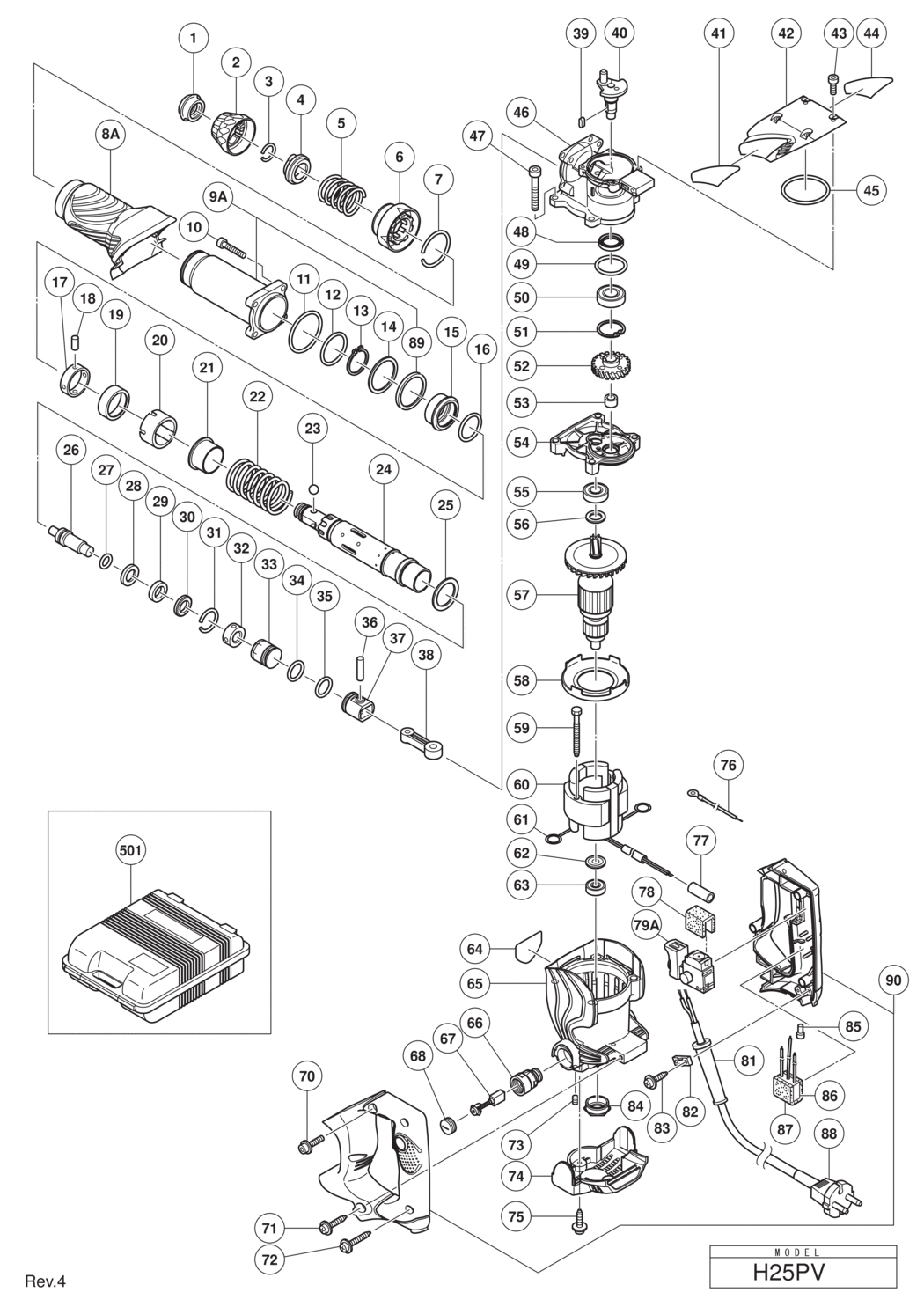

An exploded diagram and spare parts listing for the Hitachi / Hikoki H25PV Demolition Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-323078.A1 323078	£4.33	£5.20
2 - GRIP HIT-323077.A0 323077	£6.50	£7.80
3 - STOPPER RING HIT-306340.A27 306340	£1.67	£2.00
4 - BALL HOLDER HIT-323076.A1 323076	£29.27	£35.12
5 - RETAINER SPRING HIT-323075.A0 323075	£4.33	£5.20
6 - LOCK SLEEVE HIT-323074.A0 323074	-
7 - RING (A) HIT-323073.A0 323073	-
8A - CYLINDER CASE COVER (LIGHT GREEN) HIT-335208.A0 335208	-
9A - CYLINDER CASE ASS'Y INCLUD.89 HIT-325256.A0 325256	£38.73	£46.48
10 - SEAL LOCK HEX. SOCKET HD. BOLT M6X22 HIT-321313.A2 321313	£1.67	£2.00
11 - O-RING (S-46) HIT-882874.A3 882874	-
12 - O-RING (S-36) HIT-984483.A1 984483	£1.67	£2.00
13 - RETAINING RING FOR D28 SHAFT HIT-962553.A0 962553	£1.67	£2.00
14 - WASHER HIT-323071.A0 323071	-
15 - CYLINDER HOLDER HIT-323069.A0 323069	-
16 - O-RING (A) HIT-323070.A0 323070	£1.67	£2.00
17 - NEEDLE HOLDER HIT-323080.A0 323080	-
18 - NEEDLE ROLLER HIT-991449.A1 991449	£1.67	£2.00
19 - NEEDLE COVER HIT-323081.A0 323081	-
20 - SLIDE SLEEVE (B) HIT-323065.A0 323065	£6.50	£7.80
21 - SLIDE SLEEVE (A) HIT-323064.A0 323064	-
22 - SPRING (A) HIT-323067.A0 323067	£4.33	£5.20
23 - STEEL BALL D7.0 (10 PCS.) HIT-959156.A7 959156	£1.67	£2.00
24 - CYLINDER HIT-323056.A0 323056	£175.52	£210.63
25 - THRUST WASHER HIT-323068.A0 323068	-
26 - SECOND HAMMER HIT-323057.A0 323057	£20.22	£24.27
27 - O-RING (C) HIT-323058.A0 323058	£4.33	£5.20
28 - DAMPER WASHER HIT-323059.A1 323059	£11.67	£14.00
29 - DAMPER HIT-323060.A0 323060	£4.33	£5.20
30 - DAMPER HOLDER HIT-323061.A1 323061	£10.45	£12.54
31 - STOPPER RING HIT-323062.A0 323062	£1.67	£2.00
32 - SLIDE RING HIT-323063.A0 323063	-
33 - STRIKER HIT-323066.A0 323066	-
34 - O-RING (I.D 19.2) HIT-319577.A3 319577	£4.86	£5.83
35 - O-RING (I.D 19.2) HIT-319577.A4 319577	£4.86	£5.83
36 - PISTON PIN HIT-319581.A0 319581	£1.67	£2.00
37 - PISTON HIT-319580.A1 319580	£4.22	£5.07
38 - CONNECTING ROD HIT-319585.A1 319585	£4.86	£5.83
39 - FEATHER KEY 3X3X8 HIT-944109.A10 944109	£3.28	£3.93
40 - CRANK SHAFT HIT-323054.A0 323054	-
41 - BRAND LABEL HIT-000000.A1549 000000	-
42 - CRANK CASE COVER HIT-323079.A0 323079	£15.34	£18.41
43 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A16 983162	£1.67	£2.00
44 - BRAND LABEL HIT-000000.A1550 000000	-
45 - O-RING (S-48) HIT-980715.A3 980715	£3.28	£3.93
46 - CRANK CASE HIT-323053.A0 323053	£61.78	£74.13
47 - HEX. SOCKET HD. BOLT M6X35 (10 PCS.) HIT-949692.A0 949692	£4.61	£5.53
48 - OIL SEAL (B) HIT-981851.A0 981851	£3.64	£4.37
49 - O-RING (S-32) HIT-872767.A9 872767	£1.67	£2.00
50 - BALL BEARING 6002DDCMPS2L HIT-6002DD.A13 6002DD	£8.64	£10.37
51 - RETAINING RING FOR D32 HOLE HIT-948001.A6 948001	£1.67	£2.00
52 - FIRST GEAR HIT-323055.A0 323055	£65.04	£78.05
53 - NEEDLE BEARING (M661) HIT-939299.A19 939299	£11.82	£14.18
54 - GEAR COVER HIT-323084.A0 323084	-
55 - BALL BEARING 6001DDCMPS2L HIT-6001DD.A15 6001DD	£9.23	£11.08
56 - WASHER (B) HIT-971736.A3 971736	£1.67	£2.00
*57 - ARMATURE 110V-115V HIT-360660C.A0 360660C	£77.39	£92.87
*57 - ARMATURE 220V-230V HIT-360660E.A0 360660E	£77.39	£92.87
*57 - ARMATURE 240V HIT-360660F.A0 360660F	-
58 - FAN GUIDE HIT-323083.A0 323083	£4.33	£5.20
59 - HEX. HD. TAPPING SCREW D5X40 HIT-980864.A1 980864	-
*60 - STATOR ASS'Y 110V-115V INCLUD.61 HIT-340593C.A0 340593C	£71.43	£85.72
*60 - STATOR ASS'Y 220V-230V INCLUD.61 HIT-340593E.A0 340593E	£71.43	£85.72
*60 - STATOR ASS'Y 240V INCLUD.61 HIT-340593F.A0 340593F	-
61 - BRUSH TERMINAL HIT-930703.A4 930703	£3.28	£3.93
62 - WASHER (A) HIT-982631.A30 982631	£1.67	£2.00
63 - BALL BEARING 608VVC2PS2L HIT-608VVM.A127 608VVM	£5.70	£6.84
64 - NAME PLATE HIT-000000.A1551 000000	-
65 - HOUSING ASS'Y INCLUD.66 HIT-323082.A0 323082	-
66 - BRUSH HOLDER HIT-958900.A11 958900	£8.24	£9.89
67 - CARBON BRUSH (1 PAIR) HIT-999056.A5 999056	£9.88	£11.85
68 - BRUSH CAP HIT-945161.A22 945161	£1.67	£2.00
70 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A0 994192	£1.67	£2.00
71 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A46 302089	£1.67	£2.00
72 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A30 307028	£1.67	£2.00
73 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A7 938477	£1.67	£2.00
74 - TAIL COVER HIT-323085.A0 323085	£19.17	£23.00
75 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A12 307811	£1.67	£2.00
76 - INTERNAL WIRE HIT-994190.A7 994190	£1.67	£2.00
77 - VINYL TUBE L35 HIT-321322.A6 321322	-
78 - SUPPORT (B) HIT-317492.A7 317492	£1.67	£2.00
79A - SWITCH (1P PILLAR TYPE) HIT-370379.A2 370379	£22.42	£26.91
81 - CORD ARMOR D8.8 FOR CORD HIT-953327.A137 953327	£1.67	£2.00
82 - CORD CLIP HIT-960266.A3 960266	£1.67	£2.00
83 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A159 984750	£1.67	£2.00
84 - BEARING BUSHING (B) HIT-310111.A10 310111	£12.04	£14.45
85 - CONNECTOR 50091 (10 PCS.) HIT-959140.A11 959140	£4.98	£5.97
86 - NOISE SUPPRESSOR HIT-994273.A29 994273	£7.30	£8.76
87 - SUPPORT (B) HIT-317492.A6 317492	£1.67	£2.00
*88 - CORD (CORD ARMOR D8.8) HIT-500390Z.A1 500390Z	-
*88 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A34 500446Z	£33.79	£40.55
*88 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500454Z.A3 500454Z	£16.40	£19.68
*88 - CORD (CORD ARMOR D8.8) FOR AUS HIT-500439Z.A43 500439Z	-
89 - DAMPER (A) HIT-325257.A0 325257	£4.33	£5.20
90 - HANDLE (A).(B) SET (LIGHT GREEN) HIT-335207.A0 335207	-
501 - CASE HIT-323090.A0 323090	£50.02	£60.02
601 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A53 981840	£8.22	£9.87
602 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A37 308471	£16.21	£19.45
603 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A5 980927	£55.68	£66.81
604 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A11 303046	-

Attribute Name	Value
Brand	Hikoki
