Hitachi / Hikoki GP5V Hand Grinder Spare Parts

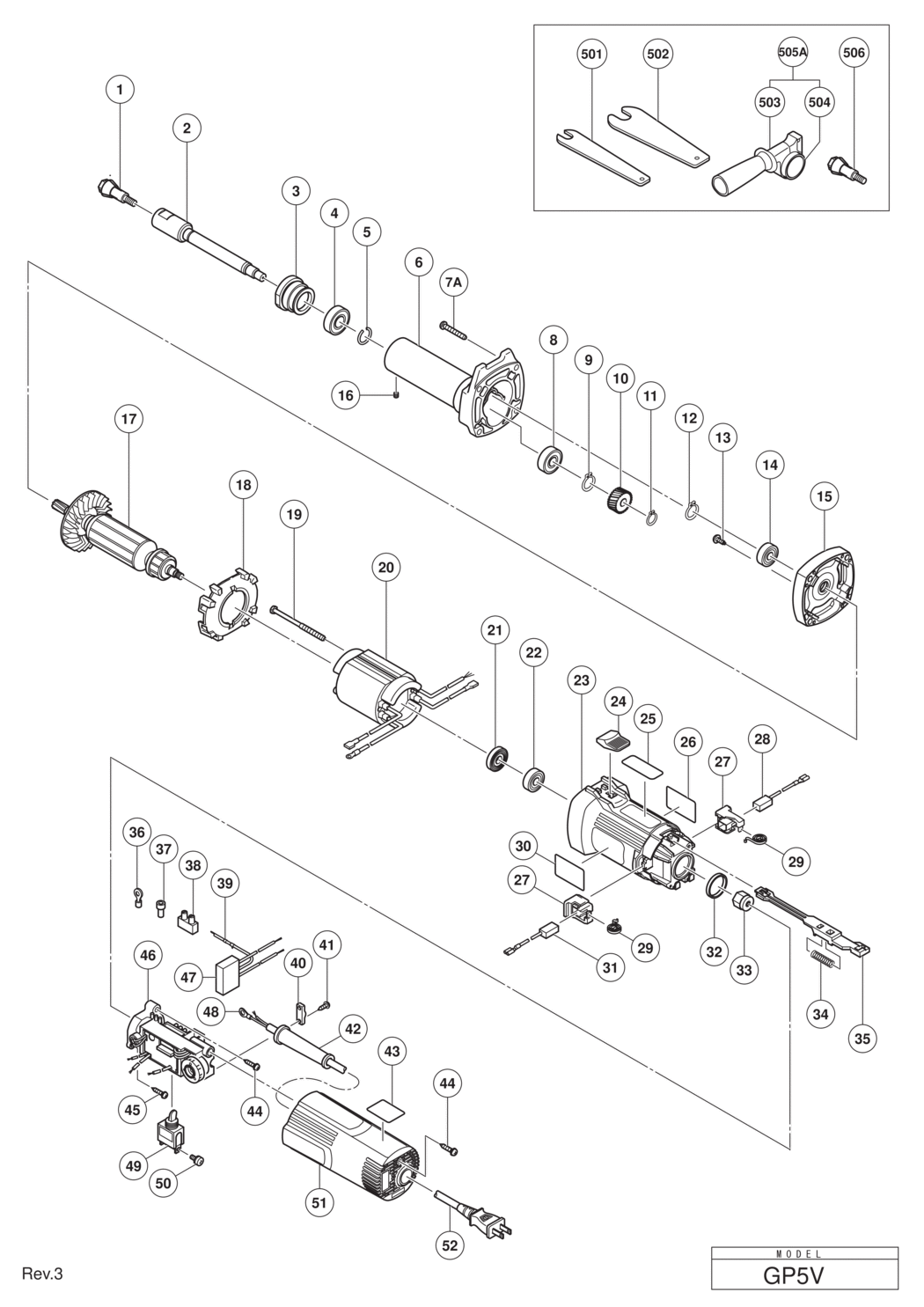

An exploded diagram and spare parts listing for the Hitachi / Hikoki GP5V Hand Grinder

	Ex VAT	Inc VAT
*1 - COLLET CHUCK 6MM HIT-333936.A0 333936	£62.66	£75.19
2 - SPINDLE HIT-333644.A0 333644	-
3 - BEARING LID (B) HIT-332452.A3 332452	£7.68	£9.21
4 - BALL BEARING 6001VV HIT-6001VV.A16 6001VV	£8.68	£10.42
5 - RING HIT-932617.A0 932617	£1.67	£2.00
6 - NOSE BRACKET HIT-333642.A0 333642	-
7A - TAPPING SCREW D5X35 (BLACK) HIT-334402.A0 334402	-
8 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A23 6000VV	£7.62	£9.15
9 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A33 939540	£1.67	£2.00
10 - FIRST GEAR HIT-333646.A0 333646	-
11 - RETAINING RING FOR D8 SHAFT HIT-940079.A9 940079	£1.67	£2.00
12 - RETAINING RING HIT-885977.A2 885977	-
13 - SLOTTED HD. SCREW (SEAL LOCK) M4X8 HIT-323556.A2 323556	-
14 - BALL BEARING 609VVC2PS2L HIT-609VVM.A9 609VVM	£6.35	£7.62
15 - INNER COVER HIT-333643.A0 333643	-
16 - HEX. SOCKET SET SCREW M4X4 HIT-981478.A1 981478	£1.67	£2.00
*17 - ARMATURE 110V HIT-360914C.A0 360914C	-
*17 - ARMATURE 220V-230V HIT-360914E.A0 360914E	-
18 - FAN GUIDE HIT-319898.A3 319898	£1.67	£2.00
19 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A14 982021	£1.67	£2.00
*20 - STATOR 110V (W/CHOKE COIL) FOR GBR (110V) HIT-340831C.A0 340831C	-
*20 - STATOR 230V-240V (W/CHOKE COIL) FOR NZL HIT-340829F.A0 340829F	-
21 - DUST SEAL HIT-315877.A16 315877	£1.67	£2.00
22 - BALL BEARING 608VVC2PS2L HIT-608VVM.A157 608VVM	£5.70	£6.84
23 - HOUSING HIT-317802.A4 317802	£18.48	£22.18
24 - SLIDE KNOB HIT-314428.A14 314428	£1.67	£2.00
26 - NAME PLATE HIT-000000.A209 000000	-
27 - BRUSH HOLDER HIT-317810.A5 317810	£6.09	£7.31
28 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999076.A1 999076	£19.14	£22.97
29 - SPRING HIT-308536.A7 308536	£1.67	£2.00
30 - BRAND LABEL HIT-000000.A210 000000	-
31 - CARBON BRUSH (1 PAIR) HIT-999088.A9 999088	£5.23	£6.28
32 - RUBBER RING HIT-995662.A1 995662	£1.67	£2.00
33 - MAGNET HIT-333933.A0 333933	-
34 - SPRING HIT-314429.A14 314429	£1.67	£2.00
35 - SLIDE BAR HIT-319370.A1 319370	-
36 - TERMINAL M4.0 (10 PCS.) HIT-930804.A20 930804	£3.64	£4.37
37 - CONNECTOR 50091 (10 PCS.) HIT-959140.A3 959140	£4.98	£5.97
38 - PILLAR TERMINAL HIT-938307.A40 938307	£3.28	£3.93
*39 - EARTH TERMINAL EXCEPT FOR USA HIT-314854.A8 314854	£1.67	£2.00
40 - CORD CLIP HIT-937631.A65 937631	£1.67	£2.00
41 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A192 984750	£1.67	£2.00
*42 - CORD ARMOR D8.8 HIT-953327.A160 953327	£1.67	£2.00
43 - SETTING LABEL (B) HIT-333935.A0 333935	-
44 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A176 301653	£1.67	£2.00
45 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A34 307028	£1.67	£2.00
*46 - CONTROLLER 100V-120V HIT-333591.A0 333591	-
*46 - CONTROLLER 220V-240V HIT-333592.A1 333592	-
*47 - NOISE SUPPRESSOR HIT-325566.A4 325566	£11.98	£14.38
48 - TERMINAL FOR CORD HIT-980063.A19 980063	£1.67	£2.00
49 - SWITCH (1P SOLDER TYPE) HIT-314603.A3 314603	£15.38	£18.45
50 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A15 305499	£1.67	£2.00
51 - TAIL COVER HIT-319376.A0 319376	-
*52 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500237Z.A9 500237Z	£14.33	£17.20
*52 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A9 500435Z	£14.14	£16.97
501 - WRENCH 12MM HIT-936553.A3 936553	£5.98	£7.18
502 - WRENCH 17MM HIT-936638.A5 936638	£7.22	£8.66
503 - SIDE HANDLE HIT-324548.A15 324548	£18.42	£22.11
504 - FLANGED SLEEVE HIT-330061.A1 330061	-
505A - SIDE HANDLE SLEEVE ASS'Y INCLUD.503 HIT-371325.A1 371325	-
601 - MOUNTED WHEELS KA-1 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939100.A0 939100	-
602 - MOUNTED WHEELS KA-2 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939101.A0 939101	-
603 - MOUNTED WHEELS KA-3 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939102.A1 939102	-
604 - MOUNTED WHEELS KA-4 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939103.A0 939103	-
605 - MOUNTED WHEELS KA-5 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939104.A3 939104	-
606 - MOUNTED WHEELS KA-6 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939105.A0 939105	-
607 - MOUNTED WHEELS KA-7 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939106.A0 939106	-
608 - MOUNTED WHEELS KA-8 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939107.A1 939107	-
609 - MOUNTED WHEELS KA-9 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939108.A0 939108	-
610 - MOUNTED WHEELS KA-10 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939109.A0 939109	-
611 - MOUNTED WHEELS KA-11 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-949023.A2 949023	-
612 - MOUNTED WHEELS KA-12 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-949021.A3 949021	-
613 - MOUNTED WHEELS KA-13 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-949022.A1 949022	-
614 - MOUNTED WHEELS KA-20 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939110.A0 939110	-
615 - MOUNTED WHEELS KA-21 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939111.A2 939111	-
616 - MOUNTED WHEELS KA-22 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939112.A0 939112	-
617 - MOUNTED WHEELS KA-23 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939113.A2 939113	-
618 - MOUNTED WHEELS KA-24 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939114.A0 939114	-
619 - MOUNTED WHEELS KC-20 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939115.A3 939115	-
620 - MOUNTED WHEELS KC-21 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939116.A0 939116	-
621 - MOUNTED WHEELS KC-22 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939117.A3 939117	-
622 - MOUNTED WHEELS KC-23 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939118.A1 939118	-
623 - MOUNTED WHEELS KC-24 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939119.A3 939119	-
624 - DRESSER C36PV HIT-939120.A1 939120	-
625 - COLLET CHUCK 5/16 HIT-331477.A2 331477	-
626 - COLLET CHUCK 3MM HIT-932624.A3 932624	£40.77	£48.92
627 - COLLET CHUCK 1/8 HIT-985136.A1 985136	£23.30	£27.96
*628 - COLLET CHUCK 6MM EXCEPT FOR USA HIT-332812.A3 332812	£62.66	£75.19
