Hitachi / Hikoki GP3V Hand Grinder Spare Parts

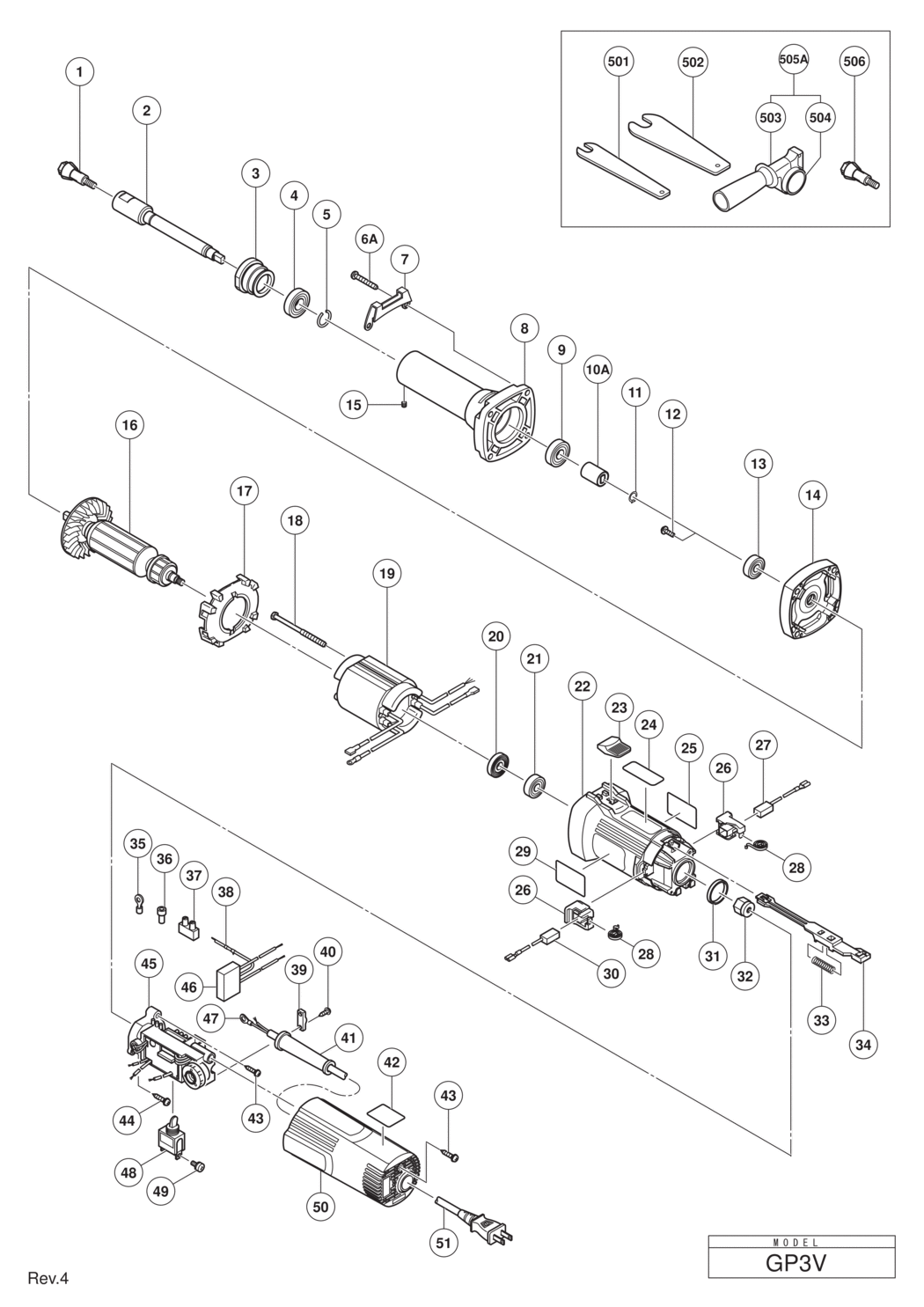

An exploded diagram and spare parts listing for the Hitachi / Hikoki GP3V Hand Grinder

	Ex VAT	Inc VAT
*1 - COLLET CHUCK 6MM HIT-333936.A1 333936	£62.66	£75.19
2 - SPINDLE HIT-332453.A0 332453	£19.68	£23.62
3 - BEARING LID (B) HIT-332452.A2 332452	£7.68	£9.21
4 - BALL BEARING 6001VV HIT-6001VV.A18 6001VV	£8.68	£10.42
5 - RING HIT-932617.A2 932617	£1.67	£2.00
6A - TAPPING SCREW D5X35 (BLACK) HIT-334402.A1 334402	-
7 - GUARD PLATE HIT-317807.A2 317807	£1.67	£2.00
8 - NOSE BRACKET HIT-334280.A0 334280	-
9 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A20 6000VV	£7.62	£9.15
10A - COUPLING HIT-372999.A0 372999	-
11 - RETAINING RING FOR D8 SHAFT HIT-940079.A8 940079	£1.67	£2.00
12 - SLOTTED HD. SCREW (SEAL LOCK) M4X8 HIT-323556.A3 323556	-
13 - BALL BEARING 609VVC2PS2L HIT-609VVM.A8 609VVM	£6.35	£7.62
14 - INNER COVER HIT-333643.A1 333643	-
15 - HEX. SOCKET SET SCREW M4X4 HIT-981478.A2 981478	£1.67	£2.00
*16 - ARMATURE 110V HIT-360911C.A0 360911C	-
*16 - ARMATURE 220V-230V HIT-360911E.A0 360911E	-
17 - FAN GUIDE HIT-319898.A4 319898	£1.67	£2.00
18 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A12 982021	£1.67	£2.00
*19 - STATOR 230V-240V HIT-340827F.A0 340827F	-
*19 - STATOR 110V (W/CHOKE COIL) FOR GBR HIT-340831C.A1 340831C	-
20 - DUST SEAL HIT-315877.A14 315877	£1.67	£2.00
21 - BALL BEARING 608VVC2PS2L HIT-608VVM.A162 608VVM	£5.70	£6.84
22 - HOUSING HIT-317802.A2 317802	£18.48	£22.18
23 - SLIDE KNOB HIT-314428.A16 314428	£1.67	£2.00
25 - NAME PLATE HIT-000000.A279 000000	-
26 - BRUSH HOLDER HIT-317810.A4 317810	£6.09	£7.31
27 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999076.A0 999076	£19.14	£22.97
28 - SPRING HIT-308536.A5 308536	£1.67	£2.00
29 - BRAND LABEL HIT-000000.A205 000000	-
30 - CARBON BRUSH (1 PAIR) HIT-999088.A10 999088	£5.23	£6.28
31 - RUBBER RING HIT-995662.A0 995662	£1.67	£2.00
32 - MAGNET HIT-318721.A2 318721	£20.48	£24.58
33 - SPRING HIT-314429.A15 314429	£1.67	£2.00
34 - SLIDE BAR HIT-319370.A0 319370	-
35 - TERMINAL M4.0 (10 PCS.) HIT-930804.A21 930804	£3.64	£4.37
36 - CONNECTOR 50091 (10 PCS.) HIT-959140.A4 959140	£4.98	£5.97
37 - PILLAR TERMINAL HIT-938307.A41 938307	£3.28	£3.93
*38 - EARTH TERMINAL EXCEPT FOR USA HIT-314854.A9 314854	£1.67	£2.00
39 - CORD CLIP HIT-937631.A64 937631	£1.67	£2.00
40 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A193 984750	£1.67	£2.00
*41 - CORD ARMOR D8.8 HIT-953327.A161 953327	£1.67	£2.00
42 - SETTING LABEL (B) HIT-333938.A0 333938	-
43 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A177 301653	£1.67	£2.00
44 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A35 307028	£1.67	£2.00
*45 - CONTROLLER 100V-120V HIT-333591.A1 333591	-
*45 - CONTROLLER 220V-240V HIT-333592.A0 333592	-
*46 - NOISE SUPPRESSOR HIT-325566.A5 325566	£11.98	£14.38
47 - TERMINAL FOR CORD HIT-980063.A18 980063	£1.67	£2.00
48 - SWITCH (1P SOLDER TYPE) HIT-314603.A2 314603	£15.38	£18.45
49 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A14 305499	£1.67	£2.00
50 - TAIL COVER HIT-319376.A1 319376	-
*51 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500237Z.A8 500237Z	£14.33	£17.20
*51 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A10 500435Z	£14.14	£16.97
501 - WRENCH 12MM HIT-936553.A2 936553	£5.98	£7.18
502 - WRENCH 17MM HIT-936638.A6 936638	£7.22	£8.66
503 - SIDE HANDLE HIT-324548.A14 324548	£18.42	£22.11
504 - FLANGED SLEEVE HIT-330061.A0 330061	-
505A - SIDE HANDLE SLEEVE ASS'Y INCLUD.503 HIT-371325.A2 371325	-
*506 - COLLET CHUCK 5/16 HIT-331477.A1 331477	-
601 - MOUNTED WHEELS KA-2 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939101.A1 939101	-
602 - MOUNTED WHEELS KA-3 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939102.A0 939102	-
603 - MOUNTED WHEELS KA-4 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939103.A1 939103	-
604 - MOUNTED WHEELS KA-5 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939104.A2 939104	-
605 - MOUNTED WHEELS KA-7 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939106.A1 939106	-
606 - MOUNTED WHEELS KA-8 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939107.A0 939107	-
607 - MOUNTED WHEELS KA-9 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939108.A1 939108	-
608 - MOUNTED WHEELS KA-11 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-949023.A1 949023	-
609 - MOUNTED WHEELS KA-12 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-949021.A2 949021	-
610 - MOUNTED WHEELS KA-13 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-949022.A2 949022	-
611 - MOUNTED WHEELS KA-20 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939110.A1 939110	-
612 - MOUNTED WHEELS KA-21 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939111.A1 939111	-
613 - MOUNTED WHEELS KA-22 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939112.A1 939112	-
614 - MOUNTED WHEELS KA-23 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939113.A1 939113	-
615 - MOUNTED WHEELS KA-24 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939114.A1 939114	-
616 - MOUNTED WHEELS KC-20 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939115.A2 939115	-
617 - MOUNTED WHEELS KC-21 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939116.A1 939116	-
618 - MOUNTED WHEELS KC-22 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939117.A2 939117	-
619 - MOUNTED WHEELS KC-23 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939118.A2 939118	-
620 - MOUNTED WHEELS KC-24 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939119.A2 939119	-
621 - DRESSER C36PV HIT-939120.A2 939120	-
622 - COLLET CHUCK 5/16 HIT-331477.A0 331477	-
623 - COLLET CHUCK 3MM HIT-932624.A2 932624	£40.77	£48.92
624 - COLLET CHUCK 1/8 HIT-985136.A2 985136	£23.30	£27.96
*625 - COLLET CHUCK 6MM EXCEPT FOR USA HIT-332812.A2 332812	£62.66	£75.19
