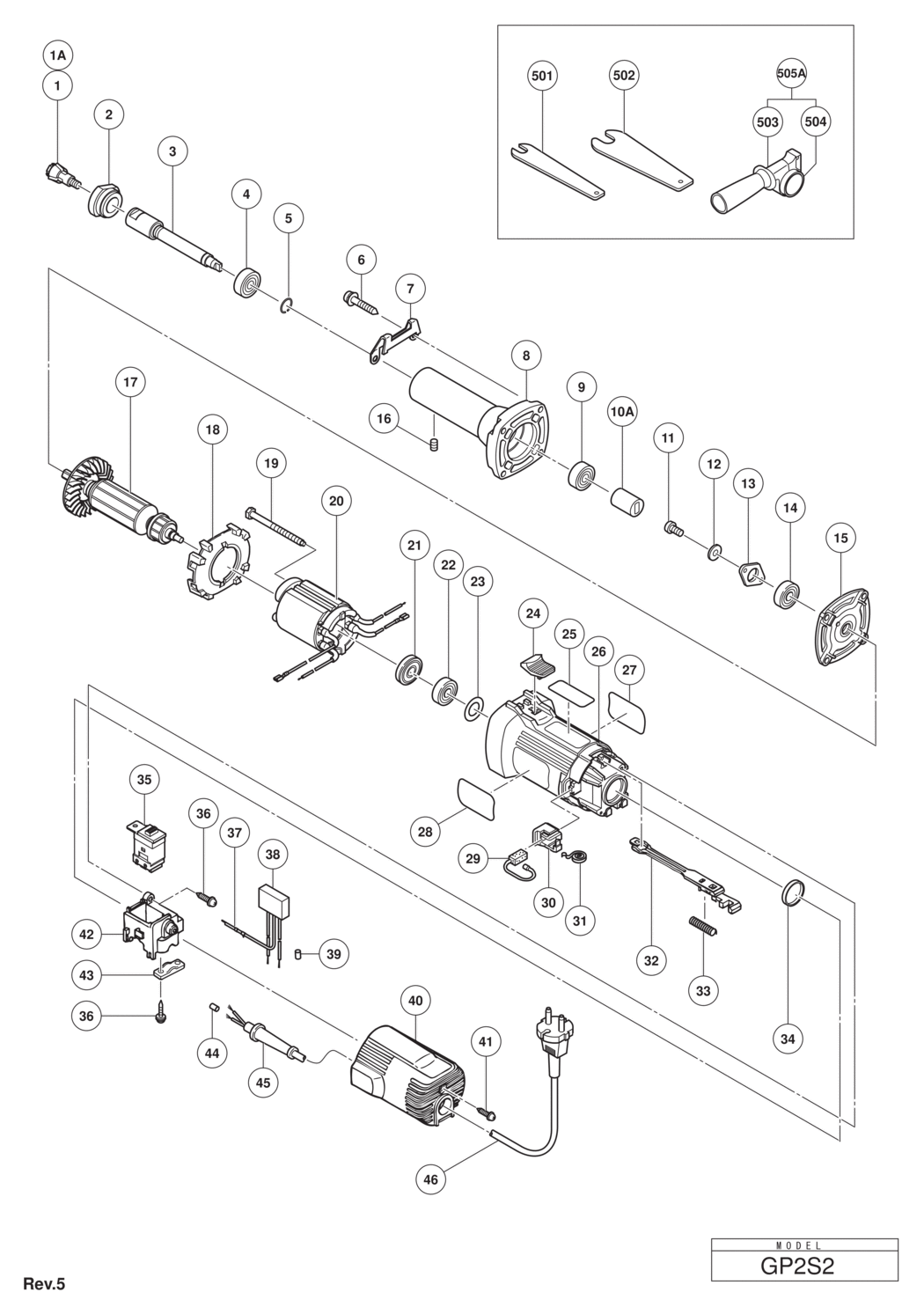

An exploded diagram and spare parts listing for the Hitachi / Hikoki GP2S2 Hand Grinder
Ex VAT Inc VAT
*1A - COLLET CHUCK 6MM HIT-332812.A1 332812 £62.66 £75.19
2 - BEARING LID (B) HIT-332452.A1 332452 £7.68 £9.21
3 - SPINDLE HIT-332453.A1 332453 £19.68 £23.62
4 - BALL BEARING 6001VV HIT-6001VV.A17 6001VV £8.68 £10.42
5 - RING HIT-932617.A1 932617 £1.67 £2.00
6 - TAPPING SCREW (W/SP. WASHER) D5X30 HIT-986011.A2 986011 £1.67 £2.00
7 - GUARD PLATE HIT-317807.A3 317807 £1.67 £2.00
8 - NOSE BRACKET HIT-331474.A1 331474 -
9 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A21 6000VV £7.62 £9.15
10A - COUPLING HIT-372998.A0 372998 £19.61 £23.53
11 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-987201.A10 987201 £1.67 £2.00
12 - SPRING WASHER M4 (10 PCS.) HIT-949453.A60 949453 £1.67 £2.00
13 - BEARING COVER HIT-937876.A0 937876 -
14 - BALL BEARING 608VVC2PS2L HIT-608VVM.A163 608VVM £5.70 £6.84
15 - INNER COVER HIT-331475.A0 331475 £7.66 £9.19
16 - HEX. SOCKET SET SCREW M4X4 HIT-981478.A3 981478 £1.67 £2.00
*17 - ARMATURE ASS'Y 110V-120V INCLUD.14 HIT-360879U.A0 360879U £38.14 £45.77
*17 - ARMATURE 220V-230V HIT-360879E.A1 360879E £28.70 £34.44
18 - FAN GUIDE HIT-319898.A5 319898 £1.67 £2.00
19 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A11 982021 £1.67 £2.00
*20 - STATOR (A) 110V FOR GBR (110V) HIT-340758G.A1 340758G £24.24 £29.09
*20 - STATOR (A) 230V HIT-340758H.A0 340758H £20.59 £24.71
21 - DUST SEAL HIT-315877.A15 315877 £1.67 £2.00
22 - BALL BEARING 608VVC2PS2L HIT-608VVM.A164 608VVM £5.70 £6.84
23 - WASHER M14 HIT-332804.A1 332804 £1.67 £2.00
24 - SLIDE KNOB HIT-314428.A15 314428 £1.67 £2.00
25 - CAUTION PLATE HIT-000000.A273 000000 -
26 - HOUSING HIT-317802.A3 317802 £18.48 £22.18
27 - NAME PLATE HIT-000000.A274 000000 -
28 - BRAND LABEL HIT-000000.A275 000000 -
29 - CARBON BRUSH (1 PAIR) HIT-999088.A11 999088 £5.23 £6.28
30 - BRUSH HOLDER HIT-317810.A3 317810 £6.09 £7.31
31 - SPRING HIT-308536.A6 308536 £1.67 £2.00
32 - SLIDE BAR HIT-317806.A2 317806 £1.67 £2.00
33 - SPRING HIT-314429.A13 314429 £1.67 £2.00
34 - RUBBER RING HIT-995662.A2 995662 £1.67 £2.00
*35 - SLIDE SWITCH (2P PILLAR TYPE) HIT-332805.A0 332805 £19.22 £23.07
36 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A198 984750 £1.67 £2.00
*37 - EARTH TERMINAL FOR NOISE SUPPRESSOR HIT-314854.A12 314854 £1.67 £2.00
*38 - NOISE SUPPRESSOR FOR EUROPE HIT-325566.A6 325566 £11.98 £14.38
39 - TUBE (D) HIT-981373.A13 981373 £1.67 £2.00
40 - TAIL COVER HIT-317808.A2 317808 £10.77 £12.92
41 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A197 984750 £1.67 £2.00
42 - SWITCH HOLDER HIT-317811.A2 317811 £3.02 £3.63
43 - CORD CLIP HIT-937631.A69 937631 £1.67 £2.00
44 - TUBE (D) HIT-981373.A12 981373 £1.67 £2.00
*45 - CORD ARMOR D8.8 HIT-953327.A167 953327 £1.67 £2.00
*46 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A8 500461Z £15.56 £18.67
*46 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A12 500435Z £14.14 £16.97
501 - WRENCH 12MM HIT-936553.A4 936553 £5.98 £7.18
502 - WRENCH 17MM HIT-936638.A4 936638 £7.22 £8.66
*503 - SIDE HANDLE HIT-324548.A16 324548 £18.42 £22.11
*504 - FLANGED SLEEVE HIT-330061.A2 330061 -
*505A - SIDE HANDLE SLEEVE ASS'Y INCLUD.503 HIT-371325.A3 371325 -
601 - COLLET CHUCK 3MM HIT-932624.A1 932624 £40.77 £48.92
602 - COLLET CHUCK 8MM HIT-985135.A1 985135 £23.30 £27.96
603 - COLLET CHUCK 1/8 HIT-985136.A0 985136 £23.30 £27.96
*604 - MOUNTED WHEELS KA-4 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939103.A2 939103 -
*605 - MOUNTED WHEELS KA-5 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939104.A1 939104 -
*606 - MOUNTED WHEELS KA-8 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939107.A2 939107 -
*607 - MOUNTED WHEELS KA-12 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-949021.A4 949021 -
*608 - MOUNTED WHEELS KA-13 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-949022.A0 949022 -
*609 - MOUNTED WHEELS KA-20 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939110.A2 939110 -
*610 - MOUNTED WHEELS KC-20 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939115.A4 939115 -
*611 - MOUNTED WHEELS KC-22 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939117.A4 939117 -
*612 - MOUNTED WHEELS KC-23 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939118.A0 939118 -
*613 - MOUNTED WHEELS KC-24 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939119.A4 939119 -
*614 - DRESSER C36PV EXCEPT FOR USA HIT-939120.A0 939120 -
*1A - COLLET CHUCK 6MM HIT-332812.A0 332812 £62.66 £75.19
2 - BEARING LID (B) HIT-332452.A0 332452 £7.68 £9.21
3 - SPINDLE HIT-332453.A2 332453 £19.68 £23.62
4 - BALL BEARING 6001VV HIT-6001VV.A24 6001VV £8.68 £10.42
5 - RING HIT-932617.A3 932617 £1.67 £2.00
6 - TAPPING SCREW (W/SP. WASHER) D5X30 HIT-986011.A0 986011 £1.67 £2.00
7 - GUARD PLATE HIT-317807.A0 317807 £1.67 £2.00
8 - NOSE BRACKET HIT-331474.A0 331474 -
9 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A42 6000VV £7.62 £9.15
10A - COUPLING HIT-372998.A1 372998 £19.61 £23.53
11 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-987201.A11 987201 £1.67 £2.00
12 - SPRING WASHER M4 (10 PCS.) HIT-949453.A35 949453 £1.67 £2.00
13 - BEARING COVER HIT-937876.A1 937876 -
14 - BALL BEARING 608VVC2PS2L HIT-608VVM.A6 608VVM £5.70 £6.84
15 - INNER COVER HIT-331475.A1 331475 £7.66 £9.19
16 - HEX. SOCKET SET SCREW M4X4 HIT-981478.A4 981478 £1.67 £2.00
*17 - ARMATURE ASS'Y 110V-120V INCLUD.14 HIT-360879U.A1 360879U £38.14 £45.77
*17 - ARMATURE 220V-230V HIT-360879E.A0 360879E £28.70 £34.44
18 - FAN GUIDE HIT-319898.A0 319898 £1.67 £2.00
19 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A18 982021 £1.67 £2.00
*20 - STATOR (A) 110V FOR GBR (110V) HIT-340758G.A0 340758G £24.24 £29.09
*20 - STATOR (A) 230V HIT-340758H.A1 340758H £20.59 £24.71
21 - DUST SEAL HIT-315877.A4 315877 £1.67 £2.00
22 - BALL BEARING 608VVC2PS2L HIT-608VVM.A7 608VVM £5.70 £6.84
23 - WASHER M14 HIT-332804.A0 332804 £1.67 £2.00
24 - SLIDE KNOB HIT-314428.A3 314428 £1.67 £2.00
25 - CAUTION PLATE HIT-000000.A4227 000000 -
26 - HOUSING HIT-317802.A5 317802 £18.48 £22.18
27 - NAME PLATE HIT-000000.A4228 000000 -
28 - BRAND LABEL HIT-000000.A4229 000000 -
29 - CARBON BRUSH (1 PAIR) HIT-999088.A13 999088 £5.23 £6.28
30 - BRUSH HOLDER HIT-317810.A0 317810 £6.09 £7.31
31 - SPRING HIT-308536.A3 308536 £1.67 £2.00
32 - SLIDE BAR HIT-317806.A3 317806 £1.67 £2.00
33 - SPRING HIT-314429.A20 314429 £1.67 £2.00
34 - RUBBER RING HIT-995662.A8 995662 £1.67 £2.00
*35 - SLIDE SWITCH (2P PILLAR TYPE) HIT-332805.A1 332805 £19.22 £23.07
36 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A72 984750 £1.67 £2.00
*37 - EARTH TERMINAL FOR NOISE SUPPRESSOR HIT-314854.A3 314854 £1.67 £2.00
*38 - NOISE SUPPRESSOR FOR EUROPE HIT-325566.A8 325566 £11.98 £14.38
39 - TUBE (D) HIT-981373.A120 981373 £1.67 £2.00
40 - TAIL COVER HIT-317808.A3 317808 £10.77 £12.92
41 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A73 984750 £1.67 £2.00
42 - SWITCH HOLDER HIT-317811.A3 317811 £3.02 £3.63
43 - CORD CLIP HIT-937631.A170 937631 £1.67 £2.00
44 - TUBE (D) HIT-981373.A119 981373 £1.67 £2.00
*45 - CORD ARMOR D8.8 HIT-953327.A67 953327 £1.67 £2.00
*46 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A77 500461Z £15.56 £18.67
*46 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A86 500435Z £14.14 £16.97
501 - WRENCH 12MM HIT-936553.A0 936553 £5.98 £7.18
502 - WRENCH 17MM HIT-936638.A1 936638 £7.22 £8.66
*503 - SIDE HANDLE HIT-324548.A12 324548 £18.42 £22.11
*504 - FLANGED SLEEVE HIT-330061.A3 330061 -
*505A - SIDE HANDLE SLEEVE ASS'Y INCLUD.503 HIT-371325.A0 371325 -
601 - COLLET CHUCK 3MM HIT-932624.A0 932624 £40.77 £48.92
602 - COLLET CHUCK 8MM HIT-985135.A0 985135 £23.30 £27.96
603 - COLLET CHUCK 1/8 HIT-985136.A3 985136 £23.30 £27.96
*604 - MOUNTED WHEELS KA-4 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939103.A3 939103 -
*605 - MOUNTED WHEELS KA-5 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939104.A0 939104 -
*606 - MOUNTED WHEELS KA-8 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-939107.A3 939107 -
*607 - MOUNTED WHEELS KA-12 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-949021.A0 949021 -
*608 - MOUNTED WHEELS KA-13 D6 SHAFT (10 PCS.) EXCEPT FOR USA HIT-949022.A4 949022 -
*609 - MOUNTED WHEELS KA-20 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939110.A3 939110 -
*610 - MOUNTED WHEELS KC-20 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939115.A1 939115 -
*611 - MOUNTED WHEELS KC-22 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939117.A1 939117 -
*612 - MOUNTED WHEELS KC-23 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939118.A3 939118 -
*613 - MOUNTED WHEELS KC-24 D3 SHAFT (20 PCS.) EXCEPT FOR USA HIT-939119.A1 939119 -
*614 - DRESSER C36PV EXCEPT FOR USA HIT-939120.A3 939120 -
