Hitachi / Hikoki GP10DL Cordless Disc Grinder Spare Parts

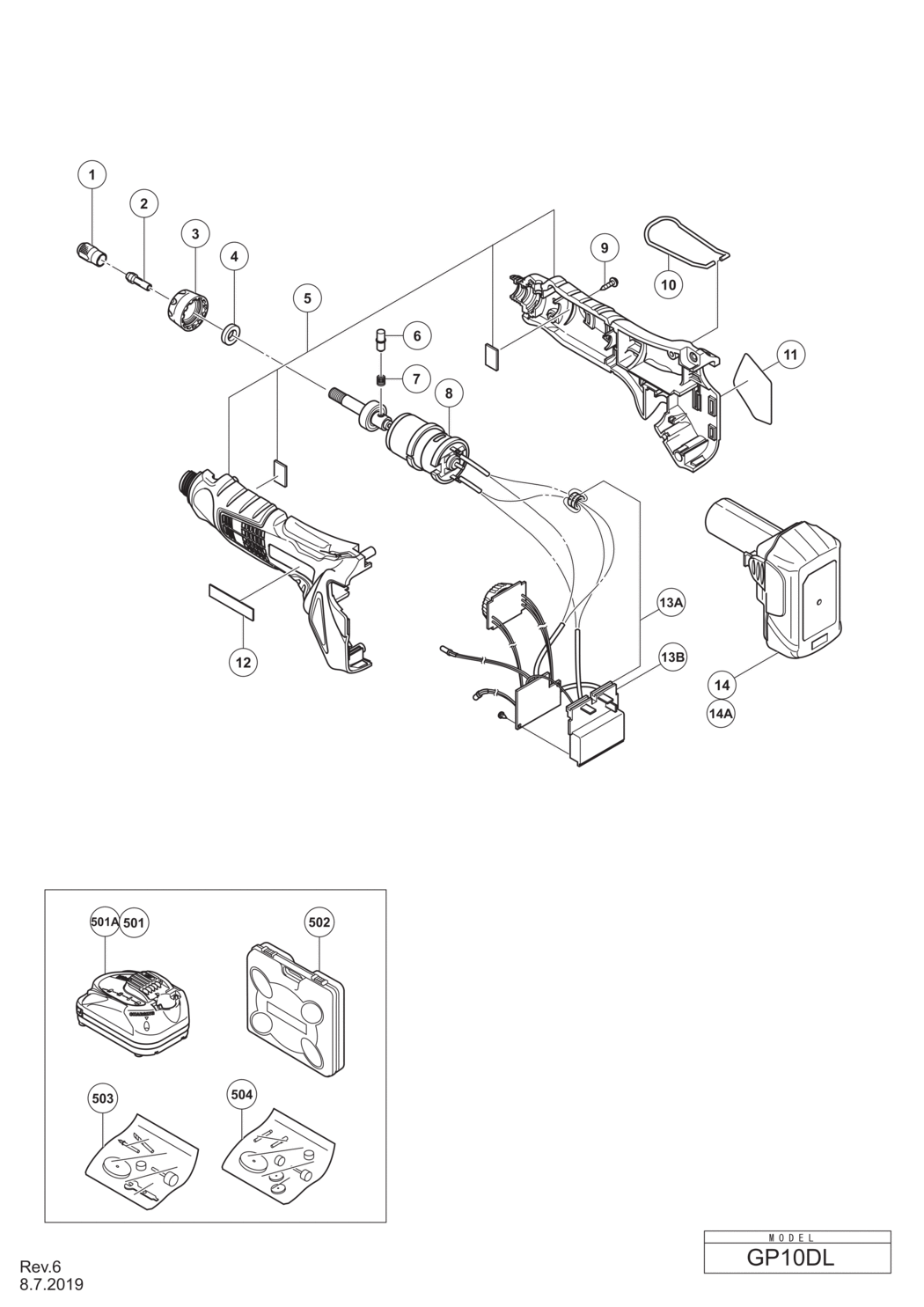

An exploded diagram and spare parts listing for the Hitachi / Hikoki GP10DL Cordless Disc Grinder

	Ex VAT	Inc VAT
1 - COLLET NUT HIT-331978.A1 331978	-
2 - COLLET D3.2 HIT-331969.A1 331969	-
3 - CAP HIT-331976.A0 331976	-
4 - FELT HIT-331970.A0 331970	-
5 - HOUSING (A).(B) SET HIT-332519.A0 332519	-
6 - LOCK PIN HIT-331971.A1 331971	-
7 - SPRING HIT-319267.A12 319267	£4.01	£4.81
8 - MOTOR DC 10.8V HIT-331973.A1 331973	£17.33	£20.80
9 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK) HIT-313687.A56 313687	£1.67	£2.00
10 - HOOK HIT-331972.A0 331972	-
11 - NAME PLATE HIT-000000.A2174 000000	-
12 - BRAND LABEL HIT-330719.A11 330719	£3.12	£3.74
*13A - CONTROLLER SET SINCE 3.2012 FOR EUROPE HIT-334850.A0 334850	-
*13B - CONTROLLER EXCEPT FOR EUROPE(TILL 2.2012 FOR EUROPE HIT-375150.A1 375150	-
*14A - BATTERY BCL 1015 (EUROPE AUS NZL) HIT-329371.A5 329371	£79.64	£95.57
*501 - CHARGER (MODEL UC 10SFL) HIT-000000.A2176 000000	-
*501A - CHARGER (MODEL UC 10SL2) HIT-000000.A2177 000000	-
502 - CASE HIT-332491.A0 332491	-
503 - ACCESSORIES SET (A) HIT-332492.A0 332492	-
504 - ACCESSORIES SET (B) HIT-332493.A0 332493	-

Attribute Name	Value
Brand	Hikoki
