Hitachi / Hikoki GNC40 Gas Concrete Nailer Spare Parts

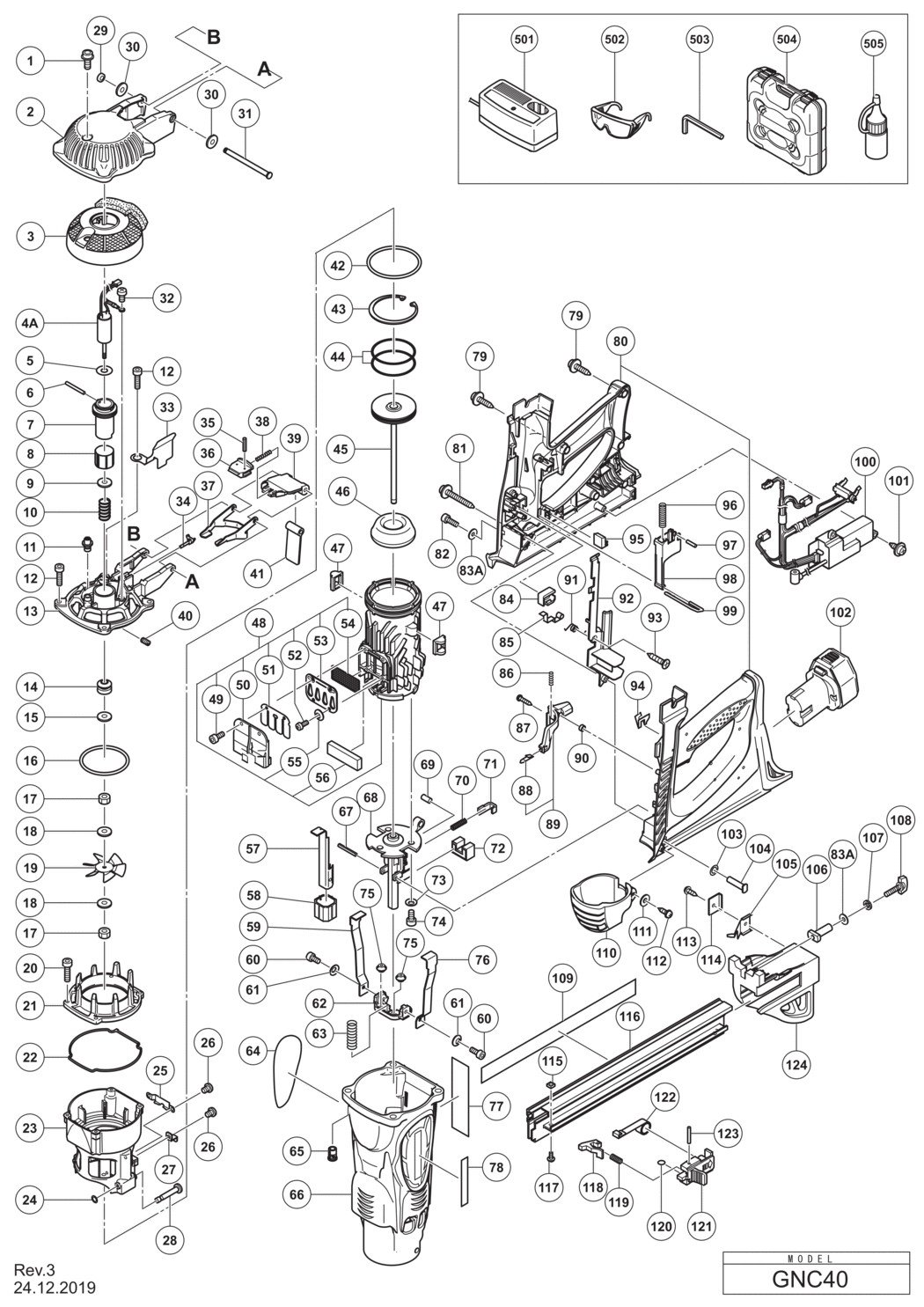

An exploded diagram and spare parts listing for the Hitachi / Hikoki GNC40 Gas Concrete Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-996399.A15 996399	£1.67	£2.00
2 - TOP COVER HIT-886598.A4 886598	£12.85	£15.42
3 - FILTER HIT-886129.A3 886129	£38.73	£46.48
4A - MOTOR (A) HIT-887735.A3 887735	£110.88	£133.05
5 - RUBBER WASHER HIT-885313.A4 885313	£1.67	£2.00
6 - ROLL PIN D2.5X25 HIT-885318.A0 885318	£1.67	£2.00
7 - MOTOR MOUNT HIT-885310.A4 885310	£9.72	£11.67
8 - MOUNT SLEEVE HIT-885314.A0 885314	£2.49	£2.99
9 - SHAFT WASHER HIT-885320.A1 885320	£1.67	£2.00
10 - MOTOR SPRING HIT-887630.A0 887630	-
11 - SPARK PLUG (A) HIT-885333.A0 885333	£4.33	£5.20
12 - NYLOK HEX. SOCKET HD.BOLT M5X20(10 PCS.) HIT-887472.A0 887472	-
13 - CYLINDER HEAD ASS'Y INCLUD.14 HIT-885308.A0 885308	£37.06	£44.47
14 - SHAFT COVER HIT-886470.A0 886470	£1.67	£2.00
15 - WASHER HIT-886471.A4 886471	£1.67	£2.00
16 - O-RING (I.D 59.92) HIT-885316.A4 885316	£6.50	£7.80
17 - NUT M4 (10 PCS.) HIT-887479.A0 887479	-
18 - WASHER M4 (10 PCS.) HIT-949423.A4 949423	£1.67	£2.00
19 - FAN HIT-885311.A0 885311	£6.50	£7.80
20 - HEX. SOCKET HD. BOLT M4X16 (10 PCS.) HIT-949754.A14 949754	£2.98	£3.57
21 - CHAMBER HEAD HIT-885294.A0 885294	£18.20	£21.84
22 - GASKET (B) HIT-886133.A0 886133	£1.67	£2.00
23 - CHAMBER HIT-885296.A4 885296	£26.55	£31.86
24 - PLUNGER O-RING HIT-878607.A3 878607	£1.67	£2.00
25 - CHAMBER LOCK PLATE HIT-885297.A0 885297	£4.33	£5.20
26 - MACHINE SCREW M4X6 (10 PCS.) HIT-887480.A0 887480	-
27 - SWITCH PLATE HIT-885306.A0 885306	£1.67	£2.00
28 - PIN (A) HIT-886484.A4 886484	£1.67	£2.00
29 - SHAFT RING HIT-880319.A11 880319	£1.67	£2.00
30 - BOLT WASHER M5 (BLACK)(10 PCS.) HIT-887454.A2 887454	-
31 - SHAFT HIT-885277.A4 885277	£4.33	£5.20
32 - MACHINE SCREW M4X6 (10 PCS.) HIT-887480.A1 887480	-
33 - WIRING PLATE HIT-886253.A3 886253	£1.67	£2.00
34 - ADAPTER HIT-886313.A12 886313	£3.51	£4.21
35 - ROLL PIN D2X8 (10 PCS.) HIT-887484.A0 887484	-
36 - LATCH (A) HIT-887483.A0 887483	-
37 - CELL LEVER (A) HIT-886141.A1 886141	£8.88	£10.66
38 - SPRING (A) HIT-887485.A0 887485	-
39 - CELL COVER (A) HIT-887486.A0 887486	-
40 - HEX. SOCKET SET SCREW M4X5 HIT-886314.A0 886314	£1.67	£2.00
41 - CELL RUBBER (A) HIT-886131.A1 886131	£2.71	£3.25
42 - O-RING (I.D. 66.27) HIT-885283.A1 885283	£8.66	£10.39
43 - RETAINING RING HIT-885285.A1 885285	£1.67	£2.00
44 - PISTON RING (A) HIT-886132.A2 886132	£13.94	£16.73
45 - PISTON (H) HIT-887616.A0 887616	-
46 - PISTON BUMPER (A) HIT-885289.A2 885289	£10.45	£12.54
47 - CHAMBER STOP RUBBER HIT-885284.A3 885284	£1.67	£2.00
48 - CYLINDER ASS'Y INCLUD.49-56 HIT-886465.A0 886465	-
49 - SEAL LOCK HEX. SOCKET HD. BOLT M4X10 HIT-886241.A1 886241	£1.67	£2.00
50 - BUFFER COVER (A) HIT-886467.A2 886467	£1.67	£2.00
51 - LEAD VALVE HIT-885290.A2 885290	£1.67	£2.00
52 - SEAL LOCK SCREW M4X6 (BLACK) HIT-887481.A0 887481	-
53 - BUFFER PLATE (A) HIT-886468.A0 886468	-
54 - MESH HIT-885292.A1 885292	-
55 - CONICAL SPRING H8 HIT-886319.A3 886319	£1.67	£2.00
56 - MUFFLER (A) HIT-885288.A2 885288	£14.68	£17.62
57 - PUSHING LEVER HIT-887614.A0 887614	-
58 - NOSE CAP HIT-885692.A1 885692	-
59 - PUSHING LEVER ARM (L) HIT-887625.A0 887625	-
60 - SEAL LOCK HEX. SOCKET HD. BOLT M5X8 HIT-887622.A0 887622	-
61 - BELLEVILLE SPRING M5 HIT-886243.A2 886243	-
62 - PUSHING LEVER CONNECTOR (A) HIT-887626.A0 887626	-
63 - PUSHING LEVER SPRING (A) HIT-886245.A3 886245	£1.67	£2.00
64 - NAME PLATE HIT-000000.A282 000000	-
65 - SCREW M5 HIT-885304.A4 885304	£1.67	£2.00
66 - HOUSING HIT-886469.A1 886469	-
67 - ROLL PIN D3X25 HIT-887621.A0 887621	-
68 - NOSE HIT-887618.A0 887618	-
69 - ROLL PIN D3X8 HIT-887619.A0 887619	-
70 - SPRING (A) HIT-885706.A1 885706	£1.67	£2.00
71 - PUSHING LEVER STOPPER HIT-887620.A0 887620	-
72 - NOSE RUBBER HIT-887615.A0 887615	-
73 - BELLEVILLE SPRING M5 HIT-886243.A1 886243	-
74 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-887623.A0 887623	-
75 - SPRING GUIDE HIT-885707.A0 885707	-
76 - PUSHING LEVER ARM (R) HIT-887627.A0 887627	-
77 - INSULATOR SHEET HIT-885307.A4 885307	£1.67	£2.00
78 - HEWI PLATE (H) HIT-887649.A0 887649	-
79 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A45 302086	£1.67	£2.00
80 - HANDLE SET HIT-887648.A0 887648	-
81 - TAPPING SCREW (W/FLANGE) D4X45 (BLACK) HIT-887477.A0 887477	-
82 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-887624.A0 887624	-
83A - WASHER HIT-889024.A5 889024	-
84 - SWITCH MOUNT (B) HIT-886473.A1 886473	£2.67	£3.20
85 - SWITCH ARM HIT-885347.A1 885347	£1.67	£2.00
86 - SPRING HIT-885518.A4 885518	£1.67	£2.00
87 - TAPPING SCREW D3X8 HIT-885714.A0 885714	£1.67	£2.00
88 - TENSION PLATE (C) HIT-886257.A2 886257	£4.55	£5.46
89 - SWITCH LEVER (B) ASS'Y INCLUD.88 HIT-886147.A1 886147	£8.50	£10.20
90 - SLEEVE HIT-886463.A1 886463	-
91 - LOCK BAR SPRING HIT-885337.A0 885337	£1.67	£2.00
92 - WIRING COVER HIT-885339.A3 885339	£4.33	£5.20
93 - FLAT HD. TAPPING SCREW D4X10 HIT-885346.A2 885346	£1.67	£2.00
94 - LEVER STOPPER HIT-886138.A2 886138	£4.55	£5.46
95 - PRISM HIT-886474.A0 886474	-
96 - TRIGGER SPRING (A) HIT-885828.A3 885828	£1.67	£2.00
97 - ROLL PIN D2.5X10 (10 PCS.) HIT-949551.A4 949551	£1.67	£2.00
98 - TRIGGER HIT-885335.A1 885335	£4.33	£5.20
99 - CHAMBER LOCK BAR HIT-887617.A0 887617	-
100 - WIRING (B) INCLUD.11 HIT-886461.A1 886461	£112.93	£135.52
101 - TAPPING SCREW (W/FLANGE) D4X14 (BLACK) HIT-887476.A0 887476	-
102 - BATTERY (GFN 3490B) HIT-000000.A283 000000	-
103 - WASHER (B) HIT-885712.A0 885712	-
104 - SHAFT (B) HIT-885711.A1 885711	-
105 - NAIL STOPPER (A) HIT-886990.A0 886990	-
106 - SHAFT (C) HIT-885713.A1 885713	-
107 - SPRING WASHER M5 (10 PCS.) HIT-949454.A35 949454	£1.67	£2.00
108 - KNOB HIT-887629.A0 887629	-
109 - WARNING LABEL HIT-000000.A284 000000	-
110 - DUST COVER HIT-885695.A1 885695	-
111 - WASHER HIT-875246.A4 875246	£1.67	£2.00
112 - TAPPING SCREW (W/FLANGE) D4X12 (BLACK) HIT-325083.A6 325083	£1.67	£2.00
113 - TAPPING SCREW (W/FLANGE) D4X10 (BLACK) HIT-887628.A0 887628	-
114 - STOPPER PLATE HIT-886991.A0 886991	-
115 - SQUARE NUT M6 HIT-319166.A1 319166	-
116 - MAGAZINE HIT-886475.A1 886475	-
117 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X7 HIT-884215.A1 884215	-
118 - NAIL FEEDER (A) HIT-886477.A1 886477	£10.02	£12.02
119 - SPRING (B) HIT-886478.A0 886478	-
120 - O-RING (1AP-3) HIT-873093.A12 873093	£1.67	£2.00
121 - NAIL FEEDER (B) HIT-886476.A0 886476	-
122 - RIBBON SPRING HIT-881755.A5 881755	£4.62	£5.55
123 - PIN D3X20 (10 PCS.) HIT-949890.A1 949890	£2.78	£3.34
124 - MAGAZINE COVER HIT-886479.A1 886479	£14.52	£17.43
501 - CHARGER (MODEL GFN 3490L) HIT-000000.A286 000000	-
502 - PROTECTIVE GLASSES HIT-875769.A87 875769	-
503 - HEX. BAR WRENCH 4MM HIT-887463.A2 887463	-
504 - CASE HIT-887647.A0 887647	-
505 - LUBRICANT OILER (B) HIT-886602.A1 886602	-
