Hitachi / Hikoki GFN3490 Gas Strip Nailer Spare Parts

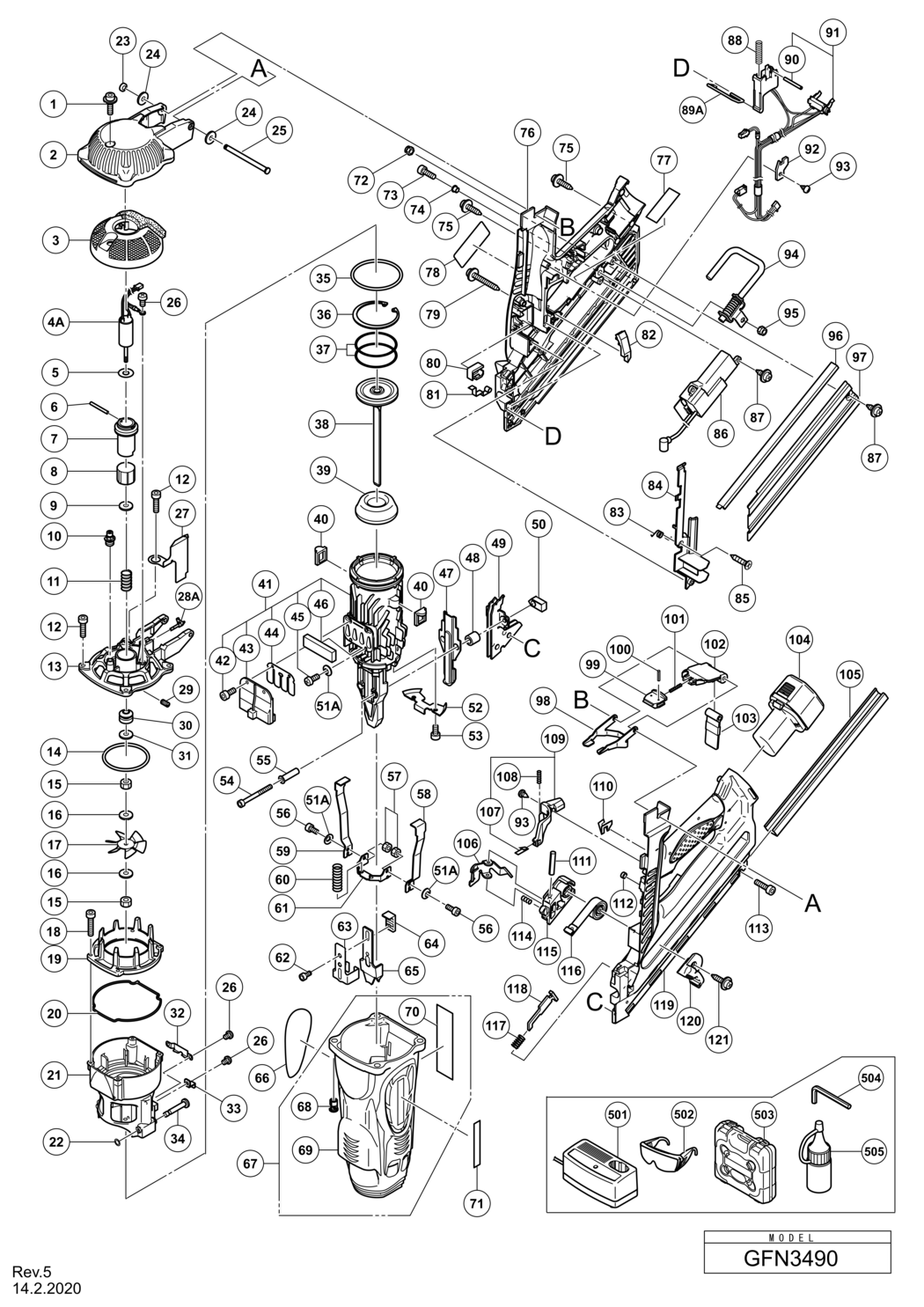

An exploded diagram and spare parts listing for the Hitachi / Hikoki GFN3490 Gas Strip Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-996399.A0 996399	£1.67	£2.00
2 - TOP COVER HIT-886598.A0 886598	£12.85	£15.42
3 - FILTER HIT-886129.A4 886129	£38.73	£46.48
4A - MOTOR (A) HIT-887735.A0 887735	£110.88	£133.05
5 - RUBBER WASHER HIT-885313.A0 885313	£1.67	£2.00
6 - ROLL PIN D2.5X25 HIT-885318.A4 885318	£1.67	£2.00
7 - MOTOR MOUNT HIT-885310.A0 885310	£9.72	£11.67
8 - MOUNT SLEEVE HIT-885314.A4 885314	£2.49	£2.99
9 - SHAFT WASHER HIT-885320.A4 885320	£1.67	£2.00
10 - SPARK PLUG (A) HIT-885333.A9 885333	£4.33	£5.20
11 - MOTOR SPRING HIT-885319.A0 885319	£1.67	£2.00
12 - HEX. SOCKET HD. BOLT M5X20 (10 PCS.) HIT-949757.A38 949757	£3.64	£4.37
13 - CYLINDER HEAD ASS'Y INCLUD.30 HIT-885308.A4 885308	£37.06	£44.47
14 - O-RING (I.D 59.92) HIT-885316.A0 885316	£6.50	£7.80
15 - NUT M4 (10 PCS.) HIT-949554.A1 949554	£1.67	£2.00
16 - WASHER M4 (10 PCS.) HIT-949423.A57 949423	£1.67	£2.00
17 - FAN HIT-885311.A4 885311	£6.50	£7.80
18 - HEX. SOCKET HD. BOLT M4X16 (10 PCS.) HIT-949754.A4 949754	£2.98	£3.57
19 - CHAMBER HEAD HIT-885294.A4 885294	£18.20	£21.84
20 - GASKET (B) HIT-886133.A4 886133	£1.67	£2.00
21 - CHAMBER HIT-885296.A0 885296	£26.55	£31.86
22 - PLUNGER O-RING HIT-878607.A5 878607	£1.67	£2.00
23 - SHAFT RING HIT-880319.A22 880319	£1.67	£2.00
24 - BOLT WASHER M5 (10 PCS.) HIT-949431.A6 949431	£1.67	£2.00
25 - SHAFT HIT-885277.A0 885277	£4.33	£5.20
26 - MACHINE SCREW M4X6 (10 PCS.) HIT-949214.A15 949214	£1.67	£2.00
27 - WIRING PLATE HIT-886253.A4 886253	£1.67	£2.00
28A - ADAPTER HIT-886313.A3 886313	£3.51	£4.21
29 - HEX. SOCKET SET SCREW M4X5 HIT-961681.A4 961681	£1.67	£2.00
30 - SHAFT COVER HIT-886470.A4 886470	£1.67	£2.00
31 - WASHER HIT-886471.A0 886471	£1.67	£2.00
32 - CHAMBER LOCK PLATE HIT-885297.A4 885297	£4.33	£5.20
33 - SWITCH PLATE HIT-885306.A4 885306	£1.67	£2.00
34 - PIN (A) HIT-886484.A0 886484	£1.67	£2.00
35 - O-RING (I.D. 66.27) HIT-885283.A4 885283	£8.66	£10.39
36 - RETAINING RING HIT-885285.A4 885285	£1.67	£2.00
37 - PISTON RING HIT-885286.A0 885286	£12.98	£15.58
38 - PISTON HIT-885291.A0 885291	£67.02	£80.42
39 - PISTON BUMPER (A) HIT-885289.A0 885289	£10.45	£12.54
40 - CHAMBER STOP RUBBER HIT-885284.A0 885284	£1.67	£2.00
41 - CYLINDER ASS'Y INCLUD.42-46 HIT-885361.A0 885361	£112.36	£134.83
42 - HEX. SOCKET HD. BOLT M4X10 (10 PCS.) HIT-949812.A12 949812	£2.98	£3.57
43 - BUFFER COVER (A) HIT-886467.A0 886467	£1.67	£2.00
44 - LEAD VALVE HIT-885290.A4 885290	£1.67	£2.00
45 - SEAL LOCK SCREW M4X6 (BLACK) HIT-303631.A0 303631	£1.67	£2.00
46 - MUFFLER (A) HIT-885288.A4 885288	£14.68	£17.62
47 - BLADE GUIDE HIT-885355.A1 885355	£6.50	£7.80
48 - PLATE SLEEVE HIT-885270.A0 885270	£1.67	£2.00
49 - SIDE PLATE HIT-885326.A1 885326	£18.89	£22.67
50 - SPECIAL NUT M5 HIT-886544.A0 886544	£10.05	£12.06
51A - CONICAL SPRING H8 HIT-886319.A12 886319	£1.67	£2.00
52 - CYLINDER PLATE (A) HIT-885299.A0 885299	£6.50	£7.80
53 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-980046.A2 980046	£1.67	£2.00
54 - NYLOCK HEX.SOCKET HD.BOLT M5X50 HIT-886545.A2 886545	£1.67	£2.00
55 - NOSE SLEEVE HIT-885269.A1 885269	£2.23	£2.68
56 - SEAL LOCK HEX. SOCKET HD. BOLT M4X10 HIT-886241.A0 886241	£1.67	£2.00
57 - U-NUT M4 HIT-956329.A2 956329	£1.67	£2.00
58 - PUSHING LEVER ARM (D) HIT-886547.A2 886547	£4.12	£4.95
59 - PUSHING LEVER ARM (C) HIT-886546.A0 886546	£7.34	£8.81
60 - PUSHING LEVER SPRING (A) HIT-886245.A0 886245	£1.67	£2.00
61 - PUSHING LEVER CONNECTOR HIT-885301.A2 885301	£6.50	£7.80
62 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) HIT-949819.A6 949819	£6.66	£7.99
63 - PUSHING STOPPER HIT-886128.A0 886128	£8.50	£10.20
64 - ADJUSTER BUSH (A) HIT-885272.A2 885272	£8.66	£10.39
65 - PUSHING LEVER(A) HIT-886144.A2 886144	£9.21	£11.05
66 - NAME PLATE HIT-000000.A4810 000000	-
67 - HOUSING ASS'Y INCLUD.68-70 HIT-886244.A2 886244	£38.53	£46.24
68 - SCREW M5 HIT-885304.A0 885304	£1.67	£2.00
69 - HOUSING HIT-886134.A0 886134	£28.62	£34.35
70 - INSULATOR SHEET HIT-885307.A0 885307	£1.67	£2.00
71 - HEWI PLATE (H) HIT-000000.A4811 000000	-
72 - NYLON NUT M4 HIT-876465.A4 876465	£1.67	£2.00
73 - HEX. SOCKET HD. BOLT M5X15 (10 PCS.) HIT-949820.A3 949820	£3.28	£3.93
74 - SLEEVE HIT-878164.A4 878164	£15.19	£18.23
75 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A12 302086	£1.67	£2.00
76 - HANDLE (B) HIT-886600.A0 886600	-
77 - CAUTION LABEL HIT-000000.A4812 000000	-
78 - WARNING LABEL HIT-000000.A4813 000000	-
79 - TAPPING SCREW (W/FLANGE) D4X45 (BLACK) HIT-301815.A14 301815	£1.67	£2.00
80 - SWITCH MOUNT HIT-885334.A0 885334	£1.67	£2.00
81 - SWITCH ARM HIT-885347.A4 885347	£1.67	£2.00
82 - PRISM (A) HIT-885338.A0 885338	£4.33	£5.20
83 - LOCK BAR SPRING HIT-885337.A4 885337	£1.67	£2.00
84 - WIRING COVER HIT-885339.A4 885339	£4.33	£5.20
85 - FLAT HD. TAPPING SCREW D4X10 HIT-885346.A0 885346	£1.67	£2.00
86 - CONTROLLER HIT-885331.A0 885331	£69.36	£83.23
87 - TAPPING SCREW (W/FLANGE) D4X14 (BLACK) HIT-309933.A3 309933	£1.67	£2.00
88 - TRIGGER SPRING (A) HIT-885828.A0 885828	£1.67	£2.00
89A - CHAMBER LOCK BAR HIT-887617.A4 887617	-
90 - PIN D2.5 HIT-885349.A0 885349	£1.67	£2.00
91 - TRIGGER INTERNAL WIRE (A) SET HIT-885798.A1 885798	£49.99	£59.99
92 - WIRING PLATE (B) HIT-886548.A0 886548	£1.67	£2.00
93 - TAPPING SCREW D3X8 HIT-885714.A4 885714	£1.67	£2.00
94 - HOOK (B) HIT-886255.A2 886255	£11.89	£14.27
95 - NYLON NUT M5 HIT-877371.A10 877371	£1.67	£2.00
96 - NAIL RAIL HIT-885341.A0 885341	£8.92	£10.70
97 - MAGAZINE PLATE HIT-885342.A1 885342	£6.50	£7.80
98 - CELL LEVER (A) HIT-886141.A4 886141	£8.88	£10.66
99 - LATCH HIT-885280.A3 885280	£1.67	£2.00
100 - ROLL PIN D2X8 (10 PCS.) HIT-949859.A6 949859	£1.67	£2.00
101 - SPRING D3.6 HIT-885281.A0 885281	£1.67	£2.00
102 - CELL COVER HIT-885352.A3 885352	£4.33	£5.20
103 - CELL RUBBER (A) HIT-886131.A0 886131	£2.71	£3.25
104 - BATTERY (GFN 3490B) HIT-000000.A4814 000000	-
105 - MAGAZINE GUARD HIT-885354.A0 885354	£10.45	£12.54
106 - NAIL FEEDER (A) HIT-885323.A0 885323	£8.66	£10.39
107 - TENSION PLATE (C) HIT-886257.A4 886257	£4.55	£5.46
108 - SPRING HIT-885518.A0 885518	£1.67	£2.00
109 - SWITCH LEVER (B) ASS'Y INCLUD.107 HIT-886147.A3 886147	£8.50	£10.20
110 - LEVER STOPPER HIT-886138.A4 886138	£4.55	£5.46
111 - ROLL PIN D4X28 (10 PCS.) HIT-949506.A6 949506	£3.88	£4.66
112 - SLEEVE HIT-886543.A2 886543	£4.96	£5.95
113 - HEX. SOCKET HD. BOLT M4X18 HIT-880003.A2 880003	£1.67	£2.00
114 - SPRING HIT-883687.A1 883687	£1.67	£2.00
115 - NAIL FEEDER (B) HIT-885324.A4 885324	£4.33	£5.20
116 - RIBBON SPRING HIT-885325.A0 885325	£9.72	£11.67
117 - SPRING D8 HIT-885328.A2 885328	£1.67	£2.00
118 - PUSHING LEVER STOPPER HIT-885327.A0 885327	£1.67	£2.00
119 - HANDLE (A) HIT-886599.A0 886599	-
120 - FEEDER KNOB HIT-886246.A3 886246	£4.86	£5.83
121 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A66 302089	£1.67	£2.00
501 - CHARGER (MODEL GFN 3490L) HIT-000000.A4816 000000	-
502 - PROTECTIVE GLASSES HIT-875769.A38 875769	-
503 - CASE HIT-886601.A0 886601	-
504 - HEX. BAR WRENCH 4MM HIT-944458.A9 944458	£1.67	£2.00
505 - LUBRICANT OILER (B) HIT-886602.A0 886602	-
601 - LUBRICANT OILER (A) HIT-885246.A0 885246	£15.83	£19.00
