Hitachi / Hikoki GBNT1665 Gas Finish Nailer Spare Parts

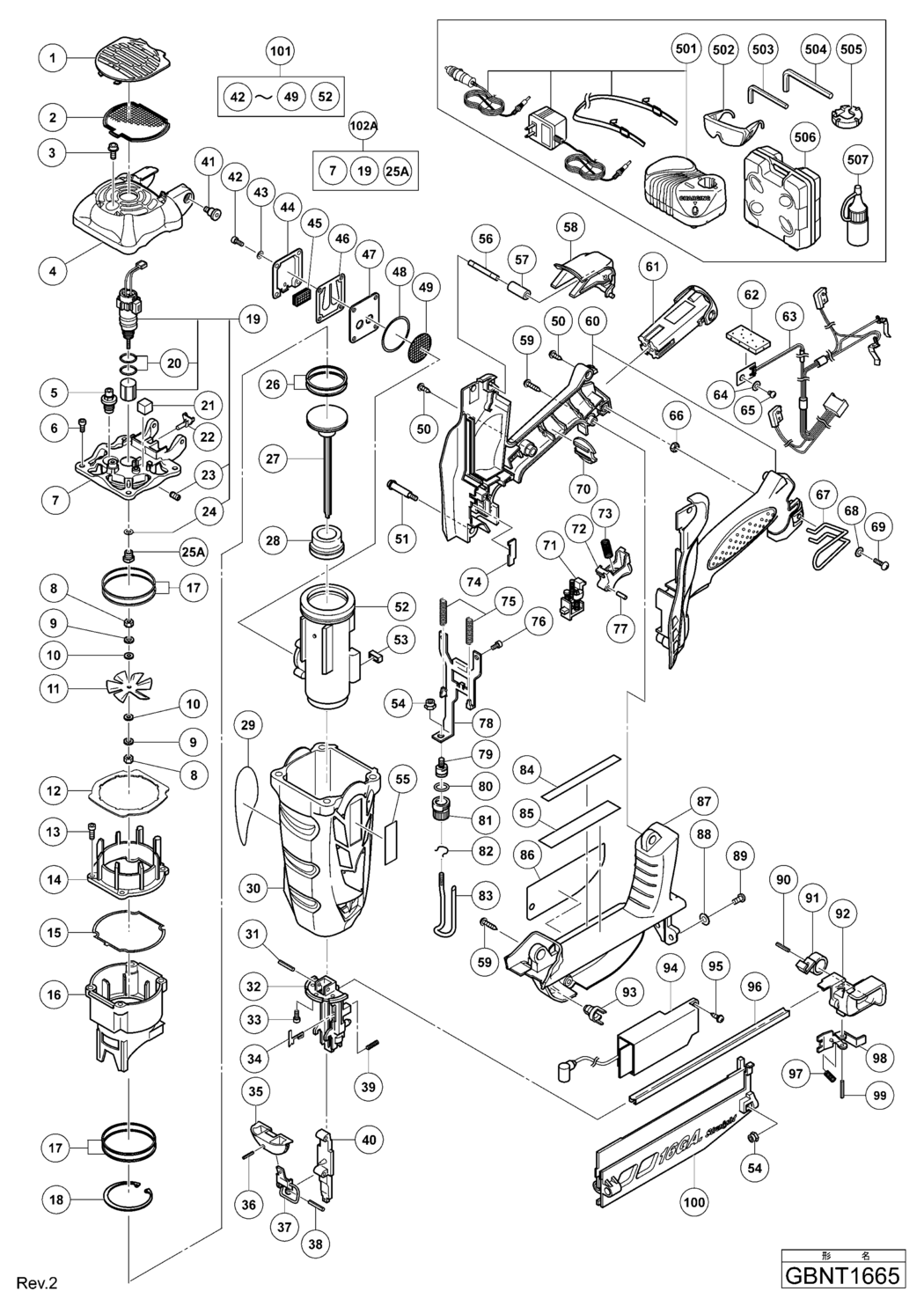

An exploded diagram and spare parts listing for the Hitachi / Hikoki GBNT1665 Gas Finish Nailer

	Ex VAT	Inc VAT
1 - FILTER COVER HIT-886664.A4 886664	£1.67	£2.00
2 - FILTER MESH HIT-886344.A2 886344	£14.48	£17.38
3 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X10 HIT-886347.A5 886347	£1.67	£2.00
4 - TOP COVER HIT-886335.A5 886335	£4.61	£5.53
5 - SPARK PLUG (A) HIT-885333.A4 885333	£4.33	£5.20
6 - NYLOCK HEX. SOCKET HD. BOLT M4X12 HIT-880630.A4 880630	£1.67	£2.00
7 - CYLINDER HEAD HIT-886661.A7 886661	£25.60	£30.72
8 - NUT M3 (10 PCS.) HIT-949553.A2 949553	£1.67	£2.00
9 - SPRING WASHER M3 (10 PCS.) HIT-887376.A1 887376	-
10 - WASHER M3 (10 PCS.) HIT-949422.A9 949422	£1.67	£2.00
11 - FAN HIT-886309.A7 886309	£4.88	£5.85
12 - RUBBER PLATE HIT-886568.A0 886568	£1.67	£2.00
13 - HEX. SOCKET HD. BOLT M4X16 (10 PCS.) HIT-949754.A15 949754	£2.98	£3.57
14 - CHAMBER HEAD HIT-886295.A6 886295	£11.83	£14.20
15 - GASKET HIT-886296.A0 886296	£1.67	£2.00
16 - CHAMBER HIT-886297.A7 886297	£15.78	£18.93
17 - PISTON RING (B) HIT-886312.A2 886312	£3.23	£3.88
18 - RETAINING RING FOR D40 HOLE HIT-886298.A0 886298	£1.67	£2.00
19 - MOTOR ASS'Y INCLUD.20 HIT-887446.A7 887446	£111.00	£133.20
20 - O-RING (S-12) HIT-875638.A14 875638	£1.67	£2.00
21 - PACKING HIT-886315.A5 886315	£1.67	£2.00
22 - ADAPTER HIT-886313.A8 886313	£3.51	£4.21
23 - HEX. SOCKET SET SCREW M4X5 HIT-886314.A3 886314	£1.67	£2.00
24 - SHAFT RUBBER WASHER HIT-886567.A7 886567	£1.67	£2.00
25A - SHAFT COVER HIT-887890.A2 887890	£3.83	£4.60
26 - PISTON RING (A) SOLD SINGLY HIT-886286.A1 886286	£6.38	£7.66
27 - PISTON HIT-886291.A2 886291	£29.63	£35.56
28 - PISTON BUMPER HIT-886289.A4 886289	£3.04	£3.65
29 - NAME PLATE HIT-000000.A255 000000	-
30 - HOUSING HIT-331425.A3 331425	£16.66	£19.99
31 - PIN HIT-886310.A0 886310	£1.67	£2.00
32 - BLADE GUIDE HIT-886302.A1 886302	£23.10	£27.72
33 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-886311.A10 886311	£1.67	£2.00
34 - LOCK PLATE HIT-886304.A1 886304	£1.67	£2.00
35 - LOCK LEVER COVER HIT-886570.A5 886570	£2.91	£3.49
36 - ROLL PIN D3X10 (10 PCS.) HIT-887458.A12 887458	-
37 - LOCK LEVER HIT-887453.A1 887453	£5.29	£6.35
38 - ROLL PIN D3X16 (10 PCS.) HIT-887459.A0 887459	-
39 - LOCK SPRING HIT-886305.A1 886305	£1.67	£2.00
40 - GUIDE PLATE HIT-886303.A1 886303	£16.66	£19.99
41 - HEX. SHOULDER BOLT M5 HIT-886566.A1 886566	£1.67	£2.00
42 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 HIT-886307.A6 886307	£1.67	£2.00
43 - CONICAL SPRING H8 HIT-886319.A1 886319	£1.67	£2.00
44 - BUFFER COVER HIT-886287.A5 886287	£6.45	£7.74
45 - MUFFLER HIT-886288.A2 886288	£2.91	£3.49
46 - REED VALVE HIT-886290.A0 886290	£4.31	£5.17
47 - BUFFER PLATE HIT-886293.A6 886293	£2.91	£3.49
48 - O-RING HIT-886294.A1 886294	£1.67	£2.00
49 - MESH HIT-886292.A1 886292	£4.40	£5.28
50 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A78 305812	£1.67	£2.00
51 - HEX. SHOULDER BOLT M4X32 HIT-886565.A6 886565	£1.67	£2.00
52 - CYLINDER HIT-886284.A0 886284	£38.60	£46.32
53 - CHAMBER STOP RUBBER HIT-886285.A5 886285	£1.67	£2.00
54 - NYLON NUT M5 HIT-877371.A63 877371	£1.67	£2.00
55 - HEWI PLATE (H) HIT-887651.A1 887651	-
56 - CELL PIN HIT-886332.A6 886332	£1.67	£2.00
57 - PIPE RUBBER HIT-886333.A1 886333	£1.67	£2.00
58 - ACTUATOR HIT-886326.A0 886326	£3.21	£3.85
59 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A47 302086	£1.67	£2.00
60 - HANDLE SET HIT-887650.A0 887650	-
61 - BATTERY (GBNF 185B) HIT-000000.A256 000000	-
62 - SUPPORT (B) HIT-886316.A1 886316	£1.67	£2.00
63 - INTERNAL WIRE (A) HIT-887635.A1 887635	£76.75	£92.10
64 - WASHER M4 (10 PCS.) HIT-949423.A1 949423	£1.67	£2.00
65 - MACHINE SCREW M4X10 (10 PCS.) HIT-887460.A3 887460	-
66 - LOCK NUT M4 (BLACK) HIT-886330.A6 886330	£1.67	£2.00
67 - HOOK HIT-886345.A6 886345	£4.86	£5.83
68 - WASHER HIT-887036.A3 887036	£1.67	£2.00
69 - TRUSS HD. SCREW M4X25 (BLACK) HIT-887034.A3 887034	£1.67	£2.00
70 - TERMINAL SUPPORT HIT-326316.A1 326316	£1.67	£2.00
71 - TRIGGER STOPPER HIT-886552.A4 886552	£4.84	£5.81
72 - TRIGGER HIT-886327.A6 886327	£1.67	£2.00
73 - TRIGGER SPRING HIT-886328.A1 886328	£1.67	£2.00
74 - CORD COVER PLATE HIT-886324.A6 886324	£1.67	£2.00
75 - CHAMBER SPRING HIT-886301.A1 886301	£1.67	£2.00
76 - SEAL LOCK HEX. SOCKET HD. BOLT M4X10 HIT-886308.A1 886308	£1.67	£2.00
77 - PIN D3X20 (10 PCS.) HIT-949890.A3 949890	£2.78	£3.34
78 - PUSHING LEVER ARM HIT-886299.A2 886299	£9.47	£11.36
79 - PUSHING LEVER PIECE HIT-887035.A4 887035	£4.10	£4.92
80 - O-RING (S-8) HIT-992912.A2 992912	£1.67	£2.00
81 - ADJUSTER HIT-886338.A0 886338	£3.12	£3.74
82 - RATCHET SPRING HIT-886331.A1 886331	£1.67	£2.00
83 - PUSHING LEVER (A) HIT-886337.A1 886337	£5.80	£6.96
84 - CAUTION LABEL HIT-000000.A257 000000	-
85 - CAUTION LABEL (A) HIT-000000.A258 000000	-
86 - WARNING LABEL HIT-000000.A259 000000	-
87 - MAGAZINE COVER HIT-886318.A1 886318	£8.85	£10.62
88 - BOLT WASHER M5 (BLACK)(10 PCS.) HIT-887454.A0 887454	-
89 - MACHINE SCREW M5X15 (BLACK) HIT-885997.A0 885997	£1.67	£2.00
90 - ROLL PIN D3X16 (10 PCS.) HIT-887459.A1 887459	-
91 - RIBBON SPRING HIT-881755.A6 881755	£4.62	£5.55
92 - NAIL FEEDER (B) HIT-886340.A0 886340	£4.04	£4.85
93 - PRISM HIT-886322.A1 886322	£1.67	£2.00
94 - CONTROLLER HIT-886320.A6 886320	£64.50	£77.40
95 - TAPPING SCREW (W/FLANGE) D4X12 (BLACK) HIT-325083.A4 325083	£1.67	£2.00
96 - NAIL RAIL HIT-886341.A1 886341	£9.47	£11.36
97 - STOPPER SPRING (C) HIT-886604.A0 886604	£1.67	£2.00
98 - NAIL FEEDER (A) HIT-886339.A1 886339	£3.21	£3.85
99 - ROLL PIN D2.5X26 HIT-886605.A4 886605	£1.67	£2.00
100 - MAGAZINE HIT-886336.A0 886336	£13.15	£15.78
101 - CYLINDER ASS'Y (A) INCLUD.42-49 HIT-886550.A1 886550	£51.93	£62.32
102A - CYLINDER HEAD ASS'Y INCLUD.7 HIT-887891.A3 887891	-
501 - CHARGER (MODEL GBNF 185L) HIT-000000.A261 000000	-
502 - PROTECTIVE GLASSES HIT-875769.A86 875769	-
503 - HEX. BAR WRENCH 3MM HIT-887462.A2 887462	-
504 - HEX. BAR WRENCH 4MM HIT-887463.A1 887463	-
505 - NOSE CAP (A) HIT-886349.A0 886349	£2.49	£2.99
506 - CASE HIT-887646.A0 887646	-
507 - LUBRICANT OILER (B) HIT-886602.A2 886602	-

Attribute Name	Value
Brand	Hikoki
