Hitachi / Hikoki GBNF1850 Gas Brad Nailer Spare Parts

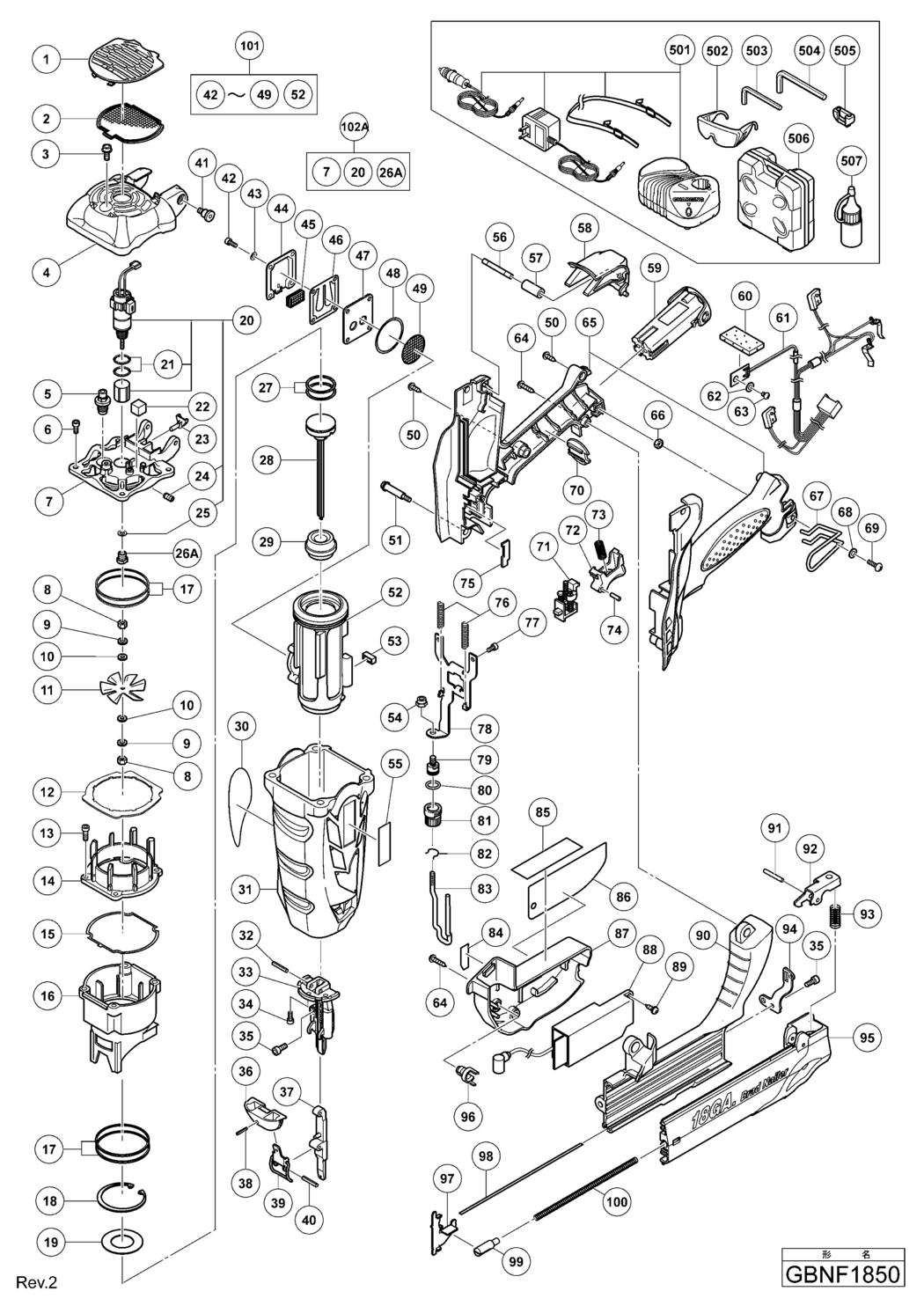

An exploded diagram and spare parts listing for the Hitachi / Hikoki GBNF1850 Gas Brad Nailer

	Ex VAT	Inc VAT
1 - FILTER COVER HIT-886664.A1 886664	£1.67	£2.00
2 - FILTER MESH HIT-886344.A3 886344	£14.48	£17.38
3 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X10 HIT-886347.A6 886347	£1.67	£2.00
4 - TOP COVER HIT-886335.A3 886335	£4.61	£5.53
5 - SPARK PLUG (A) HIT-885333.A8 885333	£4.33	£5.20
6 - NYLOCK HEX. SOCKET HD. BOLT M4X12 HIT-880630.A7 880630	£1.67	£2.00
7 - CYLINDER HEAD HIT-886661.A4 886661	£25.60	£30.72
8 - NUT M3 (10 PCS.) HIT-949553.A8 949553	£1.67	£2.00
9 - SPRING WASHER M3 (10 PCS.) HIT-887376.A3 887376	-
10 - WASHER M3 (10 PCS.) HIT-949422.A5 949422	£1.67	£2.00
11 - FAN HIT-886309.A4 886309	£4.88	£5.85
12 - RUBBER PLATE HIT-886568.A3 886568	£1.67	£2.00
13 - HEX. SOCKET HD. BOLT M4X16 (10 PCS.) HIT-949754.A9 949754	£2.98	£3.57
14 - CHAMBER HEAD HIT-886295.A2 886295	£11.83	£14.20
15 - GASKET HIT-886296.A4 886296	£1.67	£2.00
16 - CHAMBER HIT-886297.A3 886297	£15.78	£18.93
17 - PISTON RING (B) HIT-886312.A3 886312	£3.23	£3.88
18 - RETAINING RING FOR D40 HOLE HIT-886298.A4 886298	£1.67	£2.00
19 - CYLINDER PLATE HIT-887032.A1 887032	£1.67	£2.00
20 - MOTOR ASS'Y INCLUD.21 HIT-887446.A4 887446	£111.00	£133.20
21 - O-RING (S-12) HIT-875638.A33 875638	£1.67	£2.00
22 - PACKING HIT-886315.A4 886315	£1.67	£2.00
23 - ADAPTER HIT-886313.A5 886313	£3.51	£4.21
24 - HEX. SOCKET SET SCREW M4X5 HIT-886314.A4 886314	£1.67	£2.00
25 - SHAFT RUBBER WASHER HIT-886567.A4 886567	£1.67	£2.00
26A - SHAFT COVER HIT-887890.A0 887890	£3.83	£4.60
27 - PISTON RING (A) HIT-886848.A1 886848	-
28 - PISTON HIT-886839.A1 886839	-
29 - PISTON BUMPER HIT-886851.A1 886851	-
30 - NAME PLATE HIT-000000.A2006 000000	-
31 - HOUSING HIT-886855.A0 886855	-
32 - PIN HIT-886310.A3 886310	£1.67	£2.00
33 - BLADE GUIDE HIT-886840.A1 886840	-
34 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-886311.A4 886311	£1.67	£2.00
35 - NYLOCK HEX. SOCKET HD. BOLT M4X10 HIT-880413.A5 880413	£1.67	£2.00
36 - LOCK LEVER COVER HIT-886570.A2 886570	£2.91	£3.49
37 - GUIDE PLATE HIT-886841.A0 886841	£17.43	£20.92
38 - ROLL PIN D3X10 (10 PCS.) HIT-887458.A2 887458	-
39 - LOCK LEVER HIT-886843.A1 886843	-
40 - ROLL PIN D3X16 (10 PCS.) HIT-887459.A5 887459	-
41 - HEX. SHOULDER BOLT M5 HIT-886566.A3 886566	£1.67	£2.00
42 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 HIT-886307.A4 886307	£1.67	£2.00
43 - CONICAL SPRING H8 HIT-886319.A6 886319	£1.67	£2.00
44 - BUFFER COVER HIT-886287.A6 886287	£6.45	£7.74
45 - MUFFLER HIT-886288.A1 886288	£2.91	£3.49
46 - REED VALVE HIT-886290.A2 886290	£4.31	£5.17
47 - BUFFER PLATE HIT-886293.A4 886293	£2.91	£3.49
48 - O-RING HIT-886294.A3 886294	£1.67	£2.00
49 - MESH HIT-886292.A3 886292	£4.40	£5.28
50 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A18 305812	£1.67	£2.00
51 - HEX. SHOULDER BOLT M4X32 HIT-886565.A5 886565	£1.67	£2.00
52 - CYLINDER HIT-887356.A1 887356	-
53 - CHAMBER STOP RUBBER HIT-886285.A7 886285	£1.67	£2.00
54 - NYLON NUT M5 HIT-877371.A31 877371	£1.67	£2.00
55 - HEWI PLATE (H) HIT-887651.A0 887651	-
56 - CELL PIN HIT-886332.A5 886332	£1.67	£2.00
57 - PIPE RUBBER HIT-886333.A2 886333	£1.67	£2.00
58 - ACTUATOR HIT-886326.A3 886326	£3.21	£3.85
59 - BATTERY (GBNF 185B) HIT-000000.A2007 000000	-
60 - SUPPORT (B) HIT-886316.A2 886316	£1.67	£2.00
61 - INTERNAL WIRE (A) HIT-887635.A3 887635	£76.75	£92.10
62 - WASHER M4 (10 PCS.) HIT-949423.A12 949423	£1.67	£2.00
63 - MACHINE SCREW M4X10 (10 PCS.) HIT-887460.A1 887460	-
64 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A56 302086	£1.67	£2.00
65 - HANDLE SET HIT-887650.A1 887650	-
66 - LOCK NUT M4 (BLACK) HIT-886330.A5 886330	£1.67	£2.00
67 - HOOK HIT-886345.A5 886345	£4.86	£5.83
68 - WASHER HIT-887036.A1 887036	£1.67	£2.00
69 - TRUSS HD. SCREW M4X25 (BLACK) HIT-887034.A0 887034	£1.67	£2.00
70 - TERMINAL SUPPORT HIT-326316.A4 326316	£1.67	£2.00
71 - TRIGGER STOPPER HIT-886552.A6 886552	£4.84	£5.81
72 - TRIGGER HIT-886327.A5 886327	£1.67	£2.00
73 - TRIGGER SPRING HIT-886328.A2 886328	£1.67	£2.00
74 - PIN D3X20 (10 PCS.) HIT-949890.A4 949890	£2.78	£3.34
75 - CORD COVER PLATE HIT-886324.A5 886324	£1.67	£2.00
76 - CHAMBER SPRING HIT-886301.A2 886301	£1.67	£2.00
77 - SEAL LOCK HEX. SOCKET HD. BOLT M4X10 HIT-886308.A3 886308	£1.67	£2.00
78 - PUSHING LEVER ARM HIT-886856.A1 886856	-
79 - PUSHING LEVER PIECE HIT-887035.A7 887035	£4.10	£4.92
80 - O-RING (S-8) HIT-992912.A4 992912	£1.67	£2.00
81 - ADJUSTER HIT-887033.A0 887033	-
82 - RATCHET SPRING HIT-886331.A5 886331	£1.67	£2.00
83 - PUSHING LEVER(A) HIT-886852.A0 886852	-
84 - CAUTION LABEL HIT-887415.A0 887415	-
85 - CAUTION LABEL HIT-000000.A2008 000000	-
86 - WARNING LABEL HIT-000000.A2009 000000	-
87 - CONTROLLER COVER HIT-886844.A1 886844	-
88 - CONTROLLER HIT-886320.A4 886320	£64.50	£77.40
89 - TAPPING SCREW (W/FLANGE) D4X12 (BLACK) HIT-325083.A2 325083	£1.67	£2.00
90 - MAGAZINE HIT-886845.A1 886845	-
91 - ROLL PIN D3X20 (10 PCS.) HIT-887461.A0 887461	-
92 - STOP LEVER HIT-885894.A4 885894	£1.67	£2.00
93 - SPRING HIT-885895.A3 885895	£1.67	£2.00
94 - PLATE HIT-886842.A1 886842	-
95 - MAGAZINE COVER HIT-886849.A0 886849	£17.55	£21.06
96 - PRISM HIT-886322.A2 886322	£1.67	£2.00
97 - NAIL FEEDER HIT-887995.A0 887995	£3.66	£4.39
98 - NAIL PLATE HIT-885898.A1 885898	£1.67	£2.00
99 - FEEDER PIECE HIT-885899.A5 885899	£1.67	£2.00
100 - FEED SPRING HIT-885900.A1 885900	£1.67	£2.00
101 - CYLINDER ASS'Y (A) INCLUD.42-49 HIT-887387.A0 887387	-
102A - CYLINDER HEAD ASS'Y INCLUD.7 HIT-887891.A4 887891	-
501 - CHARGER (MODEL GBNF 185L) HIT-000000.A2011 000000	-
502 - PROTECTIVE GLASSES HIT-875769.A133 875769	-
503 - HEX. BAR WRENCH 3MM HIT-887462.A0 887462	-
504 - HEX. BAR WRENCH 4MM HIT-887463.A4 887463	-
505 - NOSE CAP (A) HIT-886846.A0 886846	£1.67	£2.00
506 - CASE HIT-887645.A0 887645	-
507 - LUBRICANT OILER (B) HIT-886602.A3 886602	-
