Hitachi / Hikoki G10SQ Disc Grinder Spare Parts

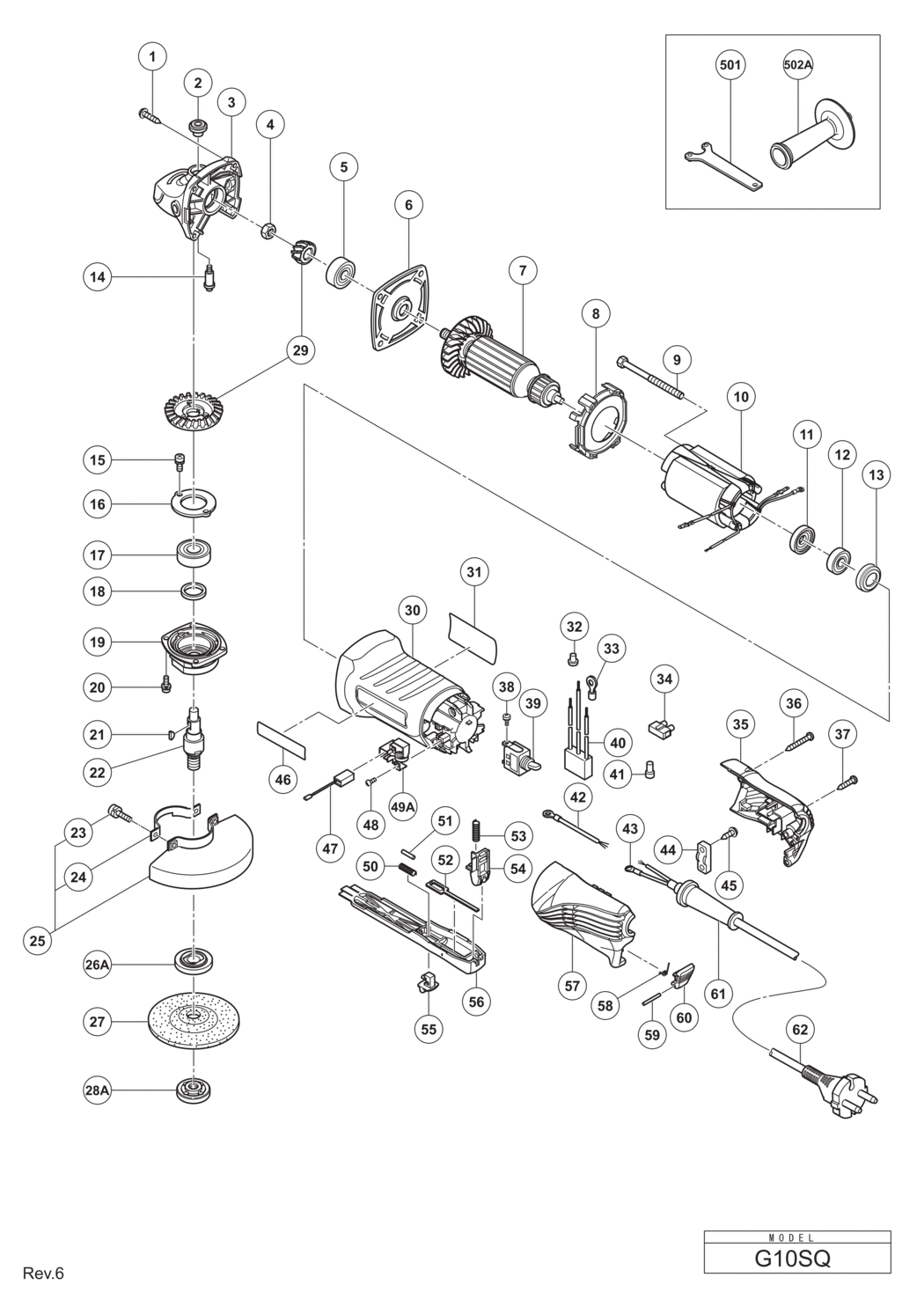

An exploded diagram and spare parts listing for the Hitachi / Hikoki G10SQ Disc Grinder

	Ex VAT	Inc VAT
1 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A55 307028	£1.67	£2.00
2 - PUSHING BUTTON HIT-301944.A28 301944	£1.67	£2.00
3 - GEAR COVER ASS'Y INCLUD.2 HIT-332529.A2 332529	£14.83	£17.80
4 - SPECIAL NUT M6 HIT-309191.A15 309191	£1.67	£2.00
5 - BALL BEARING 628VVC2PS2-L HIT-628VVC.A6 628VVC	£6.56	£7.87
6 - BEARING HOLDER HIT-327887.A5 327887	£1.67	£2.00
*7 - ARMATURE 110V HIT-360891C.A1 360891C	£36.93	£44.32
*7 - ARMATURE 230V HIT-360891F.A3 360891F	£36.89	£44.27
8 - FAN GUIDE HIT-332527.A0 332527	-
9 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A3 982021	£1.67	£2.00
*10 - STATOR 110V FOR TPE HIT-340771B.A0 340771B	£36.89	£44.27
*10 - STATOR 230V-240V FOR EUROPE HIT-340771J.A1 340771J	£36.89	£44.27
11 - DUST SEAL HIT-321722.A15 321722	£1.67	£2.00
12 - BALL BEARING 626VVC2PS2L HIT-626VVM.A11 626VVM	£5.77	£6.92
13 - RUBBER BUSHING HIT-309929.A15 309929	£1.67	£2.00
14 - LOCK PIN HIT-301943.A17 301943	£3.28	£3.93
15 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-987201.A6 987201	£1.67	£2.00
16 - BEARING COVER HIT-316490.A4 316490	£1.67	£2.00
17 - BALL BEARING 6201VV HIT-6201VV.A45 6201VV	£8.30	£9.96
18 - FELT PACKING HIT-301946.A8 301946	£1.67	£2.00
19 - PACKING GLAND HIT-316489.A3 316489	£8.35	£10.02
20 - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-987203.A9 987203	£1.67	£2.00
21 - WOODRUFF KEY HIT-302047.A5 302047	£1.67	£2.00
22 - SPINDLE HIT-332526.A0 332526	-
23 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A7 308386	£1.67	£2.00
24 - SET PLATE HIT-301949.A2 301949	£1.67	£2.00
25 - WHEEL GUARD ASS'Y INCLUD.23 HIT-301948.A0 301948	£10.89	£13.07
26A - WHEEL WASHER HIT-372737.A1 372737	-
27 - D. C. WHEELS 100MMX4T A36Q (25 PCS.) HIT-316820.A5 316820	-
28A - WHEEL NUT M10 HIT-339578.A2 339578	-
29 - GEAR SET HIT-327888.A1 327888	£16.23	£19.48
30 - HOUSING ASS'Y INCLUD.13 HIT-332525.A1 332525	-
31 - NAME PLATE HIT-000000.A1718 000000	-
*32 - CONNECTOR 50091 (10 PCS.) FOR NOISE SUPPRESSOR HIT-959140.A48 959140	£4.98	£5.97
*33 - TERMINAL FOR NOISE SUPPRESSOR HIT-980063.A34 980063	£1.67	£2.00
34 - PILLAR TERMINAL HIT-938307.A8 938307	£3.28	£3.93
*35 - TAIL COVER (B) HIT-332524.A0 332524	-
36 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK) HIT-305490.A33 305490	£1.67	£2.00
37 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A219 301653	£1.67	£2.00
38 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A19 305499	£1.67	£2.00
39 - SWITCH (1P SOLDER TYPE) HIT-314603.A8 314603	£15.38	£18.45
*40 - NOISE SUPPRESSOR FOR EUROPE HIT-317491.A6 317491	£9.43	£11.32
*42 - INTERNAL WIRE FOR EUROPE HIT-332545.A2 332545	-
43 - TERMINAL FOR CORD HIT-980063.A35 980063	£1.67	£2.00
44 - CORD CLIP HIT-937631.A39 937631	£1.67	£2.00
45 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A202 984750	£1.67	£2.00
46 - BRAND LABEL HIT-000000.A1719 000000	-
47 - CARBON BRUSH (1 PAIR) HIT-999005.A3 999005	£13.25	£15.90
48 - TAPPING SCREW D3X8 HIT-328210.A20 328210	£1.67	£2.00
49A - BRUSH HOLDER HIT-333844.A4 333844	£3.12	£3.74
50 - SPRING HIT-332531.A1 332531	-
51 - PIN (A) D2.5 HIT-333136.A1 333136	-
52 - OFF LOCK PLATE HIT-332581.A1 332581	-
53 - SPRING HIT-314429.A6 314429	£1.67	£2.00
54 - SWITCH PLUNGER HIT-332580.A0 332580	-
55 - OFF LOCK LEVER HIT-332530.A0 332530	-
56 - SWITCH LEVER HIT-332582.A0 332582	-
*57 - TAIL COVER (A) HIT-332522.A1 332522	-
58 - SPRING (A) HIT-332534.A0 332534	-
59 - PIN D2.5 HIT-332535.A0 332535	-
60 - ON LOCK BUTTON HIT-332533.A0 332533	-
*61 - CORD ARMOR D8.8 HIT-953327.A96 953327	£1.67	£2.00
*62 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A34 500435Z	£14.14	£16.97
*62 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A25 500461Z	£15.56	£18.67
501 - WRENCH HIT-313933.A7 313933	£7.02	£8.42
502A - SIDE HANDLE HIT-711283.A22 711283	£7.02	£8.42
601 - SANDING DISCS 100MM C-P24 (10 PCS.) HIT-314053.A3 314053	-
602 - SANDING DISCS 100MM C-P30 (10 PCS.) HIT-314054.A3 314054	-
603 - SANDING DISCS 100MM C-P50 (10 PCS.) HIT-314057.A3 314057	-
604 - SANDING DISCS 100MM C-P80 (10 PCS.) HIT-314059.A3 314059	-
605 - SANDING DISCS 100MM C-P120 (10 PCS.) HIT-314061.A3 314061	-
606 - SANDING DISCS 100MM C-P16 (10 PCS.) HIT-314051.A3 314051	-
607 - SANDING DISCS 100MM C-P20 (10 PCS.) HIT-314052.A3 314052	-
608 - SANDING DISCS 100MM C-P36 (10 PCS.) HIT-314055.A3 314055	-
609 - SANDING DISCS 100MM C-P40 (10 PCS.) HIT-314056.A3 314056	-
610 - SANDING DISCS 100MM C-P60 (10 PCS.) HIT-314058.A3 314058	-
611 - SANDING DISCS 100MM C-P100 (10 PCS.) HIT-314060.A3 314060	-
612 - WASHER NUT M10XP1.5 HIT-935513.A5 935513	£6.06	£7.27
613 - WASHER HIT-936548.A3 936548	£5.20	£6.24
614 - RUBBER PAD HIT-936558Z.A3 936558Z	£8.50	£10.20
615 - GUIDE BASE HIT-302098.A2 302098	-
616 - DUST COLLECTION ADAPTER (DISC GRINDER) HIT-323918.A5 323918	£38.46	£46.15
