Hitachi / Hikoki EXT-300SQ Attachment Spare Parts

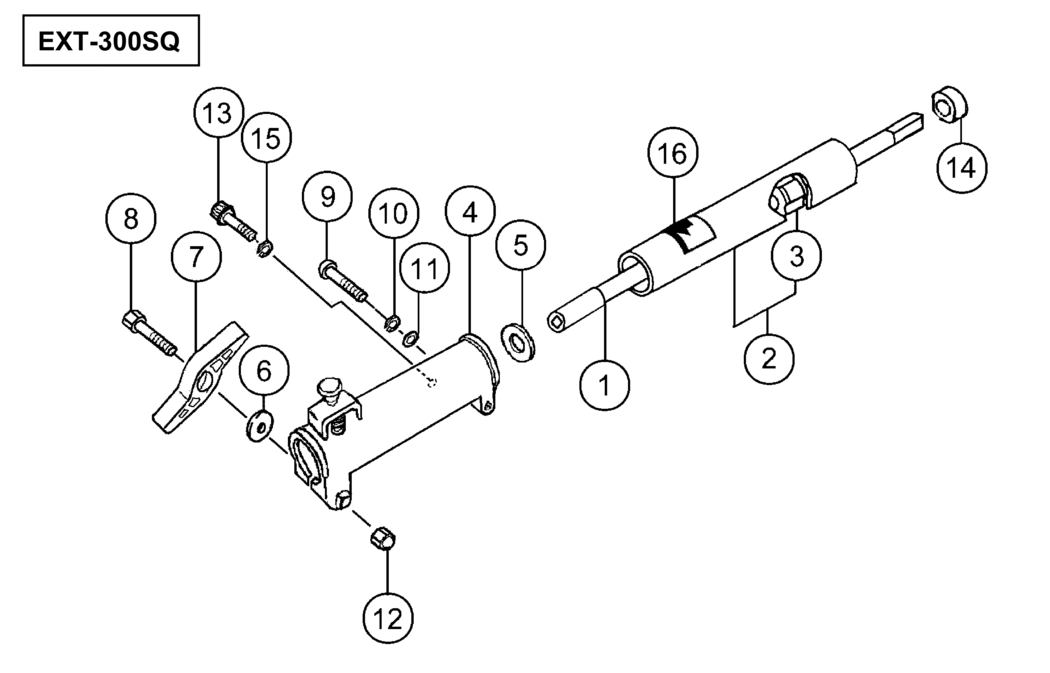

An exploded diagram and spare parts listing for the Hitachi / Hikoki EXT-300SQ Attachment

	Ex VAT	Inc VAT
1 - DRIVE SHAFT A L=935 HIT-6685987.A0 6685987	-
2 - DRIVE SHAFT COMP. L=900 HIT-6689301.A0 6689301	-
3 - BUSH ASS'Y HIT-6684831.A5 6684831	-
4 - JOINT CASE HIT-6684817.A12 6684817	£35.67	£42.80
5 - SPACER 1.6 HIT-6689139.A10 6689139	£2.84	£3.41
6 - SPECIAL WASHER B HIT-6684822.A29 6684822	£1.67	£2.00
7 - HANDLE KNOB HIT-6684823.A10 6684823	£3.51	£4.21
8 - HEX. BOLT 6X50 HIT-6684824.A13 6684824	£1.67	£2.00
9 - HEX. SOCKET HD. BOLT (W/BUTTON) M6 HIT-6684825.A11 6684825	£1.67	£2.00
10 - SPRING WASHER 5 HIT-6684834.A38 6684834	£1.67	£2.00
11 - SMALL WASHER 6 BLACK HIT-6684827.A1 6684827	-
12 - CAP NUT 6 HIT-6684828.A8 6684828	£1.67	£2.00
13 - HEX. SOCKET HD. BOLT M5X12 HIT-6684829.A21 6684829	-
14 - BUSHING HIT-6684833.A8 6684833	£3.85	£4.62
15 - S.WASHER 6 HIT-6684826.A20 6684826	£1.67	£2.00
16 - LEVEL MARK HIT-6684851.A18 6684851	-
