Hitachi / Hikoki DW297 Impact Wrench Spare Parts

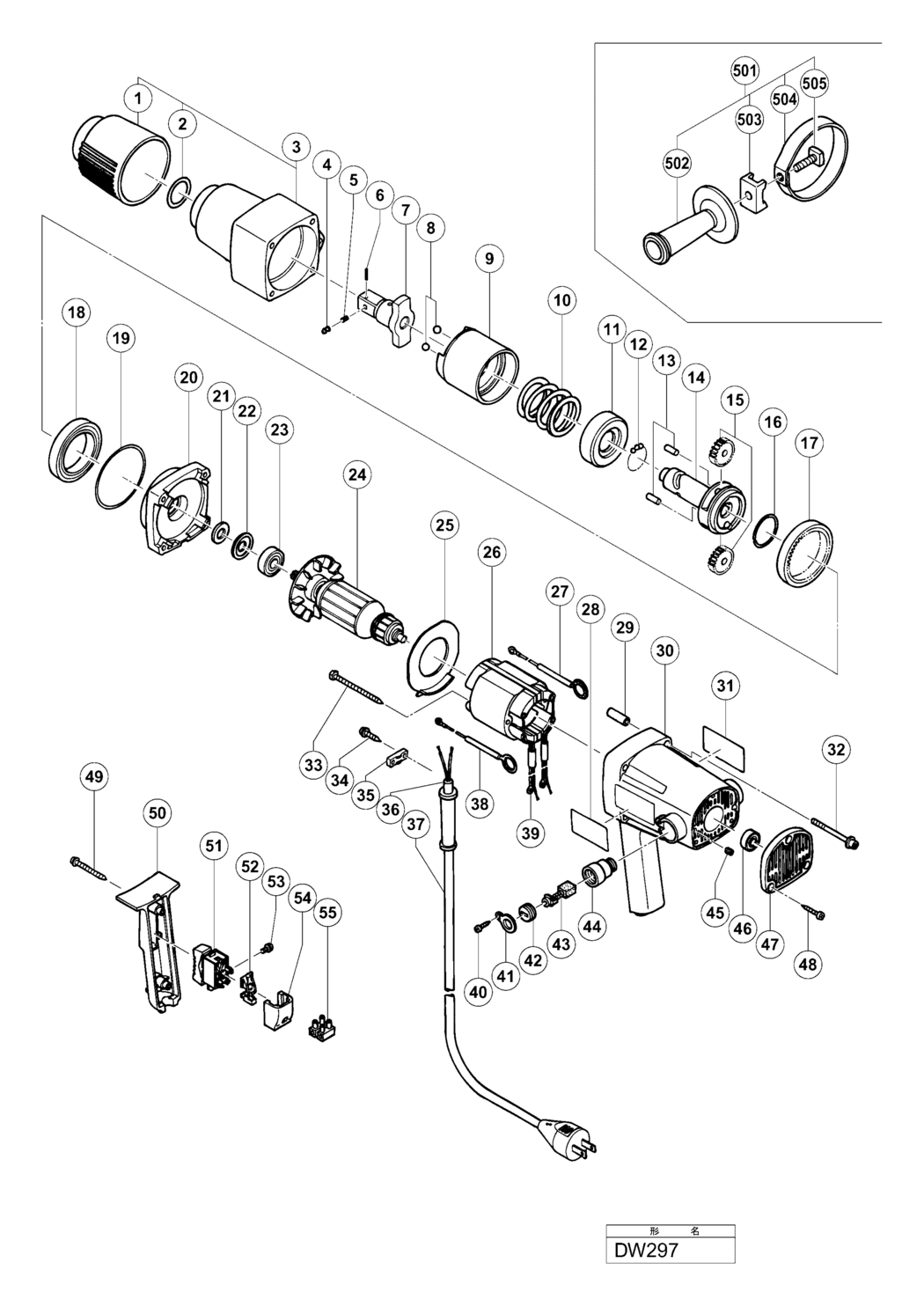

An exploded diagram and spare parts listing for the Hitachi / Hikoki DW297 Impact Wrench

	Ex VAT	Inc VAT
1 - BUMPER HIT-985295.A0 985295	£26.52	£31.82
2 - O-RING (P-28) HIT-971028.A0 971028	£3.28	£3.93
3 - HAMMER CASE ASS'Y INCLUD.1 HIT-320491.A0 320491	-
4 - PLUNGER HIT-992572.A1 992572	£23.82	£28.59
5 - SPRING HIT-992571.A0 992571	£1.67	£2.00
6 - ROLL PIN D2X14 (10 PCS.) HIT-949507.A1 949507	£1.67	£2.00
7 - ANVIL (B) ASS'Y INCLUD.4-6 HIT-992570.A0 992570	-
8 - STEEL BALL D7.14 (10 PCS.) HIT-959151.A6 959151	£1.67	£2.00
9 - HAMMER HIT-985278.A0 985278	-
10 - SPRING HIT-985277.A0 985277	£28.14	£33.77
11 - SPRING SEAT HIT-985276.A0 985276	-
12 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A41 959155	£1.67	£2.00
13 - GEAR SHAFT HIT-971016.A1 971016	£4.33	£5.20
14 - SPINDLE (B) HIT-985275.A0 985275	-
15 - IDLE GEAR SET (2 PCS.) HIT-318448.A1 318448	£34.09	£40.91
16 - CLIP (A) HIT-971027.A0 971027	-
17 - RING GEAR HIT-985303.A0 985303	£31.50	£37.80
18 - BALL BEARING 6910ZZC2PS2S HIT-6910ZZ.A0 6910ZZ	£25.18	£30.21
19 - O-RING (I.D 75.6) HIT-320492.A0 320492	-
20 - INNER COVER HIT-320490.A0 320490	-
21 - FELT PACKING HIT-971011.A0 971011	£1.67	£2.00
22 - PACKING WASHER HIT-971012.A0 971012	£1.67	£2.00
23 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A22 6200VV	£7.36	£8.83
25 - FAN GUIDE HIT-985273.A0 985273	£1.67	£2.00
26 - STATOR ASS'Y 110V-115V INCLUD.39 HIT-985282C.A0 985282C	£38.56	£46.27
27 - INTERNAL WIRE HIT-985287.A0 985287	-
28 - LABEL HIT-320525.A0 320525	-
29 - COLLAR HIT-985271.A0 985271	-
30 - HOUSING ASS'Y INCLUD.29 HIT-320285.A0 320285	-
31 - NAME PLATE HIT-320524.A0 320524	-
32 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X60 HIT-985300.A0 985300	£1.67	£2.00
33 - HEX. HD. TAPPING SCREW D5X70 HIT-961400.A9 961400	£1.67	£2.00
34 - TAPPING SCREW (W/FLANGE) D4X20 HIT-305095.A0 305095	-
35 - CORD CLIP HIT-320493.A0 320493	-
36 - CORD ARMOR D9.2 HIT-320504.A0 320504	-
37 - CORD HIT-320502.A0 320502	-
38 - INTERNAL WIRE HIT-985288.A0 985288	-
39 - TERMINAL (A) M3.5 (10 PCS.) HIT-960356.A17 960356	£3.64	£4.37
40 - TAPPING SCREW D4X10 (BLACK) HIT-302090.A4 302090	£1.67	£2.00
41 - CAP COVER HIT-981959.A1 981959	£2.86	£3.43
42 - BRUSH CAP HIT-961781.A6 961781	£3.15	£3.78
43 - CARBON BRUSH (1 PAIR) HIT-999043.A16 999043	£5.54	£6.65
44 - BRUSH HOLDER HIT-981586.A8 981586	£7.62	£9.15
45 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A64 938477	£1.67	£2.00
46 - BALL BEARING 608VVC2PS2L HIT-608VVM.A197 608VVM	£5.70	£6.84
47 - TAIL COVER HIT-985272.A0 985272	£18.40	£22.08
48 - TAPPING SCREW D5X25 (BLACK) HIT-320523.A4 320523	£1.67	£2.00
49 - TAPPING SCREW (W/FLANGE) D4X35 (BLACK) HIT-303694.A5 303694	£1.67	£2.00
50 - HANDLE COVER HIT-320286.A0 320286	-
51 - SWITCH (2P SCREW TYPE) HIT-985103.A1 985103	£28.14	£33.77
52 - SWITCH ADAPTER HIT-985176.A1 985176	£3.28	£3.93
53 - MACHINE SCREW (W/WASHER) M3.5X5 HIT-980060.A6 980060	£1.67	£2.00
54 - SWITCH HOLDER HIT-985177.A0 985177	£4.33	£5.20
55 - PILLAR TERMINAL (A) HIT-958308Z.A1 958308Z	£7.53	£9.04
501 - SIDE HANDLE ASS'Y INCLUD.502-505 HIT-320494.A0 320494	-
502 - SIDE HANDLE HIT-980901.A3 980901	£10.37	£12.44
503 - HANDLE BASE HIT-320495.A0 320495	-
504 - RING HIT-985296.A0 985296	-
505 - SQUARE BOLT M8 HIT-980903.A6 980903	-
