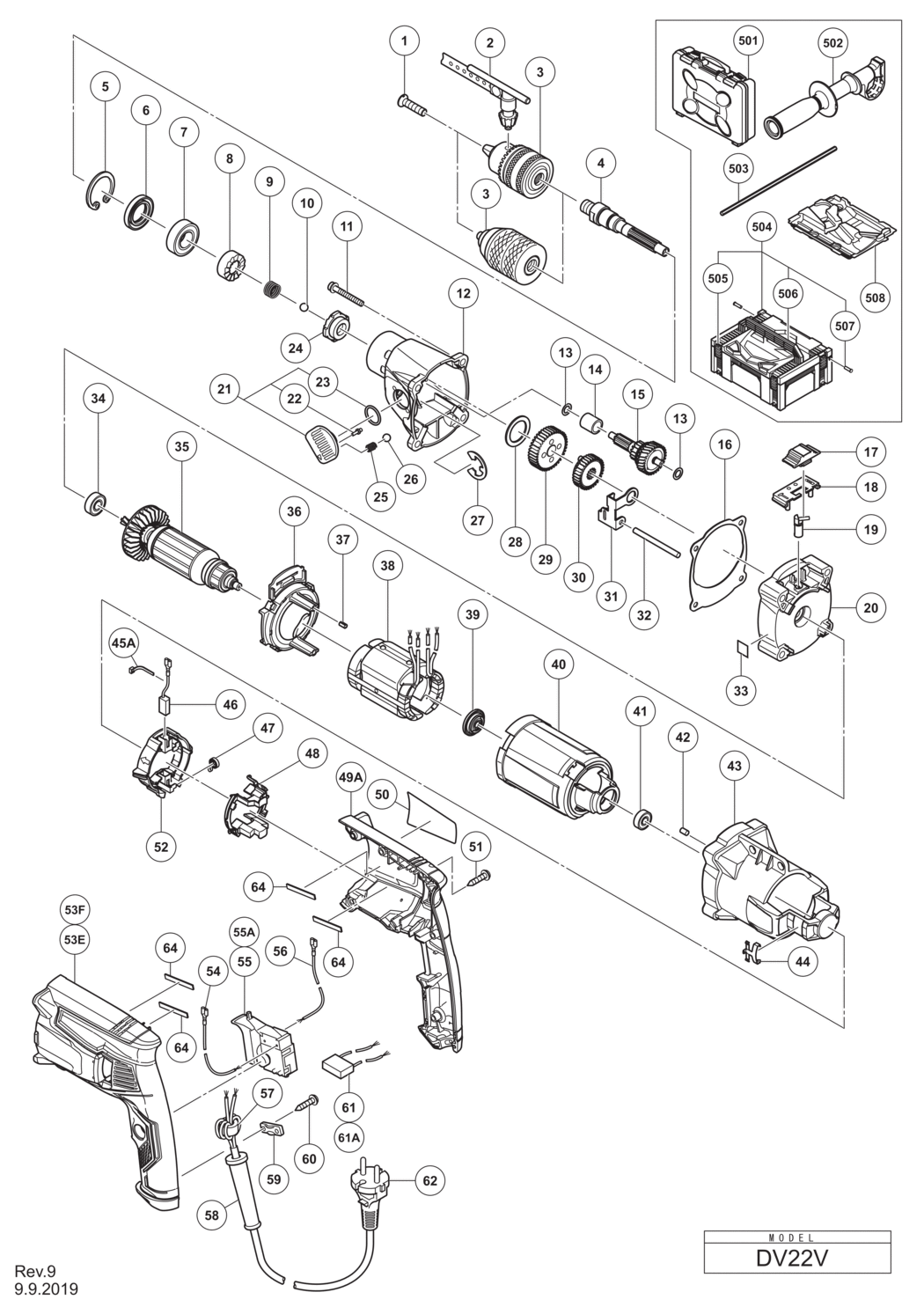

1 - FLAT HD. SCREW (A) (LEFT HAND) M6X25
HIT-995344.A19
995344
|
-
|
|
|
|
*3 - DRILL CHUCK 13VLRE-N (KEYLESS TYPE)
HIT-319546.A3
319546
|
-
|
|
|
|
4 - SPINDLE (A)
HIT-338738.A0
338738
|
-
|
|
|
|
5 - RETAINING RING FOR D35 HOLE (10 PCS.)
HIT-939556.A2
939556
|
£11.82
|
£14.18
|
|
|
6 - OIL SEAL (A)
HIT-971745.A4
971745
|
£5.27
|
£6.32
|
|
|
7 - BALL BEARING 6003DD
HIT-6003DD.A3
6003DD
|
£9.67
|
£11.60
|
|
|
8 - RATCHET (D)
HIT-338771.A0
338771
|
-
|
|
|
|
9 - SPRING (A)
HIT-984101.A2
984101
|
£1.67
|
£2.00
|
|
|
10 - STEEL BALL D6.35 (10 PCS.)
HIT-959150.A43
959150
|
£1.67
|
£2.00
|
|
|
11 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X45
HIT-338764.A0
338764
|
-
|
|
|
|
12 - GEAR COVER (A) ASS'Y INCLUD.24
HIT-338769.A0
338769
|
£27.78
|
£33.34
|
|
|
13 - WASHER (B)
HIT-322852.A3
322852
|
£1.67
|
£2.00
|
|
|
14 - DISTANCE PIECE
HIT-338744.A0
338744
|
-
|
|
|
|
15 - SECOND PINION (A)
HIT-338743.A1
338743
|
£36.66
|
£43.99
|
|
|
16 - PACKING
HIT-339222.A1
339222
|
-
|
|
|
|
17 - CHANGE LEVER
HIT-338746.A0
338746
|
-
|
|
|
|
18 - CHANGE COVER
HIT-338747.A1
338747
|
-
|
|
|
|
19 - CHANGE SHAFT
HIT-338748.A0
338748
|
£5.25
|
£6.30
|
|
|
20 - INNER COVER (A)
HIT-338745.A1
338745
|
£19.39
|
£23.27
|
|
|
21 - SHIFT LEVER ASS'Y INCLUD.22
HIT-338737.A0
338737
|
-
|
|
|
|
22 - SHIFT PIN
HIT-322848.A4
322848
|
£1.67
|
£2.00
|
|
|
23 - O-RING (S-18)
HIT-878885.A10
878885
|
£1.67
|
£2.00
|
|
|
24 - RATCHET (C)
HIT-338770.A1
338770
|
-
|
|
|
|
25 - SPRING (H)
HIT-981328.A1
981328
|
£1.67
|
£2.00
|
|
|
26 - STEEL BALL D3.5 (10 PCS.)
HIT-335299.A2
335299
|
£1.67
|
£2.00
|
|
|
27 - RETAINING RING (E-TYPE) FOR D15 SHAFT
HIT-323048.A2
323048
|
£1.67
|
£2.00
|
|
|
28 - WASHER
HIT-339223.A0
339223
|
£1.67
|
£2.00
|
|
|
29 - LOW SPEED GEAR
HIT-338740.A1
338740
|
-
|
|
|
|
30 - HIGH SPEED GEAR
HIT-338741.A1
338741
|
-
|
|
|
|
31 - SHIFT ARM
HIT-338742.A1
338742
|
-
|
|
|
|
32 - PIN D5
HIT-984104.A1
984104
|
-
|
|
|
|
33 - LABEL (SLIP CLUTCH)
HIT-000000.A4490
000000
|
-
|
|
|
|
34 - BALL BEARING 608DD
HIT-608DDM.A2
608DDM
|
£6.35
|
£7.62
|
|
|
*35 - ARMATURE 110V
HIT-361002B.A0
361002B
|
-
|
|
|
|
*35 - ARMATURE 230V
HIT-361002E.A0
361002E
|
-
|
|
|
|
36 - FAN GUIDE (B)
HIT-338754.A0
338754
|
-
|
|
|
|
37 - RUBBER BUSH
HIT-338755.A0
338755
|
-
|
|
|
|
*38 - STATOR 110V
HIT-340905B.A0
340905B
|
-
|
|
|
|
*38 - STATOR 230V-240V
HIT-340905E.A0
340905E
|
-
|
|
|
|
39 - DUST SEAL
HIT-338751.A1
338751
|
-
|
|
|
|
40 - STATOR HOLDER
HIT-338750.A1
338750
|
-
|
|
|
|
41 - BALL BEARING 607VV
HIT-607VVC.A5
607VVC
|
£6.31
|
£7.57
|
|
|
42 - BEARING LOCK
HIT-931701.A30
931701
|
£1.67
|
£2.00
|
|
|
43 - HOUSING (B)
HIT-338749.A1
338749
|
-
|
|
|
|
44 - CLICK PLATE
HIT-338761.A0
338761
|
£1.67
|
£2.00
|
|
|
45A - WIRE BAND
HIT-313505.A3
313505
|
-
|
|
|
|
46 - CARBON BRUSH (1 PAIR)
HIT-999088.A18
999088
|
£5.23
|
£6.28
|
|
|
47 - SPRING
HIT-339292.A2
339292
|
-
|
|
|
|
48 - BRUSH COVER
HIT-338760.A2
338760
|
£1.67
|
£2.00
|
|
|
49A - HANDLE COVER (B) ASS'Y INCLUD.64
HIT-375876.A1
375876
|
-
|
|
|
|
50 - NAME PLATE
HIT-000000.A4491
000000
|
-
|
|
|
|
51 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A42
301653
|
£1.67
|
£2.00
|
|
|
52 - BRUSH HOLDER
HIT-338759.A0
338759
|
£5.52
|
£6.63
|
|
|
*53E - HANDLE COVER (A) ASS'Y INCLUD.64
HIT-375874.A1
375874
|
-
|
|
|
|
54 - INTERNAL WIRE L100
HIT-338758.A2
338758
|
-
|
|
|
|
*55 - SWITCH
HIT-338756.A2
338756
|
£29.35
|
£35.22
|
|
|
56 - INTERNAL WIRE L180
HIT-338757.A0
338757
|
-
|
|
|
|
*57 - FERRITE CORE EXCEPT FOR SIN
HIT-334379.A35
334379
|
-
|
|
|
|
*58 - CORD ARMOR D8.8
HIT-953327.A0
953327
|
£1.67
|
£2.00
|
|
|
59 - CORD CLIP
HIT-937631.A139
937631
|
£1.67
|
£2.00
|
|
|
60 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A3
984750
|
£1.67
|
£2.00
|
|
|
*61 - NOISE SUPPRESSOR EXCEPT FOR SIN
HIT-997174.A2
997174
|
-
|
|
|
|
*61A - NOISE SUPPRESSOR FOR GBR (110V)
HIT-930039.A77
930039
|
£3.85
|
£4.62
|
|
|
*62 - CORD (CORD ARMOR D8.8) FOR MAL
HIT-500505Z.A0
500505Z
|
-
|
|
|
|
*62 - CORD (CORD ARMOR D8.8) FOR GBR (110V)
HIT-500461Z.A49
500461Z
|
£15.56
|
£18.67
|
|
|
64 - CUSHION RUBBER
HIT-339577.A0
339577
|
-
|
|
|
|
*501 - CASE
HIT-338762.A1
338762
|
-
|
|
|
|
502 - SIDE HANDLE
HIT-338768.A1
338768
|
-
|
|
|
|
503 - DEPTH GAUGE
HIT-303709.A59
303709
|
£1.67
|
£2.00
|
|
