Hitachi / Hikoki DV21V Impact Drill Spare Parts

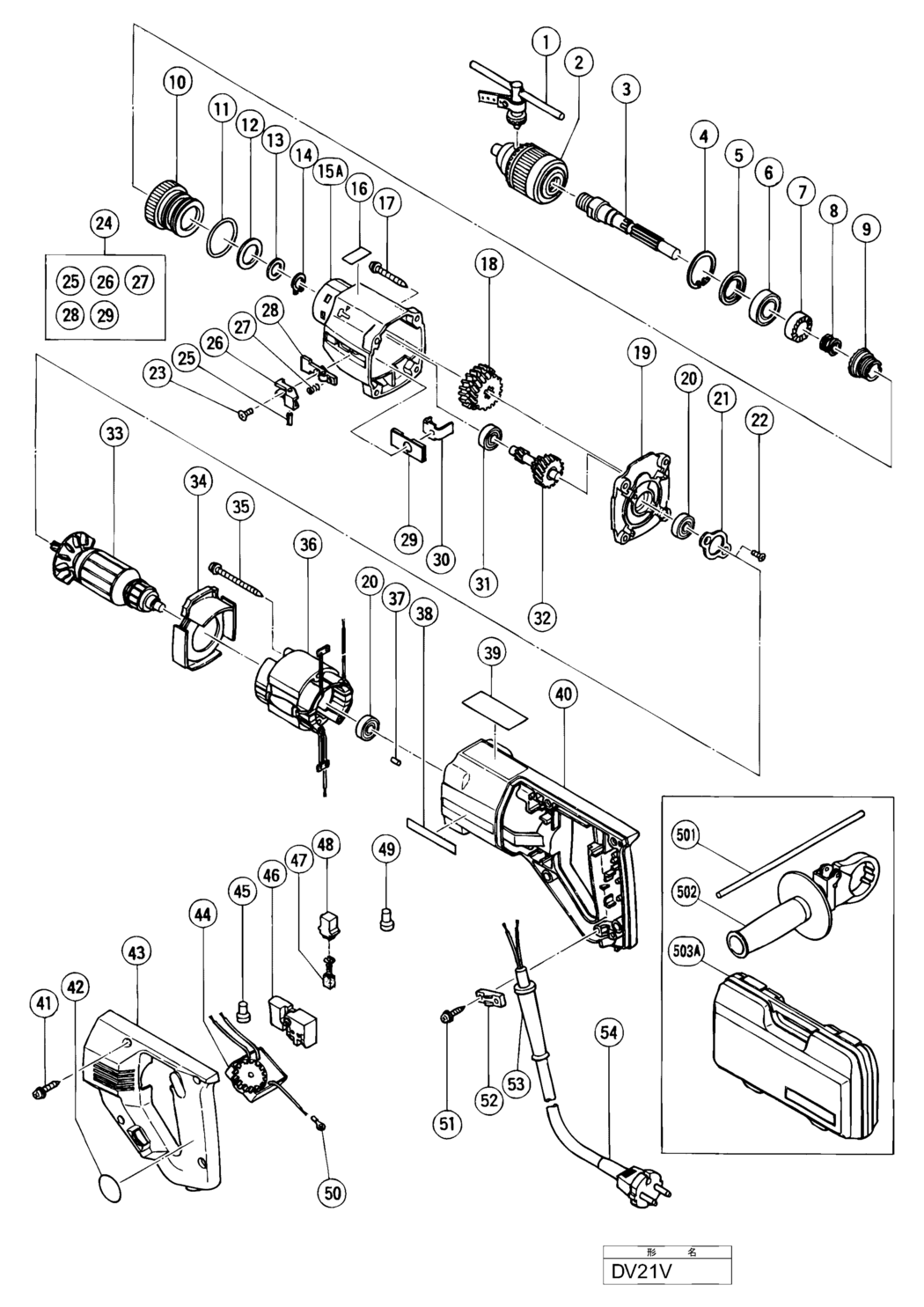

An exploded diagram and spare parts listing for the Hitachi / Hikoki DV21V Impact Drill

	Ex VAT	Inc VAT
1 - CHUCK WRENCH 10G HIT-930515.A6 930515	£6.38	£7.66
2 - DRILL CHUCK 13VLD-D INCLUD.1 HIT-321813.A6 321813	-
3 - SPINDLE HIT-980191.A0 980191	-
4 - RETAINING RING FOR D32 HOLE HIT-948001.A8 948001	£1.67	£2.00
5 - DUST SEAL HIT-971654.A0 971654	-
6 - BALL BEARING 6002DDCMPS2L HIT-6002DD.A9 6002DD	£8.64	£10.37
7A - RATCHET (A).(B) SET HIT-997497.A0 997497	-
8 - SPRING (A) HIT-984101.A5 984101	£1.67	£2.00
10 - CHANGE RING HIT-971645.A0 971645	-
11 - O-RING (S-32) HIT-872767.A1 872767	£1.67	£2.00
12 - WASHER HIT-953038.A0 953038	£1.67	£2.00
13 - WASHER HIT-980194.A0 980194	£1.67	£2.00
14 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A74 939542	£2.98	£3.57
15A - GEAR COVER HIT-971644.A0 971644	-
16 - LABEL TILL 11.1994 HIT-971661.A0 971661	-
17 - TAPPING SCREW (W/SP. WASHER) D5X35 HIT-986140.A2 986140	£1.67	£2.00
18 - GEAR HIT-980172.A0 980172	-
19 - INNER COVER INCLUD.20 HIT-971664.A0 971664	-
20 - BALL BEARING 608VVC2PS2L HIT-608VVM.A2 608VVM	£5.70	£6.84
21 - BEARING HOLDER HIT-971659.A0 971659	£1.67	£2.00
22 - SEAL LOCK FLAT HD. SCREW M4X10 HIT-990430.A13 990430	£1.67	£2.00
23 - SEAL LOCK FLAT HD. SCREW M4X12 HIT-993244.A7 993244	£1.67	£2.00
24 - SHIFT PLATE ASS'Y INCLUD.25-29 HIT-980173.A0 980173	-
25 - ROLL PIN D3X12 (10 PCS.) HIT-949535.A1 949535	£2.98	£3.57
26 - SHIFT LOCK HIT-971653.A0 971653	£1.67	£2.00
27 - SPRING (B) HIT-943053.A0 943053	£1.67	£2.00
28 - SHIFT PLATE HIT-971652.A0 971652	£1.67	£2.00
29 - SEAL PLATE HIT-971672.A0 971672	£1.67	£2.00
30 - SHIFT ARM HIT-971651.A0 971651	£1.67	£2.00
31 - BALL BEARING 608VVC2PS2L HIT-608VVM.A3 608VVM	£5.70	£6.84
32 - SECOND PINION HIT-971649.A0 971649	£29.13	£34.96
33 - ARMATURE 110V-127V HIT-971669C.A0 971669C	-
*33 - ARMATURE 220V-230V HIT-971669E.A0 971669E	-
*33 - ARMATURE 240V HIT-971669F.A0 971669F	-
34 - FAN GUIDE HIT-971642.A0 971642	£1.67	£2.00
35 - TAPPING SCREW (W/SP. WASHER) D4X55 HIT-997490.A0 997490	-
36 - STATOR 110V-127V HIT-971665C.A0 971665C	-
*36 - STATOR 220V-230V HIT-971665E.A0 971665E	-
*36 - STATOR 240V HIT-971665M.A0 971665M	-
37 - BEARING LOCK HIT-946362.A13 946362	£1.67	£2.00
38 - BRAND LABEL HIT-957561.A10 957561	-
39 - NAME PLATE HIT-000000.A4254 000000	-
40 - HOUSING HIT-981420.A0 981420	-
41 - TAPPING SCREW (W/WASHER) D4X20 HIT-982095.A4 982095	£1.67	£2.00
42 - MARK PLATE HIT-962994.A0 962994	-
43 - HANDLE COVER HIT-997491.A0 997491	-
44 - CONTROLLER CIRCUIT HIT-997493.A0 997493	-
*44 - CONTROLLER CIRCUIT 220V-240V HIT-997494.A0 997494	-
45 - CONNECTOR 50091 (10 PCS.) HIT-959140.A117 959140	£4.98	£5.97
46 - SWITCH (1P SCREW TYPE) W/O LOCK HIT-981821.A0 981821	£13.39	£16.07
47 - CARBON BRUSH (1 PAIR) HIT-999041.A32 999041	£5.54	£6.65
48 - BRUSH HOLDER HIT-955203.A7 955203	£4.16	£4.99
49 - CONNECTOR 50092 (10 PCS.) HIT-959141.A6 959141	£7.12	£8.54
50 - TERMINAL (A) M3.5 (10 PCS.) HIT-960356.A12 960356	£3.64	£4.37
51 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A69 984750	£1.67	£2.00
52 - CORD CLIP HIT-960266.A96 960266	£1.67	£2.00
53 - CORD ARMOR D8.8 HIT-953327.A65 953327	£1.67	£2.00
*53 - CORD ARMOR D10.1 HIT-938051.A21 938051	£1.67	£2.00
54 - CORD (CORD ARMOR D10.1) HIT-500201Z.A22 500201Z	-
*54 - CORD (CORD ARMOR D8.8) HIT-500234Z.A37 500234Z	-
*54 - CORD (CORD ARMOR D10.1) FOR SYR HIT-500245Z.A3 500245Z	-
*54 - CORD (CORD ARMOR D10.1) FOR SAU HIT-500420Z.A2 500420Z	-
*54 - CORD (CORD ARMOR D8.8) FOR SAU HIT-500423Z.A0 500423Z	-
*54 - CORD (CORD ARMOR D8.8) FOR NGU HIT-500439Z.A15 500439Z	-
501 - STOPPER HIT-971677.A0 971677	£6.61	£7.93
502 - SIDE HANDLE HIT-971678.A0 971678	£15.46	£18.55
503A - CASE HIT-310905.A0 310905	£46.08	£55.29
601A - WRENCH 17MM HIT-936638.A2 936638	£7.22	£8.66
609 - DRILL BIT (B) D16.0X160 HIT-971670.A0 971670	-

Attribute Name	Value
Brand	Hikoki
