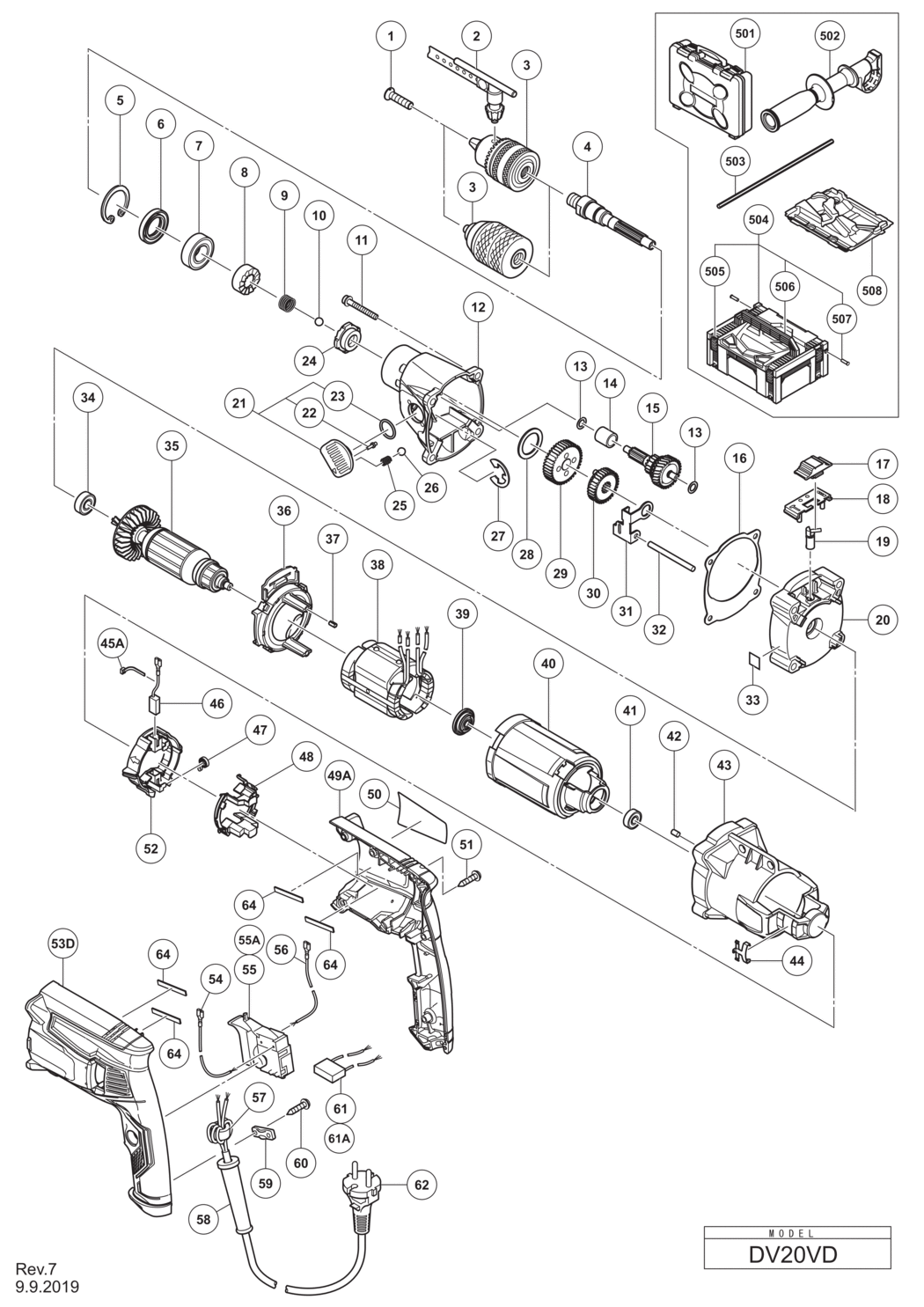

An exploded diagram and spare parts listing for the Hitachi / Hikoki DV20VD Impact Drill
Ex VAT Inc VAT
1 - FLAT HD. SCREW (A) (LEFT HAND) M6X25 HIT-995344.A18 995344 -
*3 - DRILL CHUCK 13VLRE-N (KEYLESS TYPE) FOR NZL HIT-319546.A2 319546 -
4 - SPINDLE (A) HIT-338738.A1 338738 -
5 - RETAINING RING FOR D35 HOLE (10 PCS.) HIT-939556.A1 939556 £11.82 £14.18
6 - OIL SEAL (A) HIT-971745.A3 971745 £5.27 £6.32
7 - BALL BEARING 6003DD HIT-6003DD.A4 6003DD £9.67 £11.60
8 - RATCHET (D) HIT-338771.A1 338771 -
9 - SPRING (A) HIT-984101.A1 984101 £1.67 £2.00
10 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A44 959150 £1.67 £2.00
11 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X45 HIT-338764.A1 338764 -
12 - GEAR COVER (A) ASS'Y INCLUD.24 HIT-338769.A1 338769 £27.78 £33.34
13 - WASHER (B) HIT-322852.A2 322852 £1.67 £2.00
14 - DISTANCE PIECE HIT-338744.A1 338744 -
*15 - SECOND PINION (B) HIT-338767.A0 338767 -
16 - PACKING HIT-339222.A0 339222 -
17 - CHANGE LEVER HIT-338746.A1 338746 -
18 - CHANGE COVER HIT-338747.A0 338747 -
19 - CHANGE SHAFT HIT-338748.A1 338748 £5.25 £6.30
20 - INNER COVER (A) HIT-338745.A0 338745 £19.39 £23.27
21 - SHIFT LEVER ASS'Y INCLUD.22 HIT-338737.A1 338737 -
22 - SHIFT PIN HIT-322848.A3 322848 £1.67 £2.00
23 - O-RING (S-18) HIT-878885.A11 878885 £1.67 £2.00
24 - RATCHET (C) HIT-338770.A0 338770 -
25 - SPRING (H) HIT-981328.A2 981328 £1.67 £2.00
26 - STEEL BALL D3.5 (10 PCS.) HIT-335299.A3 335299 £1.67 £2.00
27 - RETAINING RING (E-TYPE) FOR D15 SHAFT HIT-323048.A1 323048 £1.67 £2.00
28 - WASHER HIT-339223.A1 339223 £1.67 £2.00
29 - LOW SPEED GEAR HIT-338740.A0 338740 -
30 - HIGH SPEED GEAR HIT-338741.A2 338741 -
31 - SHIFT ARM HIT-338742.A0 338742 -
32 - PIN D5 HIT-984104.A0 984104 -
34 - BALL BEARING 608DD HIT-608DDM.A0 608DDM £6.35 £7.62
*35 - ARMATURE 110V HIT-361003B.A0 361003B -
*35 - ARMATURE 230V HIT-361003E.A1 361003E -
36 - FAN GUIDE (B) HIT-338766.A1 338766 -
37 - RUBBER BUSH HIT-338755.A1 338755 -
*38 - STATOR 110V HIT-340906B.A0 340906B -
*38 - STATOR 230V HIT-340906E.A1 340906E £18.16 £21.79
39 - DUST SEAL HIT-338751.A0 338751 -
40 - STATOR HOLDER HIT-338750.A2 338750 -
41 - BALL BEARING 607VV HIT-607VVC.A6 607VVC £6.31 £7.57
42 - BEARING LOCK HIT-931701.A31 931701 £1.67 £2.00
43 - HOUSING (B) HIT-338749.A0 338749 -
44 - CLICK PLATE HIT-338761.A1 338761 £1.67 £2.00
45A - WIRE BAND HIT-313505.A2 313505 -
46 - CARBON BRUSH (1 PAIR) HIT-999088.A19 999088 £5.23 £6.28
47 - SPRING HIT-339292.A1 339292 -
48 - BRUSH COVER HIT-338760.A1 338760 £1.67 £2.00
49A - HANDLE COVER (B) ASS'Y INCLUD.64 HIT-375876.A2 375876 -
50 - NAME PLATE HIT-000000.A4487 000000 -
51 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A43 301653 £1.67 £2.00
52 - BRUSH HOLDER HIT-338759.A1 338759 £5.52 £6.63
*53D - HANDLE COVER (A) ASS'Y INCLUD.64 HIT-375874.A0 375874 -
54 - INTERNAL WIRE L100 HIT-338758.A1 338758 -
*55 - SWITCH HIT-338756.A1 338756 £29.35 £35.22
56 - INTERNAL WIRE L180 HIT-338757.A1 338757 -
*57 - FERRITE CORE EXCEPT FOR SIN HIT-334379.A34 334379 -
*58 - CORD ARMOR D8.8 HIT-953327.A1 953327 £1.67 £2.00
59 - CORD CLIP HIT-937631.A137 937631 £1.67 £2.00
60 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A4 984750 £1.67 £2.00
*61 - NOISE SUPPRESSOR EXCEPT FOR SIN HIT-997174.A1 997174 -
*61A - NOISE SUPPRESSOR FOR GBR (110V) HIT-930039.A76 930039 £3.85 £4.62
*62 - CORD (CORD ARMOR D8.8) FOR MAL HIT-500505Z.A1 500505Z -
*62 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A48 500461Z £15.56 £18.67
64 - CUSHION RUBBER HIT-339577.A1 339577 -
*501 - CASE HIT-338762.A0 338762 -
502 - SIDE HANDLE HIT-338768.A0 338768 -
503 - DEPTH GAUGE HIT-303709.A58 303709 £1.67 £2.00
