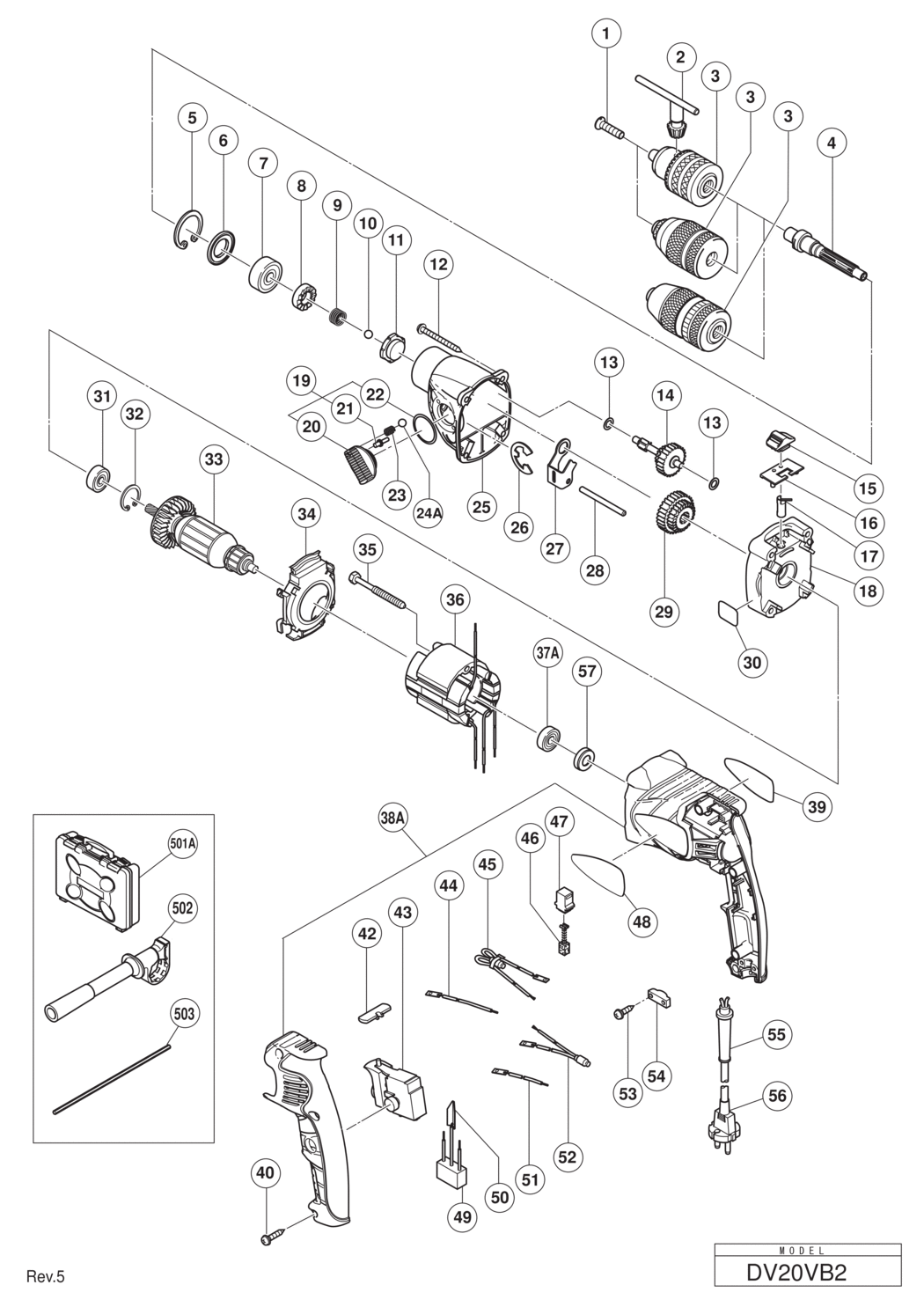

1 - FLAT HD. SCREW (A) (LEFT HAND) M6X25
HIT-995344.A15
995344
|
-
|
|
|
|
2 - CHUCK WRENCH FOR 13VLB-D 1
HIT-987576.A7
987576
|
-
|
|
|
|
*3 - DRILL CHUCK 13VLRB-D INCLUD.1
HIT-321814.A28
321814
|
-
|
|
|
|
*4 - SPINDLE (B)
HIT-322857.A0
322857
|
£19.63
|
£23.56
|
|
|
5 - RETAINING RING FOR D35 HOLE (10 PCS.)
HIT-939556.A5
939556
|
£11.82
|
£14.18
|
|
|
6 - DUST SEAL
HIT-322851.A0
322851
|
£3.26
|
£3.91
|
|
|
7 - BALL BEARING 6202DD
HIT-6202DD.A10
6202DD
|
£7.32
|
£8.78
|
|
|
8 - RATCHET (A)
HIT-322850.A1
322850
|
£6.38
|
£7.66
|
|
|
9 - SPRING (A)
HIT-984101.A0
984101
|
£1.67
|
£2.00
|
|
|
10 - STEEL BALL D6.35 (10 PCS.)
HIT-959150.A45
959150
|
£1.67
|
£2.00
|
|
|
11 - RATCHET (B)
HIT-322845.A0
322845
|
£8.57
|
£10.28
|
|
|
*12 - TAPPING SCREW (W/FLANGE) D5X45
HIT-316321.A4
316321
|
£1.67
|
£2.00
|
|
|
13 - WASHER (B)
HIT-322852.A1
322852
|
£1.67
|
£2.00
|
|
|
*14 - SECOND PINION AND GEAR SET
HIT-322858.A1
322858
|
£33.68
|
£40.41
|
|
|
15 - CHANGE LEVER
HIT-322841.A0
322841
|
£1.67
|
£2.00
|
|
|
16 - CHANGE COVER
HIT-322842.A1
322842
|
£1.67
|
£2.00
|
|
|
17 - CHANGE SHAFT
HIT-322840.A1
322840
|
£7.57
|
£9.08
|
|
|
*18 - INNER COVER (B)
HIT-322859.A0
322859
|
£23.40
|
£28.08
|
|
|
19 - SHIFT LEVER ASS'Y
HIT-322847.A1
322847
|
£4.99
|
£5.99
|
|
|
21 - SHIFT PIN
HIT-322848.A2
322848
|
£1.67
|
£2.00
|
|
|
22 - O-RING (S-22)
HIT-306353.A3
306353
|
£1.67
|
£2.00
|
|
|
23 - SPRING (H)
HIT-981328.A3
981328
|
£1.67
|
£2.00
|
|
|
24A - STEEL BALL D3.5 (10 PCS.)
HIT-335299.A4
335299
|
£1.67
|
£2.00
|
|
|
25 - GEAR COVER (A) ASS'Y INCLUD.11
HIT-322844.A1
322844
|
£28.41
|
£34.09
|
|
|
26 - RETAINING RING (E-TYPE) FOR D15 SHAFT
HIT-323048.A0
323048
|
£1.67
|
£2.00
|
|
|
27 - SHIFT ARM
HIT-322849.A1
322849
|
£1.67
|
£2.00
|
|
|
*28 - PIN D5
HIT-322860.A1
322860
|
£1.67
|
£2.00
|
|
|
29 - GEAR SET
HIT-322846.A1
322846
|
£28.41
|
£34.09
|
|
|
31 - BALL BEARING 608DD
HIT-608DDM.A1
608DDM
|
£6.35
|
£7.62
|
|
|
32 - RETAINING RING FOR D22 HOLE (10 PCS.)
HIT-939553.A2
939553
|
-
|
|
|
|
*33 - ARMATURE 110V
HIT-360652C.A1
360652C
|
£40.43
|
£48.52
|
|
|
*33 - ARMATURE 230V
HIT-360652E.A1
360652E
|
£40.43
|
£48.52
|
|
|
34 - FAN GUIDE
HIT-322843.A0
322843
|
£3.26
|
£3.91
|
|
|
*36 - STATOR 110V
HIT-340587C.A0
340587C
|
£35.74
|
£42.89
|
|
|
*36 - STATOR 230V
HIT-340587E.A1
340587E
|
£27.37
|
£32.84
|
|
|
37A - BALL BEARING 698VVC2
HIT-698VVC.A0
698VVC
|
£5.05
|
£6.06
|
|
|
38A - HOUSING.HANDLE COVER SET
HIT-331663.A1
331663
|
£47.79
|
£57.35
|
|
|
39 - NAME PLATE
HIT-000000.A4483
000000
|
-
|
|
|
|
40 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A44
301653
|
£1.67
|
£2.00
|
|
|
*43 - SWITCH (1P PILLAR TYPE)
HIT-322854.A1
322854
|
£24.27
|
£29.12
|
|
|
*45 - CHOKE COIL (BROWN) 220V-240V EXCEPT FOR SIN
HIT-322517.A3
322517
|
£11.35
|
£13.62
|
|
|
*45 - CHOKE COIL (BROWN) 110V FOR GBR (110V)
HIT-322518.A1
322518
|
£11.35
|
£13.62
|
|
|
46 - CARBON BRUSH (1 PAIR)
HIT-999041.A11
999041
|
£5.54
|
£6.65
|
|
|
47 - BRUSH HOLDER
HIT-955203.A24
955203
|
£4.16
|
£4.99
|
|
|
48 - BRAND LABEL
HIT-000000.A4484
000000
|
-
|
|
|
|
*49 - NOISE SUPPRESSOR EXCEPT FOR SIN
HIT-994273.A68
994273
|
£7.30
|
£8.76
|
|
|
*50 - EARTH TERMINAL EXCEPT FOR SIN
HIT-992635.A23
992635
|
£1.67
|
£2.00
|
|
|
*52 - CHOKE COIL (BLUE) 110V-240V EXCEPT FOR SIN
HIT-321634.A5
321634
|
£9.43
|
£11.32
|
|
|
*52 - CHOKE COIL (BLUE) 110V FOR GBR (110V)
HIT-322519.A3
322519
|
£8.74
|
£10.49
|
|
|
53 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A5
984750
|
£1.67
|
£2.00
|
|
|
54 - CORD CLIP
HIT-937631.A138
937631
|
£1.67
|
£2.00
|
|
|
55 - CORD ARMOR D8.8
HIT-953327.A2
953327
|
£1.67
|
£2.00
|
|
|
*56 - CORD (CORD ARMOR D8.8) FOR SIN
HIT-500423Z.A16
500423Z
|
-
|
|
|
|
*56 - CORD (CORD ARMOR D8.8) FOR GBR (110V)
HIT-500461Z.A47
500461Z
|
£15.56
|
£18.67
|
|
|
*56 - CORD (CORD ARMOR D8.8) FOR GBR (230V)
HIT-500435Z.A57
500435Z
|
£14.14
|
£16.97
|
|
|
57 - RUBBER BUSHING
HIT-309929.A10
309929
|
£1.67
|
£2.00
|
|
|
501A - CASE
HIT-324555.A0
324555
|
£61.87
|
£74.24
|
|
|
502 - SIDE HANDLE
HIT-323050.A3
323050
|
£28.41
|
£34.09
|
|
|
503 - DEPTH GAUGE
HIT-303709.A57
303709
|
£1.67
|
£2.00
|
|
|
608 - DRILL BIT (B) D16.0X160
HIT-971670.A2
971670
|
-
|
|
|
