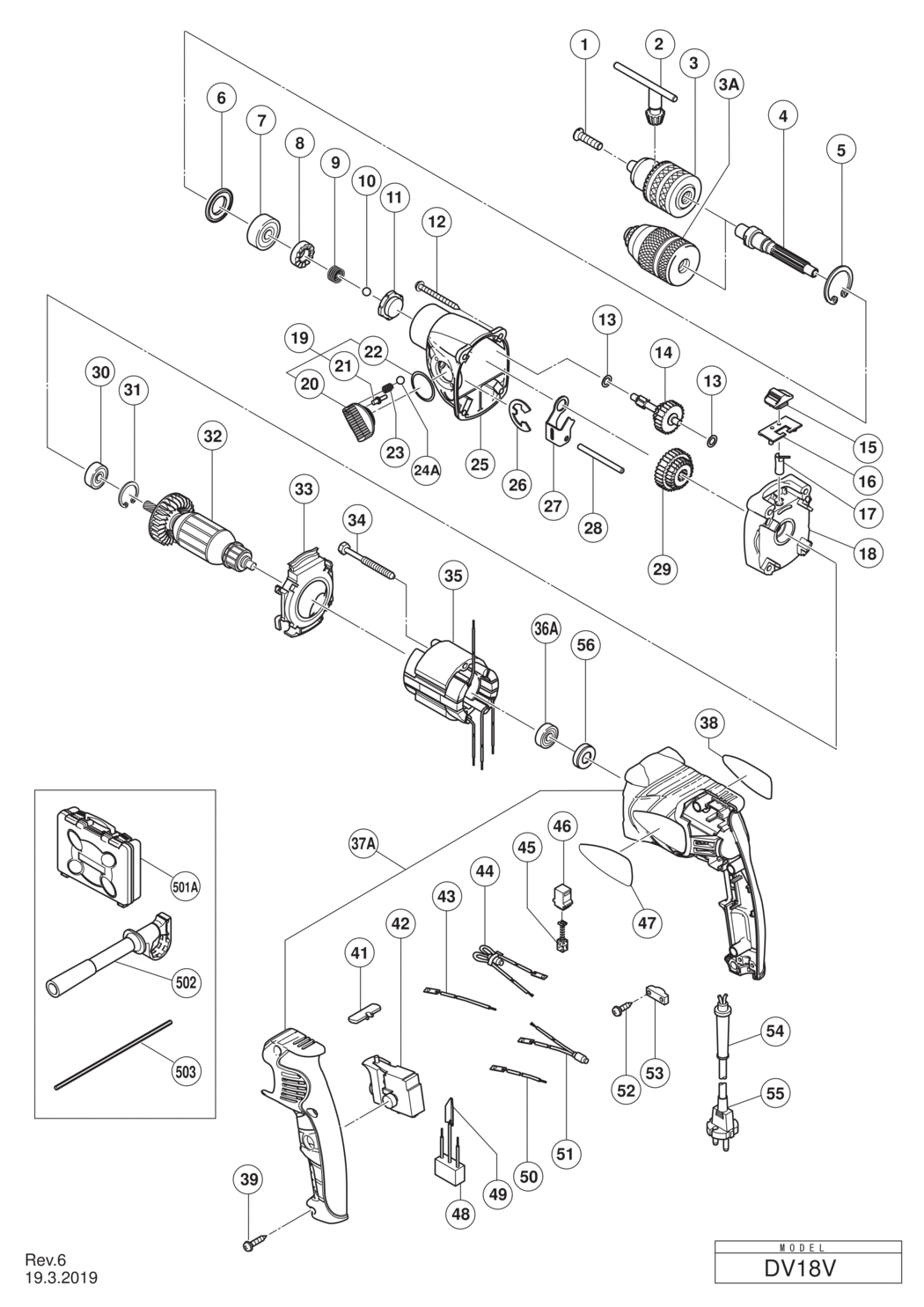

1 - FLAT HD. SCREW (A) (LEFT HAND) M6X25
HIT-995344.A16
995344
|
-
|
|
|
|
*2 - CHUCK WRENCH FOR 13VLB-D 1
HIT-987576.A6
987576
|
-
|
|
|
|
*3 - DRILL CHUCK
HIT-000000.A4475
000000
|
-
|
|
|
|
*3A - DRILL CHUCK 13VLRE-N (KEYLESS TYPE)
HIT-319546.A4
319546
|
-
|
|
|
|
4 - SPINDLE (B)
HIT-322857.A1
322857
|
£19.63
|
£23.56
|
|
|
5 - RETAINING RING FOR D35 HOLE (10 PCS.)
HIT-939556.A4
939556
|
£11.82
|
£14.18
|
|
|
6 - DUST SEAL
HIT-322851.A1
322851
|
£3.26
|
£3.91
|
|
|
7 - BALL BEARING 6202DD
HIT-6202DD.A11
6202DD
|
£7.32
|
£8.78
|
|
|
8 - RATCHET (A)
HIT-322850.A0
322850
|
£6.38
|
£7.66
|
|
|
9 - SPRING (A)
HIT-984101.A3
984101
|
£1.67
|
£2.00
|
|
|
10 - STEEL BALL D6.35 (10 PCS.)
HIT-959150.A47
959150
|
£1.67
|
£2.00
|
|
|
11 - RATCHET (B)
HIT-322845.A1
322845
|
£8.57
|
£10.28
|
|
|
12 - TAPPING SCREW (W/FLANGE) D5X45
HIT-316321.A5
316321
|
£1.67
|
£2.00
|
|
|
13 - WASHER (B)
HIT-322852.A0
322852
|
£1.67
|
£2.00
|
|
|
14 - SECOND PINION AND GEAR SET
HIT-322858.A0
322858
|
£33.68
|
£40.41
|
|
|
15 - CHANGE LEVER
HIT-322841.A1
322841
|
£1.67
|
£2.00
|
|
|
16 - CHANGE COVER
HIT-322842.A0
322842
|
£1.67
|
£2.00
|
|
|
17 - CHANGE SHAFT
HIT-322840.A0
322840
|
£7.57
|
£9.08
|
|
|
18 - INNER COVER (B)
HIT-322859.A1
322859
|
£23.40
|
£28.08
|
|
|
19 - SHIFT LEVER ASS'Y INCLUD.20-22
HIT-322847.A2
322847
|
£4.99
|
£5.99
|
|
|
20 - SHIFT LEVER
HIT-000000.A4477
000000
|
-
|
|
|
|
21 - SHIFT PIN
HIT-322848.A1
322848
|
£1.67
|
£2.00
|
|
|
22 - O-RING (S-22)
HIT-306353.A4
306353
|
£1.67
|
£2.00
|
|
|
23 - SPRING (H)
HIT-981328.A4
981328
|
£1.67
|
£2.00
|
|
|
24A - STEEL BALL D3.5 (10 PCS.)
HIT-335299.A5
335299
|
£1.67
|
£2.00
|
|
|
25 - GEAR COVER (A) ASS'Y INCLUD.11
HIT-322844.A0
322844
|
£28.41
|
£34.09
|
|
|
26 - RETAINING RING (E-TYPE) FOR D15 SHAFT
HIT-323048.A3
323048
|
£1.67
|
£2.00
|
|
|
27 - SHIFT ARM
HIT-322849.A2
322849
|
£1.67
|
£2.00
|
|
|
28 - PIN D5
HIT-322860.A0
322860
|
£1.67
|
£2.00
|
|
|
29 - GEAR SET
HIT-322846.A0
322846
|
£28.41
|
£34.09
|
|
|
30 - BALL BEARING 608DD
HIT-608DDM.A4
608DDM
|
£6.35
|
£7.62
|
|
|
31 - RETAINING RING FOR D22 HOLE (10 PCS.)
HIT-939553.A1
939553
|
-
|
|
|
|
*32 - ARMATURE 110V
HIT-360655C.A0
360655C
|
£38.47
|
£46.16
|
|
|
*32 - ARMATURE 220V-230V
HIT-360655E.A0
360655E
|
£38.47
|
£46.16
|
|
|
33 - FAN GUIDE
HIT-322843.A1
322843
|
£3.26
|
£3.91
|
|
|
34 - HEX. HD. TAPPING SCREW D4X45
HIT-981824.A14
981824
|
-
|
|
|
|
*35 - STATOR 110V
HIT-340589C.A0
340589C
|
£18.13
|
£21.76
|
|
|
*35 - STATOR 220V-230V
HIT-340589E.A0
340589E
|
£18.13
|
£21.76
|
|
|
36A - BALL BEARING 698VVC2
HIT-698VVC.A1
698VVC
|
£5.05
|
£6.06
|
|
|
37A - HOUSING.HANDLE COVER SET
HIT-331663.A0
331663
|
£47.79
|
£57.35
|
|
|
38 - NAME PLATE
HIT-000000.A4478
000000
|
-
|
|
|
|
39 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A45
301653
|
£1.67
|
£2.00
|
|
|
41 - PUSHING BUTTON
HIT-322853.A14
322853
|
£1.67
|
£2.00
|
|
|
42 - SWITCH (1P PILLAR TYPE)
HIT-322854.A0
322854
|
£24.27
|
£29.12
|
|
|
*44 - CHOKE COIL (BROWN) 220V-240V FOR ITA
HIT-322517.A2
322517
|
£11.35
|
£13.62
|
|
|
*44 - CHOKE COIL (BROWN) 110V FOR GBR (110V)
HIT-322518.A2
322518
|
£11.35
|
£13.62
|
|
|
45 - CARBON BRUSH (1 PAIR)
HIT-999041.A13
999041
|
£5.54
|
£6.65
|
|
|
46 - BRUSH HOLDER
HIT-955203.A22
955203
|
£4.16
|
£4.99
|
|
|
47 - BRAND LABEL
HIT-000000.A4479
000000
|
-
|
|
|
|
*48 - NOISE SUPPRESSOR FOR GBR (230V)
HIT-994273.A70
994273
|
£7.30
|
£8.76
|
|
|
*49 - EARTH TERMINAL FOR GBR (230V)
HIT-992635.A21
992635
|
£1.67
|
£2.00
|
|
|
*51 - CHOKE COIL (BLUE) 110V-240V FOR ITA
HIT-321634.A4
321634
|
£9.43
|
£11.32
|
|
|
*51 - CHOKE COIL (BLUE) 110V FOR GBR (110V)
HIT-322519.A2
322519
|
£8.74
|
£10.49
|
|
|
52 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A6
984750
|
£1.67
|
£2.00
|
|
|
53 - CORD CLIP
HIT-937631.A142
937631
|
£1.67
|
£2.00
|
|
|
*54 - CORD ARMOR D8.8
HIT-953327.A4
953327
|
£1.67
|
£2.00
|
|
|
*55 - CORD (CORD ARMOR D8.8) FOR KUW
HIT-500423Z.A15
500423Z
|
-
|
|
|
|
*55 - CORD (CORD ARMOR D8.8) FOR GBR (110V)
HIT-500461Z.A44
500461Z
|
£15.56
|
£18.67
|
|
|
56 - RUBBER BUSHING
HIT-309929.A9
309929
|
£1.67
|
£2.00
|
|
|
501A - CASE
HIT-323130.A0
323130
|
£59.28
|
£71.14
|
|
|
502 - SIDE HANDLE
HIT-323050.A1
323050
|
£28.41
|
£34.09
|
|
|
503 - DEPTH GAUGE
HIT-303709.A56
303709
|
£1.67
|
£2.00
|
|
|
601 - DRILL CHUCK 13VLRB-D INCLUD.602
HIT-321814.A29
321814
|
-
|
|
|
|
602 - CHUCK WRENCH 10G
HIT-930515.A16
930515
|
£6.38
|
£7.66
|
|
|
610 - DRILL BIT (B) D16.0X160
HIT-971670.A4
971670
|
-
|
|
|
