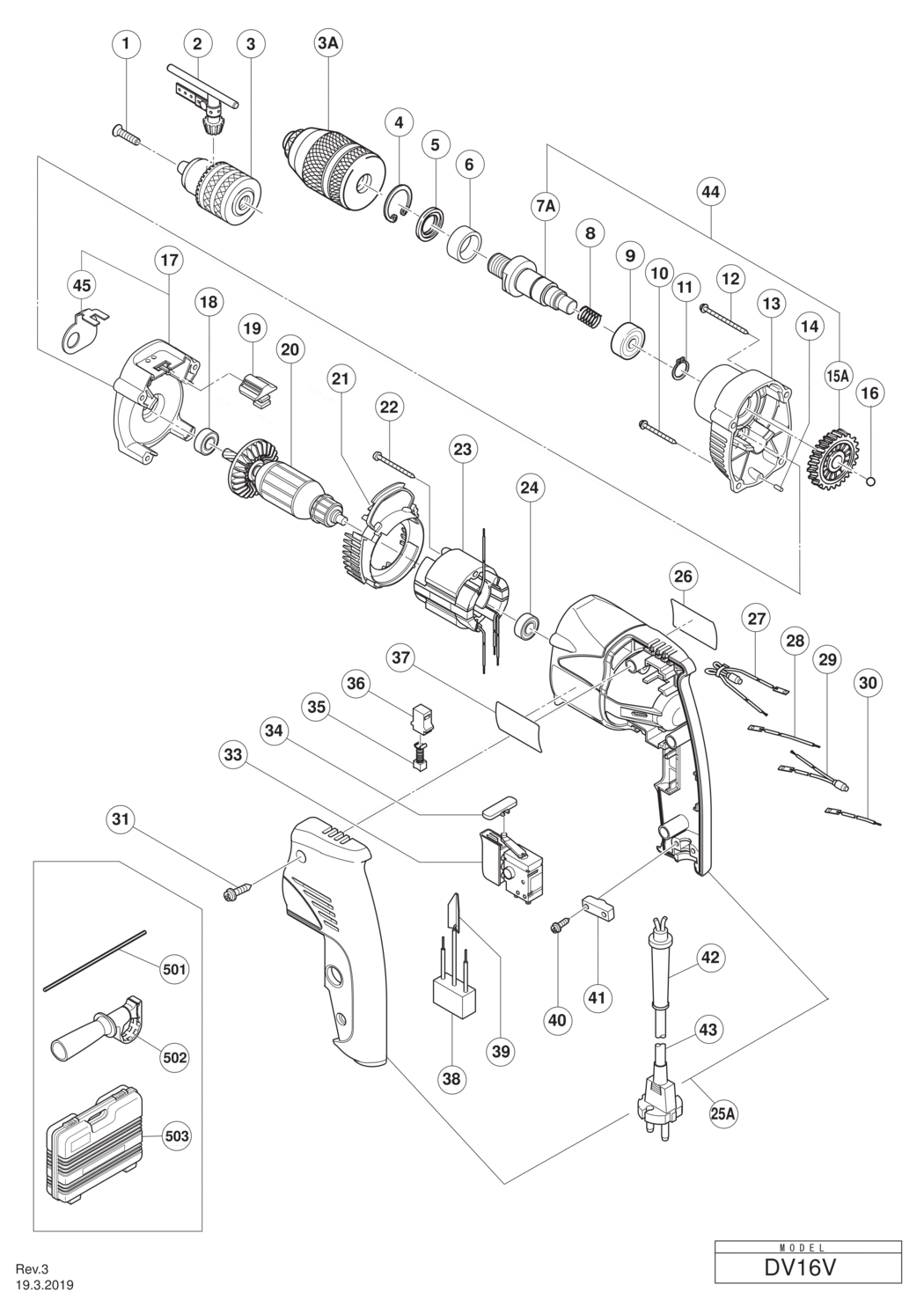

1 - FLAT HD. SCREW (A) (LEFT HAND) M6X25
HIT-995344.A14
995344
|
-
|
|
|
|
2 - CHUCK WRENCH FOR 13VLB-D 1
HIT-987576.A4
987576
|
-
|
|
|
|
*3 - DRILL CHUCK 13VLRB-D
HIT-000000.A4465
000000
|
-
|
|
|
|
*3A - DRILL CHUCK 13VLRE-N (KEYLESS TYPE)
HIT-319546.A5
319546
|
-
|
|
|
|
4 - RETAINING RING FOR D32 HOLE
HIT-948001.A15
948001
|
£1.67
|
£2.00
|
|
|
5 - DUST SEAL
HIT-971654.A5
971654
|
-
|
|
|
|
6 - DISTANCE RING
HIT-322515.A0
322515
|
-
|
|
|
|
7A - SPINDLE SINCE 6.2004
HIT-322513.A0
322513
|
£13.09
|
£15.71
|
|
|
8 - SPRING
HIT-322514.A0
322514
|
-
|
|
|
|
9 - BALL BEARING 6002VVCMPS2L
HIT-6002VV.A13
6002VV
|
£9.32
|
£11.19
|
|
|
10 - TAPPING SCREW (W/FLANGE) D4X40 (BLACK)
HIT-306664.A8
306664
|
-
|
|
|
|
11 - RETAINING RING FOR D15 SHAFT (10 PCS.)
HIT-939544.A33
939544
|
£3.64
|
£4.37
|
|
|
12 - TAPPING SCREW (W/FLANGE) D4X55
HIT-322516.A0
322516
|
-
|
|
|
|
13 - GEAR COVER
HIT-322512.A0
322512
|
£11.35
|
£13.62
|
|
|
14 - NEEDLE (B)
HIT-322511.A0
322511
|
-
|
|
|
|
15A - GEAR SINCE 6.2004
HIT-323527.A0
323527
|
£21.37
|
£25.64
|
|
|
16 - STEEL BALL D6.35 (10 PCS.)
HIT-959150.A48
959150
|
£1.67
|
£2.00
|
|
|
17 - INNER COVER ASS'Y
HIT-322509.A0
322509
|
£38.90
|
£46.68
|
|
|
18 - BALL BEARING 608DD
HIT-608DDM.A5
608DDM
|
£6.35
|
£7.62
|
|
|
19 - CHANGE LEVER
HIT-322510.A0
322510
|
£1.67
|
£2.00
|
|
|
*20 - ARMATURE 110V
HIT-360626C.A0
360626C
|
£69.49
|
£83.39
|
|
|
*20 - ARMATURE 220V-240V
HIT-360626E.A0
360626E
|
£69.49
|
£83.39
|
|
|
21 - FAN GUIDE
HIT-322508.A0
322508
|
-
|
|
|
|
22 - TAPPING SCREW D4X50
HIT-950515.A2
950515
|
-
|
|
|
|
*23 - STATOR 110V
HIT-340573C.A0
340573C
|
£30.44
|
£36.53
|
|
|
*23 - STATOR 220V-230V
HIT-340573E.A0
340573E
|
£30.44
|
£36.53
|
|
|
24 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A80
608VVM
|
£5.70
|
£6.84
|
|
|
25A - HOUSING.HANDLE COVER SET
HIT-331661.A1
331661
|
£38.34
|
£46.01
|
|
|
26 - NAME PLATE
HIT-000000.A4467
000000
|
-
|
|
|
|
*27 - CHOKE COIL (BROWN) 220V-240V EXCEPT FOR USA
HIT-322517.A0
322517
|
£11.35
|
£13.62
|
|
|
*27 - CHOKE COIL (BROWN) 110V FOR GBR (110V)
HIT-322518.A4
322518
|
£11.35
|
£13.62
|
|
|
*29 - CHOKE COIL (BLUE) 110V-240V EXCEPT FOR USA
HIT-321634.A2
321634
|
£9.43
|
£11.32
|
|
|
*29 - CHOKE COIL (BLUE) 110V FOR GBR (110V)
HIT-322519.A0
322519
|
£8.74
|
£10.49
|
|
|
31 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A47
301653
|
£1.67
|
£2.00
|
|
|
33 - SWITCH (1P PILLAR TYPE)
HIT-321632.A0
321632
|
£33.14
|
£39.77
|
|
|
34 - PUSHING BUTTON
HIT-321628.A3
321628
|
£1.67
|
£2.00
|
|
|
35 - CARBON BRUSH (1 PAIR)
HIT-999041.A15
999041
|
£5.54
|
£6.65
|
|
|
36 - BRUSH HOLDER
HIT-955203.A20
955203
|
£4.16
|
£4.99
|
|
|
37 - BRAND LABEL
HIT-000000.A4468
000000
|
-
|
|
|
|
*38 - NOISE SUPPRESSOR EXCEPT FOR USA
HIT-994273.A72
994273
|
£7.30
|
£8.76
|
|
|
*39 - EARTH TERMINAL FOR NOISE SUPPRESSOR
HIT-992635.A19
992635
|
£1.67
|
£2.00
|
|
|
40 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A9
984750
|
£1.67
|
£2.00
|
|
|
41 - CORD CLIP
HIT-937631.A140
937631
|
£1.67
|
£2.00
|
|
|
42 - CORD ARMOR D8.8
HIT-953327.A3
953327
|
£1.67
|
£2.00
|
|
|
*43 - CORD (CORD ARMOR D8.8) FOR GBR (230V)
HIT-500435Z.A58
500435Z
|
£14.14
|
£16.97
|
|
|
*43 - CORD (CORD ARMOR D8.8) FOR GBR (110V)
HIT-500461Z.A43
500461Z
|
£15.56
|
£18.67
|
|
|
44 - SPINDLE AND GEAR SET INCLUD.7A
HIT-323565.A0
323565
|
£36.85
|
£44.22
|
|
|
45 - CHANGE PLATE
HIT-330625.A0
330625
|
£1.67
|
£2.00
|
|
|
501 - DEPTH GAUGE
HIT-303709.A54
303709
|
£1.67
|
£2.00
|
|
|
503 - CASE
HIT-321635.A0
321635
|
-
|
|
|
|
601 - DRILL CHUCK 13VLRB-D INCLUD.1
HIT-321814.A27
321814
|
-
|
|
|
|
602 - CHUCK WRENCH 10G
HIT-930515.A18
930515
|
£6.38
|
£7.66
|
|
|
603 - HOOK (A)
HIT-321612.A0
321612
|
£1.67
|
£2.00
|
|
|
611 - DRILL BIT (B) D16.0X160
HIT-971670.A3
971670
|
-
|
|
|
