Hitachi / Hikoki DN14DSL Cordless Angle Drill Spare Parts

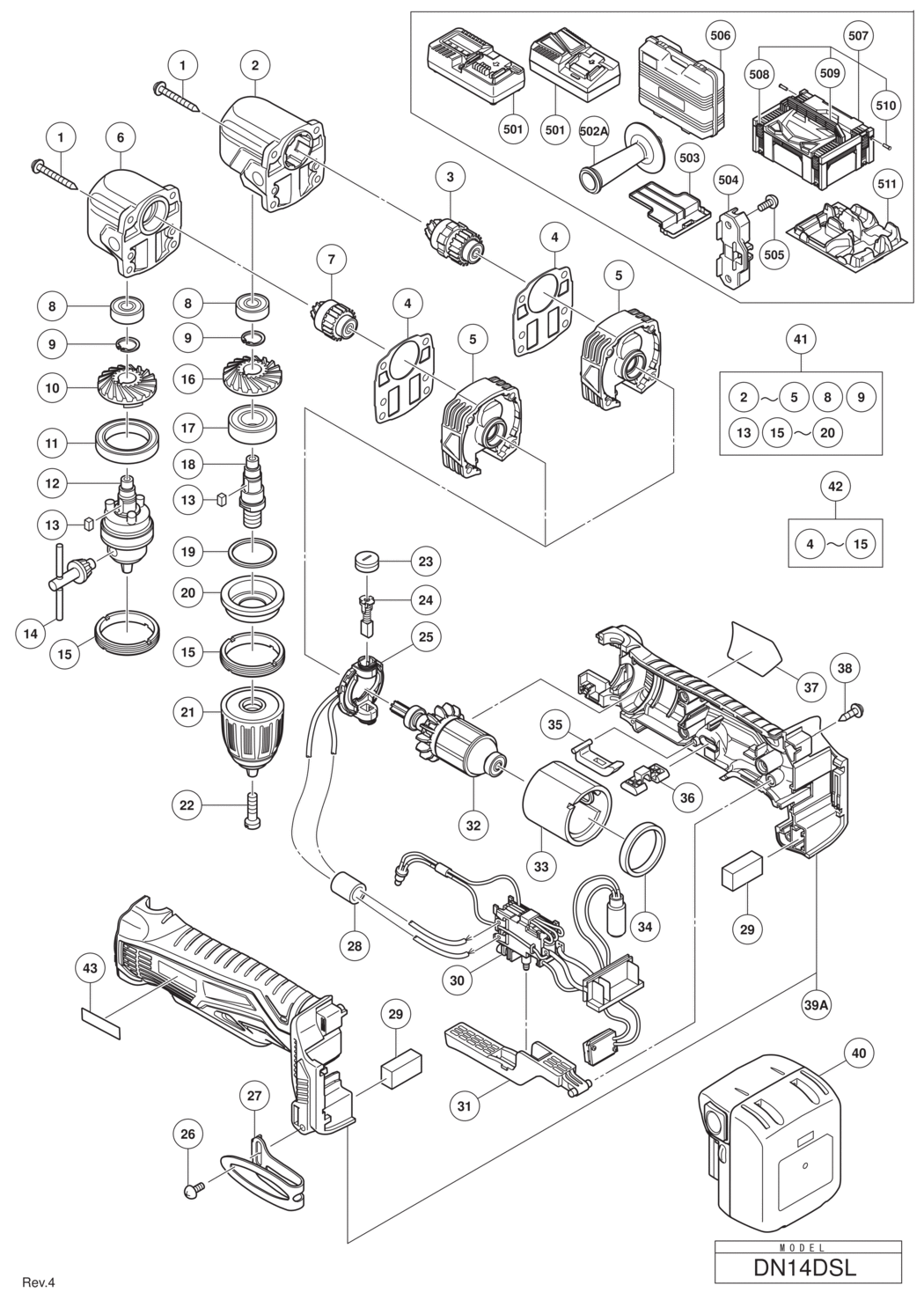

An exploded diagram and spare parts listing for the Hitachi / Hikoki DN14DSL Cordless Angle Drill

	Ex VAT	Inc VAT
1 - TAPPING SCREW (W/FLANGE) D4X40 (BLACK) HIT-306664.A0 306664	-
2 - GEAR CASE (A) FOR KEYLESS CHUCK HIT-337261.A0 337261	-
3 - BEVEL GEAR (C) SET FOR KEYLESS CHUCK HIT-337429.A0 337429	£63.48	£76.18
4 - PACKING HIT-337276.A0 337276	-
5 - INNER COVER HIT-337260.A1 337260	-
6 - GEAR CASE (B) FOR KEYED CHUCK HIT-337262.A0 337262	-
7 - BEVEL GEAR (D) SET FOR KEYED CHUCK HIT-337430.A0 337430	-
8 - BALL BEARING 608VVC2PS2L HIT-608VVM.A120 608VVM	£5.70	£6.84
9 - INVERTED RING HIT-335774.A1 335774	-
10 - BEVEL GEAR (B) FOR KEYED CHUCK HIT-337266.A0 337266	-
11 - BALL BEARING 6806 FOR KEYED CHUCK HIT-337279.A0 337279	-
12 - DRILL CHUCK 10MM FOR KEYED CHUCK HIT-337263.A0 337263	-
13 - KEY HIT-337273.A1 337273	-
14 - CHUCK HANDLE FOR KEYED CHUCK HIT-337264.A0 337264	-
15 - RING SCREW HIT-337275.A1 337275	-
16 - BEVEL GEAR (A) FOR KEYLESS CHUCK HIT-337265.A0 337265	£10.52	£12.62
17 - BALL BEARING 6002 FOR KEYLESS CHUCK HIT-337278.A1 337278	-
18 - SPINDLE FOR KEYLESS CHUCK HIT-337272.A0 337272	-
19 - RUBBER RING FOR KEYLESS CHUCK HIT-337431.A0 337431	-
20 - BB COVER FOR KEYLESS CHUCK HIT-337274.A0 337274	-
21 - DRILL CHUCK 10VLRJ-N (W/O CHUCK WRENCH) FOR KEYLESS CHUCK HIT-337118.A0 337118	£19.68	£23.62
22 - SPECIAL SCREW (LEFT HAND) (B) M6X23 FOR KEYLESS CHUCK HIT-324503.A1 324503	£1.67	£2.00
23 - BRUSH CAP HIT-319918.A4 319918	£4.26	£5.11
24 - CARBON BRUSH 5X6X11.5 (1 PAIR) HIT-999054.A0 999054	£9.48	£11.38
25 - BRUSH BLOCK HIT-337280.A0 337280	£8.37	£10.04
26 - TRUSS HD. SCREW M4 (BLACK) HIT-327001.A33 327001	£2.71	£3.25
27 - HOOK HIT-332824.A4 332824	£7.12	£8.54
28 - FERRITE CORE EXCEPT FOR CHN HIT-334443.A3 334443	£3.66	£4.39
29 - PACKING HIT-328644.A5 328644	£1.67	£2.00
30 - SWITCH TERMINAL SET HIT-337283.A0 337283	-
31 - TRIGGER HIT-337286.A0 337286	-
32 - ARMATURE AND PINION SET DC 14.4V HIT-360979.A0 360979	£39.65	£47.58
33 - MAGNET (N) SET HIT-337433.A0 337433	-
34 - SIDE YOKE HIT-337432.A1 337432	-
35 - TRIGGER LINK HIT-337285.A1 337285	£1.67	£2.00
36 - PUSHING BUTTON HIT-337284.A0 337284	-
37 - NAME PLATE HIT-000000.A1227 000000	-
38 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK) HIT-313687.A93 313687	£1.67	£2.00
39A - HOUSING (A).(B) SET HIT-337428.A0 337428	-
*40 - BATTERY BSL 1415X (EUROPE) INCLUD.503 HIT-330558.A0 330558	£104.07	£124.88
*40 - BATTERY BSL 1425 (EUROPE AUS NZL) INCLUD.503 HIT-335784.A0 335784	-
*40 - BATTERY BSL 1430 (EUROPE AUS NZL) INCLUD.503 HIT-329083.A13 329083	£109.82	£131.78
*40 - BATTERY BSL 1430 (CHN) INCLUD.503 HIT-330756.A0 330756	-
*40 - BATTERY BSL 1450 (EUROPE AUS NZL) INCLUD.503 HIT-335786.A0 335786	-
*40 - BATTERY BSL 1450 (EUROPE AUS NZL) INCLUD.503 FOR BEL HIT-335786.A1 335786	-
*41 - GEAR BOX ASS'Y INCLUD.2-5 HIT-337289.A0 337289	£133.99	£160.79
42 - GEAR BOX ASS'Y INCLUD.4-15 FOR KEYED CHUCK HIT-337291.A0 337291	-
43 - BRAND LABEL HIT-000000.A1228 000000	-
501 - CHARGER (MODEL UC 18YKSL) HIT-000000.A1230 000000	-
501 - CHARGER (MODEL UC 18YFSL) HIT-000000.A1231 000000	-
502A - SIDE HANDLE HIT-711283.A11 711283	£7.02	£8.42
503 - BATTERY COVER EXCEPT FOR CHN HIT-329897.A82 329897	£1.67	£2.00
504 - CHUCK HANDLE HOLDER FOR KEYED CHUCK HIT-337287.A0 337287	-
505 - TRUSS HD. SCREW M4 (BLACK) FOR KEYED CHUCK HIT-327001.A34 327001	£2.71	£3.25
506 - CASE EXCEPT FOR FRG HIT-337290.A0 337290	-
507 - CASE ASS'Y (STACKABLE 2) INCLUD.508-510 FOR FRG HIT-336471.A37 336471	-
508 - LATCH FOR FRG HIT-336472.A0 336472	£1.67	£2.00
509 - HANDLE FOR FRG HIT-336473.A74 336473	£6.43	£7.72
510 - HINGE FOR FRG HIT-336474.A0 336474	£1.67	£2.00
511 - INNER TRAY FOR FRG HIT-337288.A0 337288	-
601 - - DRIVER BIT (A) 3MMX50L HIT-955656.A2 955656	-
602 - - DRIVER BIT (A) 3MMX70L HIT-955657.A12 955657	-
603 - - DRIVER BIT (A) 4MMX50L HIT-955658.A2 955658	£5.98	£7.18
604 - - DRIVER BIT (A) 4MMX70L HIT-955659.A12 955659	-
605 - - DRIVER BIT (A) 6MMX50L HIT-955673.A2 955673	£2.69	£3.23
606 - - DRIVER BIT (A) 6MMX70L HIT-955674.A12 955674	-
607 - + DRIVER BIT (A) NO.2 45L HIT-983005.A0 983005	£4.96	£5.95
608 - + DRIVER BIT (A) NO.3 45L HIT-983010.A0 983010	-
609 - + DRIVER BIT NO.1 65L HIT-983004.A22 983004	-
610 - + DRIVER BIT NO.2 65L HIT-983006.A16 983006	-
611 - + DRIVER BIT NO.3 65L HIT-983011.A5 983011	-
