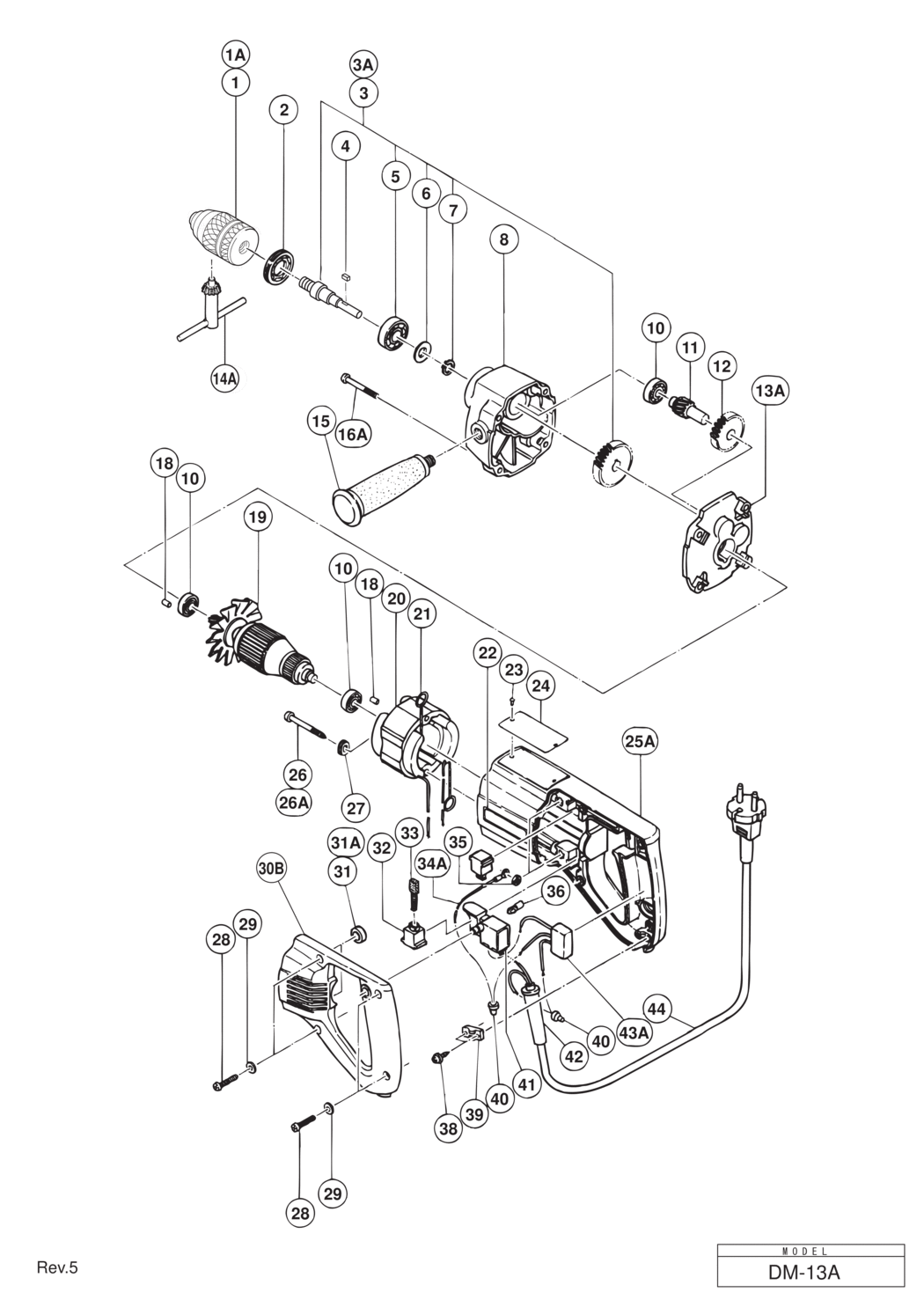

1 - DRILL CHUCK 13EL INCLUD.14 TILL 12.2006
HIT-321810.A0
321810
|
£78.72
|
£94.47
|
|
|
1A - DRILL CHUCK 13VLD-D SINCE 1.2007
HIT-321813.A0
321813
|
-
|
|
|
|
2 - BEARING CAP
HIT-930214.A1
930214
|
-
|
|
|
|
3 - SPINDLE AND GEAR SET INCLUD.5-7 TILL 12.2006
HIT-960355.A0
960355
|
-
|
|
|
|
3A - SPINDLE AND GEAR SET INCLUD.5-7 SINCE 1.2007
HIT-960380.A1
960380
|
-
|
|
|
|
4 - FEATHER KEY 3X3X8 TILL 7.1984
HIT-944109.A23
944109
|
£3.28
|
£3.93
|
|
|
5 - BALL BEARING 6201VV
HIT-6201VV.A17
6201VV
|
£8.30
|
£9.96
|
|
|
6 - WASHER
HIT-930334.A2
930334
|
£1.67
|
£2.00
|
|
|
7 - RETAINING RING FOR D12 SHAFT (10 PCS.)
HIT-939542.A90
939542
|
£2.98
|
£3.57
|
|
|
8 - GEAR COVER
HIT-980400.A2
980400
|
-
|
|
|
|
10 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A45
608VVM
|
£5.70
|
£6.84
|
|
|
11 - SECOND PINION
HIT-930850.A0
930850
|
-
|
|
|
|
12 - FIRST GEAR
HIT-930368.A1
930368
|
-
|
|
|
|
13A - INNER COVER
HIT-980403.A1
980403
|
-
|
|
|
|
14A - CHUCK HANDLE SET (13MM CHUCK)
HIT-321869.A0
321869
|
-
|
|
|
|
15 - SIDE HANDLE
HIT-961073.A1
961073
|
-
|
|
|
|
16A - TAPPING SCREW D5X40
HIT-971303.A0
971303
|
£1.67
|
£2.00
|
|
|
17 - SPRING WASHER M5 (10 PCS.) TILL 7.1987
HIT-949454.A73
949454
|
£1.67
|
£2.00
|
|
|
18 - BEARING LOCK TILL 1.1987
HIT-931701.A39
931701
|
£1.67
|
£2.00
|
|
|
19 - ARMATURE 110V-115V
HIT-930424C.A0
930424C
|
-
|
|
|
|
19 - ARMATURE 220V-230V
HIT-930424E.A0
930424E
|
-
|
|
|
|
19 - ARMATURE 240V
HIT-930424F.A0
930424F
|
-
|
|
|
|
20 - STATOR ASS'Y 110V-115V INCLUD.21
HIT-930422C.A0
930422C
|
-
|
|
|
|
20 - STATOR ASS'Y 220V-230V INCLUD.21
HIT-930422E.A0
930422E
|
-
|
|
|
|
20 - STATOR ASS'Y 240V INCLUD.21
HIT-930422F.A0
930422F
|
-
|
|
|
|
20 - STATOR ASS'Y 220V-230V INCLUD.21 FOR EUROPE
HIT-930422L.A0
930422L
|
-
|
|
|
|
21 - BRUSH TERMINAL
HIT-930843.A0
930843
|
-
|
|
|
|
22 - BRAND LABEL
HIT-957561.A13
957561
|
-
|
|
|
|
23 - RIVET D2.5X2.8
HIT-932642.A1
932642
|
-
|
|
|
|
24 - NAME PLATE
HIT-000000.A3934
000000
|
-
|
|
|
|
25A - HOUSING ASS'Y INCLUD.16
HIT-930420.A0
930420
|
-
|
|
|
|
26 - MACHINE SCREW M5X50 (10 PCS.) TILL 7.1987
HIT-949250.A2
949250
|
-
|
|
|
|
26A - TAPPING SCREW D5X45 SINCE 8.1987
HIT-955912.A0
955912
|
-
|
|
|
|
27 - EARTH WASHER D5
HIT-955906.A0
955906
|
-
|
|
|
|
28 - TAPPING SCREW D4X20
HIT-956384.A0
956384
|
£1.67
|
£2.00
|
|
|
29 - SPRING WASHER M4 (10 PCS.)
HIT-949453.A43
949453
|
£1.67
|
£2.00
|
|
|
30B - HANDLE COVER INCLUD.31A
HIT-308533.A0
308533
|
-
|
|
|
|
31 - RUBBER BUSHING TILL 5.1987
HIT-930426.A0
930426
|
-
|
|
|
|
31A - PUSHING HOLDER
HIT-940811.A0
940811
|
-
|
|
|
|
32 - BRUSH HOLDER
HIT-930435.A0
930435
|
-
|
|
|
|
33 - CARBON BRUSH (1 PAIR)
HIT-999041.A18
999041
|
£5.54
|
£6.65
|
|
|
34A - INTERNAL WIRE
HIT-931911.A0
931911
|
-
|
|
|
|
35 - NUT M5 (10 PCS.) TILL 7.1987
HIT-949555.A17
949555
|
£1.67
|
£2.00
|
|
|
36 - TERMINAL (A) M3.5 (10 PCS.)
HIT-960356.A0
960356
|
£3.64
|
£4.37
|
|
|
36 - TERMINAL
HIT-980063.A90
980063
|
£1.67
|
£2.00
|
|
|
38 - TAPPING SCREW (W/WASHER) D4X16
HIT-930446.A0
930446
|
£1.67
|
£2.00
|
|
|
39 - CORD CLIP
HIT-937631.A150
937631
|
£1.67
|
£2.00
|
|
|
40 - CONNECTOR 50091 (10 PCS.)
HIT-959140.A91
959140
|
£4.98
|
£5.97
|
|
|
41 - SWITCH (C) (2P SCREW TYPE) W/LOCK
HIT-941627F.A0
941627F
|
-
|
|
|
|
41 - SWITCH (A) (1P SCREW TYPE) W/LOCK
HIT-957747.A2
957747
|
£14.68
|
£17.61
|
|
|
42 - CORD ARMOR D10.2
HIT-930026.A4
930026
|
£3.97
|
£4.76
|
|
|
42 - CORD ARMOR D8.2
HIT-930487.A2
930487
|
£3.85
|
£4.62
|
|
|
43A - NOISE SUPPRESSOR
HIT-994273.A51
994273
|
£7.30
|
£8.76
|
|
|
44 - CORD FOR ASIA
HIT-500201Z.A18
500201Z
|
-
|
|
|
|
44 - CORD FOR INA
HIT-500234Z.A29
500234Z
|
-
|
|
|
