Hitachi / Hikoki DH52MEY Rotary Hammer Spare Parts

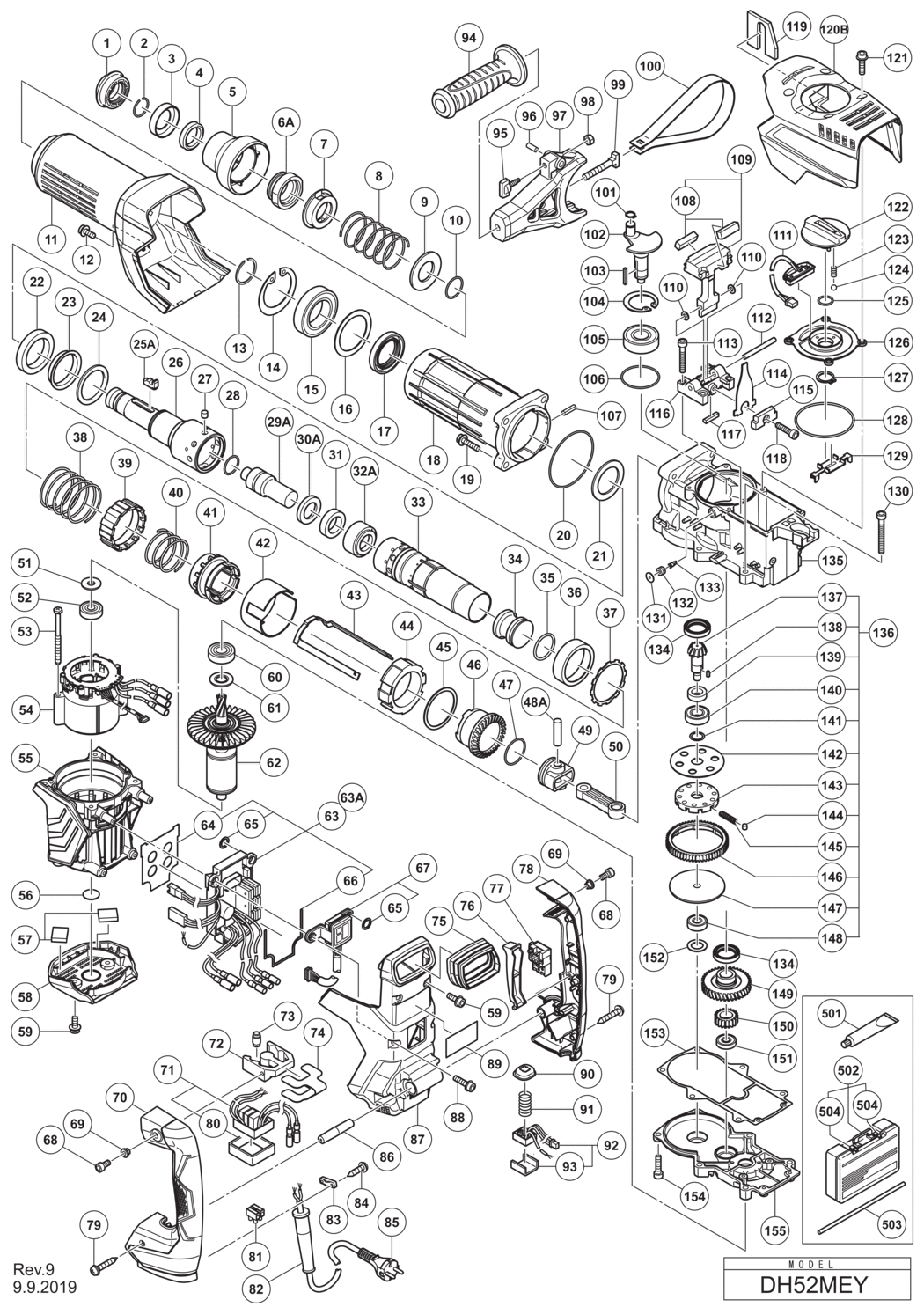

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH52MEY Rotary Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-337562.A9 337562	£4.81	£5.77
2 - STOPPER RING HIT-318590.A6 318590	£1.67	£2.00
3 - RETAINER WASHER HIT-338155.A2 338155	£8.37	£10.04
4 - RETAINER DAMPER (A) HIT-339053.A5 339053	£15.70	£18.84
5 - GRIP HIT-338154.A3 338154	£3.02	£3.63
6A - BIT LOCK HOLDER HIT-370669.A2 370669	-
7 - THRUST PLATE HIT-339051.A1 339051	£12.36	£14.83
8 - RETAINER SPRING HIT-339052.A2 339052	£3.29	£3.95
9 - SPRING HOLDER (A) HIT-337557.A3 337557	-
10 - O-RING (S-26) HIT-872470.A1 872470	£1.67	£2.00
11 - CYLINDER CASE COVER HIT-338198.A2 338198	-
12 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A8 998471	£1.67	£2.00
13 - RETAINING RING D40 HIT-318582.A3 318582	£5.73	£6.88
14 - RETAINING RING D68 HIT-338200.A2 338200	-
15 - BALL BEARING 6008DDU HIT-339063.A0 339063	£20.91	£25.09
16 - BEARING WASHER HIT-338201.A1 338201	-
17 - OIL SEAL (NBR710) HIT-318588.A5 318588	£7.62	£9.15
18 - CYLINDER CASE HIT-338199.A1 338199	-
19 - HEX. SOCKET HD. BOLT (W/FLANGE) M8X35 HIT-990083.A1 990083	£1.67	£2.00
20 - O-RING (C) HIT-338222.A1 338222	£1.67	£2.00
21 - RETAINER DAMPER HOLDER HIT-338204.A1 338204	-
22 - RETAINER DAMPER (B) HIT-338203.A2 338203	-
23 - DAMPER SLEEVE HIT-339064.A3 339064	£1.67	£2.00
25A - BIT LOCK HIT-370654.A6 370654	£8.55	£10.26
26 - RETAINER SLEEVE HIT-338205.A2 338205	-
27 - NEEDLE PIN D8 HIT-338210.A2 338210	-
28 - O-RING HIT-986104.A5 986104	£1.67	£2.00
29A - SECOND HAMMER HIT-370657.A1 370657	£28.94	£34.73
30A - DAMPER WASHER HIT-370659.A1 370659	-
31 - DAMPER HIT-328887.A3 328887	£5.23	£6.28
32A - DAMPER HOLDER HIT-370658.A2 370658	-
33 - CYLINDER HIT-338209.A1 338209	-
34 - STRIKER HIT-338214.A1 338214	£17.08	£20.49
35 - O-RING HIT-328880.A8 328880	£7.17	£8.60
36 - SPRING HOLDER (B) HIT-338211.A1 338211	-
37 - LOCK SPRING WASHER HIT-338216.A3 338216	-
38 - LOCK SPRING HIT-338217.A0 338217	-
39 - LOCK SLEEVE HIT-338215.A0 338215	£1.67	£2.00
40 - CLUTCH SPRING HIT-338212.A2 338212	-
41 - CLUTCH HIT-338213.A0 338213	-
42 - SLEEVE HIT-338218.A3 338218	£1.67	£2.00
43 - SLIDER HIT-338235.A2 338235	£5.75	£6.90
44 - METAL (A) HIT-338219.A0 338219	-
45 - METAL WASHER HIT-338220.A1 338220	-
46 - BEVEL GEAR HIT-338221.A0 338221	£19.39	£23.27
47 - O-RING HIT-328880.A9 328880	£7.17	£8.60
48A - PISTON PIN HIT-372216.A1 372216	£3.02	£3.63
49 - PISTON HIT-328877.A5 328877	£9.85	£11.82
50 - CONNECTING ROD HIT-328878.A0 328878	£9.85	£11.82
51 - BEARING WASHER HIT-944954.A8 944954	£1.67	£2.00
52 - BALL BEARING 6201VV HIT-6201VV.A5 6201VV	£8.30	£9.96
53 - HEX. HD. TAPPING SCREW D5X60 HIT-961501.A16 961501	£1.67	£2.00
*54 - STATOR SENSOR PCB SET 100V-127V TILL 12.2014 HIT-340898.A0 340898	-
*54 - STATOR FET PCB SET 100V-127V SINCE 2.2015 HIT-340921.A2 340921	£44.73	£53.68
*54 - STATOR SENSOR PCB SET 220V-240V HIT-340899.A1 340899	£43.83	£52.60
55 - HOUSING HIT-338168.A3 338168	-
56 - DUST SEAL HIT-333225.A3 333225	-
57 - PACKING (B) HIT-339065.A1 339065	-
58 - TAIL COVER HIT-338170.A2 338170	-
59 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X14 HIT-998485.A6 998485	£1.67	£2.00
60 - BALL BEARING 6202DD HIT-6202DD.A7 6202DD	£7.32	£8.78
61 - DUST WASHER (B) HIT-980700.A3 980700	£1.67	£2.00
*62 - ROTOR HIT-360992.A2 360992	£131.37	£157.64
*63 - CONTROLLER ASS'Y 110V-127V INCLUD.64-66 TILL 12.2014 HIT-338188.A1 338188	-
*63 - CONTROLLER ASS'Y 110V-127V INCLUD.64-66 SINCE 2.2015 HIT-339186.A1 339186	£97.27	£116.72
*63 - CONTROLLER ASS'Y 220V-240V INCLUD.64-66 HIT-338189.A0 338189	£98.13	£117.76
64 - RUBBER SHEET (C) HIT-339056.A2 339056	-
65 - RUBBER SHEET (A) HIT-339055.A3 339055	-
66 - RUBBER SHEET (D) HIT-339057.A3 339057	-
67 - PANEL ASS'Y INCLUD.65 HIT-338184.A3 338184	£20.11	£24.13
68 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A20 991690	£1.67	£2.00
69 - DISTANCE PIECE (B) HIT-991711.A2 991711	£1.67	£2.00
70 - HANDLE (A) HIT-338173.A1 338173	£9.10	£10.92
*71 - FILTER PCB ASS'Y 100V-127V INCLUD.80 HIT-338180.A1 338180	£15.78	£18.93
*71 - FILTER PCB ASS'Y 220V-240V INCLUD.80 HIT-338181.A4 338181	£15.78	£18.93
72 - TRANSATORY UNIT HIT-310123.A8 310123	£11.82	£14.18
73 - HANDLE DAMPER HIT-310124.A14 310124	£6.18	£7.41
74 - HANDLE DAMPER HOLDER HIT-338162.A3 338162	£1.67	£2.00
75 - BELLOWS HIT-338176.A5 338176	£8.19	£9.83
76 - TRIGGER HIT-337588.A3 337588	£1.67	£2.00
77 - SWITCH HIT-337587.A8 337587	£15.34	£18.41
78 - HANDLE (B) HIT-338174.A3 338174	£9.10	£10.92
79 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A3 307028	£1.67	£2.00
80 - FILTER PACKING HIT-339058.A5 339058	£1.67	£2.00
81 - PILLAR TERMINAL (A) HIT-958308Z.A29 958308Z	£7.53	£9.04
*82 - CORD ARMOR D10.7 HIT-940778.A33 940778	£3.15	£3.78
*82 - CORD ARMOR D11.2 HIT-331335.A8 331335	£1.67	£2.00
83 - CORD CLIP HIT-960266.A57 960266	£1.67	£2.00
84 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A32 984750	£1.67	£2.00
*85 - CORD (CORD ARMOR D11.2) FOR GBR(110V) HIT-500483Z.A1 500483Z	-
*85 - CORD (CORD ARMOR D10.7) FOR GBR(230V) HIT-337366.A6 337366	-
86 - HANDLE SHAFT HIT-338175.A0 338175	-
87 - BACK COVER HIT-338197.A2 338197	-
88 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A51 994192	£1.67	£2.00
89 - NAME PLATE HIT-000000.A4679 000000	-
90 - ON LOCK BUTTON HIT-338171.A3 338171	£1.67	£2.00
91 - ON LOCK SPRING HIT-338172.A0 338172	£1.67	£2.00
92 - ON LOCK PCB (A) ASS'Y INCLUD.93 HIT-338185.A3 338185	£10.86	£13.03
93 - PACKING (A) HIT-339059.A0 339059	-
94 - SIDE HANDLE HIT-330209.A9 330209	£17.51	£21.01
95 - WING BOLT HIT-337577.A3 337577	£1.67	£2.00
96 - ROLL PIN D2X8 (10 PCS.) HIT-949859.A7 949859	£1.67	£2.00
97 - MOUNT HIT-338239.A0 338239	£7.48	£8.97
98 - NUT M6 (10 PCS.) HIT-949556.A5 949556	£1.67	£2.00
99 - HANDLE BOLT HIT-333227.A4 333227	£17.01	£20.41
100 - BAND HIT-338238.A1 338238	£9.68	£11.62
101 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A68 939542	£2.98	£3.57
102 - CRANK SHAFT HIT-338224.A0 338224	£29.00	£34.80
103 - FEATHER KEY 3X3X25 HIT-328869.A5 328869	-
104 - RETAINING RING FOR D47 HOLE HIT-948227.A4 948227	£1.67	£2.00
105 - BALL BEARING 6204DD HIT-6204DD.A7 6204DD	£11.46	£13.75
106 - O-RING (F) HIT-338227.A3 338227	-
107 - ROLL PIN D2X8 (10 PCS.) HIT-949859.A8 949859	£1.67	£2.00
108 - WEIGHT DAMPER HIT-339112.A0 339112	-
109 - WEIGHT ASS'Y INCLUD.108 HIT-339067.A0 339067	-
110 - WASHER HIT-338191.A0 338191	-
111 - ON LOCK PCB (B) HIT-338179.A3 338179	£11.77	£14.12
112 - WEIGHT PIN HIT-338192.A2 338192	-
113 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-306061.A0 306061	-
114 - LEAF SPRING (B) HIT-338187.A0 338187	-
115 - SPRING HOLDER HIT-328906.A3 328906	-
116 - BASE HIT-338190.A2 338190	-
117 - WEIGHT BUMPER HIT-338194.A2 338194	-
118 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A23 990079	£1.67	£2.00
119 - FELT PACKING (D) HIT-339050.A3 339050	-
*120B - CRANK COVER HIT-338237.A0 338237	-
121 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X18 HIT-338177.A5 338177	-
122 - CHANGE LEVER HIT-338159.A3 338159	£3.48	£4.17
123 - LEVER SPRING HIT-337567.A6 337567	£1.67	£2.00
124 - STEEL BALL D4.76 (10 PCS.) HIT-959149.A2 959149	£1.67	£2.00
125 - O-RING (S-18) HIT-878885.A9 878885	£1.67	£2.00
126 - LEVER SHAFT HOLDER HIT-338236.A1 338236	-
127 - RETAINING RING FOR D20 SHAFT (10 PCS.) HIT-939547.A7 939547	£4.61	£5.53
128 - O-RING (A) HIT-338160.A0 338160	£1.67	£2.00
129 - CHANGE PLATE HIT-338234.A0 338234	£1.67	£2.00
130 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A21 986940	£1.67	£2.00
131 - FELT PACKING (C) HIT-339062.A0 339062	-
132 - CAP SCREW HIT-339061.A1 339061	-
133 - VALVE HIT-995396.A13 995396	-
134 - OIL SEAL HIT-328867.A6 328867	£6.18	£7.41
135 - CRANK CASE HIT-338223.A1 338223	-
136 - SLIP CLUTCH ASS'Y INCLUD.137-148 HIT-338242.A1 338242	-
137 - BEVEL PINION HIT-338229.A1 338229	-
138 - FEATHER KEY 3X3X8 HIT-944109.A30 944109	£3.28	£3.93
139 - COLLAR HIT-338230.A0 338230	-
140 - BALL BEARING 6202DD HIT-6202DD.A13 6202DD	£7.32	£8.78
141 - WASHER HIT-313058.A5 313058	£1.67	£2.00
142 - WASHER (A) HIT-338231.A1 338231	-
143 - GEAR HOLDER HIT-318554.A3 318554	-
144 - NEEDLE PIN D6X6 HIT-313057.A5 313057	£4.68	£5.62
145 - SPRING (C) HIT-329095.A1 329095	-
146 - SECOND GEAR HIT-338232.A0 338232	-
147 - SPACER HIT-338233.A1 338233	-
148 - BALL BEARING 629VV HIT-629VVM.A3 629VVM	£6.00	£7.20
149 - FIRST GEAR HIT-338225.A3 338225	-
150 - SECOND PINION HIT-338226.A0 338226	-
151 - BALL BEARING 629VV HIT-629VVM.A4 629VVM	£6.00	£7.20
152 - BEARING WASHER (C) HIT-944525.A3 944525	-
153 - SEAL PACKING HIT-338240.A1 338240	-
154 - SEAL LOCK HEX. SOCKET HD. BOLT M6X22 HIT-321313.A11 321313	£1.67	£2.00
155 - GEAR COVER HIT-338241.A0 338241	-
501 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A2 981840	£8.22	£9.87
502 - CASE (PLASTIC) INLCUD.504 HIT-339066.A1 339066	-
503 - STOPPER ROD HIT-971786.A2 971786	£6.94	£8.33
504 - BUCKLE HIT-372113.A7 372113	-
601 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A30 308471	£16.21	£19.45
602 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A51 980927	£55.68	£66.81
603 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A14 320859	£10.35	£12.42
604 - SYRINGE (BELLOWS TYPE) HIT-318085.A3 318085	-
605 - DRILL BIT (SDS MAX) D16X340 HIT-313448.A5 313448	-
606 - DRILL BIT (SDS MAX) D16X540 HIT-313456.A5 313456	-
607 - DRILL BIT (SDS MAX) D19X340 HIT-313449.A4 313449	-
608 - DRILL BIT (SDS MAX) D19X540 HIT-313457.A4 313457	-
609 - DRILL BIT (SDS MAX) D22X320 HIT-313450.A5 313450	-
610 - DRILL BIT (SDS MAX) D22X520 HIT-313458.A5 313458	-
611 - DRILL BIT (SDS MAX) D25X320 HIT-313451.A4 313451	-
612 - DRILL BIT (SDS MAX) D25X520 HIT-313459.A4 313459	-
613 - DRILL BIT (SDS MAX) D28X370 HIT-313452.A5 313452	-
614 - DRILL BIT (SDS MAX) D28X570 HIT-313460.A5 313460	-
615 - DRILL BIT (SDS MAX) D32X370 HIT-313453.A4 313453	-
616 - DRILL BIT (SDS MAX) D32X570 HIT-313461.A4 313461	-
618 - DRILL BIT (SDS MAX) D38X570 HIT-313462.A5 313462	-
620 - DRILL BIT (SDS MAX) D40X570 HIT-313463.A4 313463	-
625 - COTTER HIT-944477.A42 944477	£5.17	£6.20
626 - ADAPTER (SDS MAX) FOR SDS PLUS SHANK BIT HIT-313465.A5 313465	-
627 - CORE BIT 25MM HIT-955994.A2 955994	-
628 - CORE BIT 29MM HIT-955995.A10 955995	-
629 - CORE BIT 32MM INCLUD.630 HIT-955996.A2 955996	-
630 - GUIDE PLATE (FOR CORE BIT 32MM) HIT-955997.A9 955997	£1.67	£2.00
631 - CORE BIT 35MM INCLUD.632 HIT-955998.A2 955998	£111.98	£134.38
632 - GUIDE PLATE (FOR CORE BIT 35MM) HIT-955999.A9 955999	£3.51	£4.21
633 - CORE BIT 38MM INCLUD.634 HIT-956000.A2 956000	-
634 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-956001.A9 956001	£6.19	£7.43
635 - CORE BIT 45MM INCLUD.636 HIT-955154.A4 955154	£126.14	£151.37
636 - GUIDE PLATE (FOR CORE BIT 45MM) HIT-955166.A6 955166	-
637 - CORE BIT 54MM INCLUD.638 HIT-955155.A8 955155	-
638 - GUIDE PLATE (FOR CORE BIT 54MM) HIT-955167.A5 955167	£6.19	£7.43
639 - CORE BIT 64MM INCLUD.640 HIT-956002.A2 956002	£182.83	£219.40
640 - GUIDE PLATE (FOR CORE BIT 64MM) HIT-956003.A9 956003	-
641 - CORE BIT 79MM INCLUD.642 HIT-955157.A4 955157	-
642 - GUIDE PLATE (FOR CORE BIT 79MM) HIT-955168.A6 955168	£10.43	£12.52
643 - CORE BIT 94MM INCLUD.644 HIT-956004.A2 956004	-
644 - GUIDE PLATE (FOR CORE BIT 94MM) HIT-956005.A9 956005	£7.75	£9.30
645 - CORE BIT 105MM INCLUD.646 HIT-955159.A8 955159	£375.58	£450.70
646 - GUIDE PLATE (FOR CORE BIT 105MM) HIT-955169.A5 955169	£8.24	£9.89
647 - CORE BIT 120MM INCLUD.648 HIT-956006.A0 956006	-
648 - GUIDE PLATE (FOR CORE BIT 120MM) HIT-956007.A7 956007	-
649 - CORE BIT 150MM INCLUD.650 HIT-956728.A1 956728	-
650 - GUIDE PLATE (FOR CORE BIT 150MM) HIT-956743.A2 956743	-
651 - CORE BIT SHANK (B) SDS MAX D25-35 HIT-313466.A4 313466	-
652 - CORE BIT SHANK (A) SDS MAX D38-150 HIT-313467.A5 313467	-
653 - CENTER PIN (B) 147L FOR CORE BIT D32-35 HIT-956009.A8 956009	£40.26	£48.31
654 - CENTER PIN (A) 133L FOR CORE BIT D38-150 HIT-955165.A6 955165	-
655 - DRILL CHUCK 13VLD-D HIT-321813.A25 321813	-
656 - CHUCK ADAPTER (SDS MAX) HIT-313468.A4 313468	-
657 - CHUCK HANDLE HIT-303334.A25 303334	-
658 - CHUCK WRENCH 10G HIT-930515.A21 930515	£6.38	£7.66
659 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 12.7MM HIT-313469.A4 313469	£38.53	£46.24
660 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 19MM HIT-313470.A5 313470	£44.76	£53.71
661 - BULL POINT (SDS MAX) 280L HIT-313471.A8 313471	-
662 - BULL POINT (SDS MAX) 400L HIT-313472.A14 313472	-
663 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A8 313473	-
664 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A13 313474	-
665 - CUTTER (SDS MAX) W50X400L HIT-313475.A8 313475	-
666 - SCOOP (SDS MAX) 400L HIT-313476.A13 313476	-
667 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A13 313478	-
668 - BUSHING TOOL (SDS MAX) HIT-313477.A7 313477	-
669 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A8 313479	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki DH52MEY Rotary Hammer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
