Hitachi / Hikoki DH50MRY Hammer Drill Spare Parts

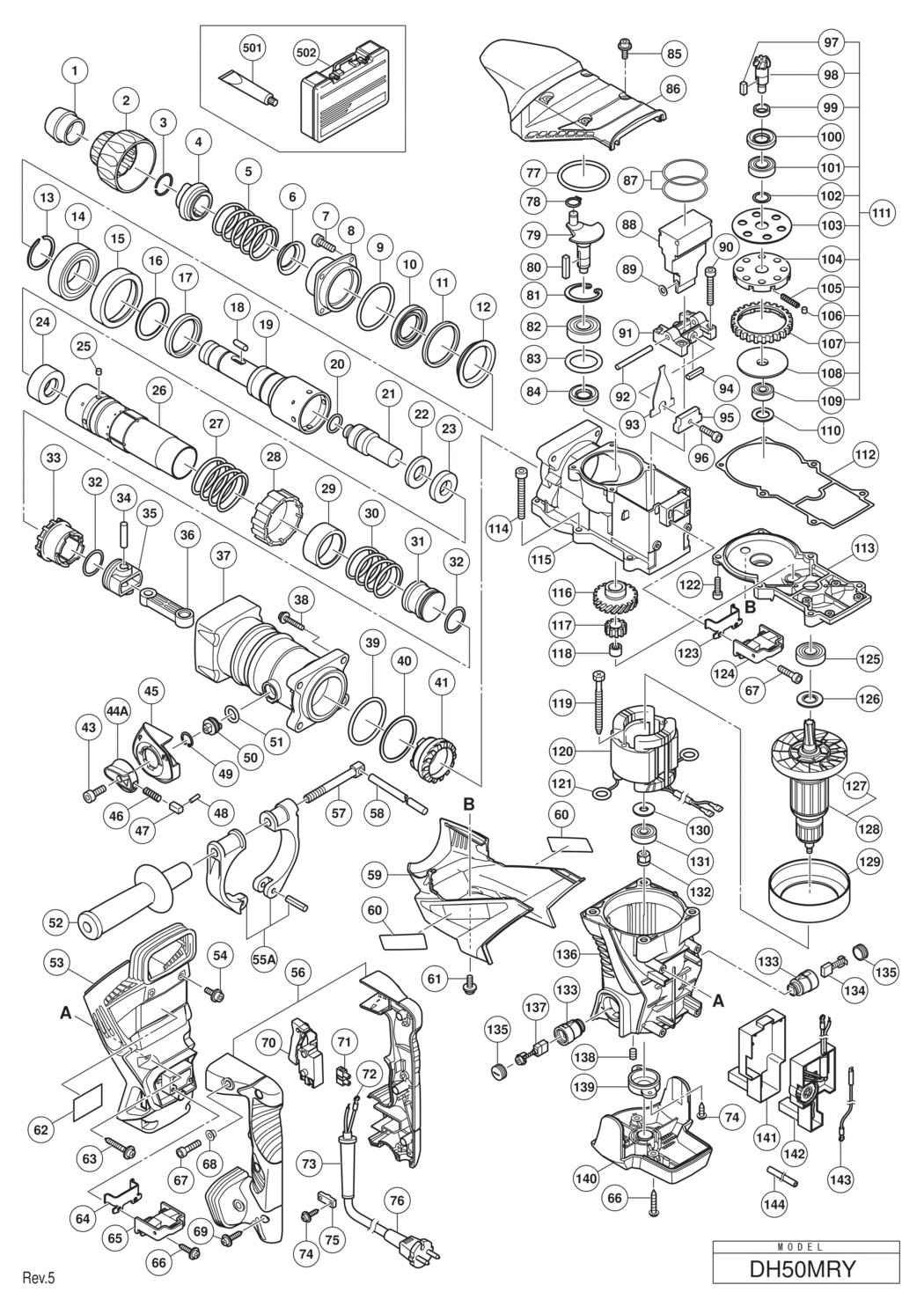

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH50MRY Hammer Drill

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-313415.A1 313415	£4.45	£5.34
2 - GRIP HIT-328900.A0 328900	£4.72	£5.66
3 - STOPPER RING HIT-318590.A0 318590	£1.67	£2.00
4 - NEEDLE HOLDER HIT-328899.A1 328899	£21.50	£25.80
5 - RETAINER SPRING HIT-313419.A0 313419	£3.51	£4.21
6 - SPRING HOLDER HIT-318589.A1 318589	£5.73	£6.88
7 - SEAL LOCK HEX. SOCKET HD. BOLT M8X25 HIT-985479.A3 985479	£3.15	£3.78
8 - FRONT COVER HIT-318587.A1 318587	£24.18	£29.01
9 - O-RING (S-70) HIT-878863.A10 878863	£1.67	£2.00
10 - OIL SEAL (NBR710) HIT-318588.A0 318588	£7.62	£9.15
11 - URETHANE RING HIT-318586.A0 318586	£7.62	£9.15
12 - URETHANE RING HOLDER HIT-318585.A1 318585	£3.82	£4.58
13 - RETAINING RING D40 HIT-318582.A0 318582	£5.73	£6.88
14 - BALL BEARING 6008CM HIT-6008CM.A1 6008CM	£20.15	£24.18
15 - SLEEVE HIT-318581.A1 318581	£27.88	£33.45
16 - THRUST WASHER (A) HIT-328884.A0 328884	£4.68	£5.62
17 - RETAINER DAMPER HIT-328883.A1 328883	£4.68	£5.62
18 - NEEDLE ROLLER D8X20 HIT-313421.A6 313421	£6.32	£7.59
19 - RETAINER SLEEVE HIT-328882.A0 328882	-
20 - O-RING HIT-986104.A17 986104	£1.67	£2.00
21 - SECOND HAMMER HIT-328885.A1 328885	£28.26	£33.91
22 - DAMPER WASHER HIT-328886.A0 328886	£11.61	£13.93
23 - DAMPER HIT-328887.A1 328887	£5.23	£6.28
24 - DAMPER HOLDER HIT-328888.A0 328888	£14.60	£17.52
25 - NEEDLE PIN D8X6 HIT-328891.A1 328891	£1.67	£2.00
26 - CYLINDER HIT-328889.A1 328889	£129.85	£155.82
27 - LOCK SPRING HIT-328895.A1 328895	£7.02	£8.42
28 - LOCK SLEEVE HIT-318562.A1 318562	£7.62	£9.15
29 - SPRING HOLDER (B) HIT-329330.A1 329330	£38.78	£46.54
30 - CLUTCH SPRING HIT-328893.A1 328893	£4.12	£4.94
31 - STRIKER HIT-328890.A1 328890	£25.76	£30.91
32 - O-RING HIT-328880.A0 328880	£7.17	£8.60
33 - CLUTCH HIT-328894.A0 328894	£68.18	£81.81
34 - PISTON PIN HIT-328879.A1 328879	£6.18	£7.41
35 - PISTON HIT-328877.A1 328877	£9.85	£11.82
36 - CONNECTING ROD HIT-328878.A4 328878	£9.85	£11.82
37 - CYLINDER CASE HIT-328896.A1 328896	£61.71	£74.05
38 - HEX. SOCKET HD. BOLT (W/FLANGE) M8X35 HIT-990083.A6 990083	£1.67	£2.00
39 - O-RING (D) HIT-985779.A0 985779	£1.67	£2.00
40 - THRUST WASHER (B) HIT-328897.A0 328897	£7.48	£8.97
41 - BEVEL GEAR HIT-328898.A1 328898	£66.92	£80.30
43 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A18 983162	£1.67	£2.00
44A - CHANGE LEVER HIT-331545.A7 331545	£4.86	£5.83
45 - LEVER HOLDER HIT-328901.A1 328901	£5.23	£6.28
46 - LEVER SPRING HIT-321310.A5 321310	£1.67	£2.00
47 - PUSHING BUTTON HIT-321311.A0 321311	£1.67	£2.00
48 - PIN D2X10 HIT-321312.A5 321312	£1.67	£2.00
49 - RETAINING RING FOR D20 HOLE HIT-311229.A0 311229	£1.67	£2.00
50 - LEVER SHAFT HIT-324934.A1 324934	£24.62	£29.55
51 - O-RING (P-16) HIT-873095.A1 873095	£1.67	£2.00
52 - SIDE HANDLE HIT-318574.A1 318574	£27.82	£33.39
53 - BACK COVER HIT-328910.A0 328910	£33.60	£40.32
54 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X14 HIT-998485.A12 998485	£1.67	£2.00
55A - HANDLE HOLDER HIT-331096.A0 331096	£16.66	£19.99
56 - HANDLE (A).(B) SET HIT-328920.A0 328920	£34.28	£41.14
57 - HANDLE BOLT HIT-318576.A0 318576	£10.02	£12.02
58 - STOPPER ROD HIT-971786.A12 971786	£6.94	£8.33
59 - HOOD HIT-328909.A1 328909	£20.05	£24.06
60 - BRAND LABEL HIT-000000.A269 000000	-
61 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A22 998471	£1.67	£2.00
62 - NAME PLATE HIT-000000.A270 000000	-
63 - TAPPING SCREW (W/FLANGE) D5X30 (BLACK) HIT-328707.A4 328707	£1.67	£2.00
64 - GUIDE PLATE HIT-980750.A6 980750	£16.77	£20.12
65 - HANDLE RUBBER HIT-980727.A4 980727	£15.32	£18.38
66 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A9 305558	£1.67	£2.00
67 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A36 990079	£1.67	£2.00
68 - DISTANCE PIECE (B) HIT-991711.A17 991711	£1.67	£2.00
69 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A36 307028	£1.67	£2.00
70 - SWITCH (B) (1P SCREW TYPE) W/O LOCK HIT-990941.A3 990941	£21.08	£25.30
71 - PILLAR TERMINAL HIT-938307.A44 938307	£3.28	£3.93
*72 - TERMINAL HIT-980063.A21 980063	£1.67	£2.00
*72 - TERMINAL M4.0 (10 PCS.) FOR GBR (110V) HIT-930804.A18 930804	£3.64	£4.37
*73 - CORD ARMOR D8.8 HIT-953327.A166 953327	£1.67	£2.00
*73 - CORD ARMOR D10.1 HIT-938051.A39 938051	£1.67	£2.00
74 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A196 984750	£1.67	£2.00
*75 - CORD CLIP HIT-960266.A16 960266	£1.67	£2.00
*76 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A41 500446Z	£33.79	£40.55
*76 - CORD (CORD ARMOR D10.1) FOR GBR (110V) HIT-500467Z.A9 500467Z	£63.83	£76.60
77 - CYLINDER O-RING (I.D 69.3) HIT-877314.A5 877314	£1.67	£2.00
78 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A21 939542	£2.98	£3.57
79 - CRANK SHAFT HIT-328868.A0 328868	-
80 - FEATHER KEY 3X3X25 HIT-328869.A1 328869	-
81 - RETAINING RING FOR D47 HOLE HIT-948227.A6 948227	£1.67	£2.00
82 - BALL BEARING 6204DD HIT-6204DD.A8 6204DD	£11.46	£13.75
83 - O-RING (B) HIT-985765.A3 985765	£1.67	£2.00
84 - OIL SEAL HIT-328867.A3 328867	£6.18	£7.41
85 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A10 994192	£1.67	£2.00
86 - CRANK COVER HIT-328908.A0 328908	£19.22	£23.07
87 - CYLINDER O-RING (B) HIT-878713.A1 878713	£2.99	£3.59
88 - WEIGHT HIT-328902.A0 328902	£39.17	£47.00
89 - WASHER HIT-957585.A0 957585	-
90 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-306061.A4 306061	-
91 - BASE HIT-328903.A0 328903	-
92 - WEIGHT PIN HIT-328904.A0 328904	-
93 - LEAF SPRING HIT-328905.A0 328905	-
94 - WEIGHT BUMPER HIT-328907.A0 328907	-
95 - SPRING HOLDER HIT-328906.A0 328906	-
96 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A37 990079	£1.67	£2.00
97 - FEATHER KEY 3X3X8 HIT-944109.A9 944109	£3.28	£3.93
98 - BEVEL PINION HIT-328873.A1 328873	-
99 - COLLAR HIT-328874.A0 328874	-
100 - OIL SEAL HIT-328867.A2 328867	£6.18	£7.41
101 - BALL BEARING 6202DD HIT-6202DD.A21 6202DD	£7.32	£8.78
102 - WASHER HIT-313058.A0 313058	£1.67	£2.00
103 - WASHER (A) HIT-318552.A1 318552	-
104 - GEAR HOLDER HIT-318554.A0 318554	-
105 - SPRING (C) HIT-329095.A3 329095	-
106 - NEEDLE PIN D6X6 HIT-313057.A9 313057	£4.68	£5.62
107 - SECOND GEAR HIT-328875.A1 328875	-
108 - SPACER HIT-328876.A0 328876	-
109 - BALL BEARING 629VV HIT-629VVM.A31 629VVM	£6.00	£7.20
110 - BEARING WASHER (C) HIT-944525.A12 944525	-
111 - SLIP CLUTCH ASS'Y HIT-328872.A0 328872	£154.40	£185.28
112 - SEAL PACKING HIT-328881.A1 328881	£5.17	£6.20
113 - GEAR COVER HIT-328916.A0 328916	-
114 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A1 986940	£1.67	£2.00
115 - CRANK CASE HIT-328866.A0 328866	£81.50	£97.80
116 - FIRST GEAR HIT-328870.A0 328870	£36.89	£44.27
117 - SECOND PINION HIT-328871.A1 328871	£15.04	£18.05
118 - NEEDLE BEARING (M661) HIT-939299.A20 939299	£11.82	£14.18
119 - HEX. HD. TAPPING SCREW D5X50 HIT-953121.A16 953121	-
*120 - STATOR ASS'Y 110V-115V INCLUD.121 HIT-340712C.A0 340712C	£32.69	£39.23
*120 - STATOR ASS'Y 220V-230V INCLUD.121 HIT-340712E.A1 340712E	£83.70	£100.44
121 - BRUSH TERMINAL HIT-958032.A2 958032	£1.67	£2.00
122 - SEAL LOCK HEX. SOCKET HD. BOLT M6X22 HIT-321313.A0 321313	£1.67	£2.00
123 - GUIDE PLATE HIT-980750.A7 980750	£16.77	£20.12
124 - HANDLE RUBBER HIT-980727.A3 980727	£15.32	£18.38
125 - BALL BEARING 6202DD HIT-6202DD.A22 6202DD	£7.32	£8.78
126 - DUST WASHER (B) HIT-980700.A9 980700	£1.67	£2.00
127 - FAN HIT-318918.A1 318918	£3.82	£4.58
*128 - ARMATURE ASS'Y 110V-115V INCLUD.127 HIT-360819C.A0 360819C	£92.75	£111.30
*128 - ARMATURE ASS'Y 220V-230V INCLUD.127 HIT-360819E.A1 360819E	-
129 - FAN GUIDE HIT-328917.A1 328917	-
130 - BEARING WASHER HIT-944954.A4 944954	£1.67	£2.00
131 - BALL BEARING 6201VV HIT-6201VV.A56 6201VV	£8.30	£9.96
132 - MAGNET HIT-301797.A0 301797	£8.28	£9.94
133 - BRUSH HOLDER HIT-980487.A1 980487	£9.03	£10.84
134 - CARBON BRUSH (1 PAIR) HIT-999044.A17 999044	£5.54	£6.65
135 - BRUSH CAP HIT-940540.A0 940540	£1.67	£2.00
136 - HOUSING ASS'Y INCLUD.133 HIT-328915.A1 328915	£57.72	£69.27
137 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999074.A9 999074	£20.63	£24.76
138 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A19 938477	£1.67	£2.00
139 - BEARING HOLDER HIT-328918.A0 328918	-
140 - TAIL COVER HIT-328919.A1 328919	£14.60	£17.52
141 - CASE (B) HIT-328914.A0 328914	-
*142 - CONTROLLER CIRCUIT 100V-115V HIT-328911.A0 328911	£109.64	£131.57
*142 - CONTROLLER CIRCUIT 220V-240V HIT-328913.A1 328913	£106.50	£127.80
*143 - INTERNAL WIRE EXCEPT FOR USA HIT-317113.A0 317113	£4.12	£4.95
144 - VINYL TUBE (I.D.9.5XT0.56X85) HIT-326541.A3 326541	-
501 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A46 981840	£8.22	£9.87
502 - CASE (PLASTIC) HIT-328921.A1 328921	£72.23	£86.68
601 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A32 308471	£16.21	£19.45
602 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A2 980927	£55.68	£66.81
603 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A31 320859	£10.35	£12.42
604 - SYRINGE (BELLOWS TYPE) HIT-318085.A13 318085	-
605 - DRILL BIT (SDS MAX) D16X340 HIT-313448.A2 313448	-
606 - DRILL BIT (SDS MAX) D16X540 HIT-313456.A1 313456	-
607 - DRILL BIT (SDS MAX) D19X340 HIT-313449.A7 313449	-
608 - DRILL BIT (SDS MAX) D19X540 HIT-313457.A8 313457	-
609 - DRILL BIT (SDS MAX) D22X320 HIT-313450.A2 313450	-
610 - DRILL BIT (SDS MAX) D22X520 HIT-313458.A1 313458	-
611 - DRILL BIT (SDS MAX) D25X320 HIT-313451.A7 313451	-
612 - DRILL BIT (SDS MAX) D25X520 HIT-313459.A8 313459	-
613 - DRILL BIT (SDS MAX) D28X370 HIT-313452.A2 313452	-
614 - DRILL BIT (SDS MAX) D28X570 HIT-313460.A1 313460	-
615 - DRILL BIT (SDS MAX) D32X370 HIT-313453.A7 313453	-
616 - DRILL BIT (SDS MAX) D32X570 HIT-313461.A8 313461	-
617 - DRILL BIT (SDS MAX) D38X370 HIT-313454.A2 313454	-
618 - DRILL BIT (SDS MAX) D38X570 HIT-313462.A1 313462	-
620 - DRILL BIT (SDS MAX) D40X570 HIT-313463.A8 313463	-
628 - COTTER HIT-944477.A12 944477	£5.17	£6.20
629 - ADAPTER (SDS MAX) FOR SDS PLUS SHANK BIT HIT-313465.A2 313465	-
630 - CORE BIT 25MM HIT-955994.A11 955994	-
631 - CORE BIT 29MM HIT-955995.A1 955995	-
632 - CORE BIT 32MM INCLUD.633 HIT-955996.A11 955996	-
633 - GUIDE PLATE (FOR CORE BIT 32MM) HIT-955997.A1 955997	£1.67	£2.00
634 - CORE BIT 35MM INCLUD.635 HIT-955998.A11 955998	£111.98	£134.38
635 - GUIDE PLATE (FOR CORE BIT 35MM) HIT-955999.A1 955999	£3.51	£4.21
636 - CORE BIT 38MM INCLUD.637 HIT-956000.A11 956000	-
637 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-956001.A1 956001	£6.19	£7.43
638 - CORE BIT 45MM INCLUD.639 HIT-955154.A10 955154	£126.14	£151.37
639 - GUIDE PLATE (FOR CORE BIT 45MM) HIT-955166.A2 955166	-
640 - CORE BIT 54MM INCLUD.641 HIT-955155.A2 955155	-
641 - GUIDE PLATE (FOR CORE BIT 54MM) HIT-955167.A9 955167	£6.19	£7.43
642 - CORE BIT 64MM INCLUD.643 HIT-956002.A11 956002	£182.83	£219.40
643 - GUIDE PLATE (FOR CORE BIT 64MM) HIT-956003.A1 956003	-
644 - CORE BIT 79MM INCLUD.645 HIT-955157.A10 955157	-
645 - GUIDE PLATE (FOR CORE BIT 79MM) HIT-955168.A2 955168	£10.43	£12.52
646 - CORE BIT 94MM INCLUD.647 HIT-956004.A11 956004	-
647 - GUIDE PLATE (FOR CORE BIT 94MM) HIT-956005.A1 956005	£7.75	£9.30
648 - CORE BIT 105MM INCLUD.649 HIT-955159.A2 955159	£375.58	£450.70
649 - GUIDE PLATE (FOR CORE BIT 105MM) HIT-955169.A9 955169	£8.24	£9.89
650 - CORE BIT 120MM INCLUD.651 HIT-956006.A7 956006	-
651 - GUIDE PLATE (FOR CORE BIT 120MM) HIT-956007.A0 956007	-
652 - CORE BIT 150MM INCLUD.653 HIT-956728.A2 956728	-
653 - GUIDE PLATE (FOR CORE BIT 150MM) HIT-956743.A1 956743	-
654 - CORE BIT SHANK (B) SDS MAX D25-35 HIT-313466.A7 313466	-
655 - CORE BIT SHANK (A) SDS MAX D38-150 HIT-313467.A2 313467	-
656 - CENTER PIN (B) 147L FOR CORE BIT D32-35 HIT-956009.A11 956009	£40.26	£48.31
657 - CENTER PIN (A) 133L FOR CORE BIT D38-150 HIT-955165.A10 955165	-
658 - DRILL CHUCK 13VLD-D HIT-321813.A43 321813	-
659 - CHUCK ADAPTER (SDS MAX) HIT-313468.A7 313468	-
660 - CHUCK HANDLE HIT-303334.A40 303334	-
661 - CHUCK WRENCH 10G HIT-930515.A27 930515	£6.38	£7.66
662 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 12.7MM HIT-313469.A2 313469	£38.53	£46.24
663 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 19MM HIT-313470.A7 313470	£44.76	£53.71
664 - BULL POINT (SDS MAX) 280L HIT-313471.A2 313471	-
665 - BULL POINT (SDS MAX) 400L HIT-313472.A20 313472	-
666 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A2 313473	-
667 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A19 313474	-
668 - CUTTER (SDS MAX) W50X400L HIT-313475.A2 313475	-
669 - SCOOP (SDS MAX) 400L HIT-313476.A19 313476	-
670 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A19 313478	-
671 - BUSHING TOOL (SDS MAX) HIT-313477.A2 313477	-
672 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A2 313479	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki DH50MRY Hammer Drill Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki DH50MRY Hammer Drill Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki DH50MRY Hammer Drill Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
