Hitachi / Hikoki DH45MR Rotary Hammer Drill Spare Parts

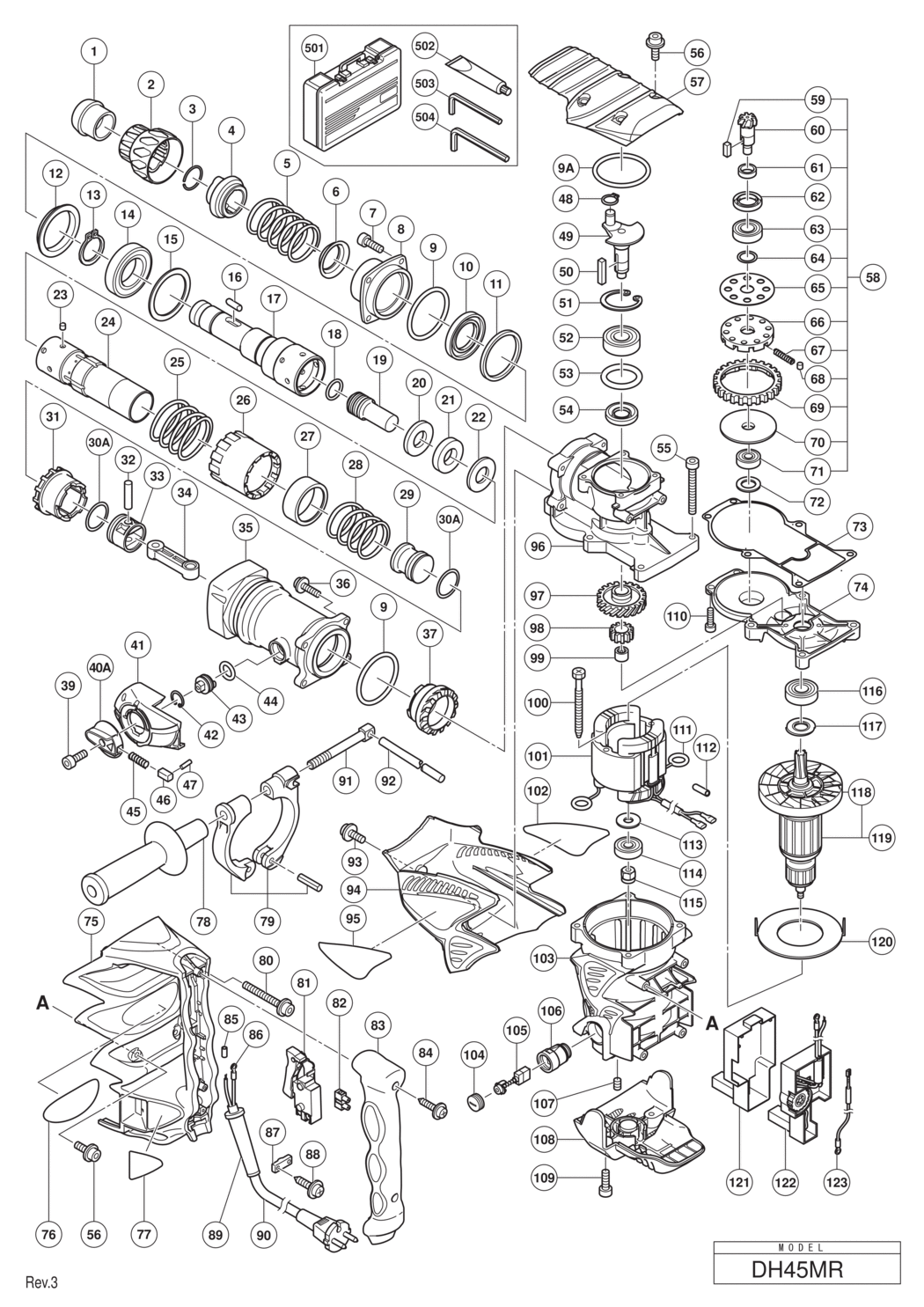

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH45MR Rotary Hammer Drill

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-321306.A2 321306	£4.86	£5.83
2 - GRIP HIT-321305.A0 321305	£7.38	£8.85
3 - STOPPER RING HIT-318590.A14 318590	£1.67	£2.00
4 - NEEDLE HOLDER HIT-321304.A2 321304	£29.76	£35.71
5 - RETAINER SPRING HIT-321303.A0 321303	£7.38	£8.85
6 - SPRING HOLDER (A) HIT-321302.A2 321302	£7.38	£8.85
7 - SEAL LOCK HEX. SOCKET HD. BOLT M6X25 HIT-981942.A3 981942	£1.67	£2.00
8 - FRONT COVER HIT-321300.A2 321300	£27.78	£33.34
9 - O-RING (1AS-60) HIT-956996.A13 956996	£3.82	£4.58
9A - O-RING (JASO2060) HIT-878867.A1 878867	£3.00	£3.60
10 - OIL SEAL HIT-321301.A0 321301	£9.23	£11.08
11 - RUBBER RING HIT-325229.A0 325229	£4.22	£5.07
12 - URETHANE RING HOLDER HIT-315868.A2 315868	£3.07	£3.68
13 - RETAINING RING FOR D35 SHAFT HIT-948131.A3 948131	£1.67	£2.00
14 - BALL BEARING 6007DDUAV2S HIT-6007DD.A5 6007DD	£16.35	£19.62
15 - BEARING WASHER HIT-321297.A2 321297	£4.86	£5.83
16 - NEEDLE ROLLER D8X20 HIT-313421.A4 313421	£6.32	£7.59
17 - RETAINER SLEEVE HIT-324919.A0 324919	£100.53	£120.64
18 - O-RING (C) HIT-324921.A0 324921	£4.33	£5.20
19 - SECOND HAMMER HIT-324920.A0 324920	£15.40	£18.48
20 - DAMPER WASHER HIT-324922.A0 324922	£8.66	£10.39
21 - DAMPER HIT-324923.A0 324923	£4.33	£5.20
22 - DAMPER HOLDER HIT-324924.A0 324924	£8.66	£10.39
23 - NEEDLE PIN D6X6 HIT-313057.A4 313057	£4.68	£5.62
24 - CYLINDER HIT-324925.A0 324925	£88.69	£106.43
25 - LOCK SPRING HIT-324930.A0 324930	-
26 - LOCK SLEEVE HIT-324931.A0 324931	£6.50	£7.80
27 - SPRING HOLDER (B) HIT-324927.A0 324927	£8.66	£10.39
28 - CLUTCH SPRING HIT-324928.A0 324928	-
29 - STRIKER HIT-324926.A0 324926	£15.40	£18.48
30A - O-RING (I.D 27.2) HIT-325297.A4 325297	£4.33	£5.20
31 - CLUTCH HIT-324929.A0 324929	£58.66	£70.39
32 - PISTON PIN HIT-324917.A0 324917	£6.50	£7.80
33 - PISTON HIT-324915.A0 324915	£8.66	£10.39
34 - CONNECTING ROD HIT-324916.A0 324916	£8.66	£10.39
35 - CYLINDER CASE HIT-324932.A0 324932	£58.66	£70.39
36 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X25 HIT-991712.A13 991712	£1.67	£2.00
37 - BEVEL GEAR HIT-324933.A0 324933	£46.35	£55.62
39 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A1 983162	£1.67	£2.00
40A - CHANGE LEVER HIT-331545.A3 331545	£4.86	£5.83
41 - LEVER HOLDER HIT-324935.A0 324935	£4.33	£5.20
42 - RETAINING RING FOR D20 HOLE HIT-311229.A4 311229	£1.67	£2.00
43 - LEVER SHAFT HIT-324934.A0 324934	£24.62	£29.55
44 - O-RING (P-16) HIT-873095.A8 873095	£1.67	£2.00
45 - LEVER SPRING HIT-321310.A1 321310	£1.67	£2.00
46 - PUSHING BUTTON HIT-321311.A7 321311	£1.67	£2.00
47 - PIN D2X10 HIT-321312.A1 321312	£1.67	£2.00
48 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A17 939540	£1.67	£2.00
49 - CRANK SHAFT HIT-324909.A0 324909	£40.32	£48.38
50 - FEATHER KEY 3X3X20 HIT-971750.A0 971750	£1.67	£2.00
51 - RETAINING RING FOR D40 HOLE HIT-948391.A15 948391	£1.67	£2.00
52 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A23 6203DD	£8.64	£10.37
53 - O-RING (S-40) HIT-996363.A10 996363	£1.67	£2.00
54 - OIL SEAL (A) HIT-971745.A5 971745	£5.27	£6.32
55 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A22 986940	£1.67	£2.00
56 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A50 994192	£1.67	£2.00
57 - CRANK COVER HIT-324937.A0 324937	-
58 - SLIP CLUTCH ASS'Y INCLUD.59-61 HIT-324912.A0 324912	-
59 - FEATHER KEY 3X3X8 HIT-944109.A31 944109	£3.28	£3.93
60 - BEVEL PINION HIT-324913.A0 324913	-
61 - COLLAR HIT-321279.A3 321279	-
62 - OIL SEAL (A) HIT-313050.A4 313050	£4.68	£5.62
63 - BALL BEARING 6002DDCMPS2L HIT-6002DD.A4 6002DD	£8.64	£10.37
64 - WASHER HIT-313058.A6 313058	£1.67	£2.00
65 - WASHER (A) HIT-313053.A3 313053	£4.45	£5.34
66 - GEAR HOLDER HIT-321281.A6 321281	-
67 - SPRING (C) HIT-321282.A3 321282	£1.67	£2.00
68 - NEEDLE HIT-320343.A5 320343	£4.22	£5.07
69 - SECOND GEAR HIT-324914.A0 324914	£36.93	£44.32
70 - SPACER HIT-321283.A5 321283	-
71 - BALL BEARING 629VV HIT-629VVM.A5 629VVM	£6.00	£7.20
72 - BEARING WASHER (C) HIT-944525.A4 944525	-
73 - SEAL PACKING HIT-325230.A0 325230	£4.22	£5.07
74 - GEAR COVER HIT-324944.A0 324944	-
75 - HANDLE HIT-324947.A0 324947	£24.47	£29.36
76 - NAME PLATE HIT-000000.A4703 000000	-
77 - SDS MAX LABEL HIT-324938.A0 324938	-
78 - SIDE HANDLE HIT-313078.A0 313078	£16.48	£19.78
79 - HANDLE HOLDER HIT-313079.A3 313079	£16.17	£19.40
80 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X40 HIT-980673.A0 980673	-
81 - SWITCH (C) (2P SCREW TYPE W/O LOCK) HIT-313093.A0 313093	£14.28	£17.13
82 - PILLAR TERMINAL HIT-938307.A77 938307	£3.28	£3.93
83 - HANDLE COVER HIT-324948.A0 324948	-
84 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A57 301653	£1.67	£2.00
*85 - TUBE (D) FOR CORD HIT-981373.A75 981373	£1.67	£2.00
*86 - TERMINAL HIT-980063.A117 980063	£1.67	£2.00
*86 - TERMINAL M4.0 (10 PCS.) FOR GBR (110V) HIT-930804.A30 930804	£3.64	£4.37
*87 - CORD CLIP HIT-960266.A55 960266	£1.67	£2.00
88 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A26 984750	£1.67	£2.00
*89 - CORD ARMOR D8.8 HIT-953327.A17 953327	£1.67	£2.00
*89 - CORD ARMOR D10.1 HIT-938051.A16 938051	£1.67	£2.00
*90 - CORD (CORD ARMOR D10.1) FOR GBR (110V) HIT-500467Z.A0 500467Z	£63.83	£76.60
*90 - CORD (CORD ARMOR D10.1) FOR GBR (230V) HIT-500446Z.A6 500446Z	£33.79	£40.55
91 - HANDLE BOLT HIT-313080.A0 313080	£9.88	£11.86
92 - STOPPER ROD HIT-971786.A1 971786	£6.94	£8.33
93 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A2 998471	£1.67	£2.00
94 - HOOD (A) HIT-324936.A0 324936	£16.80	£20.16
95 - BRAND LABEL HIT-000000.A4704 000000	-
96 - CRANK CASE HIT-324908.A0 324908	£49.48	£59.37
97 - FIRST GEAR HIT-324910.A0 324910	-
98 - SECOND PINION HIT-324911.A0 324911	-
99 - NEEDLE BEARING (M661) HIT-939299.A10 939299	£11.82	£14.18
100 - HEX. HD. TAPPING SCREW D5X60 HIT-961501.A25 961501	£1.67	£2.00
*101 - STATOR ASS'Y 110V INCLUD.111 HIT-340646C.A0 340646C	£62.78	£75.33
*101 - STATOR ASS'Y 230V INCLUD.111 HIT-340646E.A0 340646E	£62.78	£75.33
102 - BRAND LABEL HIT-000000.A4705 000000	-
103 - HOUSING ASS'Y INCLUD.106 HIT-324943.A0 324943	£88.69	£106.43
104 - BRUSH CAP HIT-945161.A38 945161	£1.67	£2.00
105 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999071.A1 999071	£19.96	£23.95
106 - BRUSH HOLDER HIT-962777.A0 962777	£8.57	£10.28
107 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A119 938477	£1.67	£2.00
108 - TAIL COVER HIT-324946.A0 324946	£11.28	£13.53
109 - SEAL LOCK HEX. SOCKET HD. BOLT M5X20 HIT-984508.A0 984508	£1.67	£2.00
110 - SEAL LOCK HEX. SOCKET HD. BOLT M6X22 HIT-321313.A10 321313	£1.67	£2.00
111 - BRUSH TERMINAL HIT-937623.A4 937623	£1.67	£2.00
112 - VINYL TUBE L35 HIT-321322.A2 321322	-
113 - DUST WASHER HIT-985436.A1 985436	£1.67	£2.00
114 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A20 6200VV	£7.36	£8.83
115 - MAGNET HIT-318721.A5 318721	£20.48	£24.58
116 - BALL BEARING 6202DD HIT-6202DD.A14 6202DD	£7.32	£8.78
117 - DUST WASHER (B) HIT-980700.A0 980700	£1.67	£2.00
118 - FAN HIT-318918.A2 318918	£3.82	£4.58
*119 - ARMATURE ASS'Y 110V INCLUD.118 HIT-360737C.A0 360737C	£106.26	£127.51
*119 - ARMATURE ASS'Y 230V INCLUD.118 HIT-360737E.A0 360737E	£106.26	£127.51
120 - FAN GUIDE HIT-324945.A0 324945	£6.50	£7.80
121 - CASE (B) HIT-324942.A0 324942	£6.50	£7.80
*122 - CONTROLLER CIRCUIT 110V HIT-324940.A0 324940	£92.41	£110.89
*122 - CONTROLLER CIRCUIT 230V-240V HIT-324939.A0 324939	£92.41	£110.89
*123 - INTERNAL WIRE EXCEPT FOR USA HIT-317113.A3 317113	£4.12	£4.95
501 - CASE (PLASTIC) HIT-324820.A0 324820	£90.08	£108.09
502 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A3 981840	£8.22	£9.87
503 - HEX. BAR WRENCH 4MM HIT-944458.A4 944458	£1.67	£2.00
504 - HEX. BAR WRENCH 5MM HIT-944459.A27 944459	£1.67	£2.00
601 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A27 308471	£16.21	£19.45
602 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A54 980927	£55.68	£66.81
603 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A15 320859	£10.35	£12.42
604 - SYRINGE (BELLOWS TYPE) HIT-318085.A5 318085	-
605 - DRILL BIT (SDS MAX) D16X340 HIT-313448.A4 313448	-
606 - DRILL BIT (SDS MAX) D16X540 HIT-313456.A4 313456	-
607 - DRILL BIT (SDS MAX) D19X340 HIT-313449.A5 313449	-
608 - DRILL BIT (SDS MAX) D19X540 HIT-313457.A5 313457	-
609 - DRILL BIT (SDS MAX) D22X320 HIT-313450.A4 313450	-
610 - DRILL BIT (SDS MAX) D22X520 HIT-313458.A4 313458	-
611 - DRILL BIT (SDS MAX) D25X320 HIT-313451.A5 313451	-
612 - DRILL BIT (SDS MAX) D25X520 HIT-313459.A5 313459	-
613 - DRILL BIT (SDS MAX) D28X370 HIT-313452.A4 313452	-
614 - DRILL BIT (SDS MAX) D28X570 HIT-313460.A4 313460	-
615 - DRILL BIT (SDS MAX) D32X370 HIT-313453.A5 313453	-
616 - DRILL BIT (SDS MAX) D32X570 HIT-313461.A5 313461	-
617 - DRILL BIT (SDS MAX) D38X370 HIT-313454.A4 313454	-
618 - DRILL BIT (SDS MAX) D38X570 HIT-313462.A4 313462	-
619 - DRILL BIT (SDS MAX) D40X370 HIT-313455.A0 313455	-
620 - DRILL BIT (SDS MAX) D40X570 HIT-313463.A5 313463	-
621 - TAPER SHANK DRILL BIT D11X100 HIT-944460.A0 944460	-
622 - TAPER SHANK DRILL BIT D12.3X110 HIT-944461.A19 944461	-
623 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A18 993038	-
625 - TAPER SHANK DRILL BIT D14.5X110 HIT-944500.A16 944500	-
628 - COTTER HIT-944477.A44 944477	£5.17	£6.20
629 - ADAPTER (SDS MAX) FOR SDS PLUS SHANK BIT HIT-313465.A4 313465	-
630 - CORE BIT 25MM HIT-955994.A4 955994	-
631 - CORE BIT 29MM HIT-955995.A8 955995	-
632 - CORE BIT 32MM INCLUD.633 HIT-955996.A4 955996	-
633 - GUIDE PLATE (FOR CORE BIT 32MM) HIT-955997.A8 955997	£1.67	£2.00
634 - CORE BIT 35MM INCLUD.635 HIT-955998.A3 955998	£111.98	£134.38
635 - GUIDE PLATE (FOR CORE BIT 35MM) HIT-955999.A8 955999	£3.51	£4.21
636 - CORE BIT 38MM INCLUD.637 HIT-956000.A3 956000	-
637 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-956001.A8 956001	£6.19	£7.43
638 - CORE BIT 45MM INCLUD.639 HIT-955154.A3 955154	£126.14	£151.37
639 - GUIDE PLATE (FOR CORE BIT 45MM) HIT-955166.A7 955166	-
640 - CORE BIT 54MM INCLUD.641 HIT-955155.A9 955155	-
641 - GUIDE PLATE (FOR CORE BIT 54MM) HIT-955167.A4 955167	£6.19	£7.43
642 - CORE BIT 64MM INCLUD.643 HIT-956002.A3 956002	£182.83	£219.40
643 - GUIDE PLATE (FOR CORE BIT 64MM) HIT-956003.A8 956003	-
644 - CORE BIT 79MM INCLUD.645 HIT-955157.A3 955157	-
645 - GUIDE PLATE (FOR CORE BIT 79MM) HIT-955168.A7 955168	£10.43	£12.52
646 - CORE BIT 94MM INCLUD.647 HIT-956004.A3 956004	-
647 - GUIDE PLATE (FOR CORE BIT 94MM) HIT-956005.A8 956005	£7.75	£9.30
648 - CORE BIT 105MM INCLUD.649 HIT-955159.A9 955159	£375.58	£450.70
649 - GUIDE PLATE (FOR CORE BIT 105MM) HIT-955169.A4 955169	£8.24	£9.89
650 - CORE BIT SHANK (B) SDS MAX D25-35 HIT-313466.A5 313466	-
651 - CORE BIT SHANK (A) SDS MAX D38-150 HIT-313467.A4 313467	-
652 - CENTER PIN (B) 147L FOR CORE BIT D32-35 HIT-956009.A7 956009	£40.26	£48.31
653 - CENTER PIN (A) 133L FOR CORE BIT D38-150 HIT-955165.A5 955165	-
654 - DRILL CHUCK 13VLD-D HIT-321813.A23 321813	-
655 - CHUCK ADAPTER (SDS MAX) HIT-313468.A5 313468	-
656 - CHUCK HANDLE HIT-303334.A27 303334	-
657 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 12.7MM HIT-313469.A3 313469	£38.53	£46.24
658 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 19MM HIT-313470.A6 313470	£44.76	£53.71
659 - BULL POINT (SDS MAX) 280L HIT-313471.A7 313471	-
660 - BULL POINT (SDS MAX) 400L HIT-313472.A15 313472	-
661 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A7 313473	-
662 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A14 313474	-
663 - CUTTER (SDS MAX) W50X400L HIT-313475.A7 313475	-
664 - SCOOP (SDS MAX) 400L HIT-313476.A14 313476	-
665 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A14 313478	-
666 - BUSHING TOOL (SDS MAX) HIT-313477.A6 313477	-
667 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A7 313479	-
668 - CORE BIT 120MM INCLUD.669 HIT-956006.A1 956006	-
669 - GUIDE PLATE (FOR CORE BIT 120MM) HIT-956007.A6 956007	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki DH45MR Rotary Hammer Drill Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
