Hitachi / Hikoki DH40MRY Hammer Drill Spare Parts

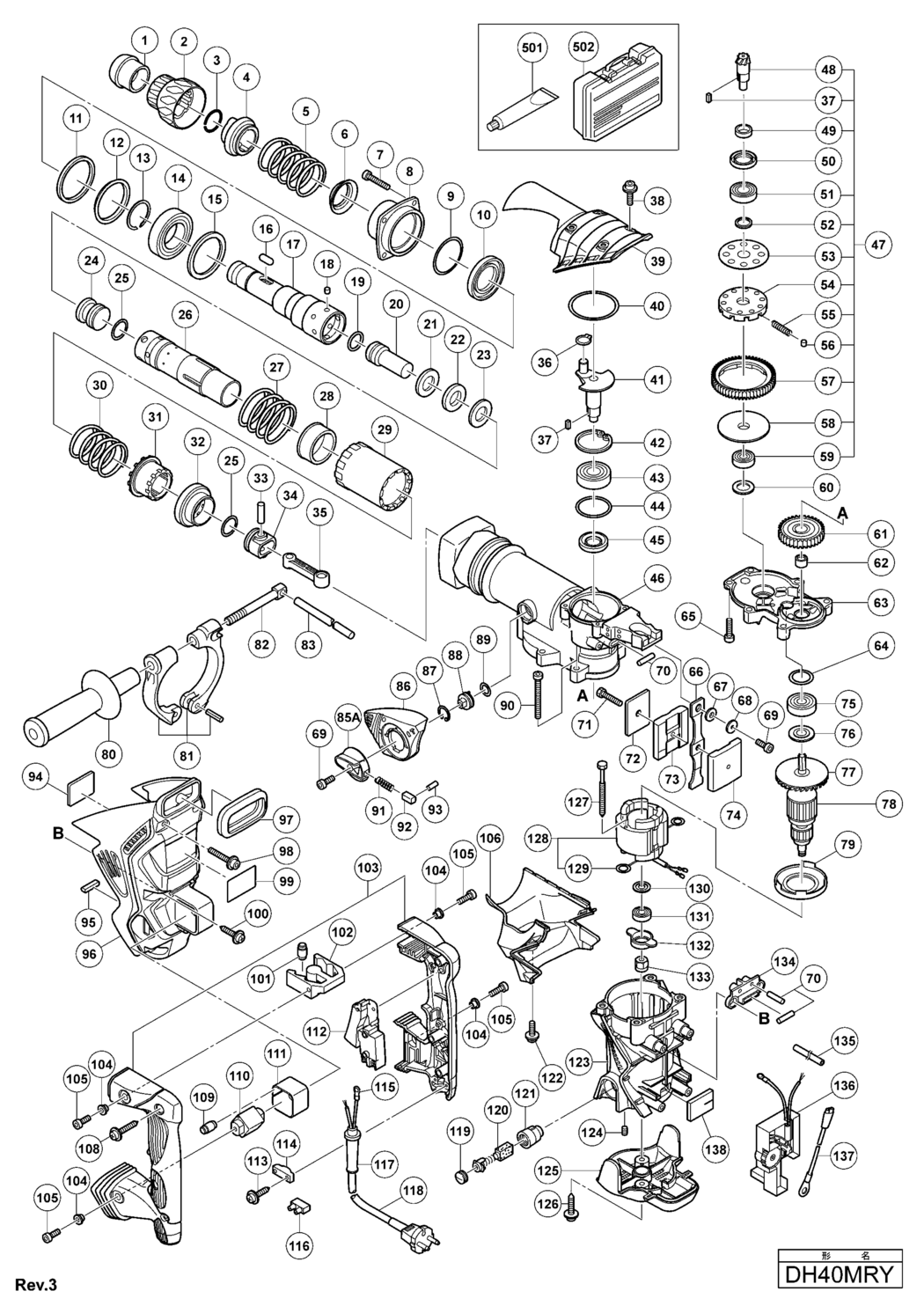

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH40MRY Hammer Drill

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-321306.A0 321306	£4.86	£5.83
2 - GRIP HIT-321305.A2 321305	£7.38	£8.85
3 - STOPPER RING HIT-318590.A10 318590	£1.67	£2.00
4 - NEEDLE HOLDER HIT-321304.A0 321304	£29.76	£35.71
5 - RETAINER SPRING HIT-321303.A2 321303	£7.38	£8.85
6 - SPRING HOLDER (A) HIT-321302.A0 321302	£7.38	£8.85
7 - SEAL LOCK HEX. SOCKET HD. BOLT M6X25 HIT-981942.A5 981942	£1.67	£2.00
8 - FRONT COVER HIT-321300.A0 321300	£27.78	£33.34
9 - O-RING (1AS-60) HIT-956996.A2 956996	£3.82	£4.58
10 - OIL SEAL HIT-321301.A2 321301	£9.23	£11.08
11 - RUBBER RING HIT-325229.A2 325229	£4.22	£5.07
12 - URETHANE RING HOLDER HIT-315868.A0 315868	£3.07	£3.68
13 - RETAINING RING D35 HIT-320850.A0 320850	£2.71	£3.25
14 - BALL BEARING 6007DDUAV2S HIT-6007DD.A2 6007DD	£16.35	£19.62
15 - BEARING WASHER HIT-321297.A3 321297	£4.86	£5.83
16 - NEEDLE ROLLER D8X20 HIT-313421.A0 313421	£6.32	£7.59
17 - RETAINER SLEEVE HIT-321286.A0 321286	£115.34	£138.41
18 - NEEDLE PIN D6X6 HIT-313057.A3 313057	£4.68	£5.62
19 - O-RING (C) HIT-313396.A8 313396	£5.87	£7.04
20 - SECOND HAMMER HIT-326371.A0 326371	£17.42	£20.90
21 - DAMPER WASHER HIT-321288.A1 321288	£13.29	£15.95
22 - DAMPER HIT-321289.A0 321289	£9.23	£11.08
23 - DAMPER HOLDER HIT-321290.A1 321290	£14.71	£17.65
24 - STRIKER HIT-326373.A0 326373	£14.68	£17.62
25 - O-RING HIT-986104.A6 986104	£1.67	£2.00
26 - CYLINDER HIT-326372.A0 326372	£70.98	£85.18
27 - LOCK SPRING HIT-326470.A0 326470	-
28 - SPRING HOLDER (B) HIT-321293.A1 321293	£7.38	£8.85
29 - LOCK SLEEVE HIT-321299.A1 321299	£11.98	£14.38
30 - CLUTCH SPRING HIT-326469.A0 326469	-
31 - CLUTCH HIT-321295.A1 321295	£52.58	£63.09
32 - BEVEL GEAR HIT-321296.A0 321296	£66.96	£80.35
33 - PISTON PIN HIT-980708.A4 980708	£3.28	£3.93
34 - PISTON HIT-326369.A4 326369	£4.33	£5.20
35 - CONNECTING ROD HIT-326370.A0 326370	£4.22	£5.07
36 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A5 939540	£1.67	£2.00
37 - FEATHER KEY 3X3X8 HIT-944109.A22 944109	£3.28	£3.93
38 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A26 994192	£1.67	£2.00
39 - CRANK COVER HIT-326473.A0 326473	£12.76	£15.31
40 - O-RING (S-56) HIT-317119.A3 317119	£1.67	£2.00
41 - CRANK SHAFT HIT-326468.A0 326468	£44.08	£52.90
42 - RETAINING RING FOR D40 HOLE HIT-948391.A23 948391	£1.67	£2.00
43 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A13 6203DD	£8.64	£10.37
44 - O-RING (S-40) HIT-996363.A16 996363	£1.67	£2.00
45 - OIL SEAL (B) HIT-321274.A4 321274	£7.38	£8.85
46 - CYLINDER CRANK CASE HIT-326467.A0 326467	£70.98	£85.18
47 - SLIP CLUTCH ASS'Y HIT-321277.A0 321277	£108.63	£130.36
48 - BEVEL PINION HIT-321278.A2 321278	£35.52	£42.63
49 - COLLAR HIT-321279.A0 321279	-
50 - OIL SEAL (A) HIT-313050.A3 313050	£4.68	£5.62
51 - BALL BEARING 6002DDCMPS2L HIT-6002DD.A7 6002DD	£8.64	£10.37
52 - WASHER HIT-313058.A7 313058	£1.67	£2.00
53 - WASHER (A) HIT-313053.A4 313053	£4.45	£5.34
54 - GEAR HOLDER HIT-321281.A0 321281	-
55 - SPRING (C) HIT-321282.A8 321282	£1.67	£2.00
56 - NEEDLE HIT-320343.A2 320343	£4.22	£5.07
57 - SECOND GEAR HIT-321280.A2 321280	£37.71	£45.25
58 - SPACER HIT-321283.A0 321283	-
59 - BALL BEARING 629VV HIT-629VVM.A23 629VVM	£6.00	£7.20
60 - BEARING WASHER (C) HIT-944525.A8 944525	-
61 - FIRST GEAR HIT-321276.A2 321276	-
62 - NEEDLE BEARING (M661) HIT-939299.A4 939299	£11.82	£14.18
63 - GEAR COVER HIT-326482.A0 326482	-
64 - O-RING (S-32) HIT-872767.A5 872767	£1.67	£2.00
65 - SEAL LOCK HEX. SOCKET HD. BOLT M6X22 HIT-321313.A7 321313	£1.67	£2.00
66 - LEAF SPRING HIT-326374.A0 326374	£6.50	£7.80
67 - SPRING BUMPER (A) HIT-326375.A0 326375	£1.67	£2.00
68 - WASHER HIT-326477.A0 326477	£1.67	£2.00
69 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A6 983162	£1.67	£2.00
70 - NEEDLE ROLLER HIT-878418.A2 878418	£1.67	£2.00
71 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A24 991690	£1.67	£2.00
72 - RUBBER SHEET (B) HIT-326486.A0 326486	£1.67	£2.00
73 - WEIGHT (B) HIT-326476.A0 326476	-
74 - WEIGHT (A) HIT-326475.A0 326475	-
75 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A32 6201DD	£8.64	£10.37
76 - DUST WASHER (B) HIT-302429.A5 302429	£1.67	£2.00
77 - FAN HIT-321640.A2 321640	£8.52	£10.22
*78 - ARMATURE ASS'Y 110V-120V INCLUD.75-77 HIT-360591U.A2 360591U	£98.82	£118.58
*78 - ARMATURE ASS'Y 220V-230V INCLUD.77 HIT-360591E.A0 360591E	£98.82	£118.58
79 - FAN GUIDE HIT-321320.A2 321320	£4.86	£5.83
80 - SIDE HANDLE HIT-313078.A4 313078	£16.48	£19.78
81 - HANDLE HOLDER HIT-313079.A0 313079	£16.17	£19.40
82 - HANDLE BOLT HIT-313080.A3 313080	£9.88	£11.86
83 - STOPPER ROD HIT-971786.A8 971786	£6.94	£8.33
85A - CHANGE LEVER HIT-331545.A1 331545	£4.86	£5.83
86 - LEVER HOLDER HIT-326471.A0 326471	£4.78	£5.73
87 - RETAINING RING FOR D20 HOLE HIT-311229.A5 311229	£1.67	£2.00
88 - LEVER SHAFT HIT-321307.A1 321307	£21.81	£26.17
89 - O-RING (P-16) HIT-873095.A3 873095	£1.67	£2.00
90 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A14 986940	£1.67	£2.00
91 - LEVER SPRING HIT-321310.A2 321310	£1.67	£2.00
92 - PUSHING BUTTON HIT-321311.A5 321311	£1.67	£2.00
93 - PIN D2X10 HIT-321312.A2 321312	£1.67	£2.00
94 - RUBBER SHEET (A) HIT-326487.A0 326487	£1.67	£2.00
95 - SPRING BUMPER (B) HIT-326376.A1 326376	-
96 - BACK COVER HIT-326478.A0 326478	£18.83	£22.60
97 - BELLOWS HIT-326378.A1 326378	£4.33	£5.20
98 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X35 HIT-319589.A0 319589	-
99 - NAME PLATE HIT-000000.A4104 000000	-
100 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A63 302089	£1.67	£2.00
101 - HANDLE DAMPER HIT-310124.A8 310124	£6.18	£7.41
102 - TRANSATORY UNIT HIT-310123.A11 310123	£11.82	£14.18
103 - HANDLE (A).(B) SET HIT-326485.A1 326485	£23.57	£28.28
104 - DISTANCE PIECE (B) HIT-991711.A1 991711	£1.67	£2.00
105 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A23 991690	£1.67	£2.00
106 - HOOD HIT-326472.A0 326472	£9.18	£11.02
108 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A24 307028	£1.67	£2.00
109 - HANDLE DAMPER HIT-310124.A9 310124	£6.18	£7.41
110 - HANDLE SHAFT HIT-326377.A0 326377	£6.50	£7.80
111 - HOLDER HIT-326479.A0 326479	£4.65	£5.58
112 - SWITCH (B) (1P SCREW TYPE) W/O LOCK HIT-990941.A1 990941	£21.08	£25.30
113 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A101 984750	£1.67	£2.00
*114 - CORD CLIP HIT-960266.A84 960266	£1.67	£2.00
115 - TERMINAL HIT-980063.A74 980063	£1.67	£2.00
116 - PILLAR TERMINAL HIT-938307.A67 938307	£3.28	£3.93
117 - CORD ARMOR D8.8 HIT-953327.A45 953327	£1.67	£2.00
*118 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A14 500446Z	£33.79	£40.55
*118 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500465Z.A10 500465Z	£26.20	£31.44
119 - BRUSH CAP HIT-935829.A23 935829	£1.67	£2.00
120 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999073.A6 999073	£18.73	£22.48
121 - BRUSH HOLDER HIT-971001.A10 971001	£8.64	£10.37
122 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A24 998471	£1.67	£2.00
123 - HOUSING ASS'Y INCLUD.121 HIT-326481.A1 326481	£40.12	£48.15
124 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A21 938477	£1.67	£2.00
125 - TAIL COVER HIT-326483.A0 326483	£8.57	£10.28
126 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A29 302089	£1.67	£2.00
127 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A29 953174	£1.67	£2.00
*128 - STATOR ASS'Y 110V INCLUD.129 HIT-340680C.A0 340680C	£62.25	£74.70
*128 - STATOR ASS'Y 230V INCLUD.129 HIT-340680E.A0 340680E	£62.25	£74.70
129 - BRUSH TERMINAL HIT-930703.A13 930703	£3.28	£3.93
130 - WASHER (A) HIT-982631.A25 982631	£1.67	£2.00
131 - BALL BEARING 608VVC2PS2L HIT-608VVM.A165 608VVM	£5.70	£6.84
132 - BEARING HOLDER HIT-326484.A0 326484	£6.82	£8.18
133 - MAGNET HIT-318721.A1 318721	£20.48	£24.58
134 - SPRING BASE HIT-326474.A0 326474	-
135 - VINYL TUBE (I.D.9.5XT0.56X85) HIT-326541.A2 326541	-
*136 - CONTROLLER CIRCUIT 110V HIT-326490.A0 326490	£87.80	£105.36
*136 - CONTROLLER CIRCUIT 220V-240V HIT-326491.A0 326491	£83.21	£99.85
137 - INTERNAL WIRE HIT-326492.A0 326492	£4.33	£5.20
138 - COVER (A) HIT-326488.A1 326488	£1.67	£2.00
501 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A48 981840	£8.22	£9.87
502 - CASE (PLASTIC) HIT-326489.A0 326489	£79.64	£95.57
601 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A33 308471	£16.21	£19.45
602 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A4 980927	£55.68	£66.81
603 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A33 320859	£10.35	£12.42
604 - DRILL BIT (SDS MAX) D16X340 HIT-313448.A3 313448	-
605 - DRILL BIT (SDS MAX) D16X540 HIT-313456.A2 313456	-
606 - DRILL BIT (SDS MAX) D19X340 HIT-313449.A6 313449	-
607 - DRILL BIT (SDS MAX) D19X540 HIT-313457.A7 313457	-
608 - DRILL BIT (SDS MAX) D22X320 HIT-313450.A3 313450	-
609 - DRILL BIT (SDS MAX) D22X520 HIT-313458.A2 313458	-
610 - DRILL BIT (SDS MAX) D25X320 HIT-313451.A6 313451	-
611 - DRILL BIT (SDS MAX) D25X520 HIT-313459.A7 313459	-
612 - DRILL BIT (SDS MAX) D28X370 HIT-313452.A3 313452	-
613 - DRILL BIT (SDS MAX) D28X570 HIT-313460.A2 313460	-
614 - DRILL BIT (SDS MAX) D32X370 HIT-313453.A6 313453	-
615 - DRILL BIT (SDS MAX) D32X570 HIT-313461.A7 313461	-
616 - DRILL BIT (SDS MAX) D38X370 HIT-313454.A3 313454	-
617 - DRILL BIT (SDS MAX) D38X570 HIT-313462.A2 313462	-
618 - DRILL BIT (SDS MAX) D40X370 HIT-313455.A1 313455	-
619 - DRILL BIT (SDS MAX) D40X570 HIT-313463.A7 313463	-
620 - SYRINGE (BELLOWS TYPE) HIT-318085.A15 318085	-
621 - TAPER SHANK DRILL BIT D11X100 HIT-944460.A11 944460	-
622 - TAPER SHANK DRILL BIT D12.3X110 HIT-944461.A0 944461	-
623 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A3 993038	-
625 - TAPER SHANK DRILL BIT D14.5X110 HIT-944500.A4 944500	-
628 - COTTER HIT-944477.A11 944477	£5.17	£6.20
629 - ADAPTER (SDS MAX) FOR SDS PLUS SHANK BIT HIT-313465.A1 313465	-
630 - CORE BIT 25MM HIT-955994.A10 955994	-
631 - CORE BIT 29MM HIT-955995.A2 955995	-
632 - CORE BIT 32MM INCLUD.633 HIT-955996.A10 955996	-
633 - GUIDE PLATE (FOR CORE BIT 32MM) HIT-955997.A2 955997	£1.67	£2.00
634 - CORE BIT 35MM INCLUD.635 HIT-955998.A10 955998	£111.98	£134.38
635 - GUIDE PLATE (FOR CORE BIT 35MM) HIT-955999.A2 955999	£3.51	£4.21
636 - CORE BIT 38MM INCLUD.637 HIT-956000.A10 956000	-
637 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-956001.A2 956001	£6.19	£7.43
638 - CORE BIT 45MM INCLUD.639 HIT-955154.A11 955154	£126.14	£151.37
639 - GUIDE PLATE (FOR CORE BIT 45MM) HIT-955166.A1 955166	-
640 - CORE BIT 54MM INCLUD.641 HIT-955155.A1 955155	-
641 - GUIDE PLATE (FOR CORE BIT 54MM) HIT-955167.A10 955167	£6.19	£7.43
642 - CORE BIT 64MM INCLUD.643 HIT-956002.A10 956002	£182.83	£219.40
643 - GUIDE PLATE (FOR CORE BIT 64MM) HIT-956003.A2 956003	-
644 - CORE BIT 79MM INCLUD.645 HIT-955157.A11 955157	-
645 - GUIDE PLATE (FOR CORE BIT 79MM) HIT-955168.A1 955168	£10.43	£12.52
646 - CORE BIT 94MM INCLUD.647 HIT-956004.A10 956004	-
647 - GUIDE PLATE (FOR CORE BIT 94MM) HIT-956005.A2 956005	£7.75	£9.30
648 - CORE BIT 105MM INCLUD.649 HIT-955159.A1 955159	£375.58	£450.70
649 - GUIDE PLATE (FOR CORE BIT 105MM) HIT-955169.A10 955169	£8.24	£9.89
650 - CORE BIT SHANK (B) SDS MAX D25-35 HIT-313466.A8 313466	-
651 - CORE BIT SHANK (A) SDS MAX D38-150 HIT-313467.A1 313467	-
652 - CENTER PIN (B) 147L FOR CORE BIT D32-35 HIT-956009.A10 956009	£40.26	£48.31
653 - CENTER PIN (A) 133L FOR CORE BIT D38-150 HIT-955165.A11 955165	-
654 - DRILL CHUCK 13VLD-D HIT-321813.A42 321813	-
655 - CHUCK ADAPTER (SDS MAX) HIT-313468.A8 313468	-
656 - CHUCK HANDLE HIT-303334.A39 303334	-
657 - CHUCK WRENCH 10G HIT-930515.A26 930515	£6.38	£7.66
658 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 12.7MM HIT-313469.A1 313469	£38.53	£46.24
659 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 19MM HIT-313470.A8 313470	£44.76	£53.71
660 - BULL POINT (SDS MAX) 280L HIT-313471.A1 313471	-
661 - BULL POINT (SDS MAX) 400L HIT-313472.A21 313472	-
662 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A1 313473	-
663 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A20 313474	-
664 - CUTTER (SDS MAX) W50X400L HIT-313475.A1 313475	-
665 - SCOOP (SDS MAX) 400L HIT-313476.A20 313476	-
666 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A20 313478	-
667 - BUSHING TOOL (SDS MAX) HIT-313477.A1 313477	-
668 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A1 313479	-
669 - DUST COLLECTOR (FOR HAMMER DRILL C) HIT-317341.A0 317341	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki DH40MRY Hammer Drill Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here

Shopping Basket (0) £0.00

Hitachi / Hikoki DH40MRY Hammer Drill Spare Parts

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Bosch GSH 5 CE / 3611C21060 / GB 110 Volt Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki DH40MRY Hammer Drill Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Bosch GSH 5 CE / 3611C21060 / GB 110 Volt Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
