Hitachi / Hikoki DH40MR Hammer Drill Spare Parts

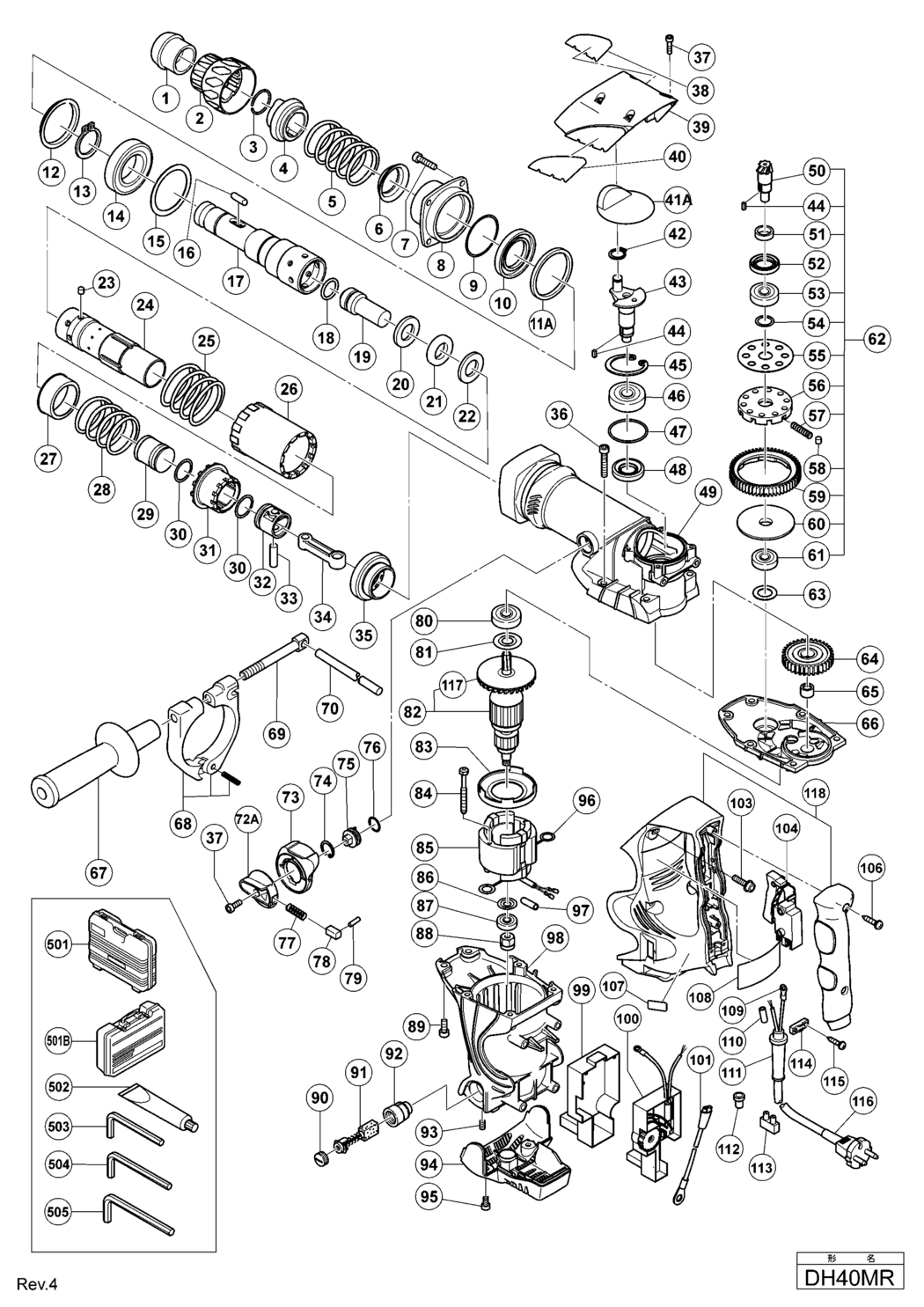

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH40MR Hammer Drill

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-321306.A1 321306	£4.86	£5.83
2 - GRIP HIT-321305.A1 321305	£7.38	£8.85
3 - STOPPER RING HIT-318590.A15 318590	£1.67	£2.00
4 - NEEDLE HOLDER HIT-321304.A1 321304	£29.76	£35.71
5 - RETAINER SPRING HIT-321303.A1 321303	£7.38	£8.85
6 - SPRING HOLDER (A) HIT-321302.A1 321302	£7.38	£8.85
7 - SEAL LOCK HEX. SOCKET HD. BOLT M6X25 HIT-981942.A1 981942	£1.67	£2.00
8 - FRONT COVER HIT-321300.A1 321300	£27.78	£33.34
9 - O-RING (1AS-60) HIT-956996.A15 956996	£3.82	£4.58
10 - OIL SEAL HIT-321301.A1 321301	£9.23	£11.08
11A - RUBBER RING HIT-325229.A1 325229	£4.22	£5.07
12 - URETHANE RING HOLDER HIT-315868.A1 315868	£3.07	£3.68
13 - RETAINING RING FOR D35 SHAFT HIT-948131.A1 948131	£1.67	£2.00
14 - BALL BEARING 6007DDUAV2S HIT-6007DD.A3 6007DD	£16.35	£19.62
15 - BEARING WASHER HIT-321297.A1 321297	£4.86	£5.83
16 - NEEDLE ROLLER D8X20 HIT-313421.A3 313421	£6.32	£7.59
17 - RETAINER SLEEVE HIT-321286.A1 321286	£115.34	£138.41
18 - O-RING (C) HIT-313396.A6 313396	£5.87	£7.04
19 - SECOND HAMMER HIT-321287.A0 321287	£21.73	£26.08
20 - DAMPER WASHER HIT-321288.A0 321288	£13.29	£15.95
21 - DAMPER HIT-321289.A1 321289	£9.23	£11.08
22 - DAMPER HOLDER HIT-321290.A0 321290	£14.71	£17.65
23 - NEEDLE PIN D6X6 HIT-313057.A6 313057	£4.68	£5.62
24 - CYLINDER HIT-321291.A0 321291	£128.28	£153.94
25 - LOCK SPRING HIT-321298.A0 321298	£7.38	£8.85
26 - LOCK SLEEVE HIT-321299.A0 321299	£11.98	£14.38
27 - SPRING HOLDER (B) HIT-321293.A0 321293	£7.38	£8.85
28 - CLUTCH SPRING HIT-321294.A0 321294	£7.38	£8.85
29 - STRIKER HIT-321292.A0 321292	£23.05	£27.66
30 - O-RING HIT-986104.A1 986104	£1.67	£2.00
31 - CLUTCH HIT-321295.A0 321295	£52.58	£63.09
32 - PISTON HIT-321284.A0 321284	£9.23	£11.08
33 - PISTON PIN HIT-980708.A2 980708	£3.28	£3.93
34 - CONNECTING ROD HIT-321285.A1 321285	£7.38	£8.85
35 - BEVEL GEAR HIT-321296.A1 321296	£66.96	£80.35
36 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A24 986940	£1.67	£2.00
37 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A2 983162	£1.67	£2.00
38 - BRAND LABEL HIT-000000.A4734 000000	-
39 - CRANK COVER HIT-321315.A0 321315	£18.63	£22.36
40 - BRAND LABEL HIT-000000.A4735 000000	-
41A - RUBBER SEAL HIT-335023.A0 335023	£1.67	£2.00
42 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A19 939540	£1.67	£2.00
43 - CRANK SHAFT HIT-321275.A0 321275	£63.70	£76.44
44 - FEATHER KEY 3X3X8 HIT-944109.A29 944109	£3.28	£3.93
45 - RETAINING RING FOR D40 HOLE HIT-948391.A17 948391	£1.67	£2.00
46 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A22 6203DD	£8.64	£10.37
47 - O-RING (S-40) HIT-996363.A9 996363	£1.67	£2.00
48 - OIL SEAL (B) HIT-321274.A0 321274	£7.38	£8.85
49 - CYLINDER CRANK CASE HIT-321273.A0 321273	£99.56	£119.47
50 - BEVEL PINION HIT-321278.A0 321278	£35.52	£42.63
51 - COLLAR HIT-321279.A2 321279	-
52 - OIL SEAL (A) HIT-313050.A5 313050	£4.68	£5.62
53 - BALL BEARING 6002DDCMPS2L HIT-6002DD.A1 6002DD	£8.64	£10.37
54 - WASHER HIT-313058.A3 313058	£1.67	£2.00
55 - WASHER (A) HIT-313053.A2 313053	£4.45	£5.34
56 - GEAR HOLDER HIT-321281.A5 321281	-
57 - SPRING (C) HIT-321282.A4 321282	£1.67	£2.00
58 - NEEDLE HIT-320343.A4 320343	£4.22	£5.07
59 - SECOND GEAR HIT-321280.A0 321280	£37.71	£45.25
60 - SPACER HIT-321283.A4 321283	-
61 - BALL BEARING 629VV HIT-629VVM.A8 629VVM	£6.00	£7.20
62 - SLIP CLUTCH ASS'Y INCLUD.44 HIT-321277.A2 321277	£108.63	£130.36
63 - BEARING WASHER (C) HIT-944525.A2 944525	-
64 - FIRST GEAR HIT-321276.A0 321276	-
65 - NEEDLE BEARING (M661) HIT-939299.A9 939299	£11.82	£14.18
66 - GEAR COVER HIT-321319.A1 321319	£49.11	£58.93
67 - SIDE HANDLE HIT-313078.A2 313078	£16.48	£19.78
68 - HANDLE HOLDER HIT-313079.A1 313079	£16.17	£19.40
69 - HANDLE BOLT HIT-313080.A2 313080	£9.88	£11.86
70 - STOPPER ROD HIT-971786.A4 971786	£6.94	£8.33
72A - CHANGE LEVER HIT-331545.A4 331545	£4.86	£5.83
73 - LEVER HOLDER HIT-321308.A0 321308	£7.38	£8.85
74 - RETAINING RING FOR D20 HOLE HIT-311229.A3 311229	£1.67	£2.00
75 - LEVER SHAFT HIT-321307.A0 321307	£21.81	£26.17
76 - O-RING (P-16) HIT-873095.A7 873095	£1.67	£2.00
77 - LEVER SPRING HIT-321310.A0 321310	£1.67	£2.00
78 - PUSHING BUTTON HIT-321311.A8 321311	£1.67	£2.00
79 - PIN D2X10 HIT-321312.A0 321312	£1.67	£2.00
80 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A18 6201DD	£8.64	£10.37
81 - DUST WASHER (B) HIT-302429.A0 302429	£1.67	£2.00
*82 - ARMATURE ASS'Y 110V-120V INCLUD.80 HIT-360591U.A1 360591U	£98.82	£118.58
*82 - ARMATURE ASS'Y 220V-230V INCLUD.117 HIT-360591E.A2 360591E	£98.82	£118.58
*82 - ARMATURE ASS'Y 240V INCLUD.117 HIT-360591F.A0 360591F	-
83 - FAN GUIDE HIT-321320.A0 321320	£4.86	£5.83
84 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A20 953174	£1.67	£2.00
*85 - STATOR ASS'Y 110V INCLUD.96 HIT-340542C.A1 340542C	-
*85 - STATOR ASS'Y 120V INCLUD.96 HIT-340542G.A0 340542G	-
*85 - STATOR ASS'Y 220V-230V INCLUD.96 HIT-340542E.A0 340542E	£55.24	£66.29
*85 - STATOR ASS'Y 220V INCLUD.96 FOR HKG HIT-340542H.A0 340542H	-
*85 - STATOR ASS'Y 240V INCLUD.96 HIT-340542F.A0 340542F	-
86 - WASHER (A) HIT-982631.A45 982631	£1.67	£2.00
87 - BALL BEARING 608VVC2PS2L HIT-608VVM.A77 608VVM	£5.70	£6.84
88 - MAGNET HIT-318721.A6 318721	£20.48	£24.58
89 - SEAL LOCK HEX. SOCKET HD. BOLT M6X22 HIT-321313.A12 321313	£1.67	£2.00
90 - BRUSH CAP HIT-935829.A20 935829	£1.67	£2.00
*91 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999073.A12 999073	£18.73	£22.48
*91 - CARBON BRUSH (1 PAIR) FOR HKG HIT-999043.A46 999043	£5.54	£6.65
92 - BRUSH HOLDER HIT-971001.A0 971001	£8.64	£10.37
93 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A112 938477	£1.67	£2.00
94 - TAIL COVER HIT-321321.A1 321321	£14.71	£17.65
95 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-877839.A8 877839	£1.67	£2.00
96 - BRUSH TERMINAL HIT-930703.A44 930703	£3.28	£3.93
97 - VINYL TUBE L35 HIT-321322.A0 321322	-
98 - HOUSING ASS'Y INCLUD.92 HIT-321318.A0 321318	£117.34	£140.81
99 - CASE (B) HIT-321317.A0 321317	£7.02	£8.42
*100 - CONTROLLER CIRCUIT 110V HIT-321326.A0 321326	£133.94	£160.73
*100 - CONTROLLER CIRCUIT 120V HIT-321328.A0 321328	-
*100 - CONTROLLER CIRCUIT 220V-240V HIT-321327.A0 321327	£133.94	£160.73
101 - INTERNAL WIRE EXCEPT FOR HKG HIT-317113.A4 317113	£4.12	£4.95
103 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X14 HIT-998485.A1 998485	£1.67	£2.00
104 - SWITCH (C) (2P SCREW TYPE W/O LOCK) HIT-313093.A1 313093	£14.28	£17.13
106 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A56 301653	£1.67	£2.00
107 - SDS MAX LABEL HIT-000000.A4736 000000	-
108 - NAME PLATE HIT-000000.A4737 000000	-
*109 - TERMINAL HIT-980063.A113 980063	£1.67	£2.00
*109 - TERMINAL M4.0 (10 PCS.) FOR USA HIT-930804.A24 930804	£3.64	£4.37
110 - TUBE (D) FOR CORD HIT-981373.A72 981373	£1.67	£2.00
*111 - CORD ARMOR D8.2 HIT-958049.A5 958049	£1.67	£2.00
*111 - CORD ARMOR D10.7 HIT-940778.A37 940778	£3.15	£3.78
112 - CONNECTOR 50092 (10 PCS.) FOR HKG HIT-959141.A34 959141	£7.12	£8.54
113 - PILLAR TERMINAL EXCEPT FOR HKG HIT-938307.A80 938307	£3.28	£3.93
*114 - CORD CLIP HIT-960266.A59 960266	£1.67	£2.00
*114 - CORD CLIP FOR SUI HIT-981987Z.A0 981987Z	-
115 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A19 984750	£1.67	£2.00
*116 - CORD (CORD ARMOR D10.7) HIT-500390Z.A19 500390Z	-
*116 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500446Z.A3 500446Z	£33.79	£40.55
*116 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500454Z.A1 500454Z	£16.40	£19.68
*116 - CORD (CORD ARMOR D8.2) FOR HKG HIT-500435Z.A48 500435Z	£14.14	£16.97
*116 - CORD (CORD ARMOR D10.7) FOR SUI HIT-500391Z.A1 500391Z	-
*116 - CORD (CORD ARMOR D8.2) FOR NZL HIT-500408Z.A11 500408Z	-
*116 - CORD (CORD ARMOR D8.2) FOR AUS HIT-500439Z.A8 500439Z	-
*116 - CORD (CORD ARMOR D10.7) FOR USA HIT-500434Z.A5 500434Z	-
*116 - CORD (CORD ARMOR D8.2) FOR ARG HIT-500486Z.A0 500486Z	-
117 - FAN HIT-321640.A3 321640	£8.52	£10.22
118 - HANDLE SET HIT-335738.A0 335738	£27.12	£32.55
501 - CASE FOR CHN HIT-321325.A1 321325	£60.09	£72.11
501B - CASE (PLASTIC) HIT-322152.A0 322152	£70.87	£85.04
502 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A4 981840	£8.22	£9.87
503 - HEX. BAR WRENCH 3MM HIT-943277.A33 943277	£1.67	£2.00
504 - HEX. BAR WRENCH 4MM HIT-944458.A7 944458	£1.67	£2.00
505 - HEX. BAR WRENCH 5MM HIT-944459.A25 944459	£1.67	£2.00
601 - DRILL BIT (SDS MAX) D16X340 HIT-313448.A6 313448	-
602 - DRILL BIT (SDS MAX) D16X540 HIT-313456.A6 313456	-
603 - DRILL BIT (SDS MAX) D19X340 HIT-313449.A3 313449	-
604 - DRILL BIT (SDS MAX) D19X540 HIT-313457.A3 313457	-
605 - DRILL BIT (SDS MAX) D22X320 HIT-313450.A6 313450	-
606 - DRILL BIT (SDS MAX) D22X520 HIT-313458.A6 313458	-
607 - DRILL BIT (SDS MAX) D25X320 HIT-313451.A3 313451	-
608 - DRILL BIT (SDS MAX) D25X520 HIT-313459.A3 313459	-
609 - DRILL BIT (SDS MAX) D28X370 HIT-313452.A6 313452	-
610 - DRILL BIT (SDS MAX) D28X570 HIT-313460.A6 313460	-
611 - DRILL BIT (SDS MAX) D32X370 HIT-313453.A3 313453	-
612 - DRILL BIT (SDS MAX) D32X570 HIT-313461.A3 313461	-
613 - DRILL BIT (SDS MAX) D38X370 HIT-313454.A5 313454	-
614 - DRILL BIT (SDS MAX) D38X570 HIT-313462.A6 313462	-
616 - DRILL BIT (SDS MAX) D40X570 HIT-313463.A3 313463	-
624 - COTTER HIT-944477.A46 944477	£5.17	£6.20
625 - ADAPTER (SDS MAX) FOR SDS PLUS SHANK BIT HIT-313465.A6 313465	-
626 - CORE BIT 25MM HIT-955994.A1 955994	-
627 - CORE BIT 29MM HIT-955995.A11 955995	-
628 - CORE BIT 32MM INCLUD.629 HIT-955996.A1 955996	-
629 - GUIDE PLATE (FOR CORE BIT 32MM) HIT-955997.A10 955997	£1.67	£2.00
630 - CORE BIT 35MM INCLUD.631 HIT-955998.A1 955998	£111.98	£134.38
631 - GUIDE PLATE (FOR CORE BIT 35MM) HIT-955999.A10 955999	£3.51	£4.21
632 - CORE BIT 38MM INCLUD.633 HIT-956000.A1 956000	-
633 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-956001.A10 956001	£6.19	£7.43
634 - CORE BIT 45MM INCLUD.635 HIT-955154.A1 955154	£126.14	£151.37
635 - GUIDE PLATE (FOR CORE BIT 45MM) HIT-955166.A4 955166	-
636 - CORE BIT 54MM INCLUD.637 HIT-955155.A11 955155	-
637 - GUIDE PLATE (FOR CORE BIT 54MM) HIT-955167.A7 955167	£6.19	£7.43
638 - CORE BIT 64MM INCLUD.639 HIT-956002.A1 956002	£182.83	£219.40
639 - GUIDE PLATE (FOR CORE BIT 64MM) HIT-956003.A10 956003	-
640 - CORE BIT 79MM INCLUD.641 HIT-955157.A1 955157	-
641 - GUIDE PLATE (FOR CORE BIT 79MM) HIT-955168.A4 955168	£10.43	£12.52
642 - CORE BIT 94MM INCLUD.643 HIT-956004.A1 956004	-
643 - GUIDE PLATE (FOR CORE BIT 94MM) HIT-956005.A10 956005	£7.75	£9.30
644 - CORE BIT 105MM INCLUD.645 HIT-955159.A11 955159	£375.58	£450.70
645 - GUIDE PLATE (FOR CORE BIT 105MM) HIT-955169.A7 955169	£8.24	£9.89
646 - CENTER PIN (B) 147L FOR CORE BIT D32-35 HIT-956009.A5 956009	£40.26	£48.31
647 - CENTER PIN (A) 133L FOR CORE BIT D38-150 HIT-955165.A8 955165	-
648 - CORE BIT SHANK (B) SDS MAX D25-35 HIT-313466.A3 313466	-
649 - CORE BIT SHANK (A) SDS MAX D38-150 HIT-313467.A6 313467	-
650 - DRILL CHUCK 13VLD-D INCLUD.651 HIT-321813.A21 321813	-
651 - CHUCK WRENCH 10G HIT-930515.A24 930515	£6.38	£7.66
652 - CHUCK ADAPTER (SDS MAX) HIT-313468.A3 313468	-
653 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 12.7MM HIT-313469.A5 313469	£38.53	£46.24
654 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 19MM HIT-313470.A4 313470	£44.76	£53.71
655 - BULL POINT (SDS MAX) 280L HIT-313471.A9 313471	-
656 - BULL POINT (SDS MAX) 400L HIT-313472.A13 313472	-
657 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A9 313473	-
658 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A12 313474	-
659 - CUTTER (SDS MAX) W50X400L HIT-313475.A9 313475	-
660 - SCOOP (SDS MAX) 400L HIT-313476.A12 313476	-
661A - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A12 313478	-
662 - BUSHING TOOL (SDS MAX) HIT-313477.A8 313477	-
663 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A9 313479	-
664 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A20 320859	£10.35	£12.42
665 - SYRINGE (BELLOWS TYPE) HIT-318085.A1 318085	-
666 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A26 308471	£16.21	£19.45
667 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A57 980927	£55.68	£66.81
668A - SERVICE KIT (DH 40MR) INCLUD.7 HIT-321715.A0 321715	£89.28	£107.14
669 - DUST COLLECTOR (FOR HAMMER DRILL C) HIT-317341.A2 317341	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki DH40MR Hammer Drill Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
