Hitachi / Hikoki DH40MEY Rotary Hammer Spare Parts

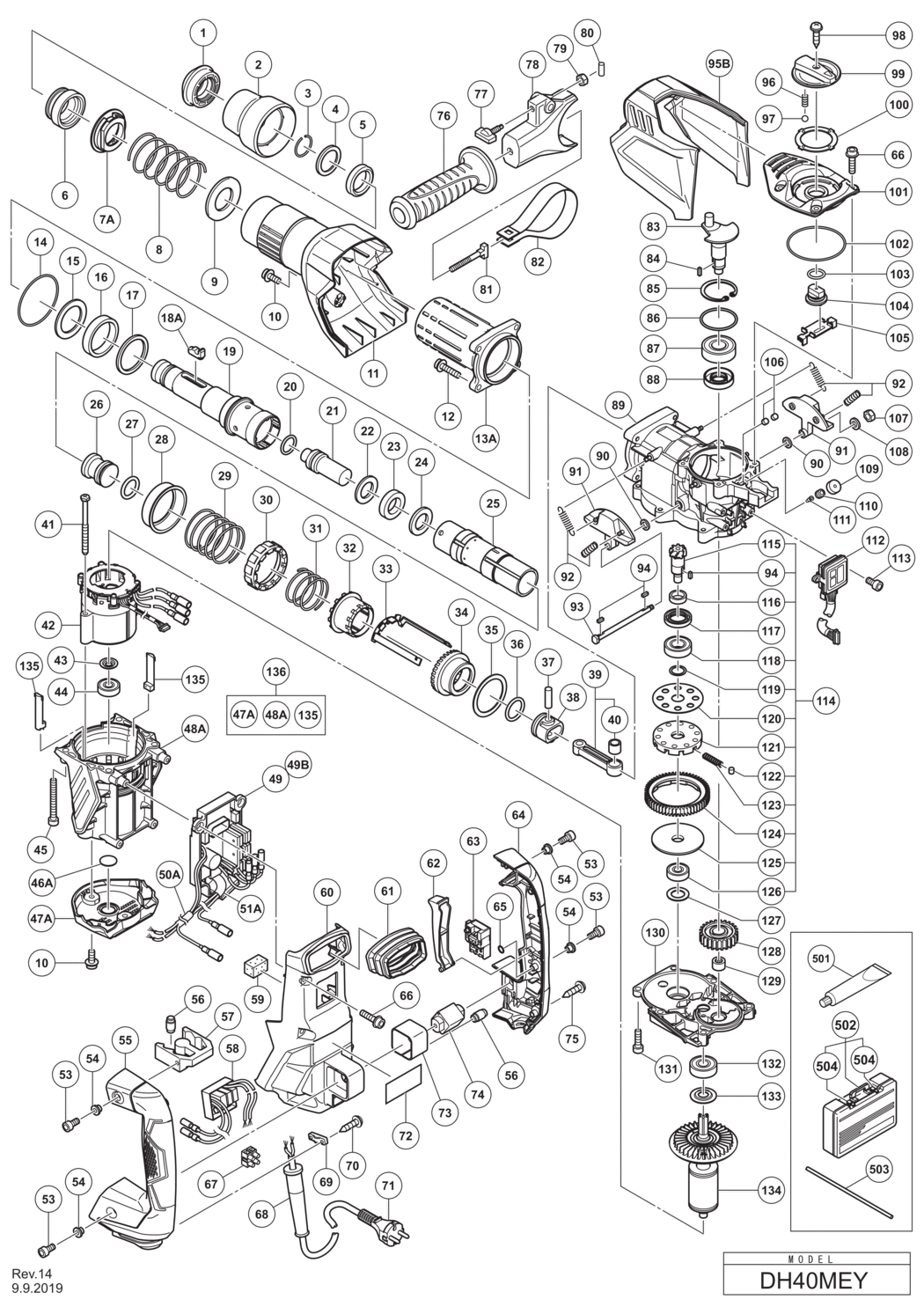

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH40MEY Rotary Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-337562.A0 337562	£4.81	£5.77
2 - GRIP HIT-337560.A0 337560	£4.55	£5.46
3 - STOPPER RING HIT-318590.A4 318590	£1.67	£2.00
4 - RETAINER WASHER HIT-337561.A0 337561	£5.70	£6.84
5 - RETAINER DAMPER (A) HIT-337559.A0 337559	£1.67	£2.00
6 - BIT LOCK HOLDER HIT-337558.A4 337558	£11.86	£14.23
7A - SPRING HOLDER (A) HIT-370242.A4 370242	£14.54	£17.45
8 - RETAINER SPRING HIT-337556.A0 337556	-
9 - SPRING HOLDER (A) HIT-337557.A0 337557	-
10 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A18 998471	£1.67	£2.00
11 - CYLINDER CASE COVER HIT-337553.A0 337553	-
12 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X25 HIT-991712.A4 991712	£1.67	£2.00
13A - CYLINDER CASE HIT-337552.A0 337552	£30.12	£36.15
14 - O-RING (1AS-60) HIT-956996.A22 956996	£3.82	£4.58
15 - RETAINER DAMPER HOLDER HIT-337549.A2 337549	-
16 - RETAINER DAMPER (B) HIT-337548.A0 337548	£3.12	£3.74
17 - RETAINER DAMPER WASHER HIT-337547.A0 337547	-
18A - BIT LOCK HIT-370654.A11 370654	£8.55	£10.26
19 - RETAINER SLEEVE HIT-337536.A0 337536	£58.88	£70.65
20 - O-RING (C) HIT-313396.A1 313396	£5.87	£7.04
21 - SECOND HAMMER HIT-337537.A0 337537	£12.36	£14.83
22 - DAMPER WASHER HIT-337538.A0 337538	-
23 - DAMPER HIT-321835.A2 321835	£8.77	£10.52
24 - DAMPER HOLDER HIT-337539.A0 337539	-
25 - CYLINDER HIT-337540.A0 337540	£51.97	£62.36
26 - STRIKER HIT-337541.A0 337541	£13.02	£15.62
27 - O-RING HIT-986104.A11 986104	£1.67	£2.00
28 - SPRING HOLDER (B) HIT-337550.A0 337550	-
29 - LOCK SPRING HIT-337551.A0 337551	-
30 - LOCK SLEEVE HIT-331535.A3 331535	£3.28	£3.93
31 - CLUTCH SPRING HIT-337542.A0 337542	-
32 - CLUTCH HIT-337543.A0 337543	£23.58	£28.30
33 - SLIDER HIT-337544.A0 337544	£4.01	£4.81
34 - BEVEL GEAR HIT-337545.A0 337545	£16.64	£19.97
35 - THRUST WASHER HIT-337546.A0 337546	-
36 - O-RING HIT-986104.A10 986104	£1.67	£2.00
37 - PISTON PIN HIT-980708.A5 980708	£3.28	£3.93
38 - PISTON HIT-326369.A2 326369	£4.33	£5.20
39 - CONNECTING ROD ASS'Y INCLUD.40 HIT-337535.A0 337535	£15.71	£18.85
40 - NEEDLE BEARING HIT-335303.A0 335303	-
41 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A23 953174	£1.67	£2.00
*42 - STATOR SENSOR PCB SET 100V-127V HIT-340884.A0 340884	£40.77	£48.92
*42 - STATOR SENSOR PCB SET 220V-240V HIT-340885E.A0 340885E	£40.77	£48.92
43 - WASHER (A) HIT-958915.A2 958915	£1.67	£2.00
44 - BALL BEARING 629VV HIT-629VVM.A36 629VVM	£6.00	£7.20
45 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A2 986940	£1.67	£2.00
46A - DUST SEAL HIT-333263.A1 333263	-
47A - TAIL COVER SINCE 10.2015 HIT-370002.A0 370002	-
48A - HOUSING SINCE 10.2015 HIT-370001.A0 370001	£59.38	£71.26
*49 - CONTROLLER SET 220V-240V HIT-337580.A0 337580	£75.48	£90.58
*49A - CONTROLLER SET 110V-127V HIT-371116.A0 371116	£105.29	£126.35
50A - VINYL TUBE L50 HIT-370074.A2 370074	-
51A - VINYL TUBE L35 HIT-370073.A0 370073	-
53 - SEAL LOCK HEX. SOCKET HD. BOLT M5X12 HIT-991690.A4 991690	£1.67	£2.00
54 - DISTANCE PIECE (B) HIT-991711.A21 991711	£1.67	£2.00
55 - HANDLE (B) HIT-337590.A0 337590	-
56 - HANDLE DAMPER HIT-310124.A1 310124	£6.18	£7.41
57 - TRANSATORY UNIT HIT-310123.A14 310123	£11.82	£14.18
*58 - FILTER PCB SET 100V-127V HIT-337585.A0 337585	£13.02	£15.62
*58 - FILTER PCB SET 220V-240V HIT-337586.A2 337586	£13.02	£15.62
59 - SPONGE (B) HIT-338447.A2 338447	-
60 - BACK COVER HIT-337573.A0 337573	-
61 - BELLOWS HIT-337591.A0 337591	-
62 - TRIGGER HIT-337588.A4 337588	£1.67	£2.00
63 - SWITCH HIT-337587.A0 337587	£15.34	£18.41
64 - HANDLE (A) HIT-337589.A0 337589	-
65 - O-RING HIT-320218.A9 320218	£1.67	£2.00
66 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A11 994192	£1.67	£2.00
67 - PILLAR TERMINAL (A) HIT-958308Z.A2 958308Z	£7.53	£9.04
*68 - CORD ARMOR D10.7 HIT-940778.A1 940778	£3.15	£3.78
69 - CORD CLIP HIT-960266.A31 960266	£1.67	£2.00
70 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A256 984750	£1.67	£2.00
*71 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500446Z.A26 500446Z	£33.79	£40.55
*71 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-500465Z.A13 500465Z	£26.20	£31.44
72 - NAME PLATE HIT-000000.A2815 000000	-
73 - HOLDER HIT-337574.A0 337574	-
74 - HANDLE SHAFT HIT-326377.A2 326377	£6.50	£7.80
75 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A206 301653	£1.67	£2.00
76 - SIDE HANDLE HIT-330209.A11 330209	£17.51	£21.01
77 - WING BOLT HIT-337577.A0 337577	£1.67	£2.00
78 - MOUNT HIT-337576.A0 337576	-
79 - NUT M6 (10 PCS.) HIT-949556.A39 949556	£1.67	£2.00
80 - ROLL PIN D2X8 (10 PCS.) HIT-949859.A13 949859	£1.67	£2.00
81 - HANDLE BOLT HIT-331247.A1 331247	£6.45	£7.74
82 - BAND HIT-337575.A0 337575	-
83 - CRANK SHAFT HIT-337531.A0 337531	£26.19	£31.43
84 - FEATHER KEY 3X3X10 HIT-940533.A9 940533	£1.67	£2.00
85 - RETAINING RING FOR D40 HOLE HIT-948391.A1 948391	£1.67	£2.00
86 - O-RING (S-40) HIT-996363.A4 996363	£1.67	£2.00
87 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A36 6203DD	£8.64	£10.37
88 - OIL SEAL (B) HIT-321274.A8 321274	£7.38	£8.85
89 - CRANK CASE HIT-337530.A0 337530	£53.89	£64.67
90 - WASHER HIT-337571.A0 337571	£1.67	£2.00
91 - WEIGHT HIT-337569.A0 337569	£18.30	£21.96
92 - WEIGHT SPRING HIT-337572.A0 337572	-
93 - WEIGHT SHAFT HIT-337570.A0 337570	£8.52	£10.22
94 - FEATHER KEY 3X3X8 HIT-944109.A2 944109	£3.28	£3.93
*95B - CRANK CASE COVER HIT-337592.A0 337592	-
96 - LEVER SPRING HIT-337567.A0 337567	£1.67	£2.00
97 - STEEL BALL D4.76 (10 PCS.) HIT-959149.A13 959149	£1.67	£2.00
98 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A19 307811	-
99 - CHANGE LEVER HIT-337566.A0 337566	-
100 - GUIDE PLATE HIT-337568.A0 337568	-
101 - CRANK COVER HIT-337564.A0 337564	-
102 - CYLINDER O-RING (I.D 63.9) HIT-877315.A4 877315	-
103 - O-RING HIT-338312.A0 338312	-
104 - LEVER SHAFT HIT-337565.A0 337565	£1.67	£2.00
105 - CHANGE PLATE HIT-337563.A0 337563	£1.67	£2.00
106 - FELT (B) HIT-338315.A0 338315	-
107 - NUT M5 (10 PCS.) HIT-949555.A13 949555	£1.67	£2.00
108 - WASHER M5 (10 PCS.) HIT-949424.A11 949424	£1.67	£2.00
109 - FELT (A) HIT-338314.A0 338314	-
110 - CAP SCREW HIT-338313.A0 338313	-
111 - VALVE HIT-995396.A0 995396	-
112 - PANEL HIT-337581.A0 337581	£14.19	£17.03
113 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A23 983162	£1.67	£2.00
114 - SLIP CLUTCH ASS'Y INCLUD.94 HIT-337533.A0 337533	£52.22	£62.67
115 - BEVEL PINION HIT-337534.A0 337534	£12.94	£15.53
116 - COLLAR HIT-321279.A4 321279	-
117 - OIL SEAL (A) HIT-313050.A9 313050	£4.68	£5.62
118 - BALL BEARING 6002DDCMPS2L HIT-6002DD.A21 6002DD	£8.64	£10.37
119 - WASHER HIT-313058.A2 313058	£1.67	£2.00
120 - WASHER (A) HIT-313053.A0 313053	£4.45	£5.34
121 - GEAR HOLDER HIT-321281.A8 321281	-
122 - NEEDLE HIT-320343.A6 320343	£4.22	£5.07
123 - SPRING (C) HIT-321282.A1 321282	£1.67	£2.00
124 - SECOND GEAR HIT-331215.A3 331215	£25.99	£31.19
125 - SPACER HIT-321283.A6 321283	-
126 - BALL BEARING 629VV HIT-629VVM.A38 629VVM	£6.00	£7.20
127 - BEARING WASHER (C) HIT-944525.A9 944525	-
128 - FIRST GEAR HIT-337532.A0 337532	-
129 - NEEDLE BEARING (M661) HIT-939299.A16 939299	£11.82	£14.18
130 - GEAR COVER HIT-337583.A0 337583	-
131 - SEAL LOCK HEX. SOCKET HD. BOLT M6X20 HIT-992803.A3 992803	£1.67	£2.00
132 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A13 6201DD	£8.64	£10.37
133 - DUST WASHER (B) HIT-302429.A8 302429	£1.67	£2.00
134 - ROTOR HIT-337578.A2 337578	£89.31	£107.17
135 - SPACER SINCE 10.2015 HIT-339910.A0 339910	£1.67	£2.00
136 - HOUSING SET INCLUD.47A HIT-339909.A0 339909	-
501 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A33 981840	£8.22	£9.87
502 - CASE (PLASTIC) INCLUD.504 HIT-337594.A0 337594	-
503 - STOPPER ROD HIT-971786.A9 971786	£6.94	£8.33
504 - BUCKLE HIT-372113.A8 372113	-
601A - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A49 308471	£16.21	£19.45
602A - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A13 980927	£55.68	£66.81
603 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A25 320859	£10.35	£12.42
604 - DRILL BIT (SDS MAX) D16X340 HIT-313448.A0 313448	-
605 - DRILL BIT (SDS MAX) D16X540 HIT-313456.A3 313456	-
606 - DRILL BIT (SDS MAX) D19X340 HIT-313449.A9 313449	-
607 - DRILL BIT (SDS MAX) D19X540 HIT-313457.A6 313457	-
608 - DRILL BIT (SDS MAX) D22X320 HIT-313450.A0 313450	-
609 - DRILL BIT (SDS MAX) D22X520 HIT-313458.A3 313458	-
610 - DRILL BIT (SDS MAX) D25X320 HIT-313451.A9 313451	-
611 - DRILL BIT (SDS MAX) D25X520 HIT-313459.A6 313459	-
612 - DRILL BIT (SDS MAX) D28X370 HIT-313452.A0 313452	-
613 - DRILL BIT (SDS MAX) D28X570 HIT-313460.A3 313460	-
614 - DRILL BIT (SDS MAX) D32X370 HIT-313453.A9 313453	-
615 - DRILL BIT (SDS MAX) D32X570 HIT-313461.A6 313461	-
616 - DRILL BIT (SDS MAX) D38X370 HIT-313454.A0 313454	-
617 - DRILL BIT (SDS MAX) D38X570 HIT-313462.A3 313462	-
619 - DRILL BIT (SDS MAX) D40X570 HIT-313463.A6 313463	-
620 - SYRINGE (BELLOWS TYPE) HIT-318085.A19 318085	-
623 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A12 993038	-
625 - COTTER HIT-944477.A18 944477	£5.17	£6.20
626 - ADAPTER (SDS MAX) FOR SDS PLUS SHANK BIT HIT-313465.A3 313465	-
627 - CORE BIT 25MM HIT-955994.A12 955994	-
628 - CORE BIT 29MM HIT-955995.A0 955995	-
629 - CORE BIT 32MM INCLUD.630 HIT-955996.A12 955996	-
630 - GUIDE PLATE (FOR CORE BIT 32MM) HIT-955997.A0 955997	£1.67	£2.00
631 - CORE BIT 35MM INCLUD.632 HIT-955998.A12 955998	£111.98	£134.38
632 - GUIDE PLATE (FOR CORE BIT 35MM) HIT-955999.A0 955999	£3.51	£4.21
633 - CORE BIT 38MM INCLUD.634 HIT-956000.A12 956000	-
634 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-956001.A0 956001	£6.19	£7.43
635 - CORE BIT 45MM INCLUD.636 HIT-955154.A9 955154	£126.14	£151.37
636 - GUIDE PLATE (FOR CORE BIT 45MM) HIT-955166.A3 955166	-
637 - CORE BIT 54MM INCLUD.638 HIT-955155.A3 955155	-
638 - GUIDE PLATE (FOR CORE BIT 54MM) HIT-955167.A8 955167	£6.19	£7.43
639 - CORE BIT 64MM INCLUD.640 HIT-956002.A12 956002	£182.83	£219.40
640 - GUIDE PLATE (FOR CORE BIT 64MM) HIT-956003.A0 956003	-
641 - CORE BIT 79MM INCLUD.642 HIT-955157.A9 955157	-
642 - GUIDE PLATE (FOR CORE BIT 79MM) HIT-955168.A3 955168	£10.43	£12.52
643 - CORE BIT 94MM INCLUD.644 HIT-956004.A12 956004	-
644 - GUIDE PLATE (FOR CORE BIT 94MM) HIT-956005.A0 956005	£7.75	£9.30
645 - CORE BIT 105MM INCLUD.646 HIT-955159.A3 955159	£375.58	£450.70
646 - GUIDE PLATE (FOR CORE BIT 105MM) HIT-955169.A8 955169	£8.24	£9.89
647 - CORE BIT SHANK (B) SDS MAX D25-35 HIT-313466.A6 313466	-
648 - CORE BIT SHANK (A) SDS MAX D38-150 HIT-313467.A3 313467	-
649 - CENTER PIN (B) 147L FOR CORE BIT D32-35 HIT-956009.A12 956009	£40.26	£48.31
650 - CENTER PIN (A) 133L FOR CORE BIT D38-150 HIT-955165.A9 955165	-
651 - DRILL CHUCK 13VLD-D HIT-321813.A31 321813	-
652 - CHUCK ADAPTER (SDS MAX) HIT-313468.A6 313468	-
653 - CHUCK HANDLE HIT-303334.A33 303334	-
654 - CHUCK WRENCH 10G HIT-930515.A14 930515	£6.38	£7.66
655 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 12.7MM HIT-313469.A7 313469	£38.53	£46.24
656 - CHEMICAL ANCHOR ADAPTER (SDS MAX) 19MM HIT-313470.A2 313470	£44.76	£53.71
657 - BULL POINT (SDS MAX) 280L HIT-313471.A11 313471	-
658 - BULL POINT (SDS MAX) 400L HIT-313472.A11 313472	-
659 - COLD CHISEL (SDS MAX) 280MM HIT-313473.A11 313473	-
660 - COLD CHISEL (SDS MAX) 400MM HIT-313474.A10 313474	-
661 - CUTTER (SDS MAX) W50X400L HIT-313475.A11 313475	-
662 - SCOOP (SDS MAX) 400L HIT-313476.A10 313476	-
663 - RAMMER (SDS MAX) 150MMX150MM HIT-313478.A10 313478	-
664 - BUSHING TOOL (SDS MAX) HIT-313477.A10 313477	-
665 - SHANK (SDS MAX)FOR RAMMER 1 HIT-313479.A11 313479	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki DH40MEY Rotary Hammer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
