Hitachi / Hikoki DH36DPB Cordless Rotary Hammer Spare Parts

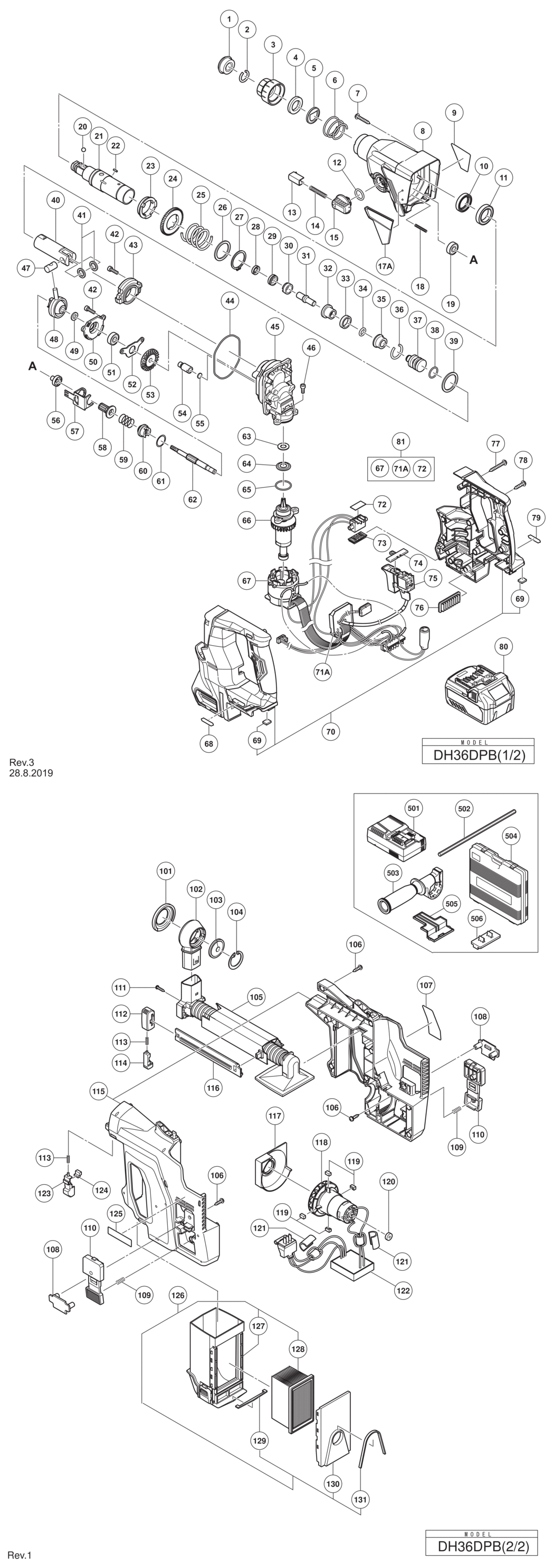

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH36DPB Cordless Rotary Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-306345.A23 306345	£3.59	£4.31
2 - STOPPER RING HIT-306340.A14 306340	£1.67	£2.00
3 - GRIP HIT-324527.A8 324527	£4.33	£5.20
4 - BALL HOLDER (FW) HIT-371326.A3 371326	£10.78	£12.94
5 - HOLDER PLATE HIT-324526.A12 324526	£4.33	£5.20
6 - HOLDER SPRING HIT-322812.A0 322812	£1.67	£2.00
7 - TAPPING SCREW (W/FLANGE) D5 HIT-370307.A2 370307	-
8 - GEAR COVER ASS'Y INCLUD.10 HIT-370306.A2 370306	£40.57	£48.68
9 - NAME PLATE HIT-000000.A4979 000000	-
10 - OIL SEAL HIT-335259.A2 335259	£5.07	£6.08
11 - BALL BEARING 6805DD HIT-335260.A9 335260	£6.06	£7.27
12 - O-RING (S-18) HIT-878885.A5 878885	£1.67	£2.00
13 - PUSHING BUTTON HIT-322789.A6 322789	£6.50	£7.80
14 - PUSHING SPRING HIT-317223.A23 317223	£1.67	£2.00
15 - CHANGE LEVER HIT-334011.A15 334011	£3.92	£4.70
17A - BRAND PLATE HIT-370308.A2 370308	-
18 - SPRING (E) HIT-335800.A22 335800	£1.67	£2.00
19 - BALL BEARING 608VVC2PS2L HIT-608VVM.A106 608VVM	£5.70	£6.84
20 - STEEL BALL D7.0 (10 PCS.) HIT-335300.A2 335300	£1.67	£2.00
21 - CYLINDER HIT-335261.A2 335261	£34.50	£41.40
22 - PIN D2.5 HIT-335264.A9 335264	£1.67	£2.00
23 - CYLINDER CLUTCH HIT-335263.A2 335263	£18.38	£22.05
24 - SECOND GEAR HIT-335265.A2 335265	£10.52	£12.62
25 - SPRING (A) HIT-335266.A9 335266	£1.67	£2.00
26 - WASHER (A) HIT-301679.A21 301679	£1.67	£2.00
27 - RETAINING RING FOR D30 SHAFT HIT-948310.A40 948310	£1.67	£2.00
28 - OIL SEAL (A) HIT-335262.A20 335262	£3.12	£3.74
29 - HAMMER HOLDER (C) HIT-335268.A8 335268	£16.28	£19.54
30 - SLEEVE (FW) HIT-335795.A2 335795	£7.66	£9.19
31 - SECOND HAMMER HIT-335269.A2 335269	£7.12	£8.54
32 - HAMMER HOLDER (A) HIT-335267.A2 335267	£5.43	£6.52
33 - DAMPER (A) HIT-322805.A28 322805	£1.67	£2.00
34 - O-RING (C) HIT-322808.A28 322808	£1.67	£2.00
35 - DAMPER HOLDER HIT-324524.A8 324524	£8.66	£10.39
36 - STOPPER RING HIT-322807.A0 322807	£1.67	£2.00
37 - STRIKER HIT-372815.A0 372815	-
38 - O-RING HIT-372816.A1 372816	£5.07	£6.08
39 - WASHER (A) HIT-301679.A20 301679	£1.67	£2.00
40 - PISTON HIT-372817.A11 372817	-
41 - PISTON WASHER HIT-335794.A20 335794	£1.67	£2.00
42 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A18 990079	£1.67	£2.00
43 - INNER COVER (B) HIT-370309.A2 370309	-
44 - O-RING HIT-370310.A2 370310	£9.43	£11.32
45 - INNER COVER (A) INCLUD.54 HIT-370311.A2 370311	-
46 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-877839.A3 877839	£1.67	£2.00
47 - PISTON PIN HIT-335793.A2 335793	£5.78	£6.94
48 - RECIPROCATING BEARING HIT-335249.A3 335249	£19.98	£23.97
49 - BEARING WASHER HIT-335250.A8 335250	£1.67	£2.00
50 - BEARING HOLDER (B) HIT-370312.A2 370312	-
51 - BALL BEARING 608VVC2PS2L HIT-608VVM.A107 608VVM	£5.70	£6.84
52 - BEARING COVER (A) HIT-370313.A2 370313	-
53 - BEVEL GEAR (A) HIT-370314.A2 370314	-
54 - AIR CAP HIT-334008.A6 334008	-
55 - FELT PACKING (A) HIT-324543.A14 324543	£1.67	£2.00
56 - PINION SLEEVE HIT-335275.A1 335275	£5.34	£6.41
57 - LOCK PLATE HIT-335276.A7 335276	£16.20	£19.44
58 - SECOND PINION HIT-335278.A7 335278	£12.19	£14.63
59 - CLUTCH SPRING HIT-323182.A20 323182	£1.67	£2.00
60 - CLUTCH HIT-335254.A11 335254	£7.12	£8.54
61 - WASHER HIT-331315.A3 331315	£1.67	£2.00
62 - SECOND SHAFT HIT-335277.A1 335277	£11.28	£13.53
63 - FELT PACKING HIT-370315.A2 370315	-
64 - PACKING WASHER HIT-370316.A2 370316	-
65 - O-RING (S-26) HIT-872470.A13 872470	£1.67	£2.00
66 - ROTOR (B) HIT-361072.A1 361072	-
67 - STATOR HIT-340981.A0 340981	-
68 - MV LABEL (A) HIT-000000.A4980 000000	-
69 - DAMPER (A) HIT-370321.A2 370321	£1.67	£2.00
70 - HOUSING (A).(B) SET INCLUD.69 HIT-372718.A1 372718	-
71A - SWITCH CONTROLLER ASS'Y INCLUD.75 HIT-372868.A0 372868	-
72 - RUBBER CUSHION HIT-370327.A4 370327	-
73 - TERMINAL RUBBER BASE HIT-370545.A2 370545	-
74 - PUSHING BUTTON (B) HIT-324225.A13 324225	£2.49	£2.99
75 - DC-SPEED CONTROL SWITCH HIT-370322.A0 370322	£28.44	£34.13
76 - BATTERY RUBBER (B) HIT-370328.A0 370328	-
77 - TAPPING SCREW (W/FLANGE) D4X40 (BLACK) HIT-306664.A10 306664	-
78 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A23 301653	£1.67	£2.00
79 - MV LABEL (B) HIT-000000.A4981 000000	-
80 - BATTERY BSL 36A18 (EUROPE AUS NZL) INCLUD.505 HIT-371750.A11 371750	£173.17	£207.80
81 - WIRING ASS'Y INCLUD.67 HIT-372867.A1 372867	-
101 - NOZZLE SEAL HIT-370494.A0 370494	£2.84	£3.41
102 - NOZZLE HIT-370495.A1 370495	£1.67	£2.00
103 - BRUSH CAP HIT-370496.A0 370496	£31.17	£37.40
104 - RETAINING RING D35 HIT-370497.A1 370497	£1.67	£2.00
105 - SLIDE PIPE HIT-370823.A0 370823	-
106 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A41 307811	-
107 - NAME PLATE HIT-000000.A4982 000000	-
108 - LATCH HOLDER HIT-370511.A1 370511	-
109 - SPRING (E) HIT-370821.A0 370821	-
110 - LATCH (A) HIT-370512.A0 370512	-
111 - TAPPING SCREW D2.6 HIT-370500.A0 370500	-
112 - ADJUSTER HIT-370501.A1 370501	-
113 - SPRING (A) HIT-370502.A0 370502	-
114 - BUTTON (A) HIT-370838.A0 370838	-
115 - HOUSING SET HIT-370508.A0 370508	-
116 - ADJUSTMENT RAIL HIT-370504.A1 370504	-
117 - FAN COVER HIT-370514.A1 370514	-
118 - MOTOR FAN SET HIT-370515.A0 370515	-
119 - RUBBER BUSHING (A) HIT-337801.A1 337801	-
120 - RUBBER BUSHING (B) HIT-337802.A0 337802	-
121 - SUPPORT (D) HIT-339343.A0 339343	-
122 - CONTROLLER HIT-370517.A1 370517	-
123 - BUTTON (B) HIT-370509.A1 370509	-
124 - STOPPER HIT-370510.A0 370510	-
125 - BRAND LABEL HIT-000000.A4983 000000	-
126 - DUST BOX ASS'Y INCLUD.127-131 HIT-370518.A0 370518	£40.77	£48.92
127 - DUST BOX HIT-370822.A1 370822	-
128 - FILTER HIT-370520.A0 370520	£27.70	£33.24
129 - PACKING (C) HIT-370519.A1 370519	-
130 - FILTER COVER HIT-370521.A1 370521	-
131 - PACKING (B) HIT-370522.A0 370522	-
501 - CHARGER (MODEL UC 18YSL3) HIT-000000.A4985 000000	-
502 - DEPTH GAUGE HIT-303709.A45 303709	£1.67	£2.00
503 - SIDE HANDLE HIT-335273.A1 335273	£14.28	£17.13
504 - CASE HIT-373136.A0 373136	-
505 - BATTERY COVER HIT-329897.A14 329897	£1.67	£2.00
506 - TERMINAL COVER HIT-371715.A3 371715	-
601 - HAMMER DRILL CHUCK SET 13MM INCLUD.602 HIT-303332.A14 303332	-
602 - CHUCK HANDLE HIT-303334.A20 303334	-
603 - RUBBER CAP HIT-303335.A14 303335	£7.78	£9.34
604 - DRILL CHUCK AND ADAPTER SET INCLUD.605 HIT-321825.A1 321825	-
605 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A18 303623	-
606 - DRILL CHUCK 13VLRB-D INCLUD.607 HIT-321814.A31 321814	-
607 - FLAT HD. SCREW (LEFT HAND) M6X20 HIT-331966.A24 331966	£11.39	£13.67
608 - CHUCK WRENCH FOR 13VLB-D 1 HIT-987576.A2 987576	-
609 - DRILL CHUCK 13VLD-D INCLUD.602 HIT-321813.A19 321813	-
610 - DUST CUP HIT-971787.A39 971787	£4.40	£5.28
611 - STOPPER HIT-931844.A13 931844	-
612 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A41 971511Z	-
613 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A1 971512Z	-
617 - DUST COLLECTOR (B) ASS'Y INCLUD.618 HIT-306885.A26 306885	£25.14	£30.17
618 - SOCKET ADAPTER (B) HIT-306910.A12 306910	-
621 - GREASE FOR ROTARY HAMMER (60G) HIT-335782.A16 335782	£19.89	£23.87
622 - GREASE FOR ROTARY HAMMER (500G) HIT-335781.A6 335781	£91.40	£109.68
623 - DUST EXTRACTOR HIT-402933.A1 402933	£215.91	£259.09
