Hitachi / Hikoki DH36DMA Cordless Rotary Hammer Spare Parts

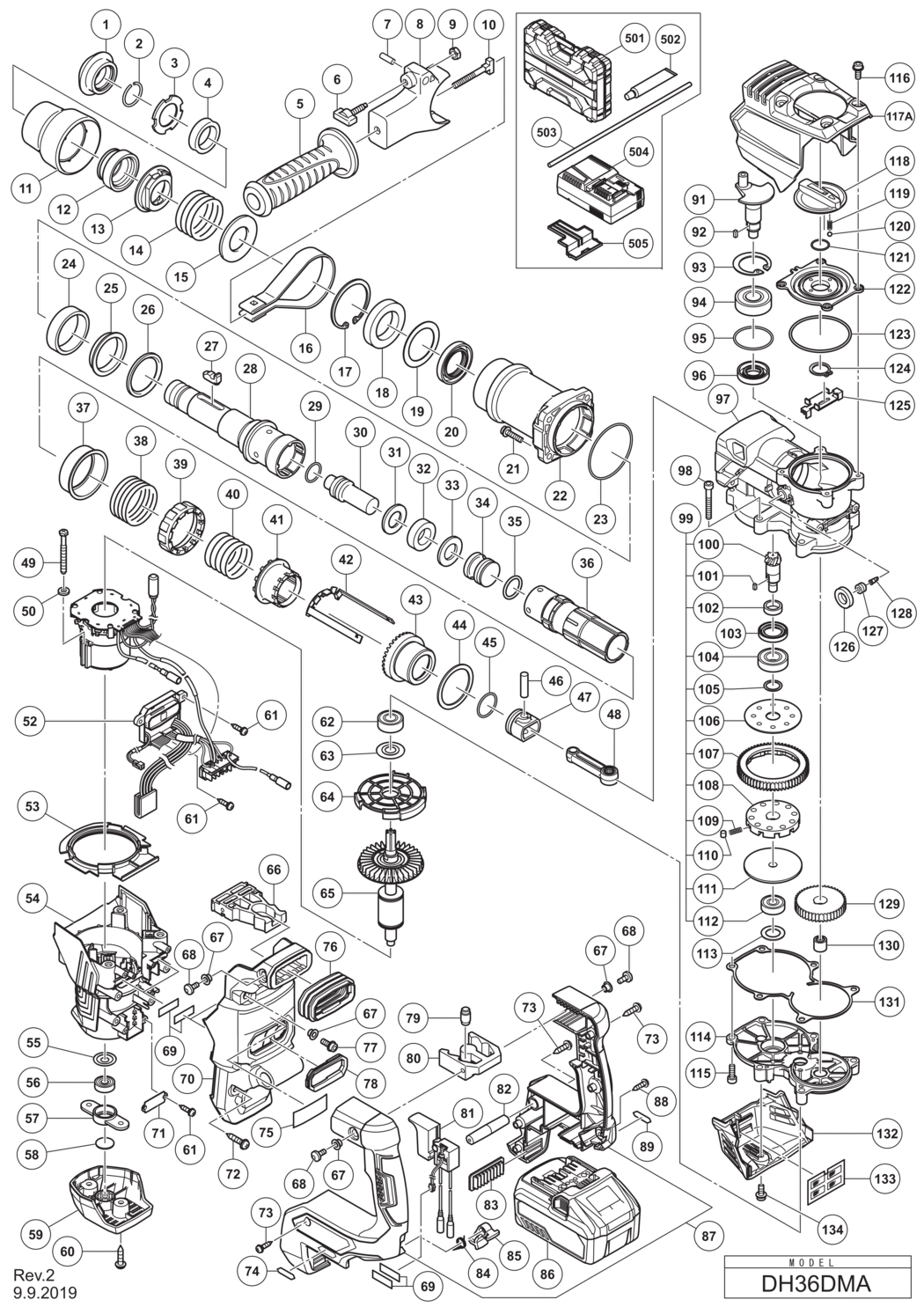

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH36DMA Cordless Rotary Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-371151.A1 371151	£1.67	£2.00
2 - STOPPER RING HIT-331540.A1 331540	£1.67	£2.00
3 - RETAINER WASHER HIT-371138.A1 371138	£1.67	£2.00
4 - RETAINER DAMPER (A) HIT-371152.A0 371152	£1.67	£2.00
5 - SIDE HANDLE HIT-330209.A14 330209	£17.51	£21.01
6 - WING BOLT HIT-337577.A2 337577	£1.67	£2.00
7 - ROLL PIN D2X8 (10 PCS.) HIT-949859.A11 949859	£1.67	£2.00
8 - MOUNT HIT-371135.A0 371135	£6.32	£7.59
9 - NUT M6 (10 PCS.) HIT-949556.A36 949556	£1.67	£2.00
10 - HANDLE BOLT HIT-331247.A2 331247	£6.45	£7.74
11 - GRIP HIT-371133.A0 371133	£1.67	£2.00
12 - BIT LOCK HOLDER HIT-371157.A0 371157	-
13 - THRUST PLATE HIT-371159.A0 371159	-
14 - RETAINER SPRING HIT-371167.A0 371167	-
15 - SPRING HOLDER (A) HIT-371145.A1 371145	£1.67	£2.00
16 - BAND HIT-331246.A1 331246	£4.40	£5.28
17 - RETAINING RING D55 HIT-371141.A1 371141	-
18 - BALL BEARING 6907DDU HIT-6907DD.A1 6907DD	£6.06	£7.27
19 - BEARING WASHER HIT-371142.A0 371142	-
20 - OIL SEAL HIT-371148.A0 371148	£4.81	£5.77
21 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X25 HIT-991712.A0 991712	£1.67	£2.00
22 - CYLINDER CASE HIT-371125.A0 371125	£16.36	£19.63
23 - O-RING (1AS-60) HIT-956996.A16 956996	£3.82	£4.58
24 - RETAINER DAMPER (B) HIT-371153.A1 371153	-
25 - DAMPER SLEEVE HIT-371144.A0 371144	-
26 - RETAINER DAMPER WASHER HIT-371161.A0 371161	-
27 - BIT LOCK HIT-370654.A10 370654	£8.55	£10.26
28 - RETAINER SLEEVE HIT-371155.A0 371155	-
29 - O-RING (C) HIT-313396.A4 313396	£5.87	£7.04
30 - SECOND HAMMER HIT-371160.A1 371160	£11.32	£13.58
31 - DAMPER WASHER HIT-371163.A0 371163	£4.89	£5.87
32 - DAMPER HIT-371316.A0 371316	£15.38	£18.45
33 - DAMPER HOLDER HIT-371164.A1 371164	-
34 - STRIKER HIT-371165.A0 371165	-
35 - O-RING HIT-986104.A15 986104	£1.67	£2.00
36 - CYLINDER HIT-371156.A1 371156	-
37 - SPRING HOLDER (B) HIT-331533.A1 331533	£4.62	£5.55
38 - LOCK SPRING HIT-331534.A1 331534	£3.29	£3.95
39 - LOCK SLEEVE HIT-331535.A1 331535	£3.28	£3.93
40 - CLUTCH SPRING HIT-371166.A1 371166	-
41 - CLUTCH HIT-371137.A0 371137	-
42 - SLIDER HIT-371147.A1 371147	-
43 - BEVEL GEAR HIT-371158.A1 371158	£23.30	£27.96
44 - THRUST WASHER HIT-331234.A1 331234	£1.67	£2.00
45 - O-RING HIT-986104.A14 986104	£1.67	£2.00
46 - PISTON PIN HIT-331221.A1 331221	£1.67	£2.00
47 - PISTON HIT-326369.A0 326369	£4.33	£5.20
48 - CONNECTING ROD HIT-371175.A1 371175	£6.50	£7.80
49 - HEX. HD. TAPPING SCREW D4X45 HIT-981824.A10 981824	-
50 - BOLT WASHER M4 (BLACK) HIT-323210.A46 323210	-
52 - STATOR FET PCB HIT-341000.A0 341000	-
53 - FAN GUIDE (B) HIT-373076.A0 373076	-
54 - HOUSING HIT-373077.A0 373077	-
55 - WASHER (A) HIT-982631.A3 982631	£1.67	£2.00
56 - BALL BEARING 608VVC2PS2L HIT-608VVM.A209 608VVM	£5.70	£6.84
57 - BEARING HOLDER HIT-331254.A2 331254	£3.12	£3.74
58 - DUST SEAL HIT-331547.A2 331547	£1.67	£2.00
59 - TAIL COVER HIT-373090.A0 373090	-
60 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A24 302089	£1.67	£2.00
61 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A24 307811	£2.49	£2.99
62 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A9 6201DD	£8.64	£10.37
63 - DUST WASHER (B) HIT-325003.A1 325003	£1.67	£2.00
64 - FAN GUIDE (A) HIT-373075.A0 373075	-
65 - ROTOR (A) HIT-361085.A0 361085	-
66 - JOINT HIT-373093.A0 373093	-
67 - DISTANCE PIECE (B) HIT-991711.A27 991711	£1.67	£2.00
68 - SEAL LOCK BUTTON BOLT M5 HIT-373092.A0 373092	-
69 - PROTECTION SHEET HIT-373411.A0 373411	-
70 - BACK COVER HIT-373409.A0 373409	-
71 - PLATE HIT-373091.A0 373091	-
72 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A23 302089	£1.67	£2.00
73 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A49 307028	£1.67	£2.00
74 - MV LABEL (A) HIT-000000.A1965 000000	-
75 - NAME PLATE HIT-000000.A1966 000000	-
76 - BELLOWS HIT-373094.A0 373094	-
77 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A20 994192	£1.67	£2.00
78 - PANEL RUBBER HIT-373095.A0 373095	-
79 - HANDLE DAMPER HIT-310124.A0 310124	£6.18	£7.41
80 - TRANSATORY UNIT HIT-310123.A15 310123	£11.82	£14.18
81 - SWITCH SET HIT-373096.A0 373096	-
82 - HANDLE SHAFT HIT-338175.A8 338175	-
83 - BATTERY RUBBER (B) HIT-373410.A0 373410	-
84 - LEVER SPRING (B) HIT-373097.A0 373097	-
85 - STOPPER LEVER HIT-373098.A0 373098	-
*86 - BATTERY BSL 36B18 (EUROPE AUS NZL) INCLUD.505 HIT-372120.A3 372120	£239.38	£287.25
87 - HANDLE (A).(B) SET HIT-373100.A0 373100	-
88 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A23 307811	£2.49	£2.99
89 - MV LABEL (B) HIT-000000.A1967 000000	-
91 - CRANK SHAFT HIT-371136.A1 371136	-
92 - FEATHER KEY 3X3X8 HIT-944109.A6 944109	£3.28	£3.93
93 - RETAINING RING FOR D40 HOLE HIT-948391.A4 948391	£1.67	£2.00
94 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A29 6203DD	£8.64	£10.37
95 - O-RING (S-40) HIT-996363.A3 996363	£1.67	£2.00
96 - OIL SEAL (B) HIT-321274.A6 321274	£7.38	£8.85
97 - CRANK CASE INCLUD.127 HIT-371173.A1 371173	£36.46	£43.75
98 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A7 986940	£1.67	£2.00
99 - SLIP CLUTCH ASS'Y INCLUD.100-102 HIT-371176.A0 371176	-
100 - BEVEL PINION HIT-331211.A2 331211	£15.58	£18.69
101 - FEATHER KEY 3X3X8 HIT-944109.A5 944109	£3.28	£3.93
102 - COLLAR HIT-321279.A6 321279	-
103 - OIL SEAL (A) HIT-313050.A7 313050	£4.68	£5.62
104 - BALL BEARING 6002DDCMPS2L HIT-6002DD.A17 6002DD	£8.64	£10.37
105 - WASHER HIT-331213.A1 331213	£1.67	£2.00
106 - WASHER (A) HIT-331214.A1 331214	-
107 - SECOND GEAR HIT-331215.A1 331215	£25.99	£31.19
108 - GEAR HOLDER HIT-321281.A7 321281	-
109 - SPRING (C) HIT-321282.A2 321282	£1.67	£2.00
110 - NEEDLE HIT-331217.A1 331217	£1.67	£2.00
111 - SPACER HIT-331219.A1 331219	-
112 - BALL BEARING 629VV HIT-629VVM.A34 629VVM	£6.00	£7.20
113 - BEARING WASHER (C) HIT-331220.A1 331220	£1.67	£2.00
114 - GEAR COVER HIT-371124.A1 371124	-
115 - SEAL LOCK HEX. SOCKET HD. BOLT M6X20 HIT-992803.A9 992803	£1.67	£2.00
116 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X18 HIT-371170.A1 371170	£1.67	£2.00
*117A - CRANK COVER HIT-373701.A0 373701	£11.28	£13.53
118 - CHANGE LEVER HIT-371134.A1 371134	-
119 - LEVER SPRING HIT-371168.A1 371168	-
120 - STEEL BALL D4.76 (10 PCS.) HIT-959149.A11 959149	£1.67	£2.00
121 - O-RING (S-18) HIT-878885.A41 878885	£1.67	£2.00
122 - LEVER SHAFT HOLDER HIT-371126.A1 371126	£8.35	£10.02
123 - CYLINDER O-RING (I.D 63.9) HIT-877315.A2 877315	-
124 - RETAINING RING FOR D20 SHAFT (10 PCS.) HIT-939547.A1 939547	£4.61	£5.53
125 - CHANGE PLATE HIT-371146.A0 371146	£1.67	£2.00
126 - FELT PACKING (A) HIT-371178.A0 371178	-
127 - CAP SCREW HIT-371179.A0 371179	-
128 - VALVE HIT-995396.A3 995396	-
129 - FIRST GEAR HIT-371162.A1 371162	-
130 - NEEDLE BEARING HIT-371169.A0 371169	-
131 - SEAL PACKING HIT-371143.A1 371143	£3.38	£4.06
132 - HOOD HIT-371132.A1 371132	-
133 - FILTER (C) HIT-373414.A0 373414	-
134 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A20 998471	£1.67	£2.00
501 - CASE HIT-373391.A0 373391	-
502 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A32 981840	£8.22	£9.87
503 - STOPPER ROD HIT-971786.A11 971786	£6.94	£8.33
504 - CHARGER (MODEL UC 18YSL3) HIT-000000.A1969 000000	-
