Hitachi / Hikoki DH36DBDL Cordless Rotary Hammer Spare Parts

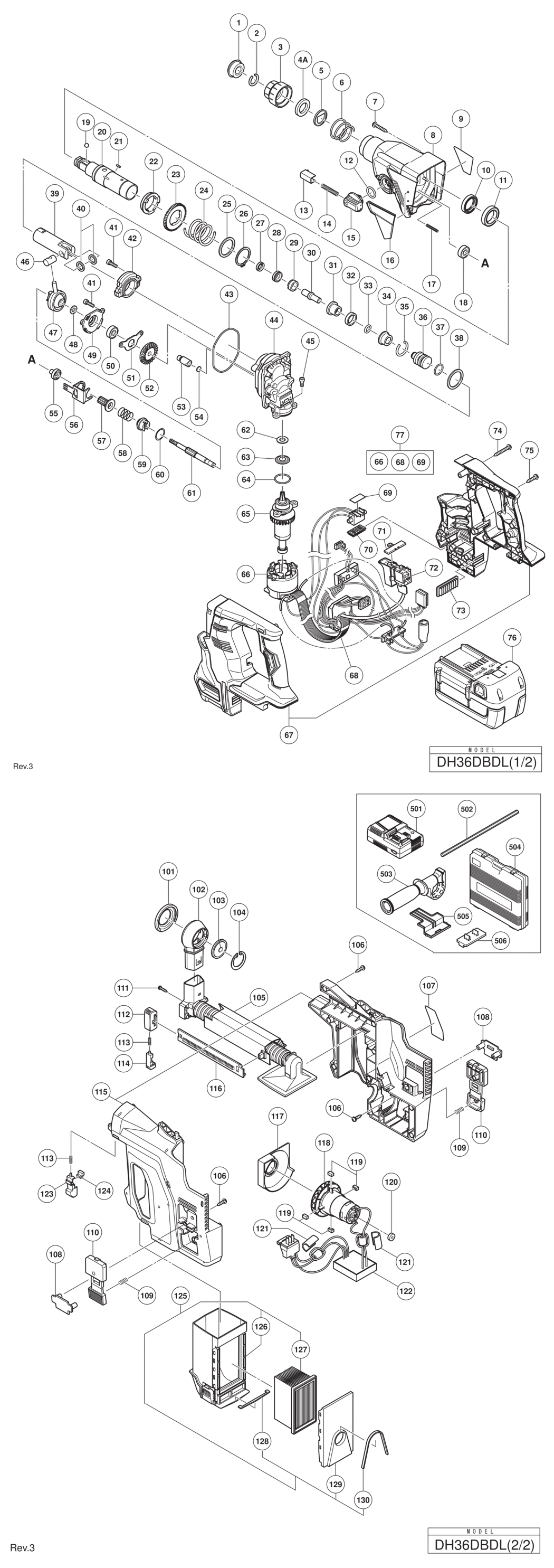

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH36DBDL Cordless Rotary Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-306345.A11 306345	£3.59	£4.31
2 - STOPPER RING HIT-306340.A28 306340	£1.67	£2.00
3 - GRIP HIT-324527.A5 324527	£4.33	£5.20
4A - BALL HOLDER (FW) HIT-371326.A1 371326	£10.78	£12.94
5 - HOLDER PLATE HIT-324526.A18 324526	£4.33	£5.20
6 - HOLDER SPRING HIT-322812.A25 322812	£1.67	£2.00
7 - TAPPING SCREW (W/FLANGE) D5 HIT-370307.A3 370307	-
8 - GEAR COVER ASS'Y INCLUD.10 HIT-370306.A1 370306	£40.57	£48.68
9 - NAME PLATE HIT-000000.A1529 000000	-
10 - OIL SEAL HIT-335259.A17 335259	£5.07	£6.08
11 - BALL BEARING 6805DD HIT-335260.A2 335260	£6.06	£7.27
12 - O-RING (S-18) HIT-878885.A45 878885	£1.67	£2.00
13 - PUSHING BUTTON HIT-322789.A15 322789	£6.50	£7.80
14 - PUSHING SPRING HIT-317223.A0 317223	£1.67	£2.00
15 - CHANGE LEVER HIT-334011.A7 334011	£3.92	£4.70
16 - BRAND PLATE HIT-370308.A1 370308	-
17 - SPRING (E) HIT-335800.A12 335800	£1.67	£2.00
18 - BALL BEARING 608VVC2PS2L HIT-608VVM.A124 608VVM	£5.70	£6.84
19 - STEEL BALL D7.0 (10 PCS.) HIT-335300.A17 335300	£1.67	£2.00
20 - CYLINDER HIT-335261.A7 335261	£34.50	£41.40
21 - PIN D2.5 HIT-335264.A3 335264	£1.67	£2.00
22 - CYLINDER CLUTCH HIT-335263.A8 335263	£18.38	£22.05
23 - SECOND GEAR HIT-335265.A16 335265	£10.52	£12.62
24 - SPRING (A) HIT-335266.A3 335266	£1.67	£2.00
25 - WASHER (A) HIT-301679.A1 301679	£1.67	£2.00
26 - RETAINING RING FOR D30 SHAFT HIT-948310.A14 948310	£1.67	£2.00
27 - OIL SEAL (A) HIT-335262.A6 335262	£3.12	£3.74
28 - HAMMER HOLDER (C) HIT-335268.A3 335268	£16.28	£19.54
29 - SLEEVE (FW) HIT-335795.A10 335795	£7.66	£9.19
30 - SECOND HAMMER HIT-335269.A7 335269	£7.12	£8.54
31 - HAMMER HOLDER (A) HIT-335267.A8 335267	£5.43	£6.52
32 - DAMPER (A) HIT-322805.A10 322805	£1.67	£2.00
33 - O-RING (C) HIT-322808.A10 322808	£1.67	£2.00
34 - DAMPER HOLDER HIT-324524.A14 324524	£8.66	£10.39
35 - STOPPER RING HIT-322807.A18 322807	£1.67	£2.00
36 - STRIKER HIT-335246.A4 335246	£7.48	£8.97
37 - O-RING D17 HIT-335247.A5 335247	£4.72	£5.66
38 - WASHER (A) HIT-301679.A2 301679	£1.67	£2.00
39 - PISTON HIT-335255.A5 335255	£19.02	£22.83
40 - PISTON WASHER HIT-335794.A7 335794	£1.67	£2.00
41 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A35 990079	£1.67	£2.00
42 - INNER COVER (B) HIT-370309.A3 370309	-
43 - O-RING HIT-370310.A1 370310	£9.43	£11.32
44 - INNER COVER (A) INCLUD.53 HIT-370311.A3 370311	-
45 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-877839.A17 877839	£1.67	£2.00
46 - PISTON PIN HIT-335793.A15 335793	£5.78	£6.94
47 - RECIPROCATING BEARING HIT-335249.A16 335249	£19.98	£23.97
48 - BEARING WASHER HIT-335250.A3 335250	£1.67	£2.00
49 - BEARING HOLDER (B) HIT-370312.A1 370312	-
50 - BALL BEARING 608VVC2PS2L HIT-608VVM.A125 608VVM	£5.70	£6.84
51 - BEARING COVER (A) HIT-370313.A3 370313	-
52 - BEVEL GEAR (A) HIT-370314.A1 370314	-
53 - AIR CAP HIT-334008.A15 334008	-
54 - FELT PACKING (A) HIT-324543.A23 324543	£1.67	£2.00
55 - PINION SLEEVE HIT-335275.A6 335275	£5.34	£6.41
56 - LOCK PLATE HIT-335276.A2 335276	£16.20	£19.44
57 - SECOND PINION HIT-335278.A2 335278	£12.19	£14.63
58 - CLUTCH SPRING HIT-323182.A2 323182	£1.67	£2.00
59 - CLUTCH HIT-335254.A4 335254	£7.12	£8.54
60 - WASHER HIT-331315.A17 331315	£1.67	£2.00
61 - SECOND SHAFT HIT-335277.A6 335277	£11.28	£13.53
62 - FELT PACKING HIT-370315.A3 370315	-
63 - PACKING WASHER HIT-370316.A1 370316	-
64 - O-RING (S-26) HIT-872470.A15 872470	£1.67	£2.00
65 - ROTOR (B) HIT-361035.A1 361035	£96.66	£115.99
66 - STATOR HIT-340943.A1 340943	£19.25	£23.10
67 - HOUSING (A).(B) SET HIT-370318.A0 370318	£35.62	£42.74
68 - SWITCH CONTROLLER ASS'Y (B) INCLUD.72 HIT-370549.A0 370549	£146.42	£175.71
69 - RUBBER CUSHION HIT-370327.A0 370327	-
70 - TERMINAL RUBBER BASE HIT-370545.A1 370545	-
71 - PUSHING BUTTON (B) HIT-324225.A8 324225	£2.49	£2.99
72 - DC-SPEED CONTROL SWITCH HIT-370322.A4 370322	£28.44	£34.13
73 - BATTERY RUBBER (B) HIT-370328.A6 370328	-
74 - TAPPING SCREW (W/FLANGE) D4X40 (BLACK) HIT-306664.A3 306664	-
75 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A145 301653	£1.67	£2.00
76 - BATTERY BSL 3660 (EUROPE) INCLUD.505 HIT-339973.A0 339973	£336.68	£404.02
77 - WIRING ASS'Y INCLUD.66 HIT-370955.A1 370955	£186.78	£224.13
101 - NOZZLE SEAL HIT-370494.A1 370494	£2.84	£3.41
102 - NOZZLE HIT-370495.A0 370495	£1.67	£2.00
103 - BRUSH CAP HIT-370496.A1 370496	£31.17	£37.40
104 - RETAINING RING D35 HIT-370497.A0 370497	£1.67	£2.00
105 - SLIDE PIPE HIT-370823.A1 370823	-
106 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A11 307811	-
107 - NAME PLATE HIT-000000.A1530 000000	-
108 - LATCH HOLDER HIT-370511.A0 370511	-
109 - SPRING (E) HIT-370821.A1 370821	-
110 - LATCH (A) HIT-370512.A1 370512	-
111 - TAPPING SCREW D2.6 HIT-370500.A1 370500	-
112 - ADJUSTER HIT-370501.A0 370501	-
113 - SPRING (A) HIT-370502.A1 370502	-
114 - BUTTON (A) HIT-370838.A1 370838	-
115 - HOUSING SET HIT-370508.A1 370508	-
116 - ADJUSTMENT RAIL HIT-370504.A0 370504	-
117 - FAN COVER HIT-370514.A0 370514	-
118 - MOTOR FAN SET HIT-370515.A1 370515	-
119 - RUBBER BUSHING (A) HIT-337801.A0 337801	-
120 - RUBBER BUSHING (B) HIT-337802.A1 337802	-
121 - SUPPORT (D) HIT-339343.A3 339343	-
122 - CONTROLLER HIT-370517.A0 370517	-
123 - BUTTON (B) HIT-370509.A0 370509	-
124 - STOPPER HIT-370510.A1 370510	-
125 - DUST BOX ASS'Y INCLUD.126-130 HIT-370518.A1 370518	£40.77	£48.92
126 - DUST BOX HIT-370822.A0 370822	-
127 - FILTER HIT-370520.A1 370520	£27.70	£33.24
128 - PACKING (C) HIT-370519.A0 370519	-
129 - FILTER COVER HIT-370521.A0 370521	-
130 - PACKING (B) HIT-370522.A1 370522	-
501 - CHARGER (MODEL UC 36YSL) HIT-000000.A1532 000000	-
502 - DEPTH GAUGE HIT-303709.A4 303709	£1.67	£2.00
503 - SIDE HANDLE HIT-335273.A6 335273	£14.28	£17.13
504 - CASE HIT-370333.A0 370333	-
505 - BATTERY COVER HIT-329897.A111 329897	£1.67	£2.00
506 - TERMINAL COVER HIT-371715.A0 371715	-
601 - HAMMER DRILL CHUCK SET 13MM INCLUD.602 HIT-303332.A1 303332	-
602 - CHUCK HANDLE HIT-303334.A45 303334	-
603 - RUBBER CAP HIT-303335.A1 303335	£7.78	£9.34
604 - DRILL CHUCK AND ADAPTER SET INCLUD.605 HIT-321825.A17 321825	-
605 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A4 303623	-
606 - DRILL CHUCK 13VLRB-D INCLUD.607 HIT-321814.A10 321814	-
607 - FLAT HD. SCREW (LEFT HAND) M6X20 HIT-331966.A1 331966	£11.39	£13.67
608 - CHUCK WRENCH FOR 13VLB-D 1 HIT-987576.A17 987576	-
609 - DRILL CHUCK 13VLD-D INCLUD.602 HIT-321813.A38 321813	-
610 - DUST CUP HIT-971787.A10 971787	£4.40	£5.28
611 - STOPPER HIT-931844.A24 931844	-
612 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A10 971511Z	-
613 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A33 971512Z	-
617 - DUST COLLECTOR (B) ASS'Y INCLUD.618 HIT-306885.A0 306885	£25.14	£30.17
618 - SOCKET ADAPTER (B) HIT-306910.A28 306910	-
621 - GREASE FOR ROTARY HAMMER (60G) HIT-335782.A6 335782	£19.89	£23.87
622 - GREASE FOR ROTARY HAMMER (500G) HIT-335781.A16 335781	£91.40	£109.68
623 - DUST EXTRACTOR HIT-402933.A0 402933	£215.91	£259.09
624 - BATTERY SPACER HIT-371714.A1 371714	-
