Hitachi / Hikoki DH35 Hammer Drill Spare Parts

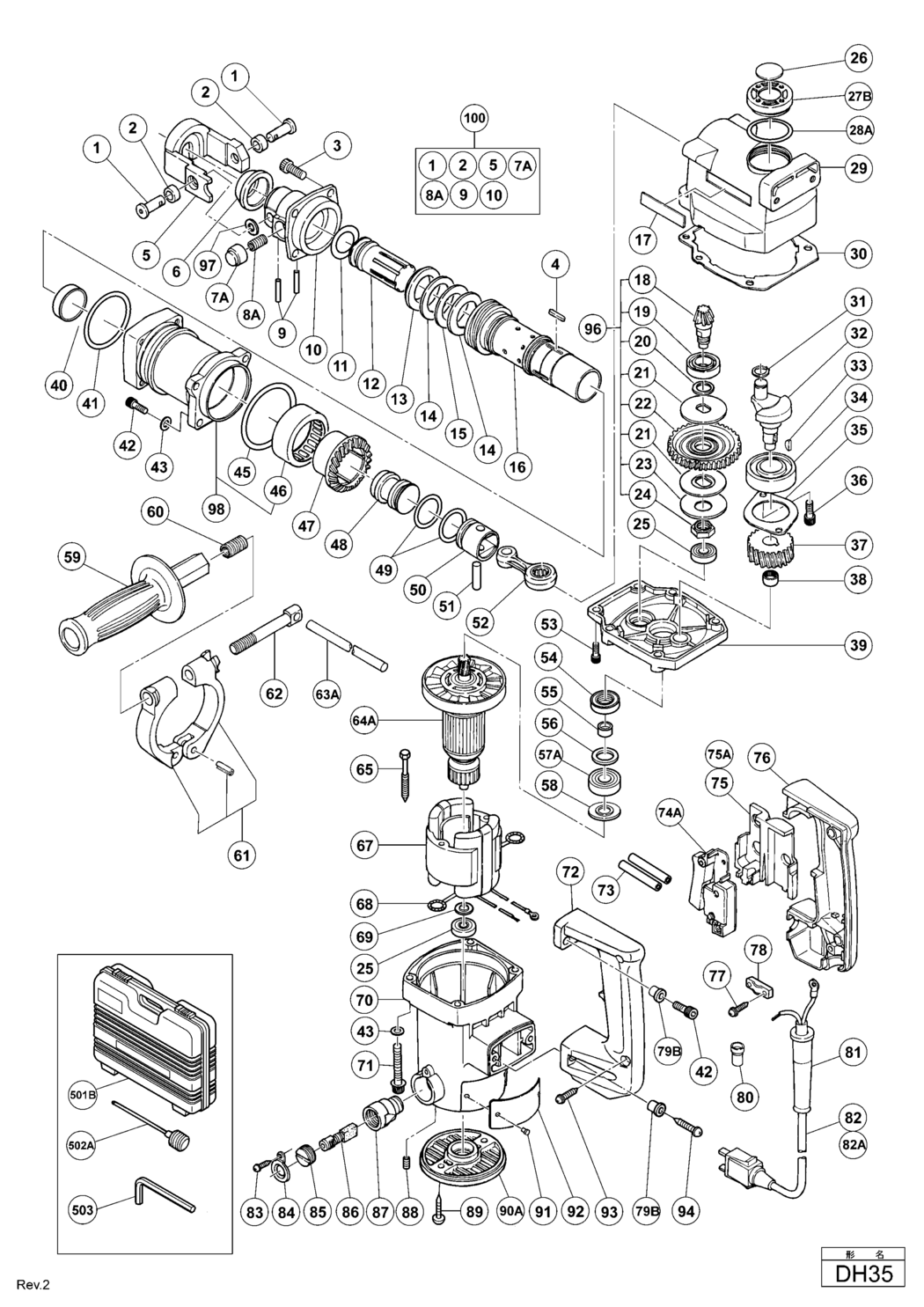

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH35 Hammer Drill

	Ex VAT	Inc VAT
1 - RETAINER PIN HIT-990135.A2 990135	£14.71	£17.65
2 - DAMPER (B) HIT-990134.A0 990134	£2.98	£3.57
3 - NYLOCK HIGH TENSION BOLT M7X20 HIT-993068.A0 993068	£1.67	£2.00
4 - FEATHER KEY 3X3X18 HIT-993062.A0 993062	-
5 - RETAINER HIT-990131.A0 990131	£47.97	£57.56
6 - DUST COVER HIT-971077.A1 971077	-
7A - PUSHING BUTTON HIT-990133.A2 990133	£11.92	£14.30
8A - SET SPRING HIT-331239.A0 331239	£1.67	£2.00
9 - ROLL PIN D4X20 (10 PCS.) HIT-949499.A0 949499	-
10 - FRONT COVER HIT-993060.A0 993060	-
11 - O-RING (C) HIT-981857.A0 981857	£7.30	£8.76
12 - SECOND HAMMER HIT-993061.A0 993061	-
13 - DAMPER WASHER HIT-993067.A0 993067	-
14 - DAMPER HIT-993066.A0 993066	-
15 - WASHER HIT-993063.A0 993063	-
16 - CYLINDER HIT-993059.A0 993059	-
17 - BRAND LABEL HIT-957561.A5 957561	-
18 - THIRD PINION HIT-993057.A0 993057	-
19 - BALL BEARING 16002 HIT-990936.A0 990936	-
20 - WASHER (A) HIT-986103.A0 986103	-
21 - CLUTCH PLATE HIT-993055.A0 993055	-
22 - SECOND GEAR HIT-993058.A0 993058	-
23 - BELLEVILLE SPRING HIT-993056.A0 993056	-
24 - SPECIAL NUT (B) HIT-986106.A0 986106	£1.67	£2.00
25 - BALL BEARING 608VVC2PS2L HIT-608VVM.A64 608VVM	£5.70	£6.84
26 - CAUTION PLATE (ENGLISH) HIT-980934Z.A0 980934Z	-
27B - OIL CAP ASS'Y INCLUD.28A HIT-314031.A0 314031	-
28A - O-RING HIT-314030.A0 314030	£1.67	£2.00
29 - CRANK CASE HIT-986093.A0 986093	-
30 - SEAL PACKING HIT-986071.A0 986071	£1.67	£2.00
31 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A69 939542	£2.98	£3.57
32 - CRANK SHAFT HIT-993053.A0 993053	-
33 - WOODRUFF KEY 3X13 HIT-932815.A1 932815	£1.67	£2.00
34 - BALL BEARING 6204VVCMPS2L HIT-6204VV.A3 6204VV	£9.03	£10.84
35 - BEARING COVER HIT-986074.A0 986074	-
36 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A1 984509	£1.67	£2.00
37 - FIRST GEAR HIT-993054.A0 993054	-
38 - NEEDLE BEARING (M661) HIT-939299.A11 939299	£11.82	£14.18
39 - GEAR COVER HIT-993083.A0 993083	-
40 - VALVE BAND HIT-981858.A0 981858	£8.15	£9.78
41 - O-RING (S-55) HIT-980744.A0 980744	£3.28	£3.93
42 - SEAL LOCK HEX. SOCKET HD. BOLT M6X25 HIT-987707.A2 987707	£1.67	£2.00
43 - BOLT WASHER M6 (10 PCS.) TILL 8.1986 FOR HANDLE HIT-949432.A91 949432	£1.67	£2.00
43S - BOLT WASHER M6 (10 PCS.) SINCE 9.1986 HIT-949432.A92 949432	£1.67	£2.00
45 - O-RING (1AS-60) HIT-956996.A12 956996	£3.82	£4.58
46 - NEEDLE BEARING (B) (NTN HMK4520) HIT-993069.A0 993069	£28.33	£34.00
47 - THIRD GEAR HIT-981854.A0 981854	-
48 - STRIKER HIT-986081.A0 986081	-
49 - O-RING HIT-986104.A0 986104	£1.67	£2.00
50 - PISTON HIT-981885.A0 981885	£19.73	£23.68
51 - PISTON PIN HIT-980708.A0 980708	£3.28	£3.93
52 - CONNECTING ROD ASS'Y HIT-980707.A0 980707	£34.64	£41.57
53 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16 HIT-990935.A0 990935	-
54 - OIL SEAL HIT-993051.A0 993051	-
55 - SLEEVE (A) HIT-993065.A0 993065	-
56 - PACKING HIT-993064.A0 993064	-
57A - BALL BEARING 6001DDCMPS2L HIT-6001DD.A2 6001DD	£9.23	£11.08
58 - DUST WASHER HIT-993052.A0 993052	£1.67	£2.00
59 - SIDE HANDLE HIT-981870.A0 981870	£13.04	£15.65
60 - SPRING HIT-672612.A1 672612	£1.67	£2.00
61 - HANDLE HOLDER HIT-981960.A0 981960	£21.91	£26.29
62 - HANDLE BOLT HIT-971785.A1 971785	£4.33	£5.20
63A - STOPPER ROD HIT-971786.A0 971786	£6.94	£8.33
64A - ARMATURE ASS'Y 110V-115V INCLUD.25 HIT-993072C.A0 993072C	-
64A - ARMATURE ASS'Y 120V-127V INCLUD.25 HIT-993072D.A0 993072D	-
64A - ARMATURE ASS'Y 220V-230V INCLUD.25 HIT-993072E.A0 993072E	-
64A - ARMATURE ASS'Y 240V INCLUD.25 HIT-993072F.A0 993072F	-
65 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A14 953174	£1.67	£2.00
67 - STATOR ASS'Y 110V-115V INCLUD.68 HIT-986090C.A0 986090C	-
67 - STATOR ASS'Y 120V-127V INCLUD.68 HIT-986090D.A0 986090D	-
67 - STATOR ASS'Y 220V-230V INCLUD.68 HIT-986090E.A0 986090E	-
67 - STATOR ASS'Y 240V INCLUD.68 HIT-986090F.A0 986090F	£39.50	£47.40
67 - STATOR ASS'Y 220V-230V INCLUD.68 FOR NZL HIT-986090G.A0 986090G	-
67 - STATOR ASS'Y 240V INCLUD.68 HIT-986090H.A0 986090H	-
68 - BRUSH TERMINAL HIT-930703.A49 930703	£3.28	£3.93
69 - DUST WASHER (A) HIT-980698.A0 980698	£1.67	£2.00
71 - SEAL LOCK HEX. SOCKET HD. BOLT M6X50 HIT-986491.A0 986491	-
72 - HANDLE (B) FOR AUS HIT-981867.A0 981867	£15.32	£18.38
72 - HANDLE (B) HIT-992809.A1 992809	£17.85	£21.42
73 - VINYL TUBE ID7XT0.5X120 HIT-000000.A4729 000000	-
74A - SWITCH (2P PILLAR TYPE) W/O LOCK FOR AUS HIT-981533Z.A2 981533Z	£29.24	£35.09
74A - SWITCH (B) (1P SCREW TYPE) W/O LOCK HIT-990941.A2 990941	£21.08	£25.30
75 - SUPPORT TILL 10.1986 HIT-981869.A0 981869	-
75 - SUPPORT (A) FOR AUS HIT-981986Z.A3 981986Z	-
75A - SUPPORT (E) SINCE 11.1986 HIT-990082.A4 990082	-
76 - HANDLE (A) FOR AUS HIT-981866.A0 981866	£16.54	£19.85
76 - HANDLE (A) HIT-992808.A0 992808	£18.92	£22.71
77 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A21 984750	£1.67	£2.00
78 - CORD CLIP HIT-960266.A54 960266	£1.67	£2.00
79B - DISTANCE PIECE (C) HIT-990940.A0 990940	£1.67	£2.00
80 - CONNECTOR 50091 (10 PCS.) HIT-959140.A73 959140	£4.98	£5.97
81 - CORD ARMOR D10.7 HIT-940778.A35 940778	£3.15	£3.78
81 - CORD ARMOR D8.2 HIT-958049.A0 958049	£1.67	£2.00
82 - CORD (CORD ARMOR D8.2) FOR INA HIT-500235Z.A1 500235Z	-
82 - CORD (CORD ARMOR D10.7) HIT-500239Z.A2 500239Z	-
82 - CORD (CORD ARMOR D10.7) FOR SYR HIT-500394Z.A2 500394Z	-
82 - CORD (CORD ARMOR D10.7) FOR AUS HIT-500408Z.A10 500408Z	-
82A - CORD (CORD ARMOR D8.2) FOR SIN HIT-500424Z.A10 500424Z	-
83 - TAPPING SCREW D4X10 HIT-958715.A0 958715	£1.67	£2.00
84 - CAP COVER HIT-981959.A2 981959	£2.86	£3.43
85 - BRUSH CAP HIT-961781.A0 961781	£3.15	£3.78
86 - CARBON BRUSH (1 PAIR) HIT-999043.A42 999043	£5.54	£6.65
87 - BRUSH HOLDER HIT-981586.A1 981586	£7.62	£9.15
88 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A118 938477	£1.67	£2.00
89 - TAPPING SCREW D5X20 HIT-953040.A0 953040	£1.67	£2.00
90A - TAIL COVER (B) HIT-302323.A0 302323	£23.02	£27.62
91 - RIVET D2.5X4.8 (10 PCS.) HIT-949510.A14 949510	£1.67	£2.00
92 - NAME PLATE HIT-000000.A4730 000000	-
93 - TAPPING SCREW (W/WASHER) D4X25 HIT-956636.A3 956636	-
94 - TAPPING SCREW D6X30 HIT-986087.A0 986087	-
95 - TUBE (D) FOR AUS HIT-981373.A78 981373	£1.67	£2.00
96 - SLIP CLUTCH ASS'Y INCLUD.18-24 HIT-990939.A0 990939	-
97 - WASHER HIT-991701.A0 991701	-
98 - CYLINDER CASE ASS'Y INCLUD.46 HIT-990943.A0 990943	-
100 - FRONT COVER ASS'Y INCLUD.1 HIT-990946.A0 990946	-
501B - CASE (PLASTIC) HIT-312831.A1 312831	£53.21	£63.85
502A - SYRINGE HIT-000000.A4732 000000	-
503 - HEX. BAR WRENCH 5MM HIT-944459.A31 944459	£1.67	£2.00
601 - DRILL BIT D16.0X400 (HEX. SHANK TYPE) HIT-985720.A0 985720	-
602 - DRILL BIT D16.0X280 (HEX. SHANK TYPE) HIT-981890.A0 981890	-
603 - DRILL BIT D16.0X505 (HEX. SHANK TYPE) HIT-981904.A0 981904	£35.43	£42.52
604 - DRILL BIT D19.0X400 (HEX. SHANK TYPE) HIT-985723.A2 985723	-
605 - DRILL BIT D19.0X280 (HEX. SHANK TYPE) HIT-981891.A0 981891	-
606 - DRILL BIT D19.0X505 (HEX. SHANK TYPE) HIT-981905.A0 981905	-
607 - DRILL BIT D22.0X400 (HEX. SHANK TYPE) HIT-985726.A1 985726	-
608 - DRILL BIT D22.0X280 (HEX. SHANK TYPE) HIT-981892.A0 981892	-
609 - DRILL BIT D22.0X505 (HEX. SHANK TYPE) HIT-981906.A0 981906	-
610 - DRILL BIT D25.0X400 (HEX. SHANK TYPE) HIT-985729.A2 985729	-
611 - DRILL BIT D25.0X280 (HEX. SHANK TYPE) HIT-981893.A0 981893	£57.80	£69.36
612 - DRILL BIT D25.0X505 (HEX. SHANK TYPE) HIT-981907.A0 981907	-
613 - DRILL BIT D28.0X400 (HEX. SHANK TYPE) HIT-985732.A1 985732	-
614 - DRILL BIT D28.0X280 (HEX. SHANK TYPE) HIT-981894.A0 981894	-
615 - DRILL BIT D28.0X505 (HEX. SHANK TYPE) HIT-981908.A0 981908	-
616 - DRILL BIT D32.0X400 (HEX. SHANK TYPE) HIT-981902.A0 981902	-
617 - DRILL BIT D32.0X280 (HEX. SHANK TYPE) HIT-981895.A0 981895	-
618 - DRILL BIT D32.0X505 (HEX. SHANK TYPE) HIT-981909.A0 981909	-
619 - DRILL BIT D35.0X400 (HEX. SHANK TYPE) HIT-990931.A0 990931	-
620 - DRILL BIT D35.0X280 (HEX. SHANK TYPE) HIT-990930.A0 990930	-
622 - CORE BIT 25MM HIT-955994.A3 955994	-
623 - CORE BIT 29MM HIT-955995.A9 955995	-
624 - CORE BIT 32MM HIT-955996.A3 955996	-
625 - CORE BIT 35MM HIT-955998.A4 955998	£111.98	£134.38
626 - CORE BIT 38MM HIT-956000.A4 956000	-
627 - CORE BIT 45MM HIT-955154.A2 955154	£126.14	£151.37
628 - CORE BIT 54MM HIT-955155.A10 955155	-
629 - CORE BIT 64MM HIT-956002.A4 956002	£182.83	£219.40
630 - CORE BIT 79MM HIT-955157.A2 955157	-
631 - CORE BIT 94MM HIT-956004.A4 956004	-
632 - CORE BIT 105MM HIT-955159.A10 955159	£375.58	£450.70
633 - CORE BIT SHANK (A) 300L (FOR D38-120) HIT-955163.A1 955163	-
634 - CORE BIT SHANK (B) 300L (FOR D25-35) HIT-956008.A0 956008	£57.80	£69.36
635 - CENTER PIN (A) 133L FOR CORE BIT D38-150 HIT-955165.A4 955165	-
636 - CENTER PIN (B) 147L FOR CORE BIT D32-35 HIT-956009.A6 956009	£40.26	£48.31
637 - CUTTER W45X280L (ROUND SHANK TYPE) HIT-981924.A2 981924	-
638 - SHANK 250L (FOR RAMMER AND BUSHING TOOL) HIT-955186.A1 955186	-
639 - BUSHING TOOL HIT-955183.A3 955183	-
640 - RAMMER 140MM HIT-955181.A2 955181	-
641 - SCOOP 405L (ROUND SHANK TYPE) HIT-956126.A1 956126	£92.56	£111.07
642 - DRIFT KEY HIT-944574.A2 944574	-
644 - COTTER HIT-944477.A47 944477	£5.17	£6.20
656 - BULL POINT 280MM (ROUND SHANK TYPE) HIT-981922.A0 981922	-
657 - BULL POINT 450MM (ROUND SHANK TYPE) HIT-981923.A4 981923	-
658 - COLD CHISEL 280MM (ROUND SHANK TYPE) HIT-981925.A3 981925	-
659 - COLD CHISEL 450MM (ROUND SHANK TYPE) HIT-981926.A0 981926	-
660 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A5 981840	£8.22	£9.87
661 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A56 980927	£55.68	£66.81
664 - ANCHOR ADAPTER NO.30 HIT-981929.A1 981929	-
669 - ANCHOR ADAPTER NO.30 ROTATION AND IMPACT HIT-981919.A0 981919	-
670 - ANCHOR ADAPTER NO.40 ROTATION AND IMPACT HIT-981920.A0 981920	-
671 - ANCHOR ADAPTER NO.50 ROTATION AND IMPACT HIT-981921.A0 981921	-
672 - DRILL CHUCK 13VLD-D INCLUD.673 HIT-321813.A22 321813	-
673 - CHUCK WRENCH 10G HIT-930515.A23 930515	£6.38	£7.66
674 - CHUCK ADAPTER HIT-986102.A0 986102	£45.94	£55.13
675 - J-122 WRENCH HIT-970884.A0 970884	-
676A - WRENCH HIT-936728.A2 936728	-
677 - DRILL BIT FOR MASONRY D16X280 HIT-984010.A0 984010	-
678 - DRILL BIT FOR MASONRY D16X505 HIT-984017.A0 984017	-
679 - DRILL BIT FOR MASONRY D19X280 HIT-984011.A0 984011	-
680 - DRILL BIT FOR MASONRY D19X505 HIT-984018.A0 984018	-
681 - DRILL BIT FOR MASONRY D22X280 HIT-984012.A0 984012	-
683 - DRILL BIT FOR MASONRY D25X280 HIT-984013.A0 984013	-
685 - DRILL BIT FOR MASONRY D28X280 HIT-984014.A0 984014	-
687 - DRILL BIT FOR MASONRY D32X280 HIT-984015.A0 984015	-
689 - A-TAPER SHANK ADAPTER (D11.0-17.5) HIT-985754.A1 985754	-
690 - B-TAPER SHANK ADAPTER (D21.5) HIT-985755.A1 985755	£36.89	£44.27
691 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A25 308471	£16.21	£19.45
692A - SYRINGE (BELLOWS TYPE) HIT-318085.A2 318085	-
693 - CHEMICAL ANCHOR ADAPTER 12.7MMX160L HIT-998561.A0 998561	-
694 - CHEMICAL ANCHOR ADAPTER 19MMX170L HIT-998562.A1 998562	-
695 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A19 320859	£10.35	£12.42

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki DH35 Hammer Drill Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
