Hitachi / Hikoki DH30PC2 Rotary Hammer Drill Spare Parts

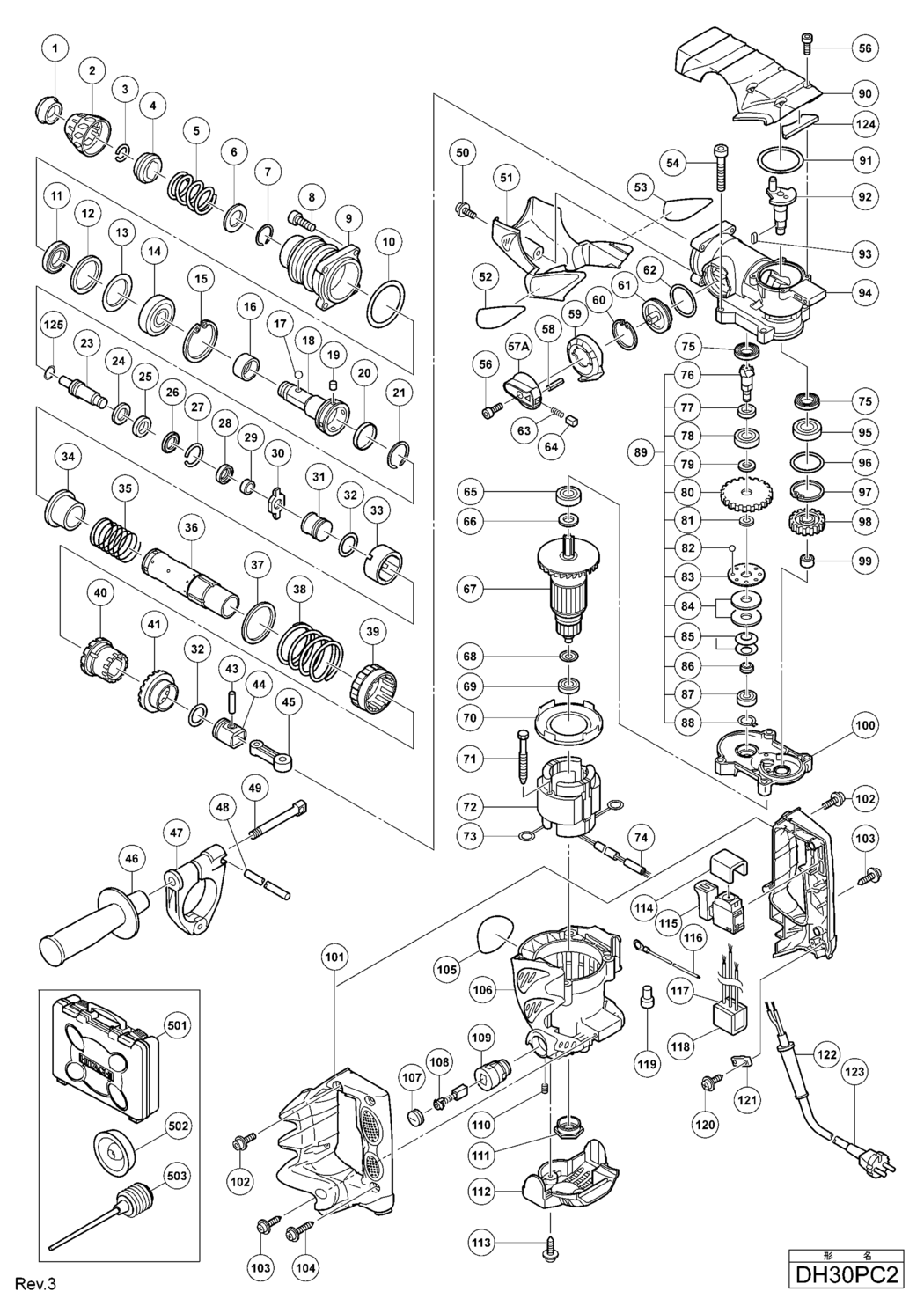

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH30PC2 Rotary Hammer Drill

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-323078.A0 323078	£4.33	£5.20
2 - GRIP HIT-323077.A1 323077	£6.50	£7.80
3 - STOPPER RING HIT-306340.A10 306340	£1.67	£2.00
4 - BALL HOLDER HIT-323076.A0 323076	£29.27	£35.12
5 - RETAINER SPRING HIT-323075.A1 323075	£4.33	£5.20
6 - WASHER (D) HIT-325668.A0 325668	£4.33	£5.20
7 - RETAINING RING HIT-306993.A1 306993	£1.67	£2.00
8 - SEAL LOCK HEX. SOCKET HD. BOLT M6X22 HIT-321313.A3 321313	£1.67	£2.00
9 - CYLINDER CASE HIT-325651.A0 325651	£26.92	£32.30
10 - O-RING (S-55) HIT-980744.A3 980744	£3.28	£3.93
11 - OIL SEAL HIT-320324.A0 320324	£4.22	£5.07
12 - DAMPER (B) HIT-320325.A0 320325	£4.22	£5.07
13 - DAMPER WASHER (B) HIT-320326.A0 320326	£4.33	£5.20
14 - BALL BEARING 6005DDCMPS2L HIT-6005DD.A0 6005DD	£16.09	£19.31
15 - RETAINING RING FOR D47 HOLE HIT-948227.A0 948227	£1.67	£2.00
16 - SLEEVE HIT-325667.A0 325667	£4.33	£5.20
17 - STEEL BALL D7.0 (10 PCS.) HIT-959156.A12 959156	£1.67	£2.00
18 - RETAINER SLEEVE HIT-325652.A0 325652	£100.46	£120.55
19 - NEEDLE PIN HIT-325658.A0 325658	£1.67	£2.00
20 - SLEEVE (C) HIT-326301.A0 326301	£16.09	£19.31
21 - RETAINING RING D38 HIT-313420.A0 313420	£1.67	£2.00
23 - SECOND HAMMER HIT-325653.A0 325653	£25.86	£31.03
24 - DAMPER WASHER HIT-323059.A0 323059	£11.67	£14.00
25 - DAMPER HIT-323060.A1 323060	£4.33	£5.20
26 - DAMPER HOLDER HIT-323061.A0 323061	£10.45	£12.54
27 - STOPPER RING HIT-323062.A3 323062	£1.67	£2.00
28 - DAMPER HOLDER (B) HIT-326302.A0 326302	£10.15	£12.18
29 - DAMPER (C) HIT-326303.A0 326303	£4.33	£5.20
30 - SLIDE RING HIT-326300.A0 326300	£33.56	£40.27
31 - STRIKER HIT-325660.A0 325660	£16.23	£19.48
32 - O-RING (I.D 19.2) HIT-319577.A5 319577	£4.86	£5.83
33 - SLIDE SLEEVE (B) HIT-325656.A0 325656	£4.33	£5.20
34 - SLIDE SLEEVE (A) HIT-325655.A0 325655	£17.14	£20.57
35 - CLUTCH SPRING HIT-325664.A0 325664	£14.78	£17.73
36 - CYLINDER HIT-325654.A0 325654	£118.22	£141.87
37 - WASHER (C) HIT-325661.A0 325661	£6.50	£7.80
38 - LOCK SPRING HIT-325662.A0 325662	£8.92	£10.70
39 - LOCK SLEEVE HIT-325663.A0 325663	£21.73	£26.08
40 - CLUTCH HIT-325665.A0 325665	£113.28	£135.93
41 - BEVEL GEAR HIT-325666.A0 325666	£61.84	£74.21
43 - PISTON PIN HIT-319581.A1 319581	£1.67	£2.00
44 - PISTON HIT-319580.A0 319580	£4.22	£5.07
45 - CONNECTING ROD HIT-319585.A0 319585	£4.86	£5.83
46 - SIDE HANDLE HIT-313078.A3 313078	£16.48	£19.78
47 - HANDLE HOLDER HIT-325672.A0 325672	£17.14	£20.57
48 - STOPPER ROD HIT-320973.A0 320973	£6.94	£8.33
49 - HANDLE BOLT HIT-313080.A4 313080	£9.88	£11.86
50 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-998471.A10 998471	£1.67	£2.00
51 - HOOD HIT-325677.A0 325677	£11.35	£13.62
52 - BRAND LABEL HIT-000000.A4213 000000	-
53 - BRAND LABEL HIT-000000.A4214 000000	-
54 - SEAL LOCK HEX. SOCKET HD. BOLT M6X45 HIT-986940.A8 986940	£1.67	£2.00
56 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A10 983162	£1.67	£2.00
57A - CHANGE LEVER HIT-331545.A2 331545	£4.86	£5.83
58 - PIN D2X10 HIT-321312.A3 321312	£1.67	£2.00
59 - LEVER HOLDER HIT-325671.A0 325671	£4.62	£5.55
60 - RETAINING RING FOR D40 HOLE HIT-948391.A21 948391	£1.67	£2.00
61 - LEVER SHAFT HIT-325670.A0 325670	£26.92	£32.30
62 - O-RING HIT-980948.A2 980948	£1.67	£2.00
63 - LEVER SPRING HIT-321310.A3 321310	£1.67	£2.00
64 - PUSHING BUTTON HIT-321311.A4 321311	£1.67	£2.00
65 - BALL BEARING 6001DDCMPS2L HIT-6001DD.A8 6001DD	£9.23	£11.08
66 - WASHER (B) HIT-971736.A2 971736	£1.67	£2.00
*67 - ARMATURE 110V HIT-360768C.A0 360768C	£66.96	£80.35
*67 - ARMATURE 220V-230V HIT-360768E.A0 360768E	£66.96	£80.35
68 - WASHER (A) HIT-982631.A39 982631	£1.67	£2.00
69 - BALL BEARING 608VVC2PS2L HIT-608VVM.A19 608VVM	£5.70	£6.84
70 - FAN GUIDE HIT-323083.A1 323083	£4.33	£5.20
71 - HEX. HD. TAPPING SCREW D5X50 HIT-953121.A0 953121	£1.04	£1.25
*72 - STATOR ASS'Y 110V INCLUD.73 HIT-340672C.A0 340672C	£62.25	£74.70
*72 - STATOR ASS'Y 220V-230V INCLUD.73 HIT-340672E.A0 340672E	£62.25	£74.70
73 - BRUSH TERMINAL HIT-930703.A32 930703	£3.28	£3.93
74 - VINYL TUBE L35 HIT-321322.A4 321322	-
75 - OIL SEAL (B) HIT-981851.A3 981851	£3.64	£4.37
76 - BEVEL PINION HIT-325647.A0 325647	£30.96	£37.15
77 - COLLAR HIT-325648.A0 325648	-
78 - BALL BEARING 6001DDCMPS2L HIT-6001DD.A9 6001DD	£9.23	£11.08
79 - WASHER HIT-992503.A4 992503	£1.67	£2.00
80 - SECOND GEAR HIT-325649.A0 325649	£34.54	£41.45
81 - STOPPER WASHER HIT-971087.A3 971087	£1.67	£2.00
82 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A14 959155	£1.67	£2.00
83 - CLUTCH PLATE HIT-992916.A4 992916	£5.27	£6.32
84 - SPRING PLATE HIT-992926.A6 992926	£1.67	£2.00
85 - BELLEVILLE SPRING HIT-980877.A5 980877	£1.67	£2.00
86 - BUSHING HIT-325650.A0 325650	£7.02	£8.42
87 - BALL BEARING 608VVC2PS2L HIT-608VVM.A21 608VVM	£5.70	£6.84
88 - RETAINING RING FOR D8 SHAFT HIT-940079.A1 940079	£1.67	£2.00
89 - SLIP CLUTCH ASS'Y HIT-325646.A0 325646	£85.71	£102.85
90 - CRANK CASE COVER HIT-325669.A0 325669	-
91 - O-RING (S-48) HIT-980715.A4 980715	£3.28	£3.93
92 - CRANK SHAFT HIT-325644.A0 325644	£53.16	£63.79
93 - FEATHER KEY 3X3X8 HIT-944109.A17 944109	£3.28	£3.93
94 - CRANK CASE HIT-325643.A0 325643	£67.85	£81.42
95 - BALL BEARING 6002DDCMPS2L HIT-6002DD.A10 6002DD	£8.64	£10.37
96 - O-RING (S-32) HIT-872767.A3 872767	£1.67	£2.00
97 - RETAINING RING FOR D32 HOLE HIT-948001.A12 948001	£1.67	£2.00
98 - FIRST GEAR HIT-325645.A0 325645	£33.17	£39.80
99 - NEEDLE BEARING (M661) HIT-939299.A0 939299	£11.82	£14.18
100 - GEAR COVER HIT-325674.A0 325674	-
101 - HANDLE (A).(B) SET HIT-325680.A0 325680	£40.32	£48.38
102 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A21 994192	£1.67	£2.00
103 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A56 302089	£1.67	£2.00
104 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A18 307028	£1.67	£2.00
105 - NAME PLATE HIT-000000.A4215 000000	-
106 - HOUSING ASS'Y INCLUD.109 HIT-325673.A0 325673	£58.74	£70.49
107 - BRUSH CAP HIT-945161.A54 945161	£1.67	£2.00
108 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999073.A5 999073	£18.73	£22.48
109 - BRUSH HOLDER HIT-958900.A23 958900	£8.24	£9.89
110 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A85 938477	£1.67	£2.00
111 - BEARING BUSHING (B) HIT-310111.A5 310111	£12.04	£14.45
112 - TAIL COVER HIT-323085.A1 323085	£19.17	£23.00
113 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A50 307811	-
114 - SUPPORT (B) HIT-317492.A2 317492	£1.67	£2.00
115 - SWITCH (2P PILLAR TYPE) HIT-325675.A0 325675	£22.70	£27.24
*116 - INTERNAL WIRE FOR NZL HIT-994190.A3 994190	£1.67	£2.00
*117 - NOISE SUPPRESSOR FOR NZL HIT-994273.A39 994273	£7.30	£8.76
*118 - SUPPORT (B) FOR NOISE SUPPRESSOR HIT-317492.A1 317492	£1.67	£2.00
*119 - CONNECTOR 50091 (10 PCS.) FOR NOISE SUPPRESSOR HIT-959140.A107 959140	£4.98	£5.97
120 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A82 984750	£1.67	£2.00
121 - CORD CLIP HIT-960266.A93 960266	£1.67	£2.00
*122 - CORD ARMOR D8.8 HIT-953327.A62 953327	£1.67	£2.00
*123 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500465Z.A5 500465Z	£26.20	£31.44
*123 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A10 500446Z	£33.79	£40.55
124 - FELT PACKING HIT-326651.A0 326651	-
125 - O-RING (C) HIT-323058.A3 323058	£4.33	£5.20
501 - CASE HIT-325679.A0 325679	£59.28	£71.14
502 - DUST CUP HIT-971787.A26 971787	£4.40	£5.28
503 - SYRINGE (BELLOWS TYPE) HIT-318085.A9 318085	-
601 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A18 303046	-
602 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L HIT-303044.A16 303044	-
603 - CHEMICAL ANCHOR ADAPTER(SDS+)19.0MMX100L HIT-303045.A4 303045	-
604 - CHUCK HANDLE HIT-303334.A6 303334	-
605 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A9 302976	-
606 - CHUCK WRENCH 10G HIT-930515.A7 930515	£6.38	£7.66
607 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A14 302975	-
608 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A17 303621	-
609 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A9 302974	-
610 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A14 302979	-
611 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A9 302978	-
612 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A6 303622	-
613 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A14 302977	-
614 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A17 303617	£39.42	£47.31
615 - TAPER SHANK ADAPTER (SDS PLUS) NO.2 HIT-303618.A3 303618	£40.02	£48.02
616 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A17 303619	£31.41	£37.69
617 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A6 303620	-
618 - SPECIAL SCREW M6X22 HIT-981122.A3 981122	£1.67	£2.00
619 - CORE BIT SHANK (SDS PLUS) 45-90MM 300L HIT-303627.A15 303627	-
620 - CORE BIT SHANK (SDS PLUS) 25-38MM 105L HIT-303625.A15 303625	-
621 - CORE BIT SHANK (SDS PLUS) 25-38MM 300L HIT-303626.A3 303626	-
622 - CHUCK ADAPTER (D) (SDS PLUS) HIT-303624.A5 303624	£37.06	£44.47
623 - DRILL CHUCK AND ADAPTER SET INCLUD.624 HIT-321825.A9 321825	-
624 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A22 303623	-
625 - DRILL CHUCK 13VLRB-D INCLUD.626 HIT-321814.A40 321814	-
626 - FLAT HD. SCREW (A) (LEFT HAND) M6X25 HIT-995344.A35 995344	-
627 - DRILL CHUCK 13VLD-D HIT-321813.A7 321813	-
628 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A29 980927	£55.68	£66.81
629 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A13 981840	£8.22	£9.87
630 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A6 308471	£16.21	£19.45
631 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A24 971511Z	-
632 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A18 971512Z	-
633 - COTTER HIT-944477.A26 944477	£5.17	£6.20
634 - CENTER PIN (A) 109L FOR CORE BIT D32-38 HIT-982684.A20 982684	-
635 - NO LONGER AVAILABLE HIT-982685.A9 982685	-
636 - ADAPTER (A) FOR HAMMER DRILL HIT-315921.A2 315921	-
637 - NO LONGER AVAILABLE HIT-982672.A12 982672	-
638 - NO LONGER AVAILABLE HIT-982673.A2 982673	-
639 - NO LONGER AVAILABLE HIT-982674.A10 982674	-
640 - NO LONGER AVAILABLE HIT-982686.A11 982686	-
641 - NO LONGER AVAILABLE HIT-982675.A2 982675	-
642 - NO LONGER AVAILABLE HIT-982687.A7 982687	-
643 - CORE BIT (A) 38MM INCLUD.644 HIT-982676.A10 982676	-
644 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-982688.A11 982688	-
645 - CORE BIT (B) 45MM INCLUD.646 HIT-982677.A2 982677	£73.70	£88.44
646 - NO LONGER AVAILABLE HIT-982689.A7 982689	-
647 - CORE BIT (B) 50MM INCLUD.648 HIT-982678.A6 982678	-
648 - NO LONGER AVAILABLE HIT-982690.A11 982690	-
649 - CORE BIT (B) 65MM INCLUD.650 HIT-982679.A0 982679	-
650 - GUIDE PLATE (FOR CORE BIT 65MM) HIT-982691.A1 982691	-
651 - CORE BIT (B) 80MM INCLUD.652 HIT-982680.A3 982680	-
652 - GUIDE PLATE (FOR CORE BIT 80MM) HIT-982692.A3 982692	-
653 - CORE BIT (B) 90MM INCLUD.654 HIT-982681.A0 982681	-
654 - GUIDE PLATE (FOR CORE BIT 90MM) HIT-982693.A0 982693	-
655 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A30 971794	-
656 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A3 971795	-
657 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A31 971796	-
658 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A3 971797	-
659 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A30 971798	-
660 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A3 971799	-
661 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A31 971800	-
662 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A14 971801	-
663 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A20 971802	-
664 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A13 971803	-
665 - TAPER SHANK DRILL BIT D11X100 HIT-944460.A1 944460	-
666 - TAPER SHANK DRILL BIT D12.3X110 HIT-944461.A18 944461	-
667 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A19 993038	-
669 - TAPER SHANK DRILL BIT D14.5X110 HIT-944500.A18 944500	-
671 - TAPER SHANK DRILL BIT D21.5X140 HIT-944464.A0 944464	-
672 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A16 320859	£10.35	£12.42
673 - DRILL BIT (SDS PLUS) D4.0X110 HIT-303571.A1 303571	-
674 - DRILL BIT (SDS PLUS) D5.0X110 HIT-303575.A3 303575	-
675 - DRILL BIT (SDS PLUS) D5.0X160 HIT-303578.A3 303578	-
676 - DRILL BIT (SDS PLUS) D5.5X110 HIT-303576.A1 303576	-
677 - DRILL BIT (SDS PLUS) D6.5X160 HIT-303581.A4 303581	-
678 - DRILL BIT (SDS PLUS) D7.0X160 HIT-303582.A0 303582	-
679 - DRILL BIT (SDS PLUS) D8.0X160 HIT-303584.A4 303584	-
680 - DRILL BIT (SDS PLUS) D8.5X160 HIT-303585.A0 303585	-
681 - DRILL BIT (SDS PLUS) D9.0X160 HIT-303586.A4 303586	-
682 - DRILL BIT (SDS PLUS) D12.0X160 HIT-303591.A3 303591	-
683 - DRILL BIT (SDS PLUS) D12.0X260 HIT-303606.A3 303606	-
684 - DRILL BIT (SDS PLUS) D12.7X160 HIT-303593.A4 303593	-
685 - DRILL BIT (SDS PLUS) D14.0X160 HIT-303595.A3 303595	-
686 - DRILL BIT (SDS PLUS) D15.0X160 HIT-303598.A4 303598	-
687 - DRILL BIT (SDS PLUS) D16.0X160 HIT-303599.A0 303599	-
688 - DRILL BIT (SDS PLUS) D16.0X260 HIT-303611.A4 303611	-
689 - DRILL BIT (SDS PLUS) D17.0X160 HIT-303601.A4 303601	-
690 - DRILL BIT (SDS PLUS) D19.0X260 HIT-303613.A3 303613	-
691 - DRILL BIT (SDS PLUS) D20.0X260 HIT-303614.A1 303614	-
692 - DRILL BIT (SDS PLUS) D22.0X260 HIT-303615.A3 303615	-
693 - DRILL BIT (SDS PLUS) D25.0X450 HIT-303616.A1 303616	-
694 - DRILL BIT (SDS PLUS) D30.0X450 HIT-319988.A0 319988	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki DH30PC2 Rotary Hammer Drill Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
