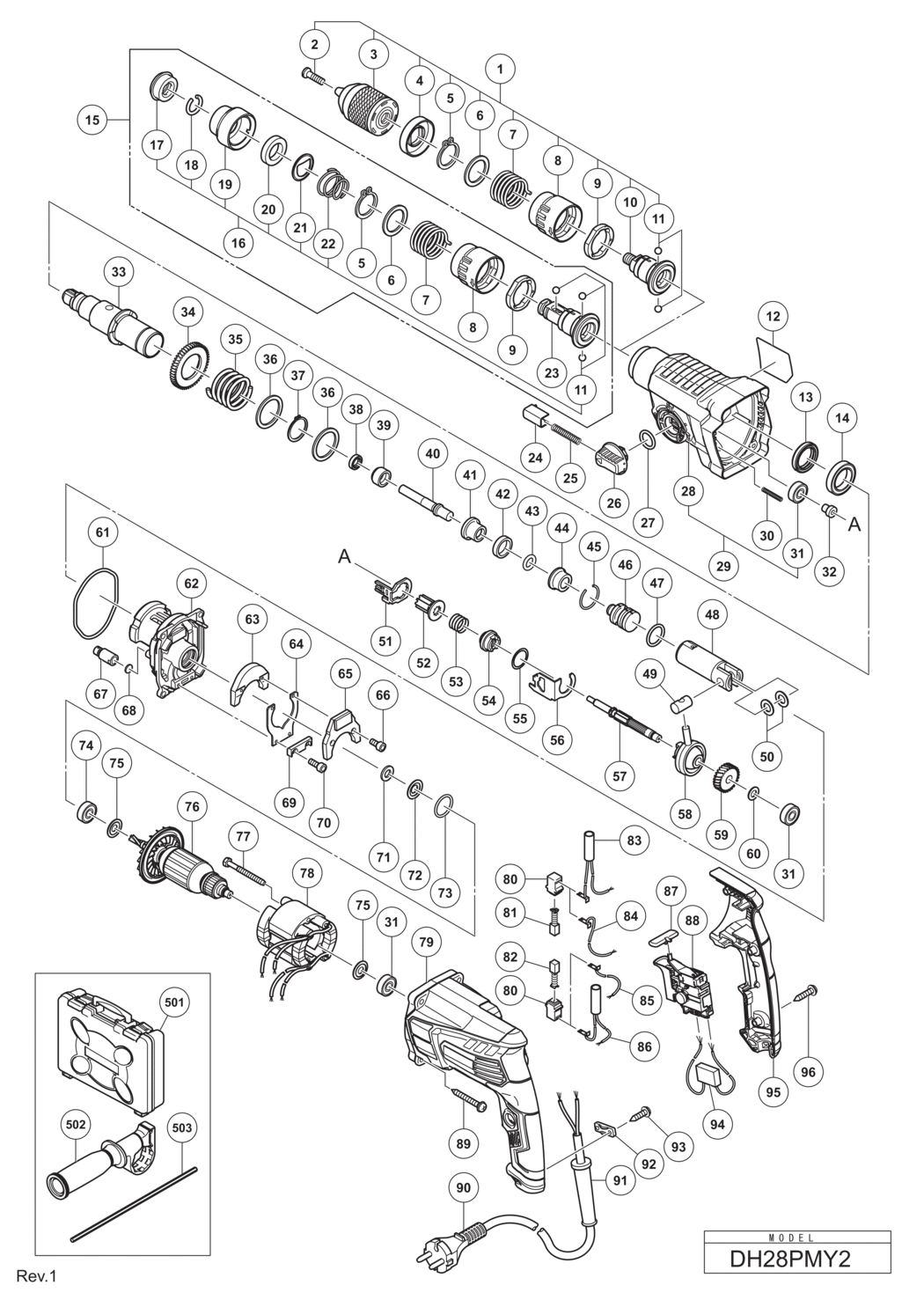

1 - CHUCK HOLDER (A) ASS'Y INCLUD.2-11
HIT-375012.A0
375012
|
-
|
|
|
|
2 - FLAT HD. SCREW (A) (LEFT HAND) M6X25
HIT-995344.A6
995344
|
-
|
|
|
|
3 - DRILL CHUCK 13VLRL-N (W/O CHUCK WRENCH)
HIT-323898.A2
323898
|
-
|
|
|
|
4 - STOPPER
HIT-326527.A2
326527
|
-
|
|
|
|
5 - RETAINING RING FOR D25 SHAFT
HIT-965469.A8
965469
|
£1.67
|
£2.00
|
|
|
6 - WASHER (B)
HIT-326520.A0
326520
|
-
|
|
|
|
7 - SPRING
HIT-326519.A2
326519
|
-
|
|
|
|
8 - LOCK GRIP
HIT-375013.A0
375013
|
-
|
|
|
|
9 - LOCK RING
HIT-326801.A2
326801
|
£38.46
|
£46.15
|
|
|
10 - CHUCK HOLDER (A)
HIT-375011.A0
375011
|
-
|
|
|
|
11 - STEEL BALL D7.0 (10 PCS.)
HIT-335300.A22
335300
|
£1.67
|
£2.00
|
|
|
12 - NAME PLATE
HIT-000000.A2809
000000
|
-
|
|
|
|
13 - OIL SEAL
HIT-335259.A21
335259
|
£5.07
|
£6.08
|
|
|
14 - BALL BEARING 6805
HIT-6805BB.A0
6805BB
|
-
|
|
|
|
15 - BIT HOLDER (A) ASS'Y INCLUD.5-9
HIT-375010.A0
375010
|
-
|
|
|
|
16 - GRIP SET INCLUD.11(1 PC.)
HIT-375363.A8
375363
|
-
|
|
|
|
17 - FRONT CAP
HIT-306345.A13
306345
|
£3.59
|
£4.31
|
|
|
18 - STOPPER RING
HIT-306340.A25
306340
|
£1.67
|
£2.00
|
|
|
19 - GRIP
HIT-374436.A10
374436
|
-
|
|
|
|
20 - BALL HOLDER
HIT-374437.A0
374437
|
-
|
|
|
|
21 - HOLDER PLATE
HIT-374435.A0
374435
|
-
|
|
|
|
22 - HOLDER SPRING
HIT-322812.A30
322812
|
£1.67
|
£2.00
|
|
|
23 - BIT HOLDER (A)
HIT-375009.A0
375009
|
-
|
|
|
|
24 - PUSHING BUTTON
HIT-322789.A11
322789
|
£6.50
|
£7.80
|
|
|
25 - PUSHING SPRING
HIT-317223.A10
317223
|
£1.67
|
£2.00
|
|
|
26 - CHANGE LEVER
HIT-334011.A8
334011
|
£3.92
|
£4.70
|
|
|
27 - O-RING (S-18)
HIT-878885.A36
878885
|
£1.67
|
£2.00
|
|
|
28 - GEAR COVER
HIT-375005.A0
375005
|
-
|
|
|
|
29 - GEAR COVER ASS'Y INCLUD.28
HIT-375006.A0
375006
|
-
|
|
|
|
30 - SPRING (E)
HIT-335800.A2
335800
|
£1.67
|
£2.00
|
|
|
31 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A181
608VVM
|
£5.70
|
£6.84
|
|
|
32 - SHAFT HOLDER (B)
HIT-374422.A5
374422
|
-
|
|
|
|
33 - CYLINDER
HIT-375007.A0
375007
|
-
|
|
|
|
34 - SECOND GEAR
HIT-335265.A21
335265
|
£10.52
|
£12.62
|
|
|
35 - SPRING (B)
HIT-374430.A2
374430
|
-
|
|
|
|
36 - WASHER (A)
HIT-301679.A15
301679
|
£1.67
|
£2.00
|
|
|
37 - RETAINING RING FOR D30 SHAFT
HIT-948310.A5
948310
|
£1.67
|
£2.00
|
|
|
38 - OIL SEAL (A)
HIT-335262.A3
335262
|
£3.12
|
£3.74
|
|
|
39 - HAMMER HOLDER (D)
HIT-375014.A0
375014
|
-
|
|
|
|
40 - SECONDE HAMMER
HIT-375008.A0
375008
|
-
|
|
|
|
41 - HAMMER HOLDER (A)
HIT-374429.A8
374429
|
-
|
|
|
|
42 - DAMPER (A)
HIT-322805.A4
322805
|
£1.67
|
£2.00
|
|
|
43 - O-RING (C)
HIT-322808.A4
322808
|
£1.67
|
£2.00
|
|
|
44 - DAMPER HOLDER
HIT-324524.A26
324524
|
£8.66
|
£10.39
|
|
|
45 - STOPPER RING
HIT-322807.A24
322807
|
£1.67
|
£2.00
|
|
|
46 - STRIKER
HIT-374443.A0
374443
|
-
|
|
|
|
47 - O-RING
HIT-372816.A6
372816
|
£5.07
|
£6.08
|
|
|
48 - PISTON
HIT-372817.A6
372817
|
-
|
|
|
|
49 - PISTON PIN
HIT-335793.A12
335793
|
£5.78
|
£6.94
|
|
|
50 - PISTON WASHER
HIT-335794.A10
335794
|
£1.67
|
£2.00
|
|
|
51 - LOCK PLATE
HIT-374434.A7
374434
|
-
|
|
|
|
52 - SECOND PINION
HIT-374440.A7
374440
|
-
|
|
|
|
53 - CLUTCH SPRING
HIT-323182.A13
323182
|
£1.67
|
£2.00
|
|
|
54 - CLUTCH
HIT-375022.A8
375022
|
-
|
|
|
|
55 - WASHER
HIT-331315.A14
331315
|
£1.67
|
£2.00
|
|
|
56 - CHANGE PLATE (C)
HIT-374439.A0
374439
|
-
|
|
|
|
57 - SECOND SHAFT
HIT-374438.A7
374438
|
-
|
|
|
|
58 - RECIPROCATING BEARING
HIT-335249.A19
335249
|
£19.98
|
£23.97
|
|
|
59 - FIRST GEAR
HIT-374441.A0
374441
|
-
|
|
|
|
60 - BEARING WASHER
HIT-374442.A10
374442
|
-
|
|
|
|
61 - O-RING D72.2
HIT-335245.A17
335245
|
£1.67
|
£2.00
|
|
|
62 - INNER COVER
HIT-374625.A3
374625
|
-
|
|
|
|
63 - WEIGHT (A)
HIT-374627.A3
374627
|
-
|
|
|
|
64 - LEAF SPRING
HIT-335282.A1
335282
|
£1.67
|
£2.00
|
|
|
65 - WEIGHT (B)
HIT-374628.A0
374628
|
-
|
|
|
|
66 - SEAL LOCK HEX. SOCKET HD. BOLT M3X8
HIT-325241.A3
325241
|
£1.67
|
£2.00
|
|
|
67 - AIR CAP
HIT-334008.A14
334008
|
-
|
|
|
|
68 - FELT PACKING (A)
HIT-324543.A20
324543
|
£1.67
|
£2.00
|
|
|
69 - SPRING HOLDER
HIT-374626.A0
374626
|
-
|
|
|
|
70 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12
HIT-983162.A24
983162
|
£1.67
|
£2.00
|
|
|
71 - FELT PACKING
HIT-322816.A17
322816
|
£1.67
|
£2.00
|
|
|
72 - PACKING WASHER
HIT-322818.A2
322818
|
£4.33
|
£5.20
|
|
|
73 - O-RING (P-22)
HIT-876796.A21
876796
|
£1.67
|
£2.00
|
|
|
74 - BALL BEARING 608DD
HIT-608DDM.A57
608DDM
|
£6.35
|
£7.62
|
|
|
75 - WASHER (A)
HIT-982631.A11
982631
|
£1.67
|
£2.00
|
|
|
76 - ARMATURE (B) 220V-230V
HIT-361108E.A2
361108E
|
-
|
|
|
|
77 - HEX. HD. TAPPING SCREW D4X45
HIT-981824.A7
981824
|
-
|
|
|
|
78 - STATOR (A) 220V-230V
HIT-341028K.A2
341028K
|
-
|
|
|
|
79 - HOUSING (B)
HIT-374622.A2
374622
|
-
|
|
|
|
80 - BRUSH HOLDER
HIT-955203.A33
955203
|
£4.16
|
£4.99
|
|
|
81 - CARBON BRUSH (1 PAIR)
HIT-999041.A51
999041
|
£5.54
|
£6.65
|
|
|
82 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
HIT-999072.A8
999072
|
£14.16
|
£16.99
|
|
|
83 - CHOKE COIL (BLOWN) FOR EUROPE
HIT-374615.A7
374615
|
-
|
|
|
|
84 - INTERNAL WIRE (BROWN) FOR UAE
HIT-374613.A4
374613
|
-
|
|
|
|
85 - INTERNAL WIRE (BLUE) FOR UAE
HIT-374612.A2
374612
|
-
|
|
|
|
86 - CHOKE COIL (BLUE) FOR EUROPE
HIT-374614.A2
374614
|
-
|
|
|
|
87 - PUSHING BUTTON
HIT-322853.A10
322853
|
£1.67
|
£2.00
|
|
|
88 - SWITCH 220V-240V
HIT-374610.A0
374610
|
-
|
|
|
|
89 - TAPPING SCREW (W/FLANGE) D5X35
HIT-301654.A2
301654
|
£1.67
|
£2.00
|
|
|
*90 - CORD (CORD ARMOR D8.8)
HIT-500390Z.A5
500390Z
|
-
|
|
|
|
*90 - CORD (CORD ARMOR D8.8) FOR UAE
HIT-500424Z.A4
500424Z
|
-
|
|
|
|
*90 - CORD (CORD ARMOR D8.8) FOR HKG
HIT-500440Z.A14
500440Z
|
£22.75
|
£27.30
|
|
|
*90 - CORD (CORD ARMOR D10.1) FOR THA
HIT-500239Z.A8
500239Z
|
-
|
|
|
|
*91 - CORD ARMOR D8.8
HIT-953327.A117
953327
|
£1.67
|
£2.00
|
|
|
*91 - CORD ARMOR D10.1
HIT-938051.A56
938051
|
£1.67
|
£2.00
|
|
|
92 - CORD CLIP
HIT-937631.A13
937631
|
£1.67
|
£2.00
|
|
|
93 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A254
984750
|
£1.67
|
£2.00
|
|
|
94 - NOISE SUPPRESSOR FOR EUROPE
HIT-930039.A28
930039
|
£3.85
|
£4.62
|
|
|
95 - HANDLE COVER (B)
HIT-374623.A2
374623
|
-
|
|
|
|
96 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A207
301653
|
£1.67
|
£2.00
|
|
|
501 - CASE
HIT-375015.A0
375015
|
-
|
|
|
|
502 - SIDE HANDLE
HIT-374447.A7
374447
|
-
|
|
|
|
503 - DEPTH GAUGE
HIT-303709.A24
303709
|
£1.67
|
£2.00
|
|
|
601 - DUST COLLECTOR (B) ASS'Y INCLUD.602
HIT-306885.A20
306885
|
£25.14
|
£30.17
|
|
|
602 - DUST COLLECTOR ASS'Y INCLUD.603-609
HIT-986802.A1
986802
|
-
|
|
|
|
603 - DUST COVER
HIT-986803.A24
986803
|
-
|
|
|
|
604 - SEAL COVER
HIT-986804.A1
986804
|
-
|
|
|
|
605 - RETAINING RING FOR D30 SHAFT
HIT-948310.A3
948310
|
£1.67
|
£2.00
|
|
|
606 - WASHER
HIT-958063.A0
958063
|
-
|
|
|
|
607 - STEEL BALL D6.35 (10 PCS.)
HIT-959150.A12
959150
|
£1.67
|
£2.00
|
|
|
608 - OUTER RACE
HIT-986805.A24
986805
|
-
|
|
|
|
609 - SOCKET
HIT-986806.A1
986806
|
-
|
|
|
|
610 - SOCKET ADAPTER (B)
HIT-306910.A20
306910
|
-
|
|
|
|
611 - DUST CUP
HIT-971787.A20
971787
|
£4.40
|
£5.28
|
|
|
612 - STOPPER
HIT-931844.A32
931844
|
-
|
|
|
|
613 - DRILL CHUCK 13VLRB-D INCLUD.614
HIT-321814.A14
321814
|
-
|
|
|
|
614 - FLAT HD. SCREW (LEFT HAND) M6X20
HIT-331966.A14
331966
|
£11.39
|
£13.67
|
|
|
615 - DRILL CHUCK 13VLD-D
HIT-321813.A34
321813
|
-
|
|
|
|
616 - + DRIVER BIT (A) NO.2 25L
HIT-971511Z.A18
971511Z
|
-
|
|
|
|
617 - + DRIVER BIT (A) NO.3 25L
HIT-971512Z.A26
971512Z
|
-
|
|
|
|
618 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL)
HIT-971794.A3
971794
|
-
|
|
|
|
619 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL)
HIT-971795.A31
971795
|
-
|
|
|
|
620 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL)
HIT-971796.A3
971796
|
-
|
|
|
|
621 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL)
HIT-971797.A30
971797
|
-
|
|
|
|
622 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL)
HIT-971798.A3
971798
|
-
|
|
|
|
623 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL)
HIT-971799.A31
971799
|
-
|
|
|
|
624 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL)
HIT-971800.A3
971800
|
-
|
|
|
|
625 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL)
HIT-971801.A31
971801
|
-
|
|
|
|
626 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL)
HIT-971802.A3
971802
|
-
|
|
|
|
627 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL)
HIT-971803.A30
971803
|
-
|
|
|
|
628 - SYRINGE (BLOW-OUT BULB TYPE)
HIT-320859.A29
320859
|
£10.35
|
£12.42
|
|
|
629 - COTTER
HIT-944477.A19
944477
|
£5.17
|
£6.20
|
|
|
630 - CENTER PIN (A) 109L FOR CORE BIT D32-38
HIT-982684.A17
982684
|
-
|
|
|
|
631 - NO LONGER AVAILABLE
HIT-982685.A12
982685
|
-
|
|
|
|
632 - GREASE FOR ROTARY HAMMER (500G)
HIT-335781.A21
335781
|
£91.40
|
£109.68
|
|
|
633 - GREASE FOR ROTARY HAMMER (60G)
HIT-335782.A1
335782
|
£19.89
|
£23.87
|
|
