Hitachi / Hikoki DH28PEC Rotary Hammer Spare Parts

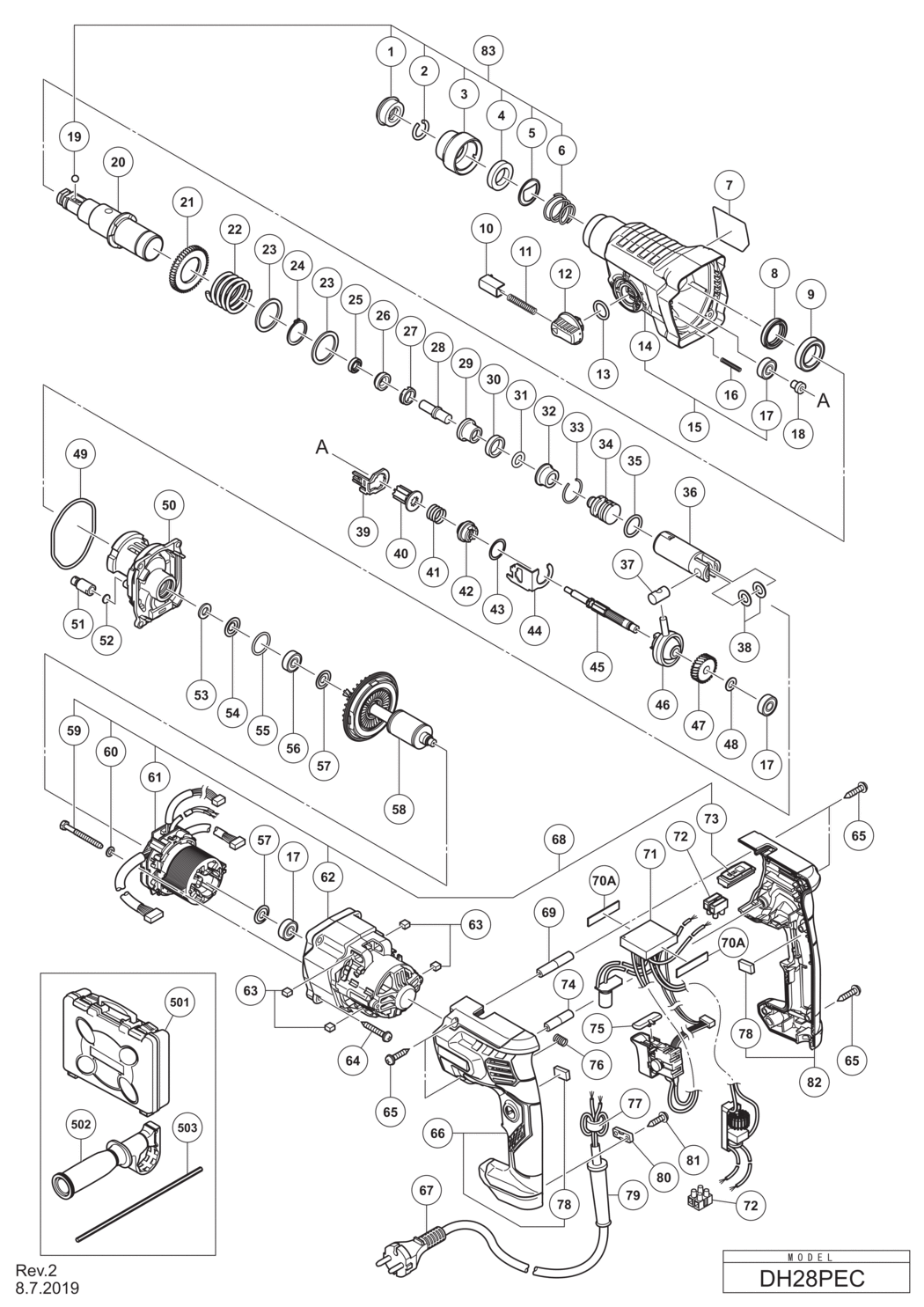

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH28PEC Rotary Hammer

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-306345.A3 306345	£3.59	£4.31
2 - STOPPER RING HIT-306340.A38 306340	£1.67	£2.00
3 - GRIP HIT-374436.A7 374436	-
4 - BALL HOLDER HIT-374437.A3 374437	-
5 - HOLDER PLATE HIT-374435.A3 374435	-
6 - HOLDER SPRING HIT-322812.A23 322812	£1.67	£2.00
7 - NAME PLATE HIT-000000.A307 000000	-
8 - OIL SEAL HIT-335259.A13 335259	£5.07	£6.08
9 - BALL BEARING 6805 HIT-6805BB.A5 6805BB	-
10 - PUSHING BUTTON HIT-322789.A21 322789	£6.50	£7.80
11 - PUSHING SPRING HIT-317223.A6 317223	£1.67	£2.00
12 - CHANGE LEVER HIT-334011.A2 334011	£3.92	£4.70
13 - O-RING (S-18) HIT-878885.A52 878885	£1.67	£2.00
14 - GEAR COVER HIT-374425.A0 374425	-
15 - GEAR COVER ASS'Y INCLUD.14 HIT-375021.A0 375021	-
16 - SPRING (E) HIT-335800.A10 335800	£1.67	£2.00
17 - BALL BEARING 608VVC2PS2L HIT-608VVM.A141 608VVM	£5.70	£6.84
18 - SHAFT HOLDER (B) HIT-374422.A0 374422	-
19 - STEEL BALL D7.0 (10 PCS.) HIT-335300.A13 335300	£1.67	£2.00
20 - CYLINDER HIT-374426.A0 374426	£28.38	£34.06
21 - SECOND GEAR HIT-335265.A13 335265	£10.52	£12.62
22 - SPRING (B) HIT-374430.A10 374430	-
23 - WASHER (A) HIT-301679.A5 301679	£1.67	£2.00
24 - RETAINING RING FOR D30 SHAFT HIT-948310.A21 948310	£1.67	£2.00
25 - OIL SEAL (A) HIT-335262.A10 335262	£3.12	£3.74
26 - HAMMER HOLDER (B) HIT-374431.A0 374431	-
27 - HOLDER SLEEVE HIT-374427.A9 374427	-
28 - SECOND HAMMER HIT-374432.A9 374432	-
29 - HAMMER HOLDER (A) HIT-374429.A0 374429	-
30 - DAMPER (A) HIT-322805.A12 322805	£1.67	£2.00
31 - O-RING (C) HIT-322808.A12 322808	£1.67	£2.00
32 - DAMPER HOLDER HIT-324524.A19 324524	£8.66	£10.39
33 - STOPPER RING HIT-322807.A16 322807	£1.67	£2.00
34 - STRIKER HIT-374443.A4 374443	-
35 - O-RING HIT-372816.A10 372816	£5.07	£6.08
36 - PISTON HIT-372817.A2 372817	-
37 - PISTON PIN HIT-335793.A20 335793	£5.78	£6.94
38 - PISTON WASHER HIT-335794.A2 335794	£1.67	£2.00
39 - LOCK PLATE HIT-374434.A4 374434	-
40 - SECOND PINION HIT-374440.A4 374440	-
41 - CLUTCH SPRING HIT-323182.A9 323182	£1.67	£2.00
42 - CLUTCH HIT-375022.A0 375022	-
43 - WASHER HIT-331315.A22 331315	£1.67	£2.00
44 - CHANGE PLATE (C) HIT-374439.A3 374439	-
45 - SECOND SHAFT HIT-374438.A4 374438	-
46 - RECIPROCATING BEARING HIT-335249.A15 335249	£19.98	£23.97
47 - FIRST GEAR HIT-374441.A4 374441	-
48 - BEARING WASHER HIT-374442.A6 374442	-
49 - O-RING D72.2 HIT-335245.A7 335245	£1.67	£2.00
50 - INNER COVER HIT-375369.A0 375369	-
51 - AIR CAP HIT-334008.A20 334008	-
52 - FELT PACKING (A) HIT-324543.A26 324543	£1.67	£2.00
53 - FELT PACKING HIT-322816.A8 322816	£1.67	£2.00
54 - PACKING WASHER HIT-322818.A11 322818	£4.33	£5.20
55 - O-RING (P-22) HIT-876796.A13 876796	£1.67	£2.00
56 - BALL BEARING 608DD HIT-608DDM.A29 608DDM	£6.35	£7.62
57 - WASHER (A) HIT-982631.A22 982631	£1.67	£2.00
58 - ROTOR HIT-361104.A0 361104	-
59 - HEX. HD. TAPPING SCREW D4X40 HIT-374450.A0 374450	-
60 - BOLT WASHER M4 (BLACK) HIT-323210.A41 323210	-
*61 - STATOR PCB SET HIT-341027.A0 341027	-
*61 - STATOR PCB SET FOR GBR (110V) HIT-341026.A0 341026	-
62 - HOUSING HIT-375585.A0 375585	-
63 - HANDLE DAMPER HIT-374448.A0 374448	-
64 - TAPPING SCREW (W/FLANGE) D5X35 HIT-301654.A9 301654	£1.67	£2.00
65 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A185 301653	£1.67	£2.00
66 - HANDLE (A) ASS'Y INCLUD.78 HIT-375579.A0 375579	-
*67 - CORD (CORD ARMOR D8.8) HIT-500390Z.A3 500390Z	-
*67 - CORD (CORD ARMOR D8.8) FOR HKG HIT-500424Z.A2 500424Z	-
*67 - CORD (CORD ARMOR D8.8) FOR AUS HIT-500408Z.A6 500408Z	-
*67 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A36 500446Z	£33.79	£40.55
*67 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500465Z.A21 500465Z	£26.20	£31.44
*68 - MOTOR ASS'Y INCLUD.59-62 HIT-375583.A0 375583	-
*68 - MOTOR ASS'Y INCLUD.59-62 HIT-375584.A0 375584	-
69 - HANDLE SHAFT (A) HIT-374445.A0 374445	-
70A - RUBBER SHEET HIT-373635.A2 373635	-
*71 - DC FILTER SWITCH PCB HIT-374452.A0 374452	-
*71 - DC FILTER SWITCH PCB FOR GBR (110V) HIT-374451.A0 374451	-
72 - PILLAR TERMINAL (A) HIT-958308Z.A9 958308Z	£7.53	£9.04
73 - PANEL HIT-375368.A0 375368	-
74 - HANDLE SHAFT (B) HIT-374446.A0 374446	-
75 - PUSHING BUTTON HIT-322853.A1 322853	£1.67	£2.00
76 - HANDLE SPRING HIT-374421.A0 374421	-
77 - FERRITE CORE EXCEPT FOR GBR (110V) HIT-334379.A4 334379	-
78 - SUPPORT (B) HIT-375581.A0 375581	-
79 - CORD ARMOR D8.8 HIT-953327.A159 953327	£1.67	£2.00
80 - CORD CLIP HIT-937631.A74 937631	£1.67	£2.00
81 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A184 984750	£1.67	£2.00
82 - HANDLE (B) ASS'Y INCLUD.78 HIT-375580.A0 375580	-
83 - GRIP SET INCLUD.1-6 HIT-375363.A7 375363	-
501 - CASE HIT-374320.A0 374320	-
502 - SIDE HANDLE HIT-374447.A0 374447	-
503 - DEPTH GAUGE HIT-303709.A12 303709	£1.67	£2.00
601 - DUST COLLECTOR (B) ASS'Y INCLUD.602 HIT-306885.A11 306885	£25.14	£30.17
602 - DUST COLLECTOR ASS'Y INCLUD.603-609 HIT-986802.A11 986802	-
603 - DUST COVER HIT-986803.A14 986803	-
604 - SEAL COVER HIT-986804.A11 986804	-
605 - RETAINING RING FOR D30 SHAFT HIT-948310.A22 948310	£1.67	£2.00
606 - WASHER HIT-958063.A13 958063	-
607 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A3 959150	£1.67	£2.00
608 - OUTER RACE HIT-986805.A14 986805	-
609 - SOCKET HIT-986806.A11 986806	-
610 - SOCKET ADAPTER (B) HIT-306910.A32 306910	-
611 - DUST CUP HIT-971787.A9 971787	£4.40	£5.28
612 - STOPPER HIT-931844.A20 931844	-
613 - DRILL CHUCK 13VLRB-D INCLUD.614 HIT-321814.A3 321814	-
614 - FLAT HD. SCREW (LEFT HAND) M6X20 HIT-331966.A6 331966	£11.39	£13.67
615 - DRILL CHUCK 13VLD-D HIT-321813.A48 321813	-
616 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A9 971511Z	-
617 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A34 971512Z	-
618 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A9 971794	-
619 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A24 971795	-
620 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A10 971796	-
621 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A23 971797	-
622 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A10 971798	-
623 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A24 971799	-
624 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A10 971800	-
625 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A24 971801	-
626 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A10 971802	-
627 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A23 971803	-
628 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A38 320859	£10.35	£12.42
629 - COTTER HIT-944477.A8 944477	£5.17	£6.20
630 - CENTER PIN (A) 109L FOR CORE BIT D32-38 HIT-982684.A6 982684	-
631 - NO LONGER AVAILABLE HIT-982685.A23 982685	-
632 - GREASE FOR ROTARY HAMMER (500G) HIT-335781.A12 335781	£91.40	£109.68
633 - GREASE FOR ROTARY HAMMER (60G) HIT-335782.A10 335782	£19.89	£23.87
