Hitachi / Hikoki DH28PD Rotary Hammer Drill Spare Parts

Hitachi / Hikoki DH28PD Rotary Hammer Drill Spare Parts
Home Details Reviews Delivery

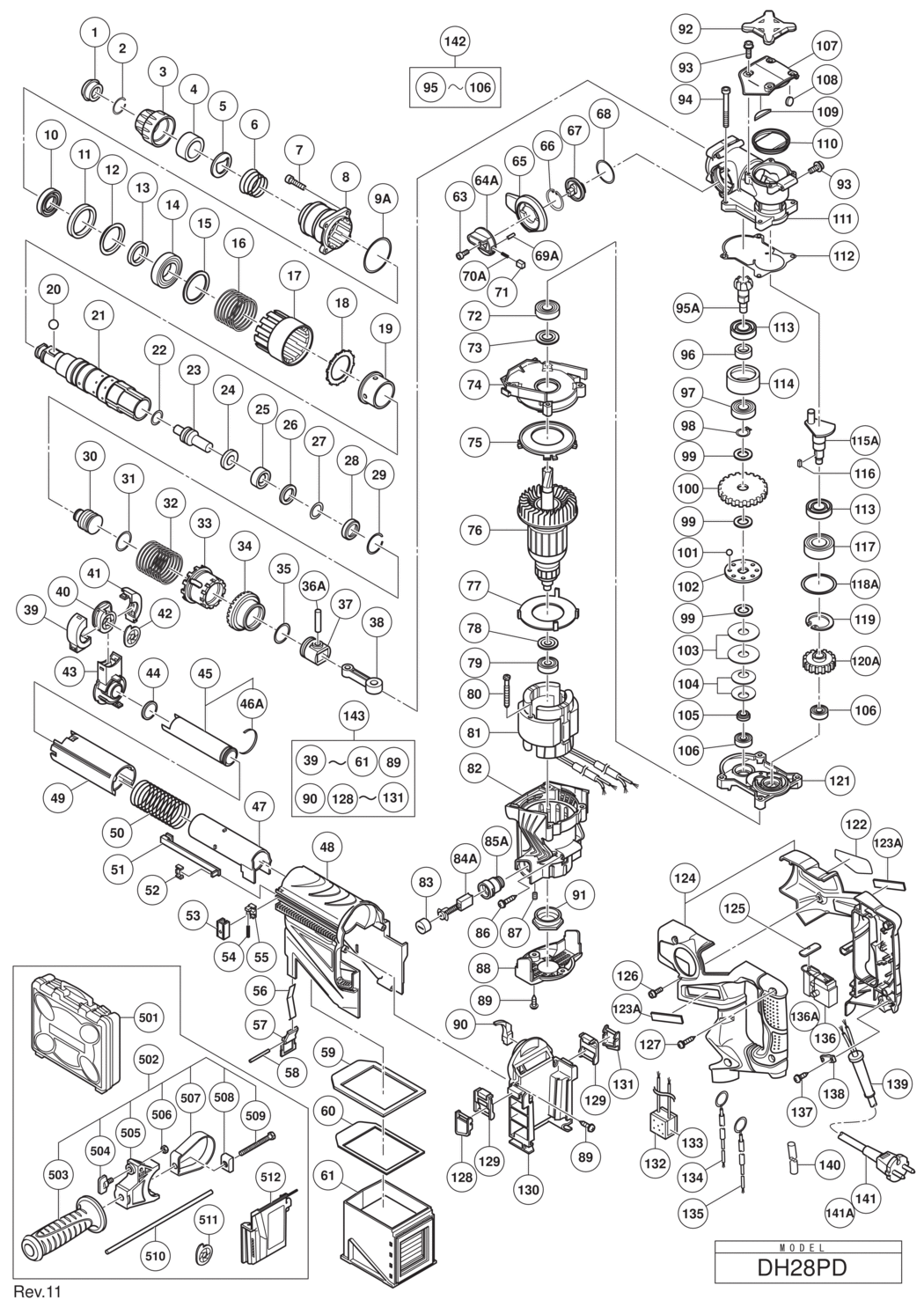

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH28PD Rotary Hammer Drill
Ex VAT Inc VAT
1 - FRONT CAP HIT-306345.A17 306345 £3.59 £4.31
2 - STOPPER RING HIT-306340.A20 306340 £1.67 £2.00
3 - GRIP HIT-324527.A0 324527 £4.33 £5.20
4 - BALL HOLDER HIT-330192.A1 330192 £6.35 £7.62
5 - HOLDER PLATE HIT-324526.A25 324526 £4.33 £5.20
6 - HOLDER SPRING HIT-330191.A0 330191 £1.67 £2.00
7 - SEAL LOCK HEX. SOCKET HD. BOLT M6X20 HIT-992803.A1 992803 £1.67 £2.00
8 - CYLINDER CASE HIT-330174.A0 330174 £12.62 £15.15
9A - O-RING (I.D 49.5) HIT-334370.A0 334370 £1.67 £2.00
10 - OIL SEAL HIT-328867.A4 328867 £6.18 £7.41
11 - DAMPER (A) HIT-330175.A1 330175 £5.52 £6.63
12 - DAMPER WASHER (B) HIT-330184.A1 330184 £4.40 £5.28
13 - FELT PACKING (A) HIT-304020.A1 304020 £1.67 £2.00
14 - BALL BEARING 6905DDUCMNS7S HIT-6905DD.A1 6905DD £40.11 £48.13
15 - WASHER (A) HIT-330176.A0 330176 £1.67 £2.00
16 - LOCK SPRING HIT-330177.A1 330177 £1.67 £2.00
17 - LOCK SLEEVE HIT-330178.A0 330178 £13.68 £16.41
18 - WASHER (B) HIT-330179.A1 330179 £1.67 £2.00
19 - SLIDE SLEEVE HIT-330187.A0 330187 £10.52 £12.62
20 - STEEL BALL D7.0 (10 PCS.) HIT-959156.A0 959156 £1.67 £2.00
21 - CYLINDER HIT-330180.A0 330180 £45.37 £54.44
22 - O-RING (C) HIT-323058.A1 323058 £4.33 £5.20
23 - SECOND HAMMER HIT-330181.A0 330181 £8.95 £10.74
24 - DAMPER WASHER HIT-330182.A1 330182 £2.91 £3.49
25 - DAMPER (B) HIT-330183.A0 330183 £5.52 £6.63
26 - DAMPER HOLDER (A) HIT-331672.A0 331672 £3.83 £4.60
27 - O-RING (A) HIT-330186.A1 330186 £2.81 £3.37
28 - DAMPER HOLDER (B) HIT-331673.A0 331673 £5.70 £6.84
29 - STOPPER RING HIT-323062.A1 323062 £1.67 £2.00
30 - STRIKER HIT-330185.A0 330185 £5.80 £6.96
31 - O-RING (I.D 19.2) HIT-319577.A0 319577 £4.86 £5.83
32 - CLUTCH SPRING HIT-330188.A0 330188 £1.67 £2.00
33 - CLUTCH HIT-330189.A1 330189 £40.32 £48.38
34 - BEVEL GEAR HIT-330190.A0 330190 £20.52 £24.62
35 - O-RING (I.D 19.2) HIT-319577.A1 319577 £4.86 £5.83
36A - PISTON PIN HIT-330173.A0 330173 £2.91 £3.49
37 - PISTON HIT-330172.A1 330172 £10.17 £12.20
38 - CONNECTING ROD HIT-319585.A3 319585 £4.86 £5.83
39 - NOZZLE (C) HIT-330236.A0 330236 £1.67 £2.00
40 - NOZZLE SEAL HIT-330237.A0 330237 £3.12 £3.74
41 - NOZZLE (B) HIT-330235.A0 330235 £1.67 £2.00
42 - RUBBER CAP HIT-330238.A0 330238 £6.14 £7.37
43 - NOZZLE (A) HIT-330234.A0 330234 £4.89 £5.87
44 - FELT WASHER HIT-330231.A0 330231 -
45 - INNER PIPE (A) ASS'Y INCLUD.46 HIT-330229.A0 330229 -
46A - DOUBLE FACE TAPE(AVAILABIE AT STORES) HIT-000000.A2834 000000 -
47 - INNER PIPE (B) HIT-330230.A0 330230 -
48 - DUST CASING (A) HIT-330221.A0 330221 -
49 - OUTER PIPE HIT-330233.A0 330233 -
50 - PIPE SPRING HIT-330232.A0 330232 -
51 - ADJUSTING ROD HIT-330242.A0 330242 -
52 - STOPPER HIT-330246.A0 330246 -
53 - ADJUSTER (A) HIT-330243.A0 330243 -
54 - SPRING HIT-330245.A0 330245 -
55 - ADJUSTER (C) HIT-330244.A0 330244 -
56 - LEAF SPRING HIT-330223.A0 330223 -
57 - LEVER HIT-330224.A0 330224 -
58 - PIN D3 HIT-330225.A0 330225 -
59 - SEAL PLATE (A) HIT-330226.A0 330226 -
60 - SEAL PACKING (A) HIT-330227.A0 330227 -
61 - DUST BOX HIT-330228.A0 330228 -
63 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A21 983162 £1.67 £2.00
64A - CHANGE LEVER HIT-331545.A6 331545 £4.86 £5.83
65 - LEVER HOLDER HIT-330207.A1 330207 £2.81 £3.37
66 - RETAINING RING FOR D35 HOLE (10 PCS.) HIT-939556.A12 939556 £11.82 £14.18
67 - LEVER SHAFT HIT-330206.A0 330206 £7.02 £8.42
68 - O-RING HIT-330205.A1 330205 £1.67 £2.00
69A - PIN D2X10 HIT-331548.A1 331548 £1.67 £2.00
70A - LEVER SPRING HIT-331546.A0 331546 £1.67 £2.00
71 - PUSHING BUTTON HIT-321311.A2 321311 £1.67 £2.00
72 - BALL BEARING 6001DDCMPS2L HIT-6001DD.A25 6001DD £9.23 £11.08
73 - DUST WASHER HIT-330249.A0 330249 -
74 - CASING HIT-330250.A0 330250 -
75 - FAN GUIDE (B) HIT-330248.A0 330248 -
*76 - ARMATURE 110V-115V HIT-360859C.A0 360859C £40.82 £48.99
*76 - ARMATURE 220V-230V HIT-360859E.A0 360859E £40.82 £48.99
77 - FAN GUIDE (A) HIT-330247.A0 330247 -
78 - WASHER (A) HIT-982631.A8 982631 £1.67 £2.00
79 - BALL BEARING 608VVC2PS2L HIT-608VVM.A191 608VVM £5.70 £6.84
80 - HEX. HD. TAPPING SCREW D5X40 HIT-980864.A2 980864 -
*81 - STATOR 110V-115V HIT-340739C.A0 340739C £33.24 £39.89
*81 - STATOR 220V-230V HIT-340739E.A1 340739E £33.24 £39.89
82 - HOUSING ASS'Y HIT-330201.A1 330201 £43.48 £52.17
83 - BRUSH CAP HIT-935829.A5 935829 £1.67 £2.00
84A - CARBON BRUSH 7X11X17 (1 PAIR) HIT-999004.A1 999004 £12.10 £14.52
85A - BRUSH HOLDER HIT-370925.A0 370925 -
86 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A7 302089 £1.67 £2.00
87 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A68 938477 £1.67 £2.00
88 - TAIL COVER HIT-330203.A1 330203 £10.10 £12.12
89 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A18 307811 £1.67 £2.00
90 - DAMPER (B) HIT-331727.A0 331727 -
91 - BEARING BUSHING (B) HIT-310111.A7 310111 £12.04 £14.45
92 - TOP COVER HIT-331729.A0 331729 -
93 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A13 994192 £1.67 £2.00
94 - SEAL LOCK BOLT M5X55 HIT-330251.A0 330251 £1.67 £2.00
95A - BEVEL PINION HIT-330196.A1 330196 £14.29 £17.15
96 - COLLAR HIT-330197.A0 330197 £3.28 £3.93
97 - BALL BEARING 6001DDCMPS2L HIT-6001DD.A24 6001DD £9.23 £11.08
98 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A9 939542 £2.98 £3.57
99 - WASHER HIT-992503.A2 992503 £1.67 £2.00
100 - SECOND GEAR HIT-330198.A1 330198 £14.82 £17.78
101 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A42 959155 £1.67 £2.00
102 - CLUTCH PLATE HIT-992916.A2 992916 £5.27 £6.32
103 - SPRING PLATE HIT-992926.A3 992926 £1.67 £2.00
104 - BELLEVILLE SPRING HIT-980877.A3 980877 £1.67 £2.00
105 - BUSHING HIT-330199.A1 330199 £2.91 £3.49
106 - BALL BEARING 608VVC2PS2L HIT-608VVM.A188 608VVM £5.70 £6.84
107 - CRANK COVER HIT-330204.A1 330204 £18.30 £21.96
108 - FELT PACKING (B) HIT-324544.A1 324544 £1.67 £2.00
109 - FELT PACKING HIT-331674.A1 331674 £2.71 £3.25
110 - RUBBER SEAL HIT-331675.A0 331675 £5.23 £6.28
111 - CRANK CASE HIT-330169.A1 330169 £41.19 £49.43
112 - SEAL PACKING HIT-331676.A1 331676 £3.28 £3.93
113 - OIL SEAL (B) HIT-981851.A2 981851 £3.64 £4.37
114 - SLEEVE HIT-330194.A1 330194 £6.45 £7.74
115A - CRANK SHAFT HIT-330170.A0 330170 -
116 - FEATHER KEY 3X3X8 HIT-944109.A0 944109 £3.28 £3.93
117 - BALL BEARING 6002DDCMPS2L HIT-6002DD.A19 6002DD £8.64 £10.37
118A - O-RING (I.D 31.5) HIT-334369.A0 334369 -
119 - RETAINING RING FOR D32 HOLE HIT-948001.A0 948001 £1.67 £2.00
120A - FIRST GEAR HIT-330171.A1 330171 -
121 - GEAR COVER HIT-330200.A0 330200 -
122 - NAME PLATE HIT-000000.A2835 000000 -
123A - BRAND PLATE HIT-886342.A2 886342 £1.67 £2.00
124 - HANDLE (A).(B) SET HIT-330257.A0 330257 -
125 - PUSHING BUTTON HIT-322853.A29 322853 £1.67 £2.00
126 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X10 HIT-316228.A3 316228 £1.67 £2.00
127 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A19 307028 £1.67 £2.00
128 - KNOB (A) HIT-330240.A0 330240 £2.67 £3.20
129 - LATCH HIT-330239.A0 330239 £2.67 £3.20
130 - DUST CASING (B) HIT-330222.A0 330222 -
131 - KNOB (B) HIT-330241.A0 330241 £2.67 £3.20
132 - SUPPORT (B) FOR EUROPE HIT-317492.A3 317492 £1.67 £2.00
*133 - NOISE SUPPRESSOR FOR EUROPE HIT-930039.A65 930039 £3.85 £4.62
*134 - INTERNAL WIRE 18AWGX300L (BLUE) HIT-330254.A1 330254 £3.29 £3.95
*134 - INTERNAL WIRE 16AWGX300L (BLUE) FOR USA HIT-330217.A0 330217 -
*135 - INTERNAL WIRE 18AWGX300L(BROWN) HIT-330255.A0 330255 -
*135 - INTERNAL WIRE 16AWGX300L (BROWN) FOR USA HIT-330218.A0 330218 -
*136 - SWITCH HIT-331677.A1 331677 £19.82 £23.79
137 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A78 984750 £1.67 £2.00
138 - CORD CLIP HIT-960266.A91 960266 £1.67 £2.00
139 - CORD ARMOR D8.8 HIT-953327.A63 953327 £1.67 £2.00
140 - VINYL TUBE L35 HIT-321322.A3 321322 -
*141 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500465Z.A8 500465Z £26.20 £31.44
*141 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500446Z.A12 500446Z £33.79 £40.55
142 - SLIP CLUTCH ASS'Y INCLUD.95-106 HIT-330195.A1 330195 £43.28 £51.93
143 - DUST COLLECTION UNIT INCLUD.39-61 HIT-370039.A0 370039 -
501 - CASE HIT-330220.A0 330220 £76.89 £92.27
502 - SIDE HANDLE ASS'Y INCLUD.503-509 HIT-330208.A1 330208 £15.77 £18.92
503 - SIDE HANDLE HIT-330209.A0 330209 £17.51 £21.01
504 - WING BOLT M6X12 HIT-307947.A7 307947 £1.67 £2.00
505 - MOUNT HIT-330210.A1 330210 £5.52 £6.63
506 - NUT M6 (10 PCS.) HIT-949556.A31 949556 £1.67 £2.00
507 - BAND HIT-330212.A1 330212 -
508 - BOLT HOLDER HIT-330211.A0 330211 -
509 - BOLT M8X45 HIT-330213.A0 330213 -
510 - STOPPER ROD HIT-982671.A0 982671 £3.29 £3.95
511 - RUBBER CAP HIT-330238.A1 330238 £6.14 £7.37
512 - SUCTION COVER HIT-331730.A0 331730 -
601 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE HIT-303046.A21 303046 -
602 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L HIT-303044.A19 303044 -
603 - CHEMICAL ANCHOR ADAPTER(SDS+)19.0MMX100L HIT-303045.A1 303045 -
604 - CHUCK HANDLE HIT-303334.A7 303334 -
605 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L HIT-302976.A12 302976 -
606 - CHUCK WRENCH 10G HIT-930515.A10 930515 £6.38 £7.66
607 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L HIT-302975.A11 302975 -
608 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L HIT-303621.A14 303621 -
609 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L HIT-302974.A12 302974 -
610 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L HIT-302979.A11 302979 -
611 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L HIT-302978.A12 302978 -
612 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L HIT-303622.A9 303622 -
613 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L HIT-302977.A11 302977 -
614 - TAPER SHANK ADAPTER (SDS PLUS) NO.1 HIT-303617.A14 303617 £39.42 £47.31
615 - TAPER SHANK ADAPTER (SDS PLUS) NO.2 HIT-303618.A6 303618 £40.02 £48.02
616 - A-TAPER SHANK ADAPTER (SDS PLUS) HIT-303619.A14 303619 £31.41 £37.69
617 - B-TAPER SHANK ADAPTER (SDS PLUS) HIT-303620.A9 303620 -
618 - SPECIAL SCREW M6X22 HIT-981122.A6 981122 £1.67 £2.00
619 - CORE BIT SHANK (SDS PLUS) 45-90MM 300L HIT-303627.A12 303627 -
620 - CORE BIT SHANK (SDS PLUS) 25-38MM 105L HIT-303625.A12 303625 -
621 - CORE BIT SHANK (SDS PLUS) 25-38MM 300L HIT-303626.A6 303626 -
622 - CHUCK ADAPTER (D) (SDS PLUS) HIT-303624.A8 303624 £37.06 £44.47
623 - DRILL CHUCK AND ADAPTER SET INCLUD.624 HIT-321825.A12 321825 -
624 - CHUCK ADAPTER (G) (SDS PLUS) HIT-303623.A19 303623 -
625 - DRILL CHUCK 13VLRB-D INCLUD.626 HIT-321814.A37 321814 -
626 - FLAT HD. SCREW (A) (LEFT HAND) M6X25 HIT-995344.A36 995344 -
627 - DRILL CHUCK 13VLD-D HIT-321813.A10 321813 -
628 - GREASE FOR HAMMER.HAMMER DRILL (500G) HIT-980927.A31 980927 £55.68 £66.81
629 - GREASE (A) FOR HAMMER.HAMMER DRILL (30G) HIT-981840.A11 981840 £8.22 £9.87
630 - GREASE FOR HAMMER.HAMMER DRILL (70G) HIT-308471.A4 308471 £16.21 £19.45
631 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A27 971511Z -
632 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A15 971512Z -
633 - COTTER HIT-944477.A24 944477 £5.17 £6.20
634 - CENTER PIN (A) 109L FOR CORE BIT D32-38 HIT-982684.A23 982684 -
635 - NO LONGER AVAILABLE HIT-982685.A6 982685 -
636 - ADAPTER (A) FOR HAMMER DRILL HIT-315921.A1 315921 -
637 - NO LONGER AVAILABLE HIT-982672.A11 982672 -
638 - NO LONGER AVAILABLE HIT-982673.A3 982673 -
639 - NO LONGER AVAILABLE HIT-982674.A9 982674 -
640 - NO LONGER AVAILABLE HIT-982686.A14 982686 -
641 - NO LONGER AVAILABLE HIT-982675.A3 982675 -
642 - NO LONGER AVAILABLE HIT-982687.A4 982687 -
643 - CORE BIT (A) 38MM INCLUD.644 HIT-982676.A9 982676 -
644 - GUIDE PLATE (FOR CORE BIT 38MM) HIT-982688.A14 982688 -
645 - CORE BIT (B) 45MM INCLUD.646 HIT-982677.A3 982677 £73.70 £88.44
646 - NO LONGER AVAILABLE HIT-982689.A4 982689 -
647 - CORE BIT (B) 50MM INCLUD.648 HIT-982678.A5 982678 -
648 - NO LONGER AVAILABLE HIT-982690.A14 982690 -
649 - CORE BIT (B) 65MM INCLUD.650 HIT-982679.A1 982679 -
650 - GUIDE PLATE (FOR CORE BIT 65MM) HIT-982691.A0 982691 -
651 - CORE BIT (B) 80MM INCLUD.652 HIT-982680.A2 982680 -
652 - GUIDE PLATE (FOR CORE BIT 80MM) HIT-982692.A4 982692 -
653 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A33 971794 -
654 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A0 971795 -
655 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A34 971796 -
656 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A0 971797 -
657 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A33 971798 -
658 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A0 971799 -
659 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A34 971800 -
660 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A0 971801 -
661 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A33 971802 -
662 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A0 971803 -
663 - TAPER SHANK DRILL BIT D11X100 HIT-944460.A4 944460 -
664 - TAPER SHANK DRILL BIT D12.3X110 HIT-944461.A12 944461 -
665 - TAPER SHANK DRILL BIT D12.7X110 HIT-993038.A13 993038 -
667 - TAPER SHANK DRILL BIT D14.5X110 HIT-944500.A12 944500 -
669 - TAPER SHANK DRILL BIT D21.5X140 HIT-944464.A3 944464 -
670 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A10 320859 £10.35 £12.42
671 - DRILL BIT (SDS PLUS) D4.0X110 HIT-303571.A0 303571 -
672 - DRILL BIT (SDS PLUS) D5.0X110 HIT-303575.A4 303575 -
673 - DRILL BIT (SDS PLUS) D5.0X160 HIT-303578.A4 303578 -
674 - DRILL BIT (SDS PLUS) D5.5X110 HIT-303576.A0 303576 -
675 - DRILL BIT (SDS PLUS) D6.5X160 HIT-303581.A3 303581 -
676 - DRILL BIT (SDS PLUS) D7.0X160 HIT-303582.A1 303582 -
677 - DRILL BIT (SDS PLUS) D8.0X160 HIT-303584.A3 303584 -
678 - DRILL BIT (SDS PLUS) D8.5X160 HIT-303585.A1 303585 -
679 - DRILL BIT (SDS PLUS) D9.0X160 HIT-303586.A3 303586 -
680 - DRILL BIT (SDS PLUS) D12.0X160 HIT-303591.A4 303591 -
681 - DRILL BIT (SDS PLUS) D12.0X260 HIT-303606.A4 303606 -
682 - DRILL BIT (SDS PLUS) D12.7X160 HIT-303593.A3 303593 -
683 - DRILL BIT (SDS PLUS) D14.0X160 HIT-303595.A4 303595 -
684 - DRILL BIT (SDS PLUS) D15.0X160 HIT-303598.A3 303598 -
685 - DRILL BIT (SDS PLUS) D16.0X160 HIT-303599.A1 303599 -
686 - DRILL BIT (SDS PLUS) D16.0X260 HIT-303611.A3 303611 -
687 - DRILL BIT (SDS PLUS) D17.0X160 HIT-303601.A3 303601 -
688 - DRILL BIT (SDS PLUS) D19.0X260 HIT-303613.A4 303613 -
689 - DRILL BIT (SDS PLUS) D20.0X260 HIT-303614.A0 303614 -
690 - DRILL BIT (SDS PLUS) D22.0X260 HIT-303615.A4 303615 -
691 - DRILL BIT (SDS PLUS) D25.0X450 HIT-303616.A0 303616 -
692 - DUST CUP HIT-971787.A23 971787 £4.40 £5.28
693 - SYRINGE (BELLOWS TYPE) HIT-318085.A7 318085 -
694 - DUST COLLECTOR (B) ASS'Y INCLUD.695 HIT-306885.A37 306885 £25.14 £30.17
695 - DUST COLLECTOR ASS'Y INCLUD.696-702 HIT-986802.A24 986802 -
696 - DUST COVER HIT-986803.A1 986803 -
697 - SEAL COVER HIT-986804.A24 986804 -
698 - RETAINING RING FOR D30 SHAFT HIT-948310.A45 948310 £1.67 £2.00
699 - WASHER HIT-958063.A16 958063 -
700 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A25 959150 £1.67 £2.00
701 - OUTER RACE HIT-986805.A2 986805 -
702 - SOCKET HIT-986806.A23 986806 -
703 - SOCKET ADAPTER (B) HIT-306910.A4 306910 -

Recently Viewed


x
Powered by kartris
