Hitachi / Hikoki DH28PBY2 Hammer Drill Spare Parts

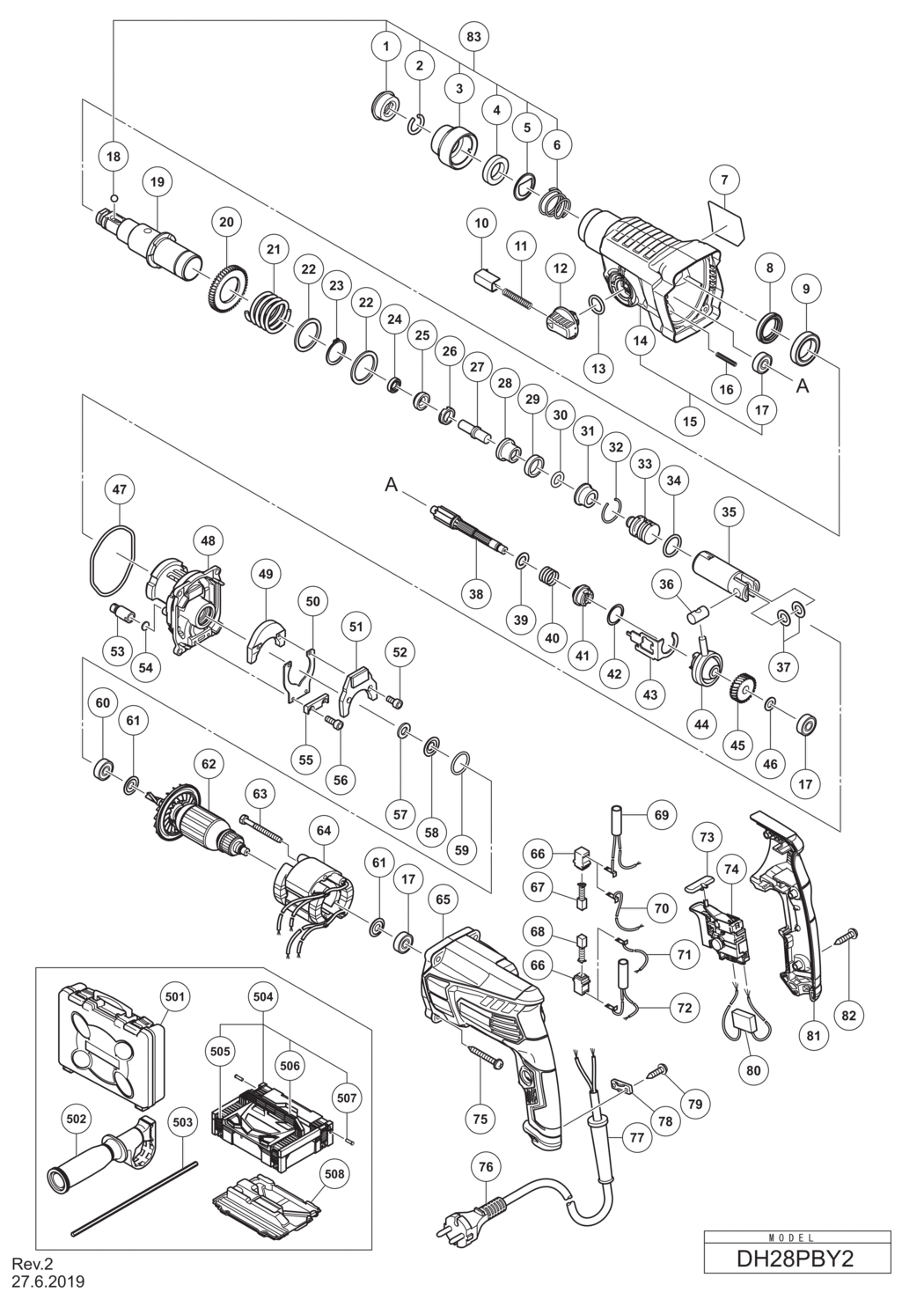

An exploded diagram and spare parts listing for the Hitachi / Hikoki DH28PBY2 Hammer Drill

	Ex VAT	Inc VAT
1 - FRONT CAP HIT-306345.A14 306345	£3.59	£4.31
2 - STOPPER RING HIT-306340.A24 306340	£1.67	£2.00
3 - GRIP HIT-374436.A8 374436	-
4 - BALL HOLDER HIT-374437.A2 374437	-
5 - HOLDER PLATE HIT-374435.A2 374435	-
6 - HOLDER SPRING HIT-322812.A32 322812	£1.67	£2.00
7 - NAME PLATE HIT-000000.A2803 000000	-
8 - OIL SEAL HIT-335259.A19 335259	£5.07	£6.08
9 - BALL BEARING 6805 HIT-6805BB.A1 6805BB	-
10 - PUSHING BUTTON HIT-322789.A13 322789	£6.50	£7.80
11 - PUSHING SPRING HIT-317223.A8 317223	£1.67	£2.00
12 - CHANGE LEVER HIT-334011.A9 334011	£3.92	£4.70
13 - O-RING (S-18) HIT-878885.A34 878885	£1.67	£2.00
14 - GEAR COVER HIT-374631.A0 374631	-
15 - GEAR COVER ASS'Y INCLUD.14 HIT-375019.A0 375019	-
16 - SPRING (E) HIT-335800.A4 335800	£1.67	£2.00
17 - BALL BEARING 608VVC2PS2L HIT-608VVM.A183 608VVM	£5.70	£6.84
18 - STEEL BALL D7.0 (10 PCS.) HIT-335300.A20 335300	£1.67	£2.00
19 - CYLINDER HIT-374426.A7 374426	£28.38	£34.06
20 - SECOND GEAR HIT-335265.A19 335265	£10.52	£12.62
21 - SPRING (B) HIT-374430.A3 374430	-
22 - WASHER (A) HIT-301679.A17 301679	£1.67	£2.00
23 - RETAINING RING FOR D30 SHAFT HIT-948310.A6 948310	£1.67	£2.00
24 - OIL SEAL (A) HIT-335262.A5 335262	£3.12	£3.74
25 - HAMMER HOLDER (B) HIT-374431.A7 374431	-
26 - HOLDER SLEEVE HIT-374427.A2 374427	-
27 - SECOND HAMMER HIT-374432.A2 374432	-
28 - HAMMER HOLDER (A) HIT-374429.A7 374429	-
29 - DAMPER (A) HIT-322805.A2 322805	£1.67	£2.00
30 - O-RING (C) HIT-322808.A2 322808	£1.67	£2.00
31 - DAMPER HOLDER HIT-324524.A25 324524	£8.66	£10.39
32 - STOPPER RING HIT-322807.A26 322807	£1.67	£2.00
33 - STRIKER HIT-374443.A2 374443	-
34 - O-RING HIT-372816.A4 372816	£5.07	£6.08
35 - PISTON HIT-372817.A8 372817	-
36 - PISTON PIN HIT-335793.A14 335793	£5.78	£6.94
37 - PISTON WASHER HIT-335794.A8 335794	£1.67	£2.00
38 - SECOND SHAFT HIT-374621.A2 374621	-
39 - WASHER (C) HIT-335251.A5 335251	-
40 - CLUTCH SPRING HIT-323182.A15 323182	£1.67	£2.00
41 - CLUTCH HIT-375022.A6 375022	-
42 - WASHER HIT-331315.A15 331315	£1.67	£2.00
43 - CHANGE PLATE HIT-335252.A0 335252	-
44 - RECIPROCATING BEARING HIT-335249.A21 335249	£19.98	£23.97
45 - FIRST GEAR HIT-374441.A2 374441	-
46 - BEARING WASHER HIT-374442.A8 374442	-
47 - O-RING D72.2 HIT-335245.A15 335245	£1.67	£2.00
48 - INNER COVER HIT-374625.A2 374625	-
49 - WEIGHT (A) HIT-374627.A2 374627	-
50 - LEAF SPRING HIT-335282.A3 335282	£1.67	£2.00
51 - WEIGHT (B) HIT-374628.A1 374628	-
52 - SEAL LOCK HEX. SOCKET HD. BOLT M3X8 HIT-325241.A5 325241	£1.67	£2.00
53 - AIR CAP HIT-334008.A13 334008	-
54 - FELT PACKING (A) HIT-324543.A21 324543	£1.67	£2.00
55 - SPRING HOLDER HIT-374626.A1 374626	-
56 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-983162.A26 983162	£1.67	£2.00
57 - FELT PACKING HIT-322816.A15 322816	£1.67	£2.00
58 - PACKING WASHER HIT-322818.A4 322818	£4.33	£5.20
59 - O-RING (P-22) HIT-876796.A23 876796	£1.67	£2.00
60 - BALL BEARING 608DD HIT-608DDM.A55 608DDM	£6.35	£7.62
61 - WASHER (A) HIT-982631.A9 982631	£1.67	£2.00
*62 - ARMATURE (B) 110V HIT-361108C.A2 361108C	-
*62 - ARMATURE (B) 220V-230V HIT-361108E.A0 361108E	-
*62 - ARMATURE (B) 240V HIT-361108F.A1 361108F	-
63 - HEX. HD. TAPPING SCREW D4X45 HIT-981824.A9 981824	-
*64 - STATOR (A) 110V HIT-341028H.A2 341028H	-
*64 - STATOR (A) 110V (W/CR) FOR TPE HIT-341028C.A5 341028C	£18.45	£22.14
*64 - STATOR (A) 220V-230V HIT-341028K.A1 341028K	-
*64 - STATOR (A) 240V HIT-341028L.A2 341028L	-
65 - HOUSING (B) HIT-374622.A0 374622	-
66 - BRUSH HOLDER HIT-955203.A31 955203	£4.16	£4.99
67 - CARBON BRUSH (1 PAIR) HIT-999041.A49 999041	£5.54	£6.65
68 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) HIT-999072.A10 999072	£14.16	£16.99
69 - CHOKE COIL (BLOWN) FOR EUROPE HIT-374615.A8 374615	-
70 - INTERNAL WIRE (BROWN) FOR HKG HIT-374613.A6 374613	-
71 - INTERNAL WIRE (BLUE) FOR HKG HIT-374612.A0 374612	-
72 - CHOKE COIL (BLUE) FOR EUROPE HIT-374614.A1 374614	-
73 - PUSHING BUTTON HIT-322853.A8 322853	£1.67	£2.00
*74 - SWITCH 100V-127V HIT-374611.A8 374611	-
*74 - SWITCH 220V-240V HIT-374610.A1 374610	-
75 - TAPPING SCREW (W/FLANGE) D5X35 HIT-301654.A0 301654	£1.67	£2.00
*76 - CORD (CORD ARMOR D8.8) HIT-500390Z.A7 500390Z	-
*76 - CORD (CORD ARMOR D10.1) FOR HKG (110V) HIT-500239Z.A6 500239Z	-
*76 - CORD (CORD ARMOR D8.8) FOR HKG (220V) HIT-500440Z.A13 500440Z	£22.75	£27.30
*76 - CORD (CORD ARMOR D8.8) FOR MAL HIT-500424Z.A5 500424Z	-
*76 - CORD (CORD ARMOR D8.8) FOR CHN HIT-500496Z.A7 500496Z	-
*76 - CORD (CORD ARMOR D10.1) FOR TPE HIT-323974.A11 323974	-
*77 - CORD ARMOR D8.8 HIT-953327.A119 953327	£1.67	£2.00
*77 - CORD ARMOR D10.1 HIT-938051.A55 938051	£1.67	£2.00
78 - CORD CLIP HIT-937631.A14 937631	£1.67	£2.00
79 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A252 984750	£1.67	£2.00
80 - NOISE SUPPRESSOR FOR EUROPE HIT-930039.A29 930039	£3.85	£4.62
81 - HANDLE COVER (B) HIT-374623.A3 374623	-
82 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A209 301653	£1.67	£2.00
83 - GRIP SET INCLUD.1-6 HIT-375363.A10 375363	-
501 - CASE HIT-374630.A1 374630	-
502 - SIDE HANDLE HIT-374447.A5 374447	-
503 - DEPTH GAUGE HIT-303709.A26 303709	£1.67	£2.00
504 - CASE ASS'Y (STACKABLE 1) INCLUD.505-507 HIT-337739.A7 337739	-
505 - LATCH HIT-336472.A33 336472	£1.67	£2.00
506 - HANDLE HIT-336473.A41 336473	£6.43	£7.72
507 - HINGE HIT-336474.A33 336474	£1.67	£2.00
508 - INNER TRAY HIT-337741.A4 337741	-
601 - DUST COLLECTOR (B) ASS'Y INCLUD.602 HIT-306885.A18 306885	£25.14	£30.17
602 - DUST COLLECTOR ASS'Y INCLUD.603-609 HIT-986802.A0 986802	-
603 - DUST COVER HIT-986803.A25 986803	-
604 - SEAL COVER HIT-986804.A0 986804	-
605 - RETAINING RING FOR D30 SHAFT HIT-948310.A7 948310	£1.67	£2.00
606 - WASHER HIT-958063.A2 958063	-
607 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A14 959150	£1.67	£2.00
608 - OUTER RACE HIT-986805.A25 986805	-
609 - SOCKET HIT-986806.A0 986806	-
610 - SOCKET ADAPTER (B) HIT-306910.A22 306910	-
611 - DUST CUP HIT-971787.A21 971787	£4.40	£5.28
612 - STOPPER HIT-931844.A31 931844	-
613 - DRILL CHUCK 13VLRB-D INCLUD.614 HIT-321814.A12 321814	-
614 - FLAT HD. SCREW (LEFT HAND) M6X20 HIT-331966.A16 331966	£11.39	£13.67
615 - DRILL CHUCK 13VLD-D HIT-321813.A36 321813	-
616 - + DRIVER BIT (A) NO.2 25L HIT-971511Z.A19 971511Z	-
617 - + DRIVER BIT (A) NO.3 25L HIT-971512Z.A25 971512Z	-
618 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL) HIT-971794.A2 971794	-
619 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL) HIT-971795.A32 971795	-
620 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL) HIT-971796.A2 971796	-
621 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL) HIT-971797.A31 971797	-
622 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL) HIT-971798.A2 971798	-
623 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL) HIT-971799.A32 971799	-
624 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL) HIT-971800.A2 971800	-
625 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL) HIT-971801.A32 971801	-
626 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL) HIT-971802.A2 971802	-
627 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL) HIT-971803.A31 971803	-
628 - SYRINGE (BLOW-OUT BULB TYPE) HIT-320859.A30 320859	£10.35	£12.42
629 - COTTER HIT-944477.A21 944477	£5.17	£6.20
630 - CENTER PIN (A) 109L FOR CORE BIT D32-38 HIT-982684.A18 982684	-
631 - NO LONGER AVAILABLE HIT-982685.A11 982685	-
632 - GREASE FOR ROTARY HAMMER (500G) HIT-335781.A22 335781	£91.40	£109.68
633 - GREASE FOR ROTARY HAMMER (60G) HIT-335782.A0 335782	£19.89	£23.87
