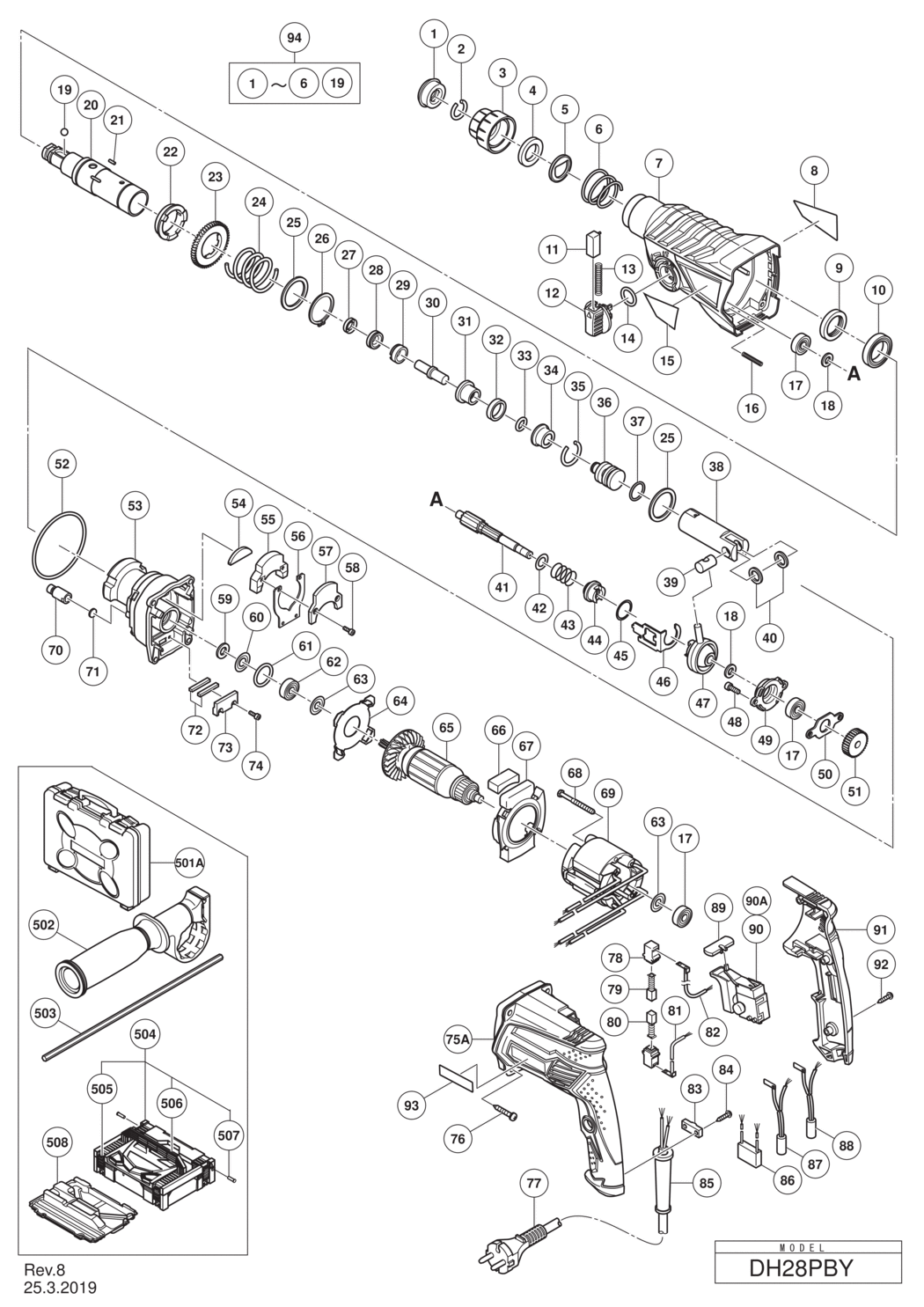

1 - FRONT CAP
HIT-306345.A16
306345
|
£3.59
|
£4.31
|
|
|
2 - STOPPER RING
HIT-306340.A22
306340
|
£1.67
|
£2.00
|
|
|
3 - GRIP
HIT-324527.A2
324527
|
£4.33
|
£5.20
|
|
|
4 - BALL HOLDER
HIT-324528.A12
324528
|
£8.66
|
£10.39
|
|
|
5 - HOLDER PLATE
HIT-324526.A23
324526
|
£4.33
|
£5.20
|
|
|
6 - HOLDER SPRING
HIT-322812.A29
322812
|
£1.67
|
£2.00
|
|
|
7 - GEAR COVER
HIT-335258.A0
335258
|
-
|
|
|
|
8 - NAME PLATE
HIT-000000.A2822
000000
|
-
|
|
|
|
9 - OIL SEAL
HIT-335259.A18
335259
|
£5.07
|
£6.08
|
|
|
10 - BALL BEARING 6805DD
HIT-335260.A1
335260
|
£6.06
|
£7.27
|
|
|
11 - PUSHING BUTTON
HIT-322789.A10
322789
|
£6.50
|
£7.80
|
|
|
12 - CHANGE LEVER
HIT-334011.A11
334011
|
£3.92
|
£4.70
|
|
|
13 - PUSHING SPRING
HIT-317223.A11
317223
|
£1.67
|
£2.00
|
|
|
14 - O-RING (S-18)
HIT-878885.A33
878885
|
£1.67
|
£2.00
|
|
|
15 - BRAND LABEL
HIT-000000.A2823
000000
|
-
|
|
|
|
16 - SPRING (E)
HIT-335800.A0
335800
|
£1.67
|
£2.00
|
|
|
17 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A185
608VVM
|
£5.70
|
£6.84
|
|
|
18 - BEARING WASHER
HIT-335250.A2
335250
|
£1.67
|
£2.00
|
|
|
19 - STEEL BALL D7.0 (10 PCS.)
HIT-335300.A18
335300
|
£1.67
|
£2.00
|
|
|
20 - CYLINDER
HIT-335261.A8
335261
|
£34.50
|
£41.40
|
|
|
21 - PIN D2.5
HIT-335264.A2
335264
|
£1.67
|
£2.00
|
|
|
22 - CYLINDER CLUTCH
HIT-335263.A9
335263
|
£18.38
|
£22.05
|
|
|
23 - SECOND GEAR
HIT-335265.A17
335265
|
£10.52
|
£12.62
|
|
|
24 - SPRING (A)
HIT-335266.A2
335266
|
£1.67
|
£2.00
|
|
|
25 - WASHER (A)
HIT-301679.A13
301679
|
£1.67
|
£2.00
|
|
|
26 - RETAINING RING FOR D30 SHAFT
HIT-948310.A11
948310
|
£1.67
|
£2.00
|
|
|
27 - OIL SEAL (A)
HIT-335262.A2
335262
|
£3.12
|
£3.74
|
|
|
28 - HAMMER HOLDER (C)
HIT-335268.A2
335268
|
£16.28
|
£19.54
|
|
|
29 - SLEEVE (FW)
HIT-335795.A8
335795
|
£7.66
|
£9.19
|
|
|
30 - SECOND HAMMER
HIT-335269.A8
335269
|
£7.12
|
£8.54
|
|
|
31 - HAMMER HOLDER (A)
HIT-335267.A9
335267
|
£5.43
|
£6.52
|
|
|
32 - DAMPER (A)
HIT-322805.A5
322805
|
£1.67
|
£2.00
|
|
|
33 - O-RING (C)
HIT-322808.A5
322808
|
£1.67
|
£2.00
|
|
|
34 - DAMPER HOLDER
HIT-324524.A28
324524
|
£8.66
|
£10.39
|
|
|
35 - STOPPER RING
HIT-322807.A23
322807
|
£1.67
|
£2.00
|
|
|
36 - STRIKER
HIT-335246.A0
335246
|
£7.48
|
£8.97
|
|
|
37 - O-RING D17
HIT-335247.A9
335247
|
£4.72
|
£5.66
|
|
|
38 - PISTON
HIT-335255.A8
335255
|
£19.02
|
£22.83
|
|
|
39 - PISTON PIN
HIT-335793.A10
335793
|
£5.78
|
£6.94
|
|
|
40 - PISTON WASHER
HIT-335794.A12
335794
|
£1.67
|
£2.00
|
|
|
41 - SECOND SHAFT
HIT-335248.A0
335248
|
-
|
|
|
|
42 - WASHER (C)
HIT-335251.A4
335251
|
-
|
|
|
|
43 - CLUTCH SPRING
HIT-323182.A11
323182
|
£1.67
|
£2.00
|
|
|
44 - CLUTCH
HIT-335254.A1
335254
|
£7.12
|
£8.54
|
|
|
45 - WASHER
HIT-331315.A13
331315
|
£1.67
|
£2.00
|
|
|
46 - CHANGE PLATE
HIT-335252.A1
335252
|
-
|
|
|
|
47 - RECIPROCATING BEARING
HIT-335249.A17
335249
|
£19.98
|
£23.97
|
|
|
48 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16
HIT-990079.A33
990079
|
£1.67
|
£2.00
|
|
|
49 - BEARING HOLDER
HIT-335270.A1
335270
|
£15.84
|
£19.01
|
|
|
50 - BEARING COVER
HIT-335271.A5
335271
|
£1.67
|
£2.00
|
|
|
51 - FIRST GEAR
HIT-335253.A5
335253
|
£11.52
|
£13.82
|
|
|
52 - O-RING D72.2
HIT-335245.A14
335245
|
£1.67
|
£2.00
|
|
|
53 - INNER COVER
HIT-335798.A2
335798
|
-
|
|
|
|
54 - WEIGHT DAMPER (A)
HIT-335285.A2
335285
|
£1.67
|
£2.00
|
|
|
55 - WEIGHT (A)
HIT-335280.A0
335280
|
£6.32
|
£7.59
|
|
|
56 - LEAF SPRING
HIT-335282.A0
335282
|
£1.67
|
£2.00
|
|
|
57 - WEIGHT (B)
HIT-335281.A2
335281
|
£3.21
|
£3.85
|
|
|
58 - SEAL LOCK HEX. SOCKET HD. BOLT M3X8
HIT-325241.A6
325241
|
£1.67
|
£2.00
|
|
|
59 - FELT PACKING
HIT-322816.A18
322816
|
£1.67
|
£2.00
|
|
|
60 - PACKING WASHER
HIT-322818.A1
322818
|
£4.33
|
£5.20
|
|
|
61 - O-RING (P-22)
HIT-876796.A24
876796
|
£1.67
|
£2.00
|
|
|
62 - BALL BEARING 608DD
HIT-608DDM.A54
608DDM
|
£6.35
|
£7.62
|
|
|
63 - WASHER (A)
HIT-982631.A13
982631
|
£1.67
|
£2.00
|
|
|
64 - COVER PLATE
HIT-335279.A2
335279
|
-
|
|
|
|
*65 - ARMATURE ASS'Y 110V-127V INCLUD.17
HIT-360961U.A1
360961U
|
£34.78
|
£41.74
|
|
|
*65 - ARMATURE 220V-230V
HIT-360961E.A3
360961E
|
£29.49
|
£35.39
|
|
|
66 - WEIGHT DAMPER (B)
HIT-335286.A0
335286
|
-
|
|
|
|
67 - FAN GUIDE
HIT-335244.A0
335244
|
£1.67
|
£2.00
|
|
|
68 - HEX. HD. TAPPING SCREW D4X50
HIT-961672.A7
961672
|
-
|
|
|
|
*69 - STATOR 110V-127V
HIT-340850C.A2
340850C
|
£21.78
|
£26.13
|
|
|
*69 - STATOR 220V-230V
HIT-340850E.A2
340850E
|
£21.70
|
£26.04
|
|
|
70 - AIR CAP
HIT-334008.A11
334008
|
-
|
|
|
|
71 - FELT PACKING (A)
HIT-324543.A18
324543
|
£1.67
|
£2.00
|
|
|
72 - SPRING DAMPER
HIT-335284.A0
335284
|
£1.67
|
£2.00
|
|
|
73 - SPRING HOLDER
HIT-335283.A2
335283
|
£1.67
|
£2.00
|
|
|
74 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12
HIT-983162.A22
983162
|
£1.67
|
£2.00
|
|
|
75A - HOUSING
HIT-335241.A0
335241
|
£15.44
|
£18.53
|
|
|
76 - TAPPING SCREW (W/FLANGE) D5X35
HIT-301654.A4
301654
|
£1.67
|
£2.00
|
|
|
*77 - CORD (CORD ARMOR D8.8) FOR GBR (230V)
HIT-500446Z.A25
500446Z
|
£33.79
|
£40.55
|
|
|
*77 - CORD (CORD ARMOR D8.8) FOR GBR (110V)
HIT-500465Z.A14
500465Z
|
£26.20
|
£31.44
|
|
|
78 - BRUSH HOLDER
HIT-955203.A30
955203
|
£4.16
|
£4.99
|
|
|
79 - CARBON BRUSH (1 PAIR)
HIT-999041.A53
999041
|
£5.54
|
£6.65
|
|
|
80 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
HIT-999072.A11
999072
|
£13.72
|
£16.46
|
|
|
83 - CORD CLIP
HIT-937631.A10
937631
|
£1.67
|
£2.00
|
|
|
84 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A258
984750
|
£1.67
|
£2.00
|
|
|
*85 - CORD ARMOR D8.8
HIT-953327.A121
953327
|
£1.67
|
£2.00
|
|
|
*86 - NOISE SUPPRESSOR EXCEPT FOR BRA
HIT-930039.A30
930039
|
£3.85
|
£4.62
|
|
|
*87 - CHOKE COIL (A) BROWN EXCEPT FOR BRA
HIT-335857.A6
335857
|
£3.48
|
£4.17
|
|
|
*88 - CHOKE COIL (A) BLUE EXCEPT FOR BRA
HIT-324551.A7
324551
|
£14.51
|
£17.41
|
|
|
89 - PUSHING BUTTON
HIT-322853.A11
322853
|
£1.67
|
£2.00
|
|
|
*90 - SWITCH
HIT-335796.A2
335796
|
£20.10
|
£24.12
|
|
|
*90A - SWITCH FOR TPE
HIT-337388.A1
337388
|
£23.15
|
£27.78
|
|
|
91 - HANDLE COVER
HIT-335242.A3
335242
|
£7.83
|
£9.40
|
|
|
92 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A204
301653
|
£1.67
|
£2.00
|
|
|
93 - BRAND LABEL
HIT-000000.A2828
000000
|
-
|
|
|
|
94 - GRIP ASS'Y INCLUD.1-6
HIT-375172.A1
375172
|
£7.75
|
£9.30
|
|
|
501A - CASE
HIT-337257.A4
337257
|
£30.05
|
£36.06
|
|
|
502 - SIDE HANDLE
HIT-335273.A8
335273
|
£14.28
|
£17.13
|
|
|
*503 - DEPTH GAUGE
HIT-303709.A22
303709
|
£1.67
|
£2.00
|
|
|
601 - DUST COLLECTOR (B) ASS'Y INCLUD.602
HIT-306885.A16
306885
|
£25.14
|
£30.17
|
|
|
602 - DUST COLLECTOR ASS'Y INCLUD.603-609
HIT-986802.A3
986802
|
-
|
|
|
|
603 - DUST COVER
HIT-986803.A22
986803
|
-
|
|
|
|
604 - SEAL COVER
HIT-986804.A3
986804
|
-
|
|
|
|
605 - RETAINING RING FOR D30 SHAFT
HIT-948310.A12
948310
|
£1.67
|
£2.00
|
|
|
606 - WASHER
HIT-958063.A3
958063
|
-
|
|
|
|
607 - STEEL BALL D6.35 (10 PCS.)
HIT-959150.A11
959150
|
£1.67
|
£2.00
|
|
|
608 - OUTER RACE
HIT-986805.A22
986805
|
-
|
|
|
|
609 - SOCKET
HIT-986806.A3
986806
|
-
|
|
|
|
610 - SOCKET ADAPTER (B)
HIT-306910.A24
306910
|
-
|
|
|
|
611 - DUST CUP
HIT-971787.A17
971787
|
£4.40
|
£5.28
|
|
|
612 - STOPPER
HIT-931844.A35
931844
|
-
|
|
|
|
613 - DRILL CHUCK 13VLRB-D INCLUD.614
HIT-321814.A16
321814
|
-
|
|
|
|
614 - FLAT HD. SCREW (LEFT HAND) M6X20
HIT-331966.A12
331966
|
£11.39
|
£13.67
|
|
|
615 - DRILL CHUCK 13VLD-D
HIT-321813.A32
321813
|
-
|
|
|
|
616 - + DRIVER BIT (A) NO.2 25L
HIT-971511Z.A20
971511Z
|
-
|
|
|
|
617 - + DRIVER BIT (A) NO.3 25L
HIT-971512Z.A24
971512Z
|
-
|
|
|
|
618 - COTTER
HIT-944477.A17
944477
|
£5.17
|
£6.20
|
|
|
619 - CENTER PIN (A) 109L FOR CORE BIT D32-38
HIT-982684.A15
982684
|
-
|
|
|
|
620 - NO LONGER AVAILABLE
HIT-982685.A14
982685
|
-
|
|
|
|
621 - NO LONGER AVAILABLE
HIT-982672.A1
982672
|
-
|
|
|
|
622 - NO LONGER AVAILABLE
HIT-982673.A12
982673
|
-
|
|
|
|
623 - NO LONGER AVAILABLE
HIT-982674.A0
982674
|
-
|
|
|
|
624 - NO LONGER AVAILABLE
HIT-982686.A9
982686
|
-
|
|
|
|
625 - NO LONGER AVAILABLE
HIT-982675.A12
982675
|
-
|
|
|
|
626 - NO LONGER AVAILABLE
HIT-982687.A9
982687
|
-
|
|
|
|
627 - CORE BIT (A) 38MM INCLUD.628
HIT-982676.A0
982676
|
-
|
|
|
|
628 - GUIDE PLATE (FOR CORE BIT 38MM)
HIT-982688.A9
982688
|
-
|
|
|
|
629 - CORE BIT (B) 45MM INCLUD.630
HIT-982677.A12
982677
|
£73.70
|
£88.44
|
|
|
630 - NO LONGER AVAILABLE
HIT-982689.A9
982689
|
-
|
|
|
|
631 - CORE BIT (B) 50MM INCLUD.632
HIT-982678.A0
982678
|
-
|
|
|
|
632 - NO LONGER AVAILABLE
HIT-982690.A9
982690
|
-
|
|
|
|
633 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL)
HIT-971794.A6
971794
|
-
|
|
|
|
634 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL)
HIT-971795.A28
971795
|
-
|
|
|
|
635 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL)
HIT-971796.A6
971796
|
-
|
|
|
|
636 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL)
HIT-971797.A27
971797
|
-
|
|
|
|
637 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL)
HIT-971798.A6
971798
|
-
|
|
|
|
638 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL)
HIT-971799.A28
971799
|
-
|
|
|
|
639 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL)
HIT-971800.A6
971800
|
-
|
|
|
|
640 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL)
HIT-971801.A28
971801
|
-
|
|
|
|
641 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL)
HIT-971802.A6
971802
|
-
|
|
|
|
642 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL)
HIT-971803.A27
971803
|
-
|
|
|
|
643 - TAPER SHANK DRILL BIT D11X100
HIT-944460.A5
944460
|
-
|
|
|
|
644 - TAPER SHANK DRILL BIT D12.3X110
HIT-944461.A10
944461
|
-
|
|
|
|
645 - TAPER SHANK DRILL BIT D12.7X110
HIT-993038.A10
993038
|
-
|
|
|
|
647 - TAPER SHANK DRILL BIT D14.5X110
HIT-944500.A10
944500
|
-
|
|
|
|
649 - TAPER SHANK DRILL BIT D21.5X140
HIT-944464.A4
944464
|
-
|
|
|
|
650 - SYRINGE (BLOW-OUT BULB TYPE)
HIT-320859.A27
320859
|
£10.35
|
£12.42
|
|
|
651 - BULL POINT (SDS+) 250MM(ROUND SHANK TYPE
HIT-303046.A2
303046
|
-
|
|
|
|
652 - CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L
HIT-303044.A2
303044
|
-
|
|
|
|
653 - CHEMICAL ANCHOR ADAPTER(SDS+)19.0MMX100L
HIT-303045.A16
303045
|
-
|
|
|
|
654 - SPECIAL SCREW M6X22
HIT-981122.A14
981122
|
£1.67
|
£2.00
|
|
|
655 - CHUCK WRENCH 10G
HIT-930515.A34
930515
|
£6.38
|
£7.66
|
|
|
656 - ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L
HIT-302976.A23
302976
|
-
|
|
|
|
657 - ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L
HIT-302975.A0
302975
|
-
|
|
|
|
658 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L
HIT-303621.A9
303621
|
-
|
|
|
|
659 - ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L
HIT-302974.A23
302974
|
-
|
|
|
|
660 - ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L
HIT-302979.A0
302979
|
-
|
|
|
|
661 - ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L
HIT-302978.A23
302978
|
-
|
|
|
|
662 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L
HIT-303622.A14
303622
|
-
|
|
|
|
663 - ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L
HIT-302977.A0
302977
|
-
|
|
|
|
664 - HAMMER DRILL CHUCK SET 13MM INCLUD.665
HIT-303332.A7
303332
|
-
|
|
|
|
665 - CHUCK HANDLE
HIT-303334.A32
303334
|
-
|
|
|
|
666 - RUBBER CAP
HIT-303335.A7
303335
|
£7.78
|
£9.34
|
|
|
667 - TAPER SHANK ADAPTER (SDS PLUS) NO.1
HIT-303617.A9
303617
|
£39.42
|
£47.31
|
|
|
668 - TAPER SHANK ADAPTER (SDS PLUS) NO.2
HIT-303618.A10
303618
|
£40.02
|
£48.02
|
|
|
669 - A-TAPER SHANK ADAPTER (SDS PLUS)
HIT-303619.A9
303619
|
£31.41
|
£37.69
|
|
|
670 - B-TAPER SHANK ADAPTER (SDS PLUS)
HIT-303620.A14
303620
|
-
|
|
|
|
671 - CORE BIT SHANK (SDS PLUS) 25-38MM 105L
HIT-303625.A9
303625
|
-
|
|
|
|
672 - CORE BIT SHANK (SDS PLUS) 25-38MM 300L
HIT-303626.A9
303626
|
-
|
|
|
|
673 - CORE BIT SHANK (SDS PLUS) 45-90MM 300L
HIT-303627.A9
303627
|
-
|
|
|
|
674 - CHUCK ADAPTER (D) (SDS PLUS)
HIT-303624.A13
303624
|
£37.06
|
£44.47
|
|
|
675 - DRILL CHUCK AND ADAPTER SET INCLUD.613
HIT-321825.A25
321825
|
-
|
|
|
|
676 - CHUCK ADAPTER (G) (SDS PLUS)
HIT-303623.A10
303623
|
-
|
|
|
|
677 - ADAPTER FOR SLENDER SHAFT (SDS PLUS)
HIT-306370.A3
306370
|
-
|
|
|
|
678 - GREASE FOR ROTARY HAMMER (500G)
HIT-335781.A19
335781
|
£91.40
|
£109.68
|
|
|
679 - GREASE FOR ROTARY HAMMER (60G)
HIT-335782.A3
335782
|
£19.89
|
£23.87
|
|
