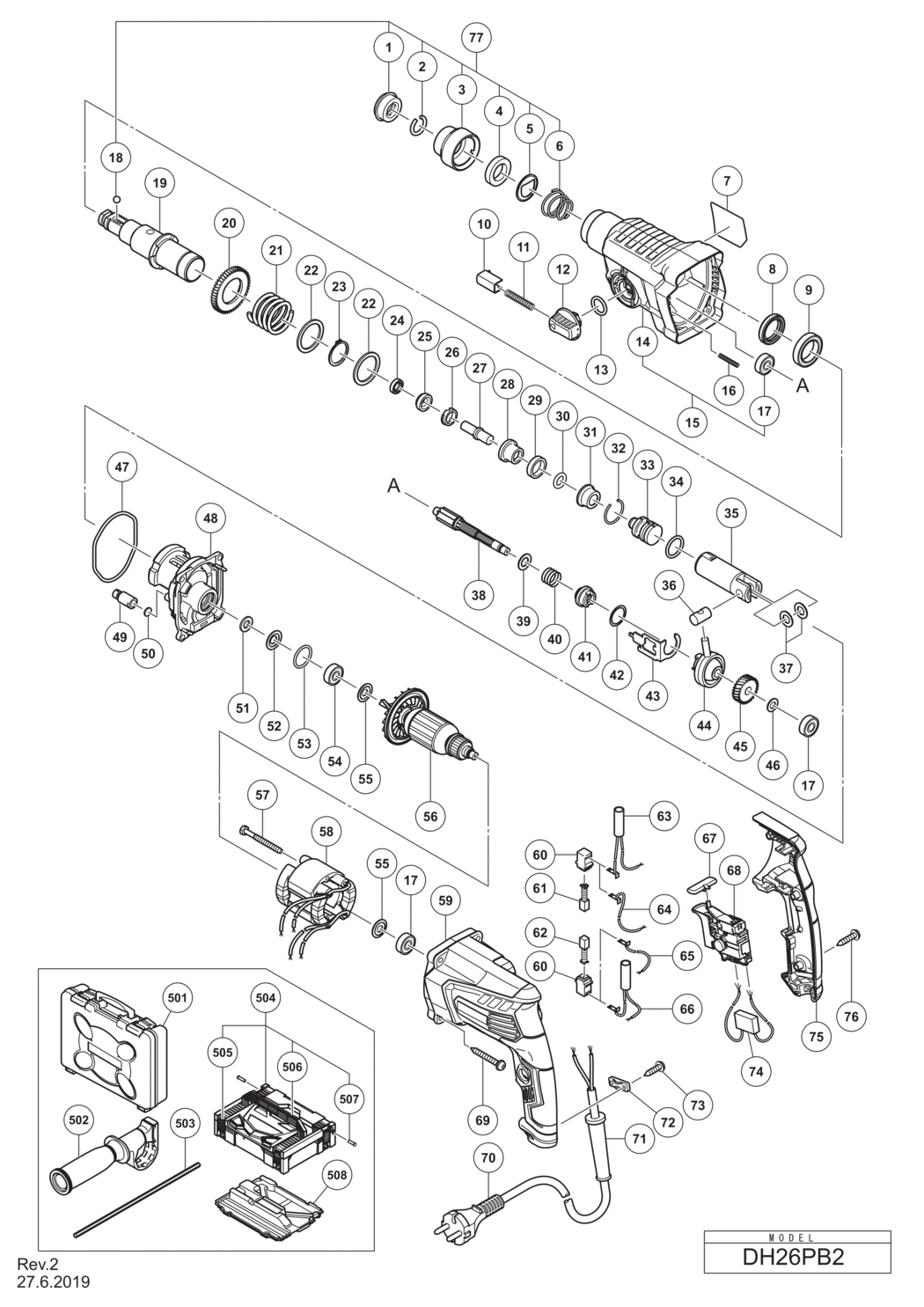

1 - FRONT CAP
HIT-306345.A2
306345
|
£3.59
|
£4.31
|
|
|
2 - STOPPER RING
HIT-306340.A39
306340
|
£1.67
|
£2.00
|
|
|
3 - GRIP
HIT-374436.A3
374436
|
-
|
|
|
|
4 - BALL HOLDER
HIT-374437.A7
374437
|
-
|
|
|
|
5 - HOLDER PLATE
HIT-374435.A7
374435
|
-
|
|
|
|
6 - HOLDER SPRING
HIT-322812.A20
322812
|
£1.67
|
£2.00
|
|
|
7 - NAME PLATE
HIT-000000.A298
000000
|
-
|
|
|
|
8 - OIL SEAL
HIT-335259.A12
335259
|
£5.07
|
£6.08
|
|
|
9 - BALL BEARING 6805
HIT-6805BB.A7
6805BB
|
-
|
|
|
|
10 - PUSHING BUTTON
HIT-322789.A18
322789
|
£6.50
|
£7.80
|
|
|
11 - PUSHING SPRING
HIT-317223.A3
317223
|
£1.67
|
£2.00
|
|
|
12 - CHANGE LEVER
HIT-334011.A4
334011
|
£3.92
|
£4.70
|
|
|
13 - O-RING (S-18)
HIT-878885.A48
878885
|
£1.67
|
£2.00
|
|
|
14 - GEAR COVER
HIT-374620.A0
374620
|
-
|
|
|
|
15 - GEAR COVER ASS'Y INCLUD.14
HIT-375017.A1
375017
|
-
|
|
|
|
16 - SPRING (E)
HIT-335800.A7
335800
|
£1.67
|
£2.00
|
|
|
17 - BALL BEARING 608VVC2PS2L
HIT-608VVM.A139
608VVM
|
£5.70
|
£6.84
|
|
|
18 - STEEL BALL D7.0 (10 PCS.)
HIT-335300.A16
335300
|
£1.67
|
£2.00
|
|
|
19 - CYLINDER
HIT-374426.A5
374426
|
£28.38
|
£34.06
|
|
|
20 - SECOND GEAR
HIT-335265.A11
335265
|
£10.52
|
£12.62
|
|
|
21 - SPRING (B)
HIT-374430.A5
374430
|
-
|
|
|
|
22 - WASHER (A)
HIT-301679.A8
301679
|
£1.67
|
£2.00
|
|
|
23 - RETAINING RING FOR D30 SHAFT
HIT-948310.A30
948310
|
£1.67
|
£2.00
|
|
|
24 - OIL SEAL (A)
HIT-335262.A12
335262
|
£3.12
|
£3.74
|
|
|
25 - HAMMER HOLDER (B)
HIT-374431.A5
374431
|
-
|
|
|
|
26 - HOLDER SLEEVE
HIT-374427.A4
374427
|
-
|
|
|
|
27 - SECOND HAMMER
HIT-374432.A4
374432
|
-
|
|
|
|
28 - HAMMER HOLDER (A)
HIT-374429.A5
374429
|
-
|
|
|
|
29 - DAMPER (A)
HIT-322805.A15
322805
|
£1.67
|
£2.00
|
|
|
30 - O-RING (C)
HIT-322808.A15
322808
|
£1.67
|
£2.00
|
|
|
31 - DAMPER HOLDER
HIT-324524.A15
324524
|
£8.66
|
£10.39
|
|
|
32 - STOPPER RING
HIT-322807.A13
322807
|
£1.67
|
£2.00
|
|
|
33 - STRIKER
HIT-374443.A8
374443
|
-
|
|
|
|
34 - O-RING
HIT-372816.A8
372816
|
£5.07
|
£6.08
|
|
|
35 - PISTON
HIT-372817.A4
372817
|
-
|
|
|
|
36 - PISTON PIN
HIT-335793.A16
335793
|
£5.78
|
£6.94
|
|
|
37 - PISTON WASHER
HIT-335794.A6
335794
|
£1.67
|
£2.00
|
|
|
38 - SECOND SHAFT
HIT-374621.A1
374621
|
-
|
|
|
|
39 - WASHER (C)
HIT-335251.A3
335251
|
-
|
|
|
|
40 - CLUTCH SPRING
HIT-323182.A4
323182
|
£1.67
|
£2.00
|
|
|
41 - CLUTCH
HIT-375022.A4
375022
|
-
|
|
|
|
42 - WASHER
HIT-331315.A19
331315
|
£1.67
|
£2.00
|
|
|
43 - CHANGE PLATE
HIT-335252.A2
335252
|
-
|
|
|
|
44 - RECIPROCATING BEARING
HIT-335249.A11
335249
|
£19.98
|
£23.97
|
|
|
45 - FIRST GEAR
HIT-374441.A8
374441
|
-
|
|
|
|
46 - BEARING WASHER
HIT-374442.A2
374442
|
-
|
|
|
|
47 - O-RING D72.2
HIT-335245.A11
335245
|
£1.67
|
£2.00
|
|
|
48 - INNER COVER
HIT-374433.A3
374433
|
-
|
|
|
|
49 - AIR CAP
HIT-334008.A17
334008
|
-
|
|
|
|
50 - FELT PACKING (A)
HIT-324543.A30
324543
|
£1.67
|
£2.00
|
|
|
51 - FELT PACKING
HIT-322816.A12
322816
|
£1.67
|
£2.00
|
|
|
52 - PACKING WASHER
HIT-322818.A7
322818
|
£4.33
|
£5.20
|
|
|
53 - O-RING (P-22)
HIT-876796.A12
876796
|
£1.67
|
£2.00
|
|
|
54 - BALL BEARING 608DD
HIT-608DDM.A31
608DDM
|
£6.35
|
£7.62
|
|
|
55 - WASHER (A)
HIT-982631.A24
982631
|
£1.67
|
£2.00
|
|
|
*56 - ARMATURE (A) 110V
HIT-361106C.A2
361106C
|
£20.57
|
£24.68
|
|
|
*56 - ARMATURE (A) 120V
HIT-361106D.A0
361106D
|
-
|
|
|
|
*56 - ARMATURE (A) 220V-230V
HIT-361106E.A2
361106E
|
-
|
|
|
|
*56 - ARMATURE (A) 240V
HIT-361106F.A0
361106F
|
-
|
|
|
|
57 - HEX. HD. TAPPING SCREW D4X45
HIT-981824.A1
981824
|
-
|
|
|
|
*58 - STATOR (A) 110V
HIT-341028H.A1
341028H
|
-
|
|
|
|
*58 - STATOR (A) 110V (W/CR) FOR TPE
HIT-341028C.A3
341028C
|
£18.45
|
£22.14
|
|
|
*58 - STATOR (A) 120V
HIT-341028D.A0
341028D
|
-
|
|
|
|
*58 - STATOR (A) 220V-230V
HIT-341028K.A3
341028K
|
-
|
|
|
|
*58 - STATOR (A) 240V
HIT-341028L.A1
341028L
|
-
|
|
|
|
*59 - HOUSING (A)
HIT-374616.A2
374616
|
-
|
|
|
|
*59 - HOUSING (A) FOR MEX
HIT-374616M.A0
374616M
|
-
|
|
|
|
60 - BRUSH HOLDER
HIT-955203.A44
955203
|
£4.16
|
£4.99
|
|
|
61 - CARBON BRUSH (1 PAIR)
HIT-999041.A59
999041
|
£5.54
|
£6.65
|
|
|
62 - CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
HIT-999072.A17
999072
|
£14.16
|
£16.99
|
|
|
63 - CHOKE COIL (BLOWN) FOR EUROPE
HIT-374615.A2
374615
|
-
|
|
|
|
64 - INTERNAL WIRE (BROWN) EXCEPT FOR EUROPE
HIT-374613.A2
374613
|
-
|
|
|
|
65 - INTERNAL WIRE (BLUE) EXCEPT FOR EUROPE
HIT-374612.A4
374612
|
-
|
|
|
|
66 - CHOKE COIL (BLUE) FOR EUROPE
HIT-374614.A6
374614
|
-
|
|
|
|
67 - PUSHING BUTTON
HIT-322853.A5
322853
|
£1.67
|
£2.00
|
|
|
*68 - SWITCH 100V-127V
HIT-374611.A3
374611
|
-
|
|
|
|
*68 - SWITCH 220V-240V
HIT-374610.A6
374610
|
-
|
|
|
|
69 - TAPPING SCREW (W/FLANGE) D5X35
HIT-301654.A6
301654
|
£1.67
|
£2.00
|
|
|
*70 - CORD (CORD ARMOR D8.8)
HIT-500390Z.A4
500390Z
|
-
|
|
|
|
*70 - CORD (CORD ARMOR D10.1) FOR THA
HIT-500239Z.A4
500239Z
|
-
|
|
|
|
*70 - CORD UAE (110V)
HIT-500239Z.A5
500239Z
|
-
|
|
|
|
*70 - CORD (CORD ARMOR D8.8) FOR MAL
HIT-500424Z.A3
500424Z
|
-
|
|
|
|
*70 - CORD (CORD ARMOR D8.8) FOR HKG (220V)
HIT-500440Z.A0
500440Z
|
£22.75
|
£27.30
|
|
|
*70 - CORD (CORD ARMOR D8.8) FOR MEX
HIT-500249Z.A2
500249Z
|
-
|
|
|
|
*70 - CORD (CORD ARMOR D8.8) FOR CHN
HIT-500496Z.A3
500496Z
|
-
|
|
|
|
*70 - CORD (CORD ARMOR D10.1) FOR TPE
HIT-323974.A9
323974
|
-
|
|
|
|
*71 - CORD ARMOR D8.8
HIT-953327.A155
953327
|
£1.67
|
£2.00
|
|
|
*71 - CORD ARMOR D10.1
HIT-938051.A46
938051
|
£1.67
|
£2.00
|
|
|
72 - CORD CLIP
HIT-937631.A71
937631
|
£1.67
|
£2.00
|
|
|
73 - TAPPING SCREW (W/FLANGE) D4X16
HIT-984750.A188
984750
|
£1.67
|
£2.00
|
|
|
74 - NOISE SUPPRESSOR FOR EUROPE
HIT-930039.A10
930039
|
£3.85
|
£4.62
|
|
|
75 - HANDLE COVER (A)
HIT-374617.A2
374617
|
-
|
|
|
|
76 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A188
301653
|
£1.67
|
£2.00
|
|
|
77 - GRIP SET INCLUD.1-6
HIT-375363.A5
375363
|
-
|
|
|
|
501 - CASE
HIT-374619.A2
374619
|
-
|
|
|
|
502 - SIDE HANDLE
HIT-374447.A2
374447
|
-
|
|
|
|
*503 - DEPTH GAUGE
HIT-303709.A13
303709
|
£1.67
|
£2.00
|
|
|
*503 - DEPTH GAUGE FOR MEX
HIT-310331.A1
310331
|
-
|
|
|
|
504 - CASE ASS'Y (STACKABLE 1) INCLUD.505-507
HIT-337739.A8
337739
|
-
|
|
|
|
505 - LATCH
HIT-336472.A19
336472
|
£1.67
|
£2.00
|
|
|
506 - HANDLE
HIT-336473.A55
336473
|
£6.43
|
£7.72
|
|
|
507 - HINGE
HIT-336474.A19
336474
|
£1.67
|
£2.00
|
|
|
508 - INNER TRAY
HIT-337741.A3
337741
|
-
|
|
|
|
601 - DUST COLLECTOR (B) ASS'Y INCLUD.602
HIT-306885.A10
306885
|
£25.14
|
£30.17
|
|
|
602 - DUST COLLECTOR ASS'Y INCLUD.603-609
HIT-986802.A8
986802
|
-
|
|
|
|
603 - DUST COVER
HIT-986803.A17
986803
|
-
|
|
|
|
604 - SEAL COVER
HIT-986804.A8
986804
|
-
|
|
|
|
605 - RETAINING RING FOR D30 SHAFT
HIT-948310.A29
948310
|
£1.67
|
£2.00
|
|
|
606 - WASHER
HIT-958063.A9
958063
|
-
|
|
|
|
607 - STEEL BALL D6.35 (10 PCS.)
HIT-959150.A7
959150
|
£1.67
|
£2.00
|
|
|
608 - OUTER RACE
HIT-986805.A17
986805
|
-
|
|
|
|
609 - SOCKET
HIT-986806.A8
986806
|
-
|
|
|
|
610 - SOCKET ADAPTER (B)
HIT-306910.A33
306910
|
-
|
|
|
|
611 - DUST CUP
HIT-971787.A4
971787
|
£4.40
|
£5.28
|
|
|
612 - STOPPER
HIT-931844.A21
931844
|
-
|
|
|
|
613 - DRILL CHUCK 13VLRB-D INCLUD.614
HIT-321814.A6
321814
|
-
|
|
|
|
614 - FLAT HD. SCREW (LEFT HAND) M6X20
HIT-331966.A4
331966
|
£11.39
|
£13.67
|
|
|
615 - DRILL CHUCK 13VLD-D
HIT-321813.A45
321813
|
-
|
|
|
|
616 - + DRIVER BIT (A) NO.2 25L
HIT-971511Z.A4
971511Z
|
-
|
|
|
|
617 - + DRIVER BIT (A) NO.3 25L
HIT-971512Z.A39
971512Z
|
-
|
|
|
|
618 - ANCHOR SETTING ADAPTER A W1/4 (MANUAL)
HIT-971794.A14
971794
|
-
|
|
|
|
619 - ANCHOR SETTING ADAPTER A W5/16 (MANUAL)
HIT-971795.A19
971795
|
-
|
|
|
|
620 - ANCHOR SETTING ADAPTER A W3/8 (MANUAL)
HIT-971796.A15
971796
|
-
|
|
|
|
621 - ANCHOR SETTING ADAPTER A W1/2 (MANUAL)
HIT-971797.A18
971797
|
-
|
|
|
|
622 - ANCHOR SETTING ADAPTER A W5/8 (MANUAL)
HIT-971798.A15
971798
|
-
|
|
|
|
623 - ANCHOR SETTING ADAPTER B W1/4 (MANUAL)
HIT-971799.A19
971799
|
-
|
|
|
|
624 - ANCHOR SETTING ADAPTER B W5/16 (MANUAL)
HIT-971800.A15
971800
|
-
|
|
|
|
625 - ANCHOR SETTING ADAPTER B W3/8 (MANUAL)
HIT-971801.A19
971801
|
-
|
|
|
|
626 - ANCHOR SETTING ADAPTER B W1/2 (MANUAL)
HIT-971802.A15
971802
|
-
|
|
|
|
627 - ANCHOR SETTING ADAPTER B W5/8 (MANUAL)
HIT-971803.A18
971803
|
-
|
|
|
|
628 - SYRINGE (BLOW-OUT BULB TYPE)
HIT-320859.A40
320859
|
£10.35
|
£12.42
|
|
|
629 - COTTER
HIT-944477.A4
944477
|
£5.17
|
£6.20
|
|
|
630 - CENTER PIN (A) 109L FOR CORE BIT D32-38
HIT-982684.A8
982684
|
-
|
|
|
|
631 - NO LONGER AVAILABLE
HIT-982685.A21
982685
|
-
|
|
|
|
632 - GREASE FOR ROTARY HAMMER (500G)
HIT-335781.A9
335781
|
£91.40
|
£109.68
|
|
|
633 - GREASE FOR ROTARY HAMMER (60G)
HIT-335782.A13
335782
|
£19.89
|
£23.87
|
|
